Product Overview

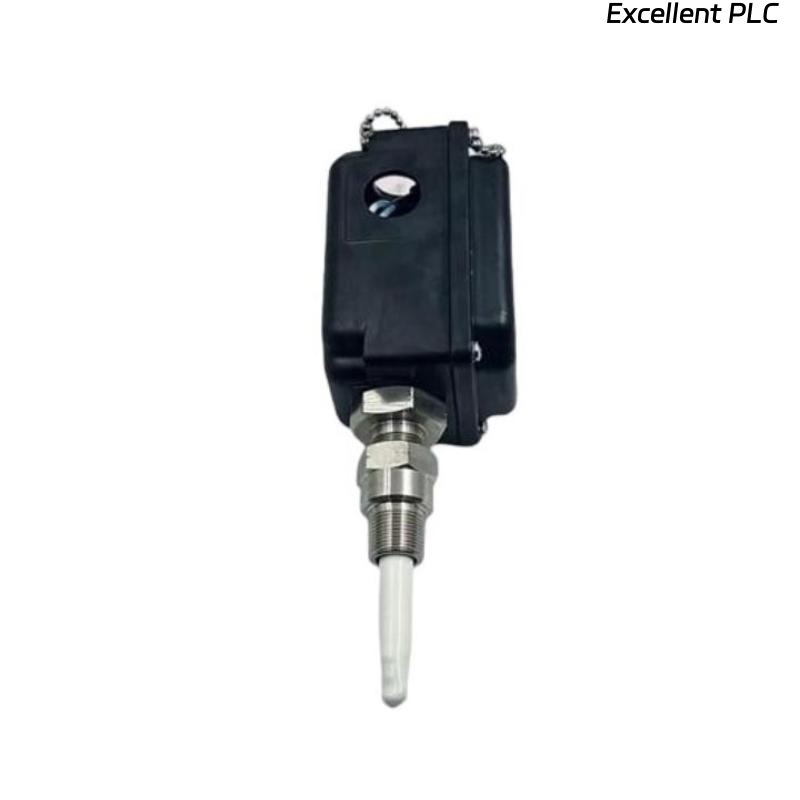

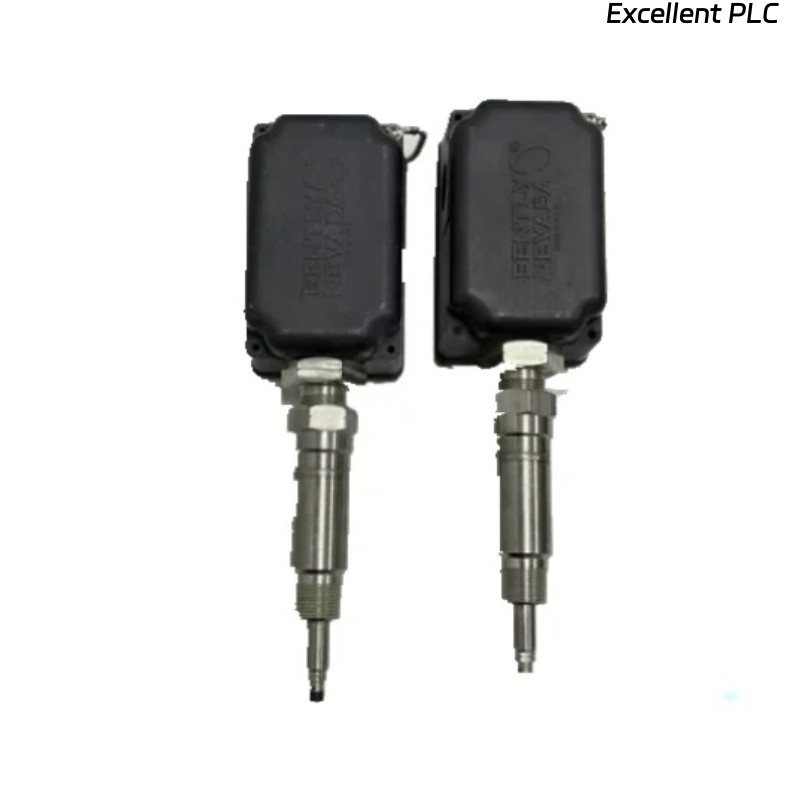

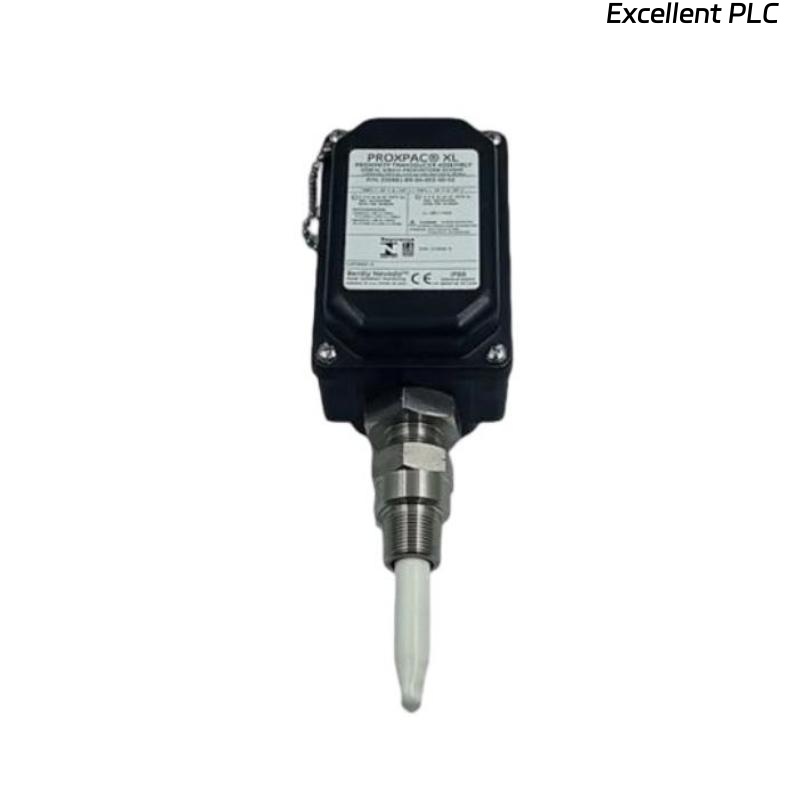

The Bently Nevada 330881-28-06-105-00-02 PROXPAC XL Proximity Sensor is a high-performance integrated proximity transducer designed for precise vibration and position monitoring in industrial machinery. Part of the PROXPAC XL series, this sensor combines the probe and Proximitor sensor into a single housing, simplifying installation and reducing potential sources of error. Engineered for harsh industrial environments, it delivers reliable performance for condition monitoring applications across a variety of rotating equipment.
Key Features
-
Integrated Design: Combines probe and Proximitor sensor in one unit, eliminating the need for extension cables.
-
Durable Construction: Constructed from Polyphenylene Sulfide (PPS) with glass and conductive fibers for enhanced strength and electrostatic dissipation.
-
Environmental Protection: Rated Type 4X and IP66 for protection against dust and water ingress.
-
Flexible Mounting: Features a 3/4-14 NPT mounting thread for easy installation.
-
Factory Calibration: Calibrated to AISI 4140 steel; calibration to other materials available on request.
-
Reliable Performance: Optimized for continuous operation in demanding industrial environments.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330881-28-06-105-00-02 |
| Series | PROXPAC XL |
| Probe Type | 3300 XL 8 mm |
| Standoff Adapter | 60 mm |
| Probe Penetration | 105 mm |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Environmental Rating | Type 4X, IP66 |
| Operating Temperature | -40 °C to +85 °C |
| Dimensions | 91.4 x 144.8 mm |
| Weight | 1.44 kg |
| Applications | Shaft position and vibration monitoring in industrial machinery |
Industry Applications
-
Power generation: turbine and generator shaft monitoring
-
Oil & Gas: vibration analysis of pumps and compressors
-
Chemical processing: agitator and mixer condition monitoring
-
Water treatment: motor shaft position monitoring in pumps
-
General manufacturing: vibration monitoring in rotating equipment
-
Pulp and paper industry: machinery condition monitoring
-
Industrial automation: rotating machinery monitoring
Frequently Asked Questions (FAQ)
Q1: What is the advantage of the integrated design?
It reduces installation complexity and minimizes potential errors by eliminating extension cables.
Q2: Can the probe be calibrated to materials other than AISI 4140 steel?
Yes, calibration to other target materials is available upon request.
Q3: What is the environmental protection rating?
The housing is rated Type 4X and IP66, protecting against dust and water ingress.
Q4: What is the operating temperature range?
It operates between -40 °C and +85 °C.
Q5: What are the physical dimensions and weight?
Dimensions: 91.4 x 144.8 mm, Weight: approx. 1.44 kg.
Q6: What is the mounting thread type?
The sensor features a 3/4-14 NPT mounting thread.
Q7: What type of probe is used in this sensor?
It uses a 3300 XL 8 mm proximity probe.
Q8: What applications is this sensor suitable for?
It is used for vibration and shaft position monitoring in turbines, pumps, compressors, and other rotating machinery.
