Product Overview

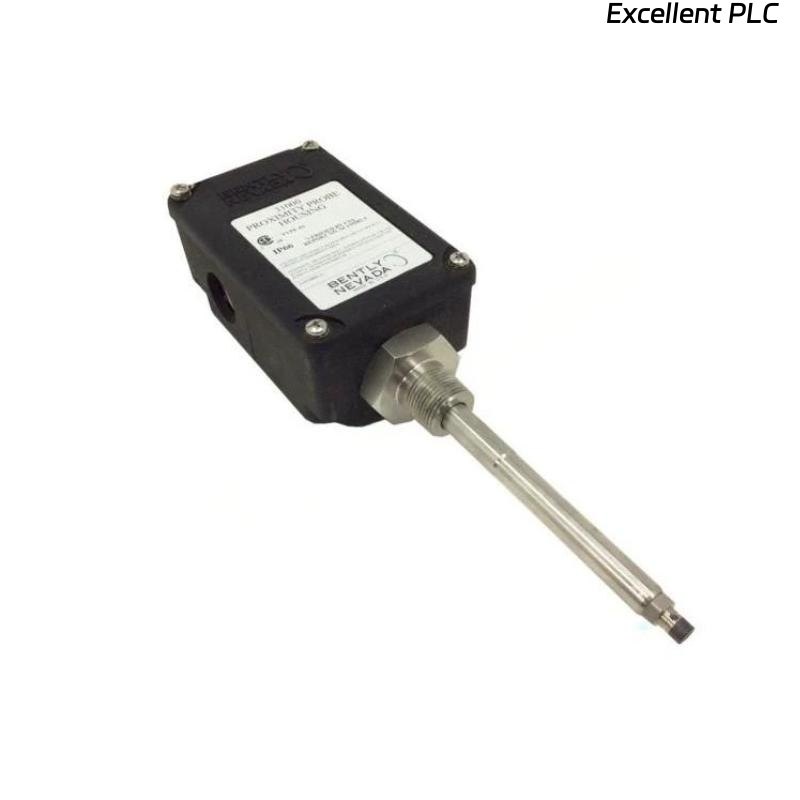

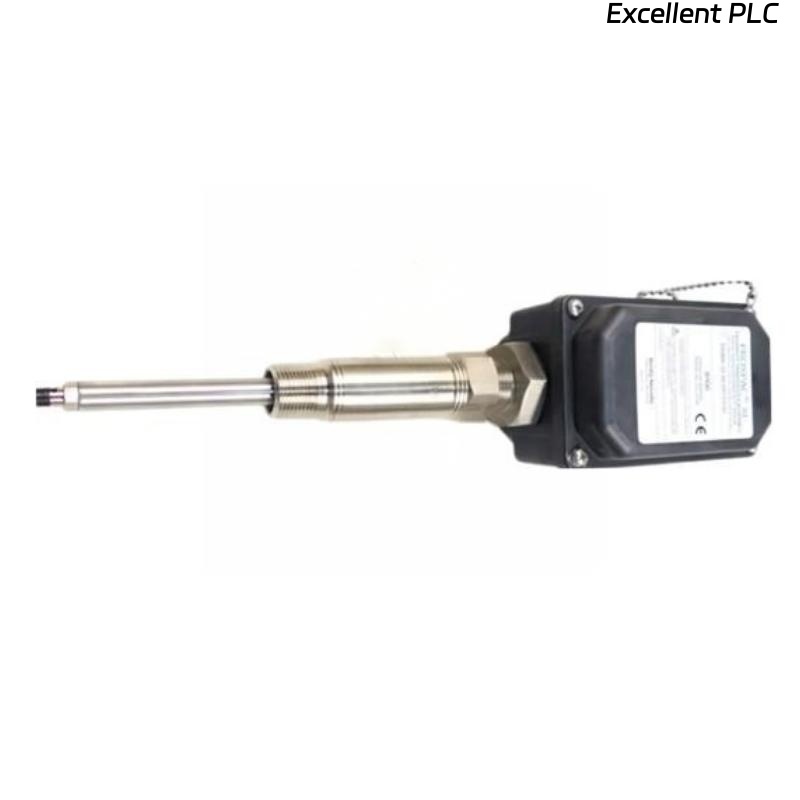

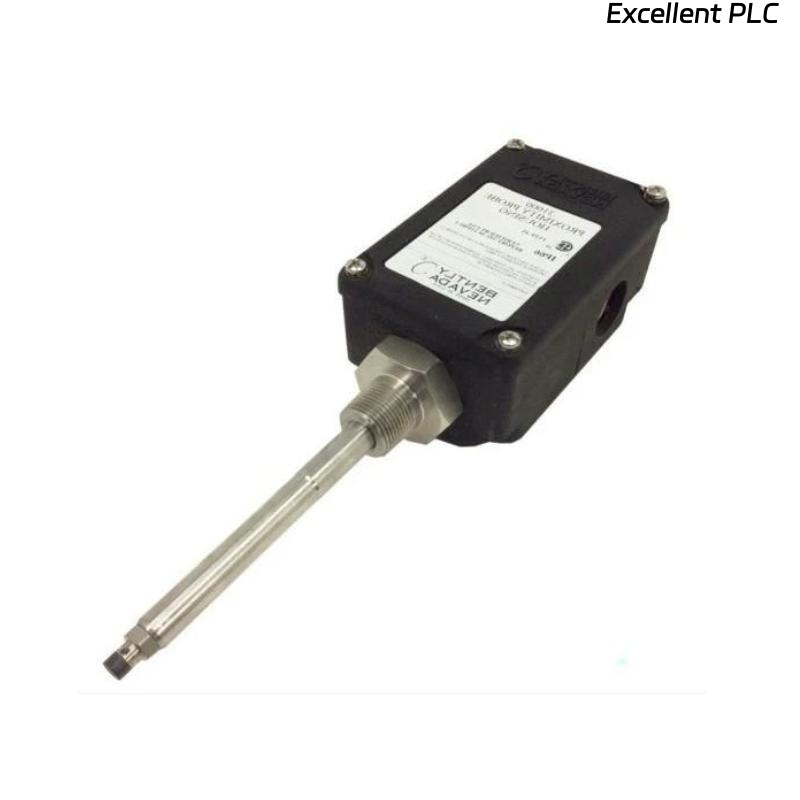

The Bently Nevada 330881-28-06-140-03-02 PROXPAC XL Proximity Sensor is a high-performance integrated proximity transducer designed for precise vibration and shaft position monitoring in industrial machinery. Part of the PROXPAC XL series, this sensor combines the probe and Proximitor sensor into a single housing, simplifying installation and reducing potential wiring errors. Engineered for harsh industrial environments, it provides reliable performance for condition monitoring applications in turbines, pumps, compressors, and other rotating equipment.
Key Features
-
Integrated Design: Combines probe and Proximitor sensor in one unit, eliminating the need for extension cables.
-
Durable Construction: Made from Polyphenylene Sulfide (PPS) with glass and conductive fibers for strength and electrostatic dissipation.
-
Environmental Protection: Rated Type 4X and IP66 for dust and water ingress protection.
-
Flexible Mounting: Features a 3/4-14 NPT mounting thread for easy installation.
-
Factory Calibration: Calibrated to AISI 4140 steel; calibration to other materials available on request.
-
Reliable Performance: Optimized for continuous operation in demanding industrial environments.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330881-28-06-140-03-02 |
| Series | PROXPAC XL |
| Probe Type | 3300 XL 8 mm |
| Standoff Adapter | 60 mm |
| Probe Penetration | 140 mm |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Environmental Rating | Type 4X, IP66 |
| Operating Temperature | -40 °C to +85 °C |
| Dimensions | 91.4 x 144.8 mm |
| Weight | 1.44 kg |
| Applications | Vibration and shaft position monitoring in industrial machinery |
Industry Applications
-
Power generation: turbine and generator shaft monitoring
-
Oil & Gas: vibration analysis of pumps and compressors
-
Chemical processing: agitator and mixer condition monitoring
-
Water treatment: motor shaft position monitoring in pumps
-
General manufacturing: vibration monitoring in rotating equipment
-
Pulp and paper industry: machinery condition monitoring
-
Industrial automation: rotating machinery monitoring
Frequently Asked Questions (FAQ)
Q1: What is the advantage of the integrated design?
It reduces installation complexity and minimizes potential errors by eliminating extension cables.
Q2: Can the probe be calibrated to materials other than AISI 4140 steel?
Yes, calibration to other target materials is available upon request.
Q3: What is the environmental protection rating?
The housing is rated Type 4X and IP66, protecting against dust and water ingress.
Q4: What is the operating temperature range?
It operates between -40 °C and +85 °C.
Q5: What are the physical dimensions and weight?
Dimensions: 91.4 x 144.8 mm, Weight: approx. 1.44 kg.
Q6: What is the mounting thread type?
The sensor features a 3/4-14 NPT mounting thread.
Q7: What type of probe is used in this sensor?
It uses a 3300 XL 8 mm proximity probe.
Q8: What applications is this sensor suitable for?
It is used for vibration and shaft position monitoring in turbines, pumps, compressors, and other rotating machinery.
