Product Overview

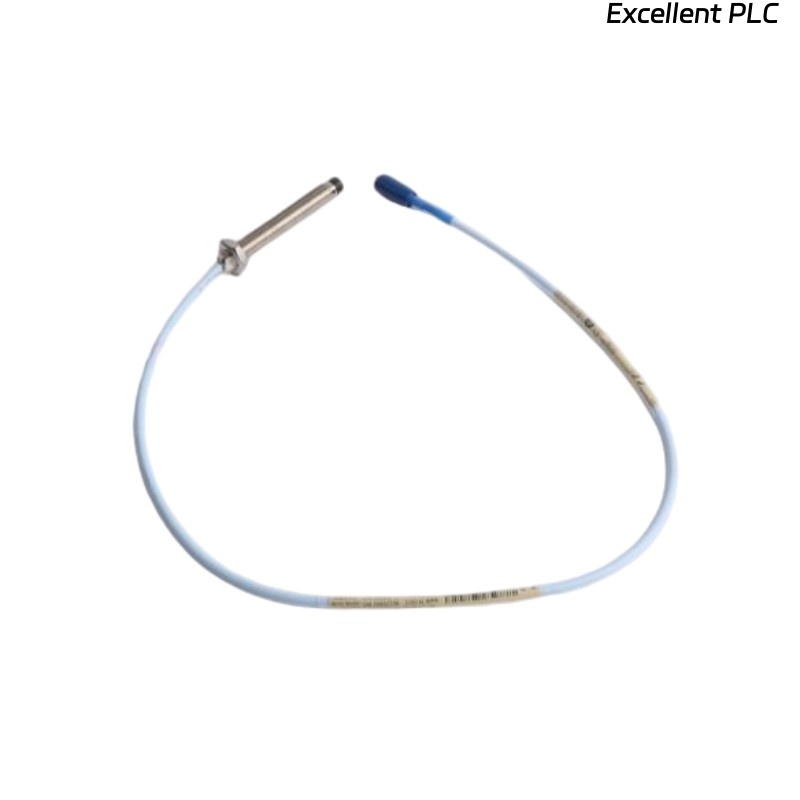

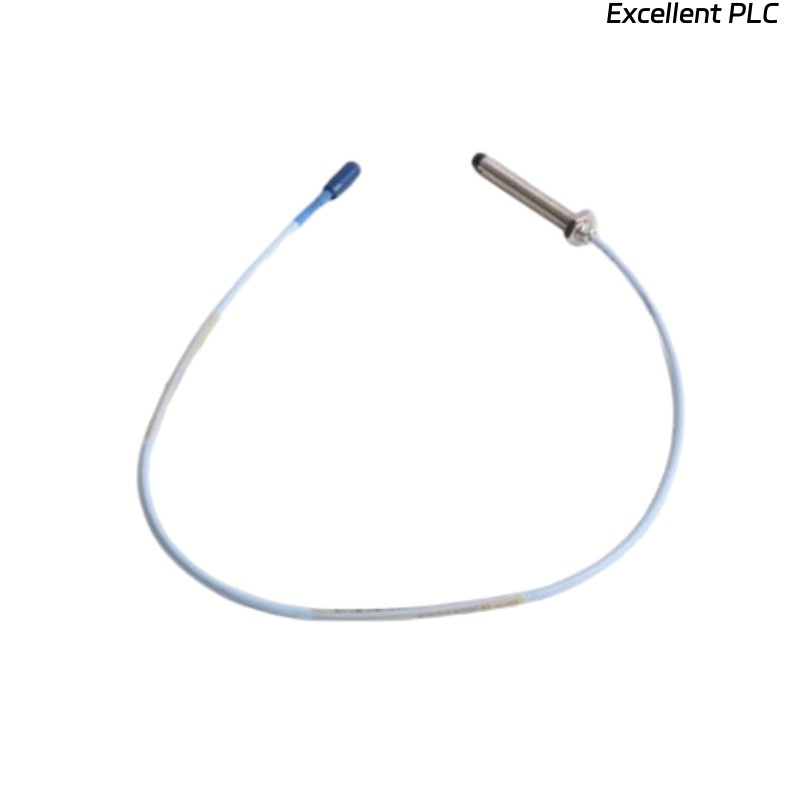

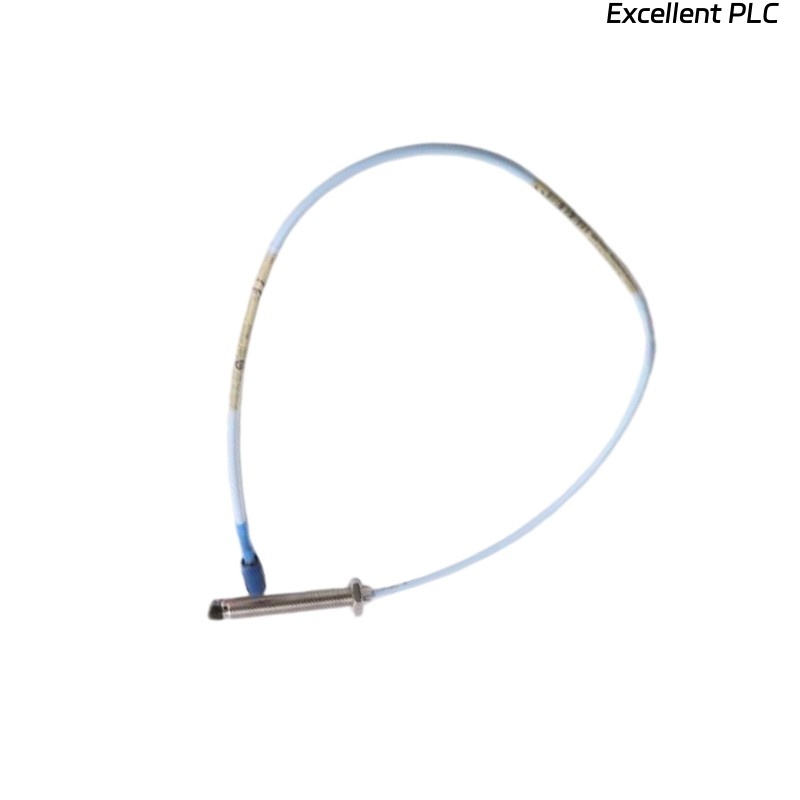

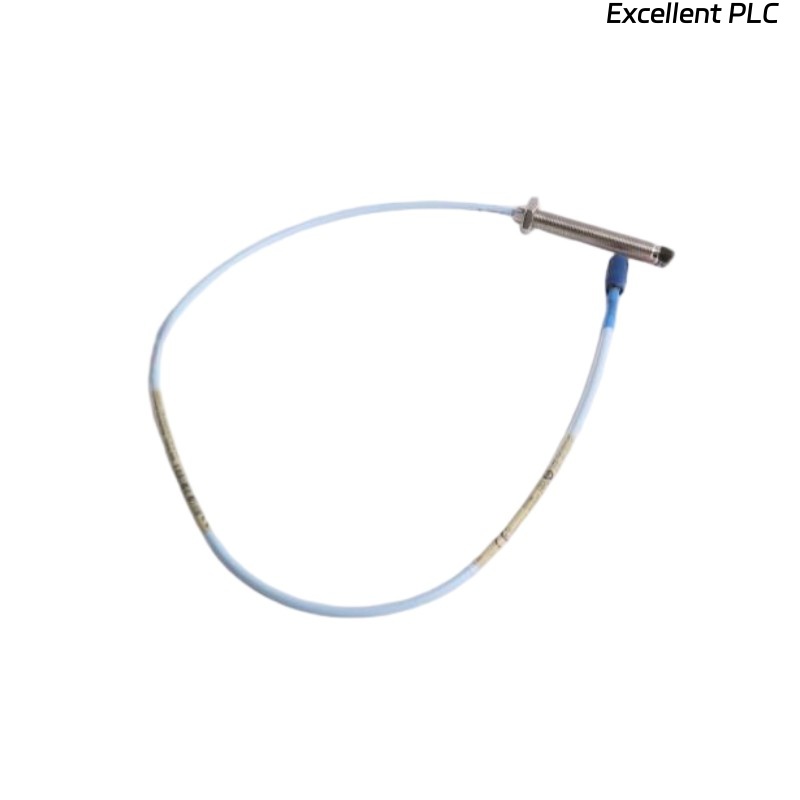

The Bently Nevada 330901-00-08-10-02-00 3300 NSv Proximity Probe is part of the 3300 NSv (Narrow Side-view) system, specifically designed for small-form-factor machinery and applications where standard proximity probes cannot be used due to space limitations.
Key Features
-
Compact design ideal for small and limited-space applications
-
Provides accurate vibration and shaft position measurements
-
Compatible with 3300 NSv Proximitor® sensors and extension cables
-
Non-contact measurement for enhanced reliability and durability
-
Rugged construction for harsh industrial environments
-
Fully compliant with API 670 machinery protection standards
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330901-00-08-10-02-00 |
| Series | 3300 NSv |
| Type | Proximity Probe |
| Probe Tip Diameter | 5 mm (approx.) |
| Dimensions | Total Length : 1.0 meter |
| Weight | Shipping weight: 3 kg |
| System Compatibility | Works with 3300 NSv Extension Cables and Proximitor® Sensors |
| Measurement Range | Compatible with API 670 requirements |
| Operating Temperature | -35 °C to +177 °C (probe) |
| Storage Temperature | -50 °C to +200 °C |
| Humidity | 100% condensing |
| Case Material | Stainless Steel housing |
| Compliance | CE, RoHS, API 670 |
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330901-00-08-10-02-00 probe?
It measures shaft vibration and position in compact machinery applications.
Q2: Which systems is it compatible with?
It is designed for use with Bently Nevada 3300 NSv extension cables and Proximitor® sensors.
Q3: What is the probe length?
This model comes with an 8 m integral cable.
Q4: What is the probe tip size?
It features a compact 5 mm probe tip.
Q5: What is the operating temperature range?
-35 °C to +177 °C for the probe.
Q6: Is it suitable for harsh industrial conditions?
Yes, it is built with rugged stainless steel housing and rated for condensing humidity.
Q7: Does it comply with API 670?
Yes, it meets API 670 machinery protection standards.
Q8: Can it be used in space-constrained machinery?
Yes, it is specifically designed for limited-space environments.
Q9: What material is the probe housing made from?
Stainless steel for durability and corrosion resistance.
Q10: Which industries commonly use this probe?
Oil & Gas, Power Generation, Petrochemical, Aerospace, and Manufacturing.
