Product Overview

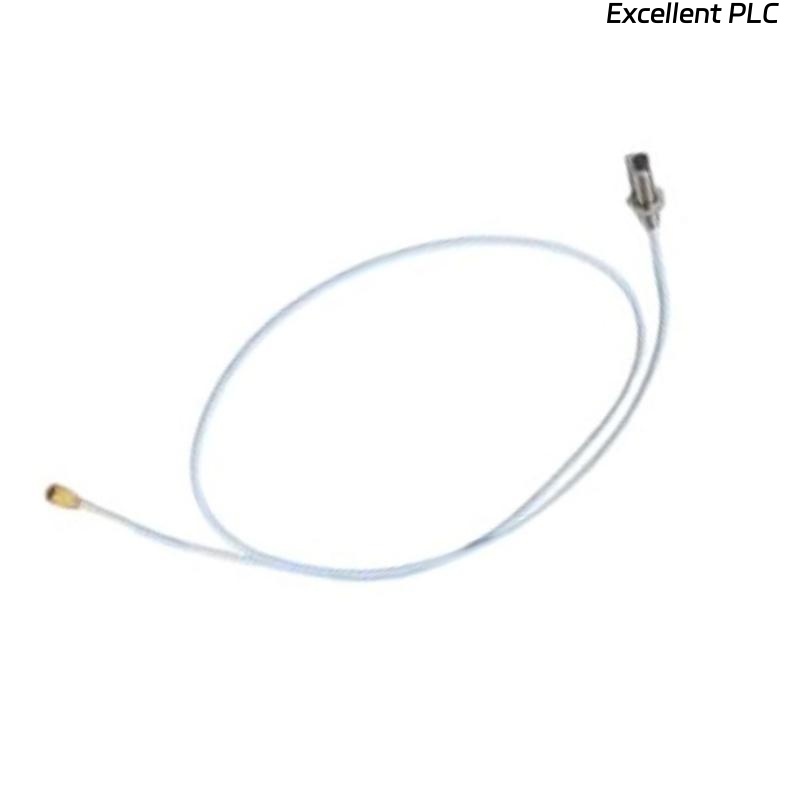

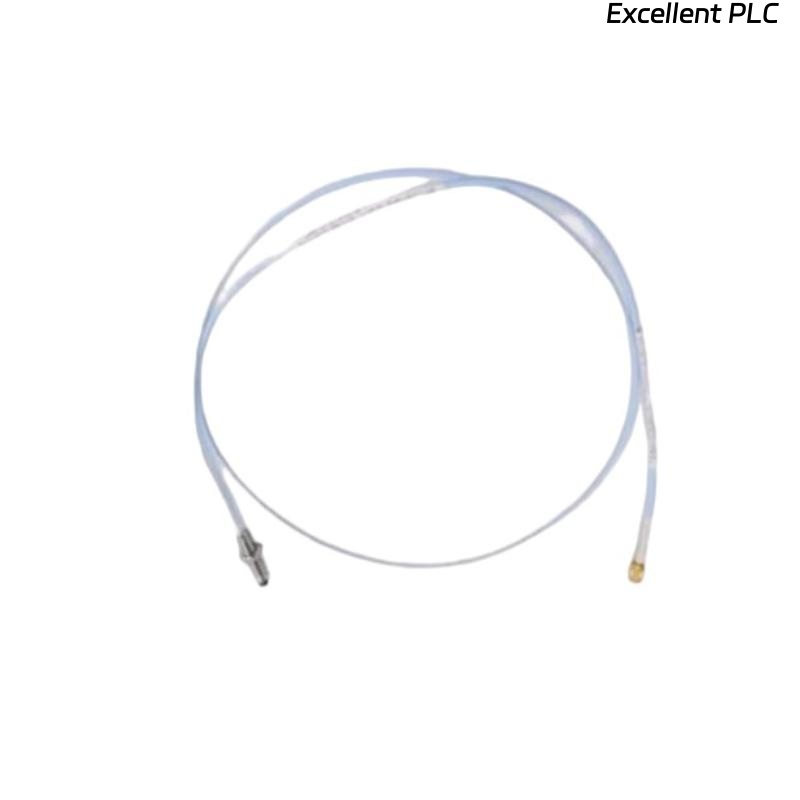

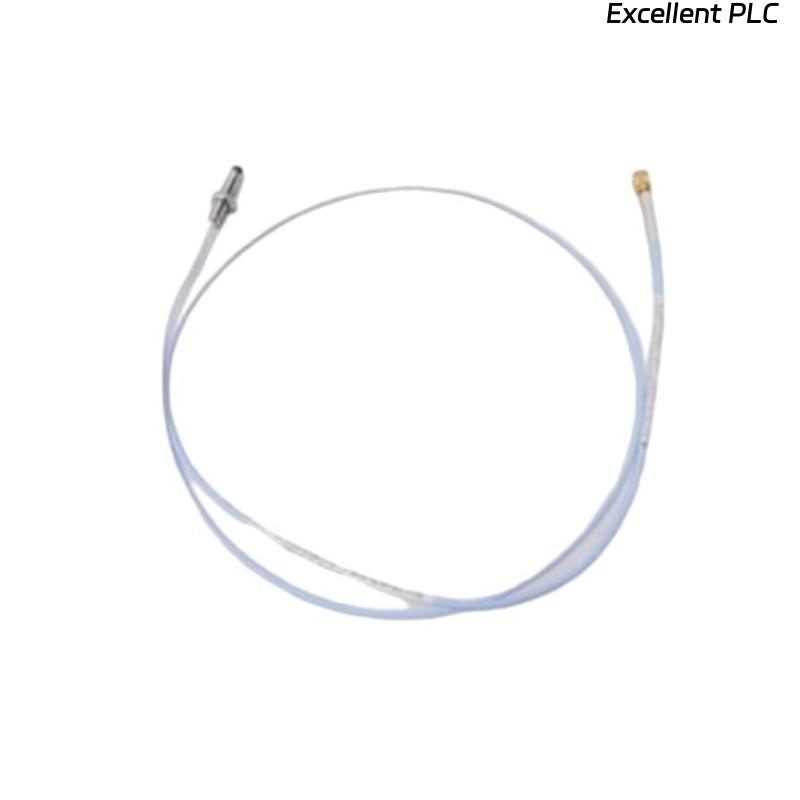

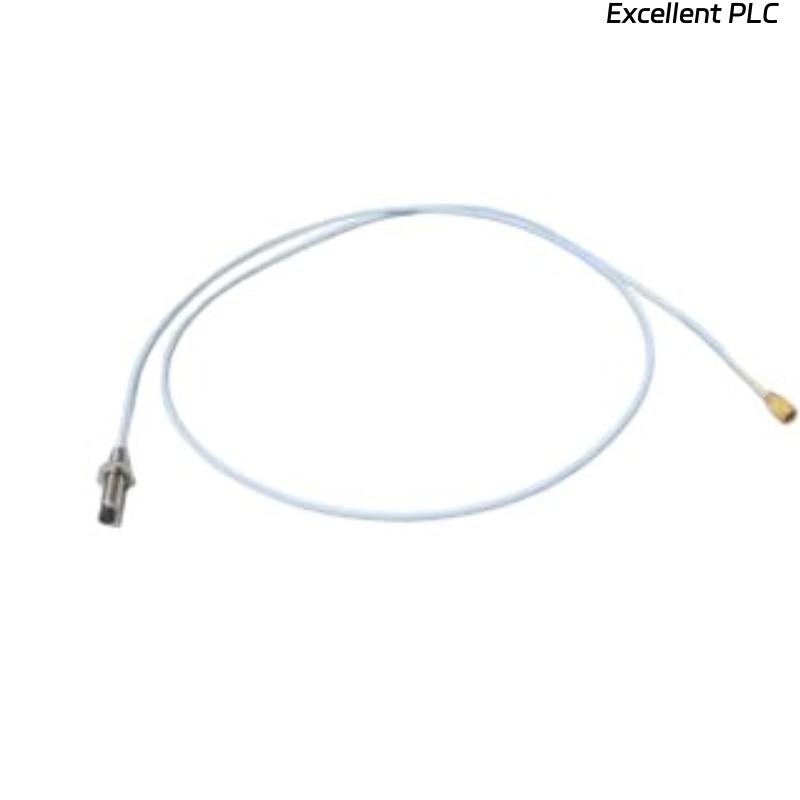

The Bently Nevada 330901-00-12-05-02-00 3300 NSv Proximity Probe is part of the 3300 NSv (Narrow Side-view) system, designed for applications with space constraints where standard proximity probes cannot be installed.It provides precise, non-contact measurements of shaft vibration and position, helping to protect rotating machinery and enable predictive maintenance. The probe integrates seamlessly with 3300 NSv extension cables and Proximitor® sensors, ensuring reliable monitoring of critical machinery.
Key Features
-
Compact design for space-limited applications
-
Accurate vibration and shaft position measurement
-
Compatible with 3300 NSv Proximitor® sensors and extension cables
-
Non-contact operation for long-term reliability
-
Robust stainless steel construction for harsh industrial environments
-
Meets API 670 standards for machinery protection
Technical Specifications
Item | Specification |
---|---|
Model Number | 330901-00-12-05-02-00 |
Series | 3300 NSv |
Type | Proximity Probe |
Probe Tip Diameter | 5 mm |
Dimensions | Total Length : 0.5 meter |
Weight | 0.15 kg |
System Compatibility | Works with 3300 NSv Extension Cables and Proximitor® Sensors |
Measurement Range | Compatible with API 670 requirements |
Operating Temperature | -35 °C to +177 °C (probe) |
Storage Temperature | -50 °C to +200 °C |
Humidity | 100% condensing |
Case Material | Stainless Steel housing |
Compliance | CE, RoHS, API 670 |
Frequently Asked Questions (FAQ)
Q1: What is the main function of this probe?
It measures shaft vibration and position in compact machinery applications.
Q2: Which systems is it compatible with?
It works with 3300 NSv extension cables and Proximitor® sensors.
Q3: What is the probe length?
This model comes with a 12 m integral cable.
Q4: What is the probe tip size?
It features a 5 mm probe tip.
Q5: What is the operating temperature range?
-35 °C to +177 °C for the probe.
Q6: Can it withstand harsh industrial conditions?
Yes, it is built with stainless steel housing and rated for 100% condensing humidity.
Q7: Does it meet API 670 standards?
Yes, it complies with API 670 machinery protection requirements.
Q8: Can it be used in space-constrained machinery?
Yes, it is specifically designed for limited-space environments.
Q9: What material is the probe housing made from?
Stainless steel for durability and corrosion resistance.
Q10: Which industries commonly use this probe?
Oil & Gas, Power Generation, Petrochemical, Aerospace, and Industrial Manufacturing.
