Product Introduction

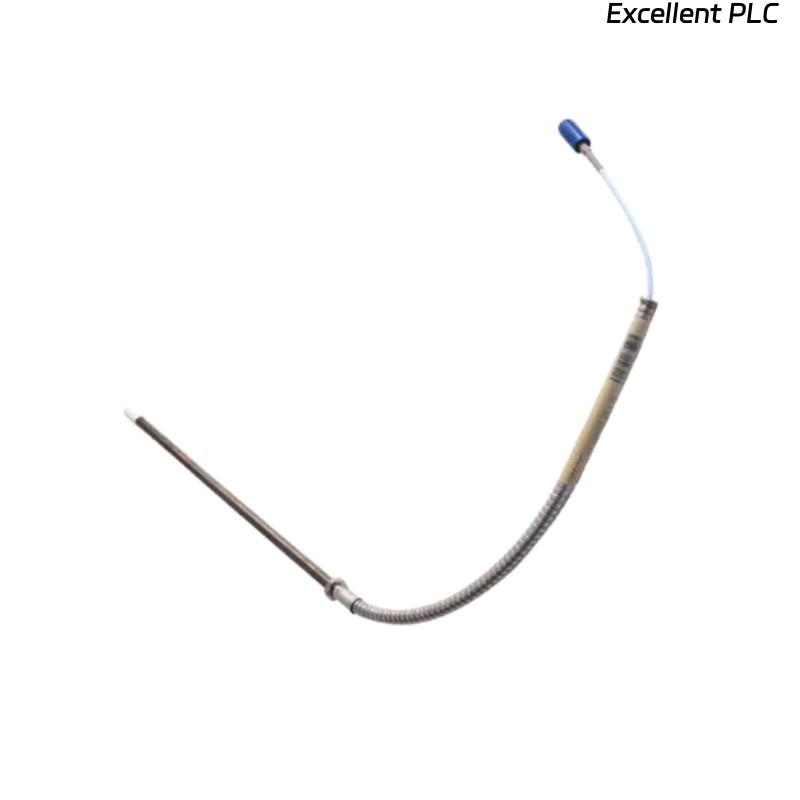

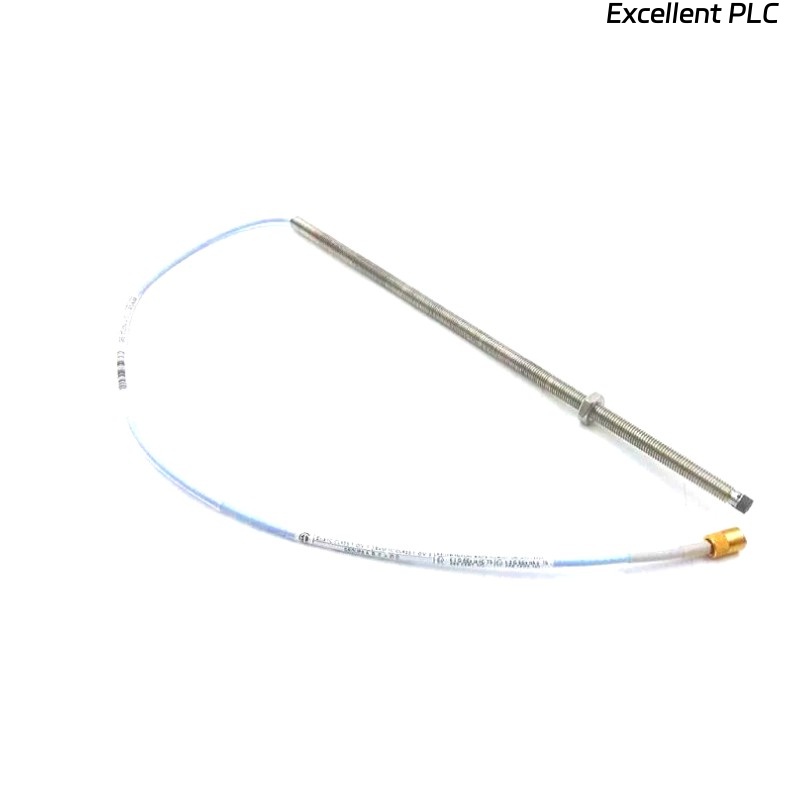

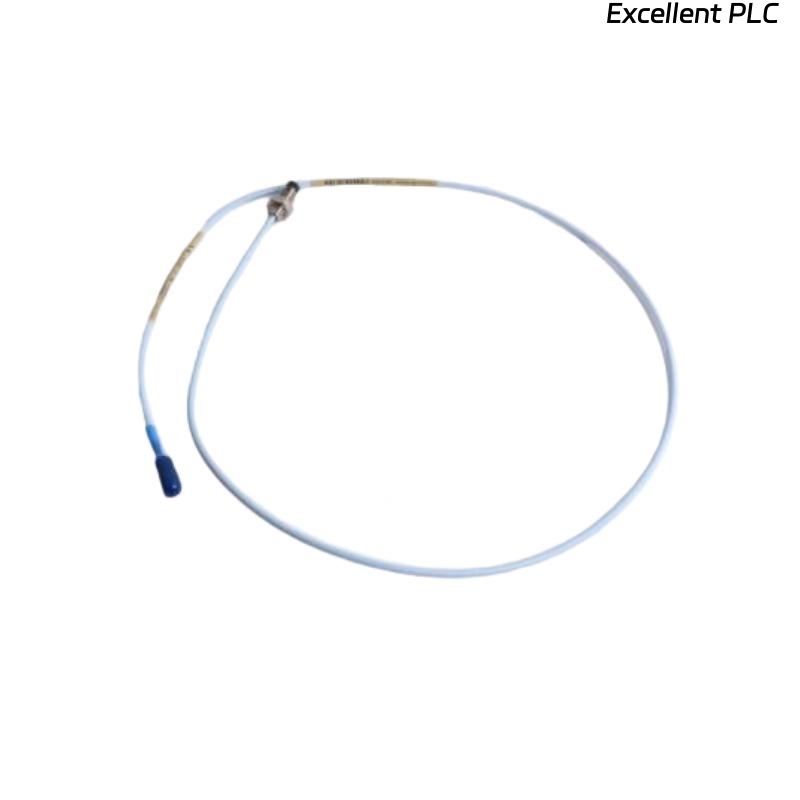

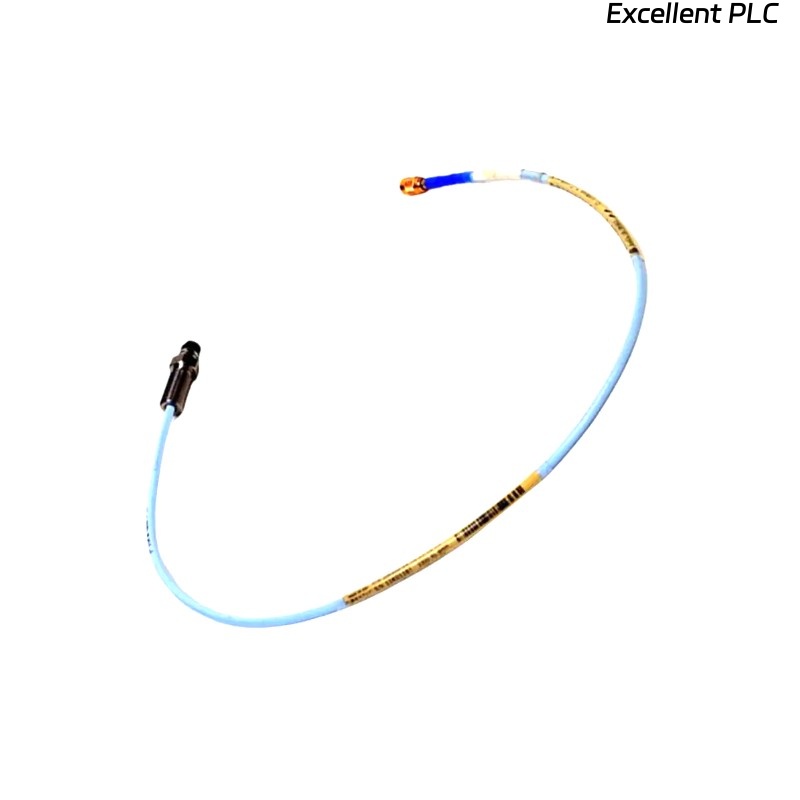

The Bently Nevada 330901-00-15-05-01-00 3300 NSv Proximity Probe is a specialized component of the 3300 series vibration monitoring and protection systems. Designed for use in confined spaces and applications where standard probes cannot be accommodated, the NSv (Narrow Side View) probe ensures accurate shaft vibration and position measurement. It is widely used in turbomachinery, compressors, pumps, and other rotating equipment. Its compact form factor, rugged design, and precise measurement capability make it an industry-standard choice for condition monitoring.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330901-00-15-05-01-00 |
| Series | 3300 NSv Proximity Probe |
| Probe Tip Diameter | 5 mm |
| Total Length | 0.5 m |
| Weight | 3 kg |
| Operating Voltage | -24 VDC (nominal) |
| Measurement Range | 0.25 – 2.0 mm (typical) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -35 °C to +177 °C |
| Compatible Drivers | 3300 NSv Proximitor Sensor |
| Insulation Resistance | >10 MΩ at 500 VDC |
| Cable Type | Coaxial, armored optional |
Product Applications
-
Steam turbines and gas turbines
-
Centrifugal compressors and pumps
-
Electric motors and gearboxes
-
Industrial fans and blowers
-
Generators and rotating process equipment
-
Machinery with restricted radial clearance
Product Advantages
-
Compact Design: Slim profile enables installation in tight spaces without sacrificing performance.
-
High Accuracy: Provides reliable and repeatable vibration and displacement measurements.
-
Wide Compatibility: Fully compatible with Bently Nevada 3300 NSv Proximitor sensors and monitoring systems.
-
Durability: Built to withstand harsh environments with armored cabling options.
-
Extended Temperature Range: Operates effectively under both cryogenic and high-temperature machinery conditions.
-
Global Standard: Recognized as an industry benchmark for machinery protection and predictive maintenance.
FAQ
Q1: What type of signal output does the probe provide?
A1: The probe provides a voltage output proportional to the distance between the probe tip and the shaft surface, typically 200 mV/mil (7.87 V/mm).
Q2: Can the probe be used with standard 3300 XL Proximitor sensors?
A2: No, it is specifically designed for use with 3300 NSv Proximitor sensors due to its smaller linear range.
Q3: What is the typical linear measurement range of this probe?
A3: The linear range is 0.25 mm to 2.0 mm, optimized for small clearance applications.
Q4: How does cable length affect performance?
A4: The probe is calibrated as part of a matched system with its extension cable and proximitor. Using incorrect cable lengths can result in inaccurate readings.
Q5: Does the probe support both dynamic and static measurements?
A5: Yes, it measures both dynamic shaft vibration (AC) and static shaft position (DC).
Q6: What surface finish is required on the shaft for accurate readings?
A6: A smooth, conductive surface with a recommended finish of 0.8 µm Ra or better is required.
Q7: What is the maximum frequency response of the probe?
A7: The probe can reliably measure signals up to 10 kHz.
Q8: Is the probe affected by temperature variations?
A8: It is temperature-compensated but extreme temperature changes can slightly influence sensitivity.
Q9: Can the probe be used in hazardous (ATEX/IECEx) environments?
A9: Yes, when paired with appropriately certified proximitor systems, it complies with hazardous area requirements.
Q10: How is the probe grounded to minimize electrical noise?
A10: The probe uses a coaxial shield design and should be properly grounded through the proximitor to reduce interference.
Recommended Same-Series or Related Models
| Model | Description |
|---|---|
| 330901-00-10-05-01-00 | 3300 NSv Proximity Probe, 10 ft cable |
| 330901-00-20-05-01-00 | 3300 NSv Proximity Probe, 20 ft cable |
| 330901-00-25-05-01-00 | 3300 NSv Proximity Probe, 25 ft cable |
| 330902-00-15-05-01-00 | 3300 NSv Extension Cable, 15 ft |
| 330930-040-01-00 | 3300 NSv Proximitor Sensor |
| 330104-00-12-10-02-00 | Standard 3300 XL Proximity Probe |
