Product Introduction

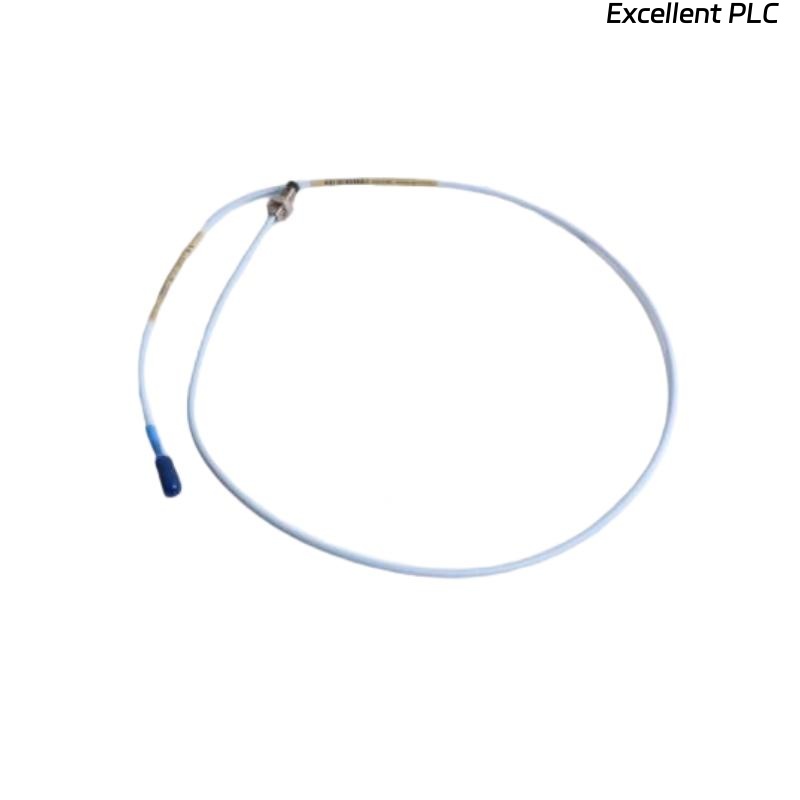

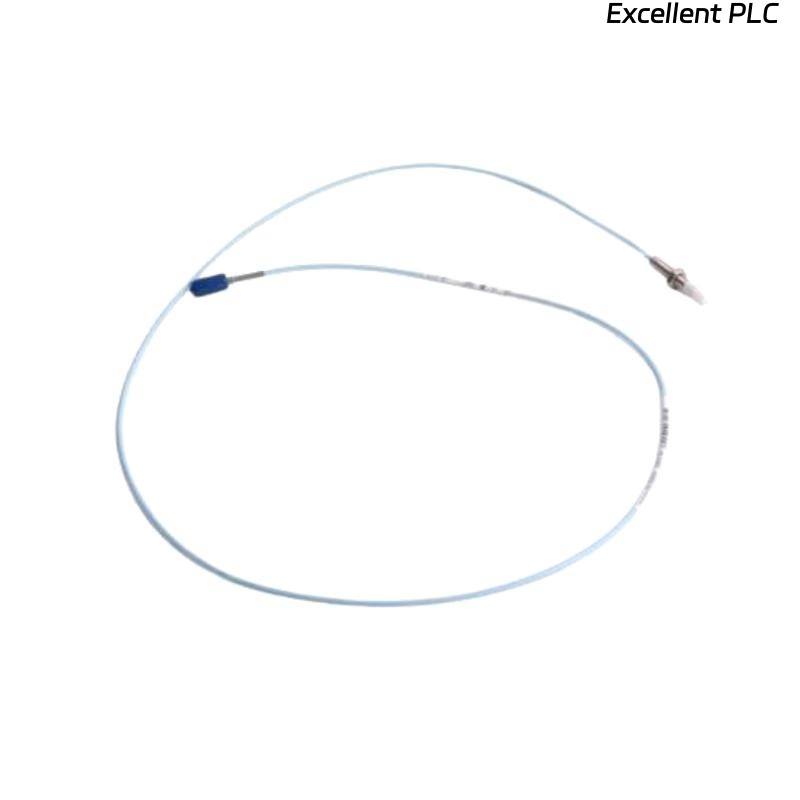

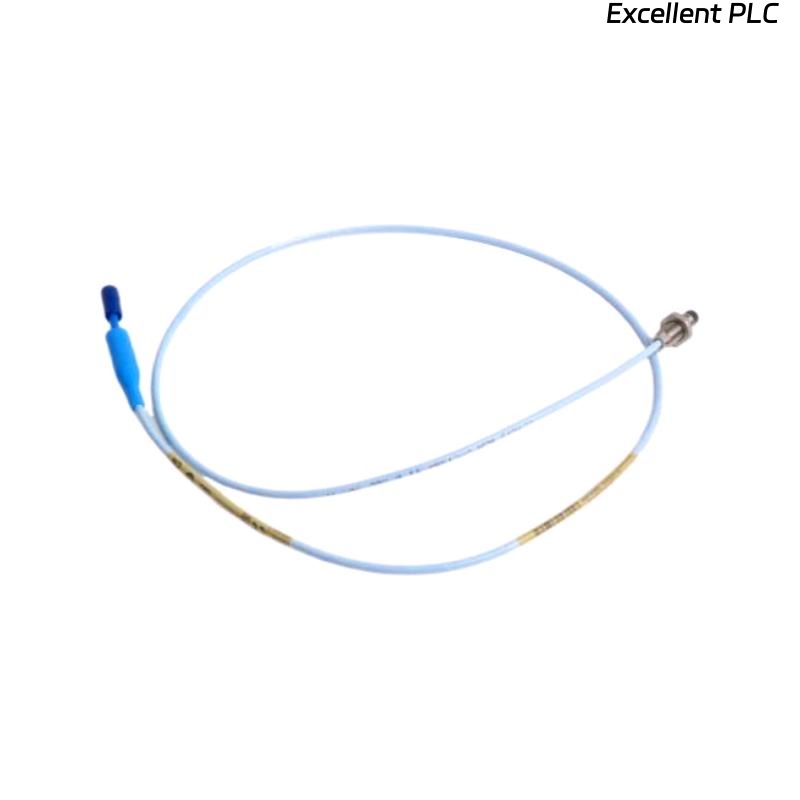

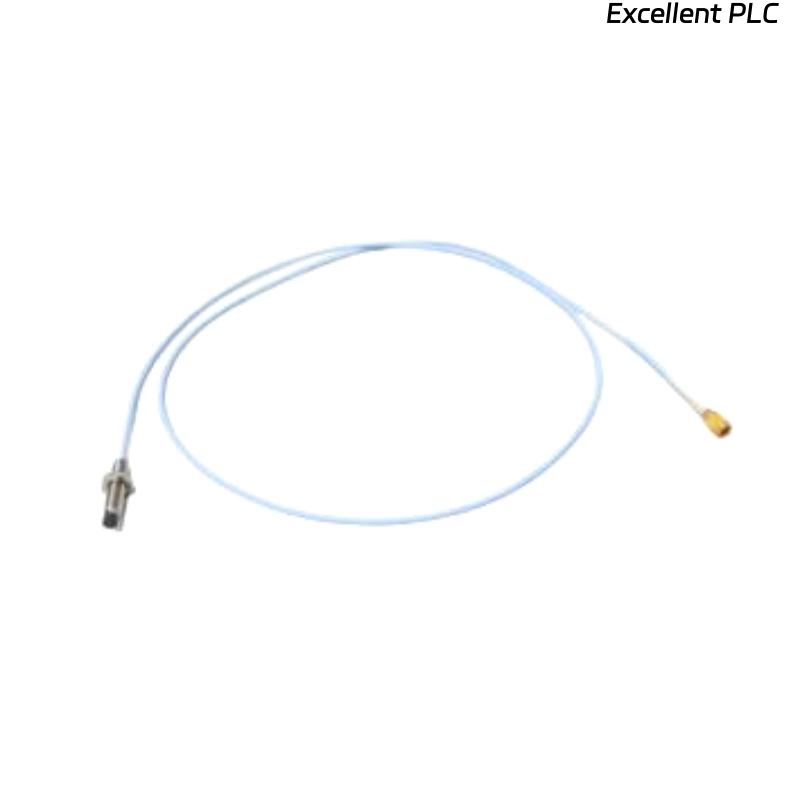

The Bently Nevada 330901-00-15-05-02-05 3300 NSv Proximity Probe is part of the 3300 NSv (Narrow Side-view) Proximity Transducer System. It is designed for use in space-constrained environments, especially small machines such as pumps, motors, and compressors. This probe provides accurate and reliable non-contact vibration and position measurements by detecting the displacement of a metallic surface relative to the probe tip.
With its rugged design, the 330901 probe ensures long-term stability and high performance in demanding industrial environments, making it a trusted choice for condition monitoring and machinery protection systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330901-00-15-05-02-05 |
| Probe Type | 3300 NSv Proximity Probe |
| Tip Diameter | 5 mm (0.197 in) |
| System Length | 5 m (probe + extension cable) |
| Weight | Approx. 200 g (0.44 lb) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm to 1.9 mm (10 to 75 mils) |
| Frequency Range | 0 to 10 kHz |
| Operating Temperature Range | -35 °C to +177 °C |
| Case Material | Stainless Steel |
| Compatible Driver | 3300 NSv Proximitor Sensor |
Product Applications
-
Pumps – Used to monitor shaft vibration and detect misalignment or imbalance.
-
Compressors – Ensures early detection of shaft instability and dynamic issues.
-
Motors – Provides real-time monitoring of shaft position and vibration.
-
Gearboxes – Identifies bearing wear and gear mesh faults through vibration analysis.
-
Fans and Blowers – Detects shaft misalignment and excessive vibration levels.
-
Turbomachinery with small shaft diameters – Specially optimized for compact equipment.
Product Advantages
-
Compact design suitable for installations with limited space.
-
High accuracy and reliability in shaft displacement and vibration monitoring.
-
Non-contact measurement eliminates wear and ensures longer system life.
-
Wide temperature tolerance, suitable for harsh industrial environments.
-
Compatibility with 3300 NSv Proximitor ensures full system integration.
-
Proven reliability in continuous industrial operation for machinery protection.
FAQ
Q1: What is the main purpose of the 330901 NSv Proximity Probe?
A1: It measures shaft vibration and position in small machines, providing input to protection and monitoring systems.
Q2: Can this probe operate in high-temperature environments?
A2: Yes, it is rated for operation from -35 °C to +177 °C.
Q3: Which Proximitor sensor is compatible with this probe?
A3: It is designed to work with the Bently Nevada 3300 NSv Proximitor.
Q4: What type of output signal does the probe system generate?
A4: The system generates a voltage proportional to the shaft displacement, with 200 mV/mil sensitivity.
Q5: Is the probe affected by electromagnetic interference (EMI)?
A5: It is designed with shielding and construction to minimize EMI susceptibility.
Q6: What is the linear measurement range of this probe?
A6: It has a linear range of 0.25 mm to 1.9 mm (10 to 75 mils).
Q7: Can the probe be used for both dynamic and static measurements?
A7: Yes, it measures both dynamic vibration and static shaft position.
Q8: How is the probe typically installed on machinery?
A8: It is mounted close to the rotating shaft, with correct alignment ensured for optimal performance.
Q9: Does cable length affect probe calibration?
A9: Yes, system length is factory-calibrated (e.g., 5 m) and must match probe, extension cable, and Proximitor configuration.
Q10: Can it detect early signs of bearing wear?
A10: Yes, by monitoring vibration trends, it helps detect early bearing degradation.
