Product Overview

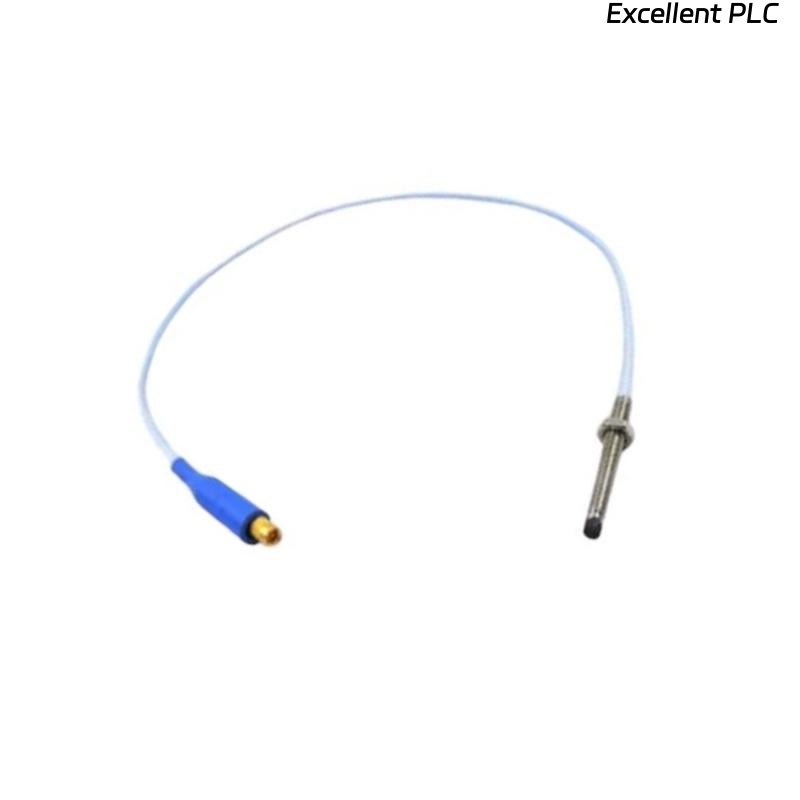

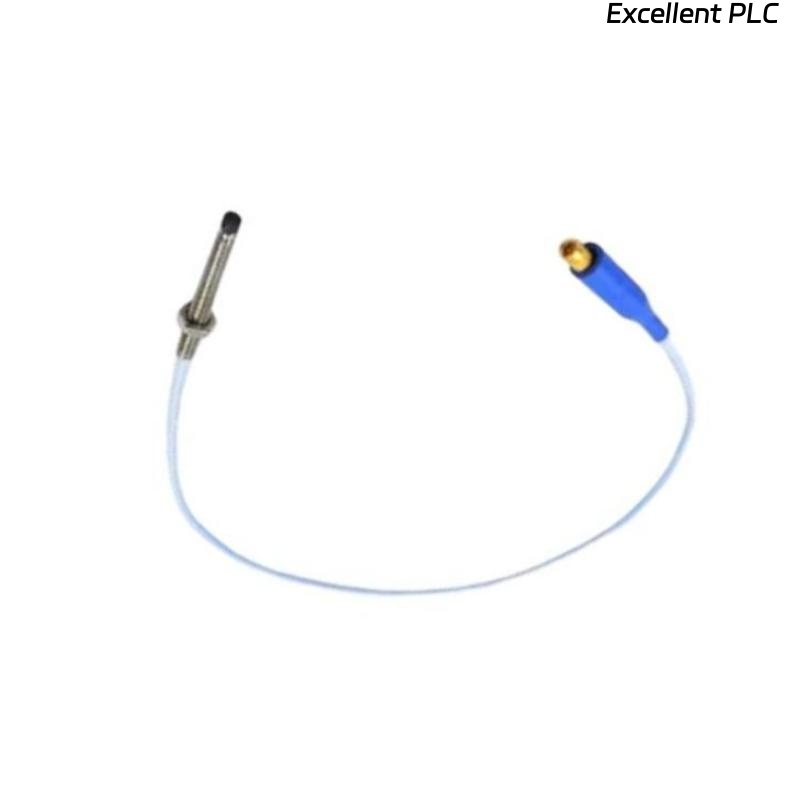

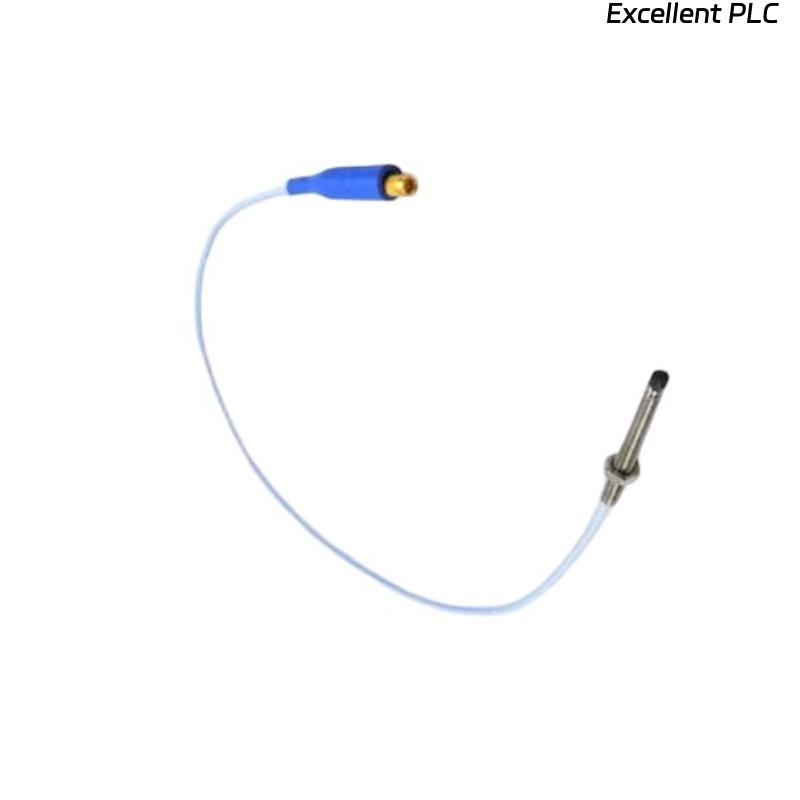

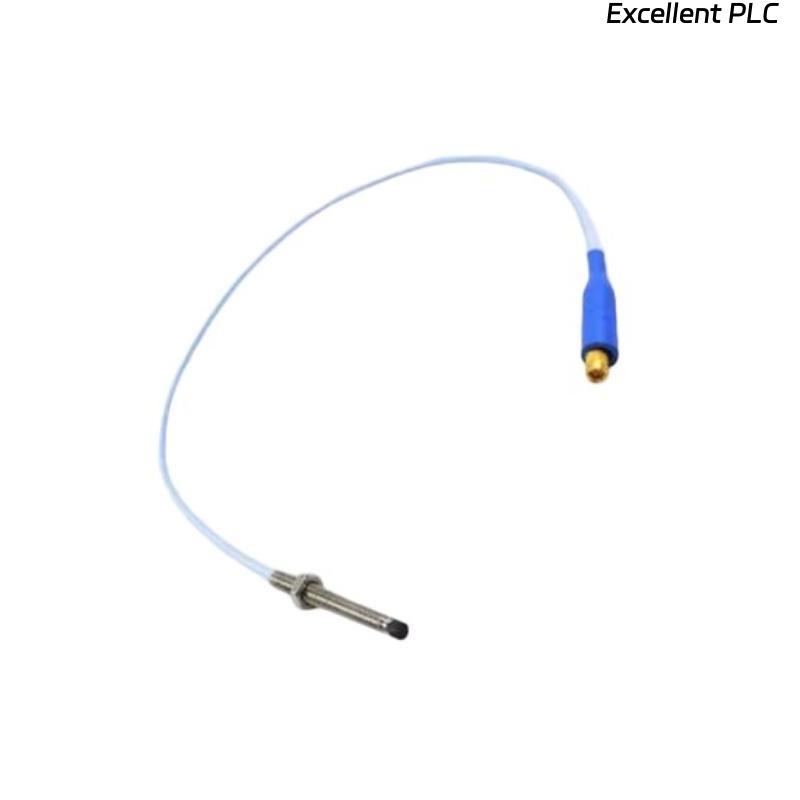

The Bently Nevada 330901-00-16-05-02-05 3300 NSv Proximity Probe is a high-performance, compact 5 mm probe designed for applications requiring precise vibration and position measurements in small, high-speed rotating machinery. It is specifically engineered for use where space constraints prevent the use of standard 8 mm proximity probes.
Key Features
-
Compact 5 mm probe ideal for small or confined installation areas
-
Compatible with the Bently Nevada 3300 NSv Proximity Transducer System
-
Provides precise shaft vibration and position data
-
Designed for high-speed, small-diameter rotating machines
-
Excellent resistance to oil, dust, and industrial contaminants
-
Real-time analog signal output for monitoring and protection systems
-
Easy installation with threaded mounting configuration
-
Stable, long-term performance in demanding environments
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330901-00-16-05-02-05 |
| Product Type | 3300 NSv Proximity Probe |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.15 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve installation |
| Applications | Shaft vibration, position monitoring, and machinery protection |
Industry Applications
-
Small turbines and compressors
-
Compact pumps and motors
-
Gearboxes and confined rotating machinery
-
Electric generators and drive systems
-
Oil, gas, and petrochemical industries
-
Condition-based maintenance and vibration monitoring systems
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330901-00-16-05-02-05 probe?
It measures shaft vibration and position for compact rotating machinery where space is limited.
Q2: Which system does this probe work with?
It is compatible with the Bently Nevada 3300 NSv Proximity Transducer System.
Q3: What are the probe dimensions?
It has a 5 mm tip diameter and 16 mm length.
Q4: What is its typical measurement range?
The measurement range is 0–1.0 mm (0–40 mils).
Q5: Can it operate in high-temperature environments?
Yes, it supports operating temperatures from –35 °C to +177 °C.
Q6: Is it suitable for harsh industrial conditions?
Yes, the probe is resistant to oil, dust, and industrial contaminants.
Q7: What type of signal does it provide?
It outputs an analog voltage proportional to shaft vibration and position.
Q8: Where is this probe typically installed?
It is commonly used on small turbines, compressors, motors, and gearboxes where traditional probes cannot fit.
