Product Overview

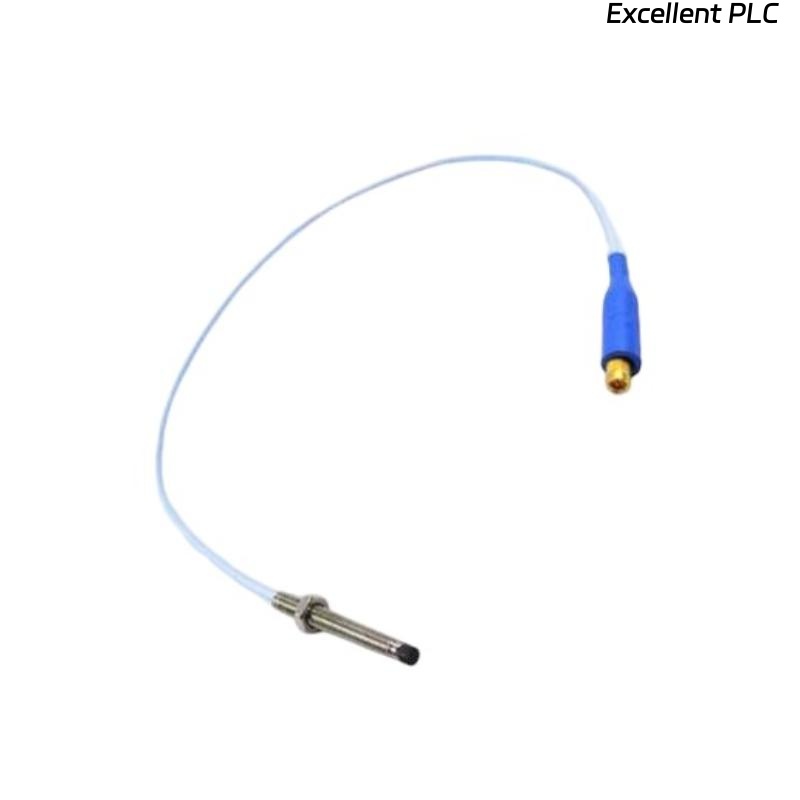

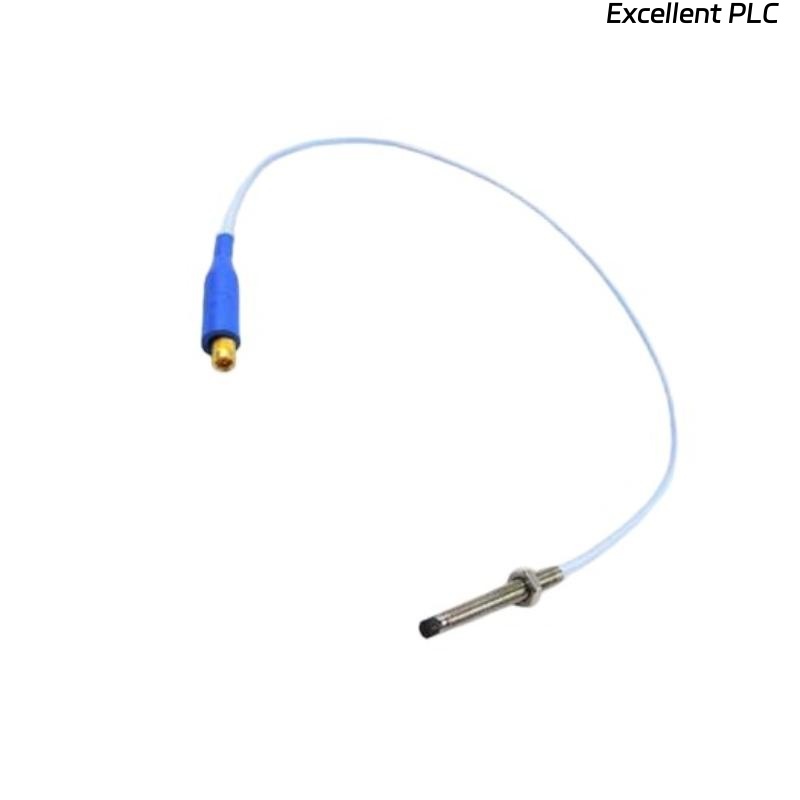

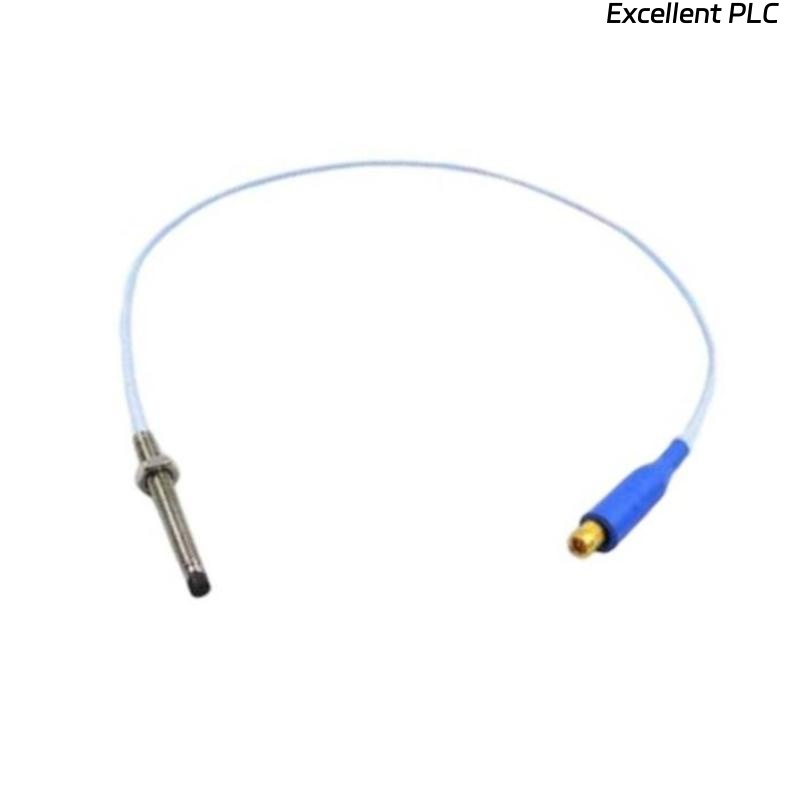

The Bently Nevada 330901-00-24-05-02-CN 3300 NSv Proximity Probe is a precision-engineered sensor designed for shaft vibration and position monitoring in compact and high-speed rotating machinery. With a 24 mm probe length and 5 mm tip diameter, it is ideal for applications with limited installation space where standard-sized probes cannot fit. This probe is part of the 3300 NSv (Narrow Side View) Series, offering excellent linearity, stability, and compatibility with Bently Nevada NSv Proximitor Sensors for accurate machinery condition monitoring.
Key Features
-
Compact 5 mm probe ideal for space-limited applications
-
Compatible with Bently Nevada 3300 NSv Proximitor Sensor System
-
High precision measurement of shaft vibration and position
-
Robust construction for harsh industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330901-00-24-05-02-CN |
| Product Type | 3300 NSv Proximity Probe |
| Dimensions | Total Length: 0.5 meter |
| Weight | 0.15 kg |
| Probe Tip Diameter | 5 mm |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve installation |
| System Compatibility | 3300 NSv Proximitor and Extension Cable |
| Environmental Protection | Resistant to oil, dust, and contaminants |
Industry Applications
-
Small steam and gas turbines
-
Compact compressors and pumps
-
Electric motors and generators
-
Gearboxes and confined-space rotating machinery
-
Oil, gas, and petrochemical industries
-
Condition-based monitoring systems
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the 330901-00-24-05-02-CN probe?
It is used to measure shaft vibration and position in compact rotating machinery.
Q2: Which system is it compatible with?
It works with the Bently Nevada 3300 NSv Proximity Transducer System.
Q3: What is the probe size?
It has a 5 mm diameter and 24 mm length.
Q4: What is the operating temperature range?
The probe operates from –35 °C to +177 °C.
Q5: Can it withstand harsh environments?
Yes, it is resistant to oil, dust, and industrial contaminants.
Q6: What is the linear measurement range?
The range is 0–1.0 mm (0–40 mils).
Q7: What type of output signal does it provide?
It provides an analog voltage signal proportional to vibration or displacement.
Q8: Where is it typically installed?
It is installed on small turbines, compressors, motors, and gearboxes with tight installation constraints.
