Product Overview

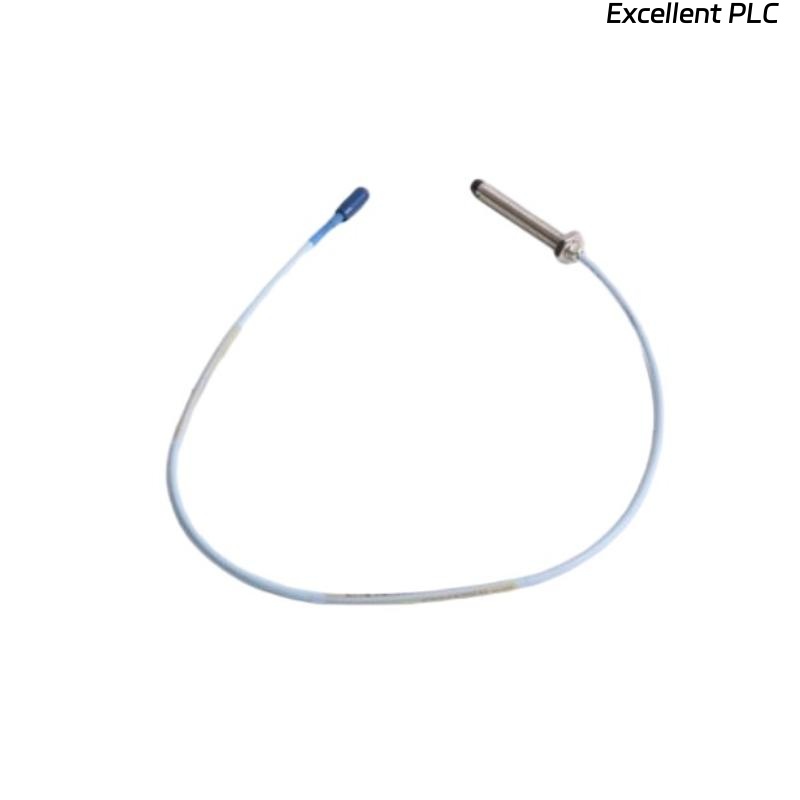

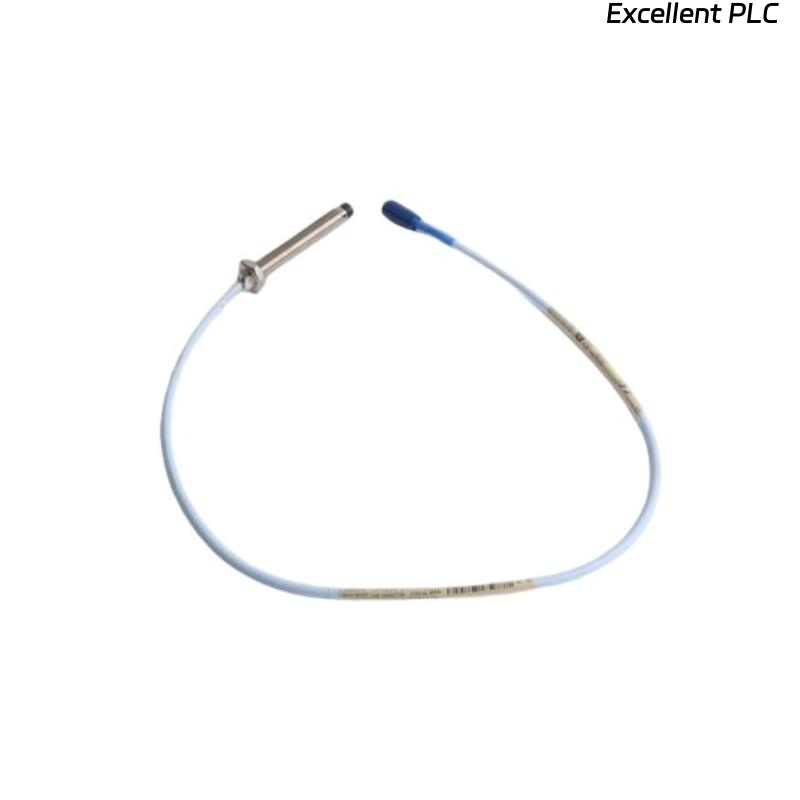

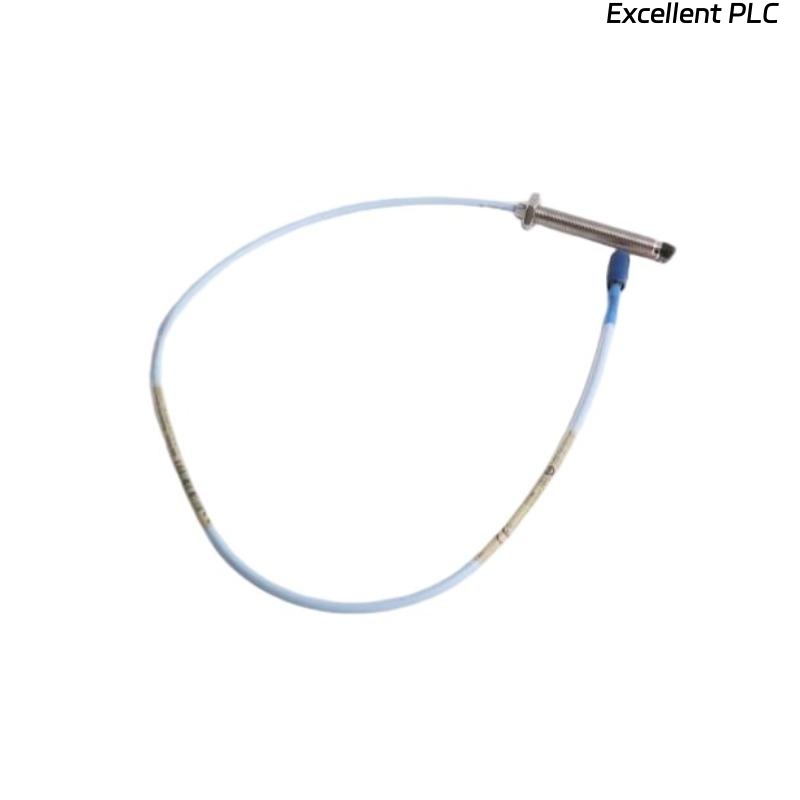

The Bently Nevada 330901-00-60-05-02-05 3300 NSv Proximity Probe is a high-accuracy, compact proximity sensor specifically designed for shaft vibration and position monitoring in machinery with limited installation space. Featuring a 5 mm tip diameter and 60 mm probe length, it is ideal for small and medium-sized rotating machines, providing precise and stable measurements. This probe forms a critical part of the Bently Nevada 3300 NSv (Narrow Side View) Proximity Transducer System, ensuring exceptional performance and reliability in industrial environments.
Key Features
-
Compact 5 mm probe ideal for confined installation areas
-
Compatible with Bently Nevada 3300 NSv Proximitor Sensor System
-
Delivers highly accurate vibration and position data
-
Rugged and reliable design for harsh operating conditions
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330901-00-60-05-02-05 |
| Product Type | 3300 NSv Proximity Probe |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.15 kg |
| Probe Tip Diameter | 5 mm |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve installation |
| System Compatibility | 3300 NSv Proximitor and Extension Cable |
| Environmental Protection | Oil, dust, and contaminant resistant |
Industry Applications
-
Small gas and steam turbines
-
Compact compressors and pumps
-
Electric motors and generators
-
Gearboxes and high-speed rotating machinery
-
Oil and gas production equipment
-
Power generation and condition monitoring systems
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 330901-00-60-05-02-05 probe?
It measures shaft vibration and position in compact rotating machinery.
Q2: Which system is this probe compatible with?
It is compatible with the Bently Nevada 3300 NSv Proximity Transducer System.
Q3: What is the probe size?
It features a 5 mm diameter and 60 mm length.
Q4: What is the measurement range?
The linear range is 0–1.0 mm (0–40 mils).
Q5: Can it withstand harsh environments?
Yes, it is resistant to oil, dust, and industrial contaminants.
Q6: What is the operating temperature range?
It operates between –35 °C and +177 °C.
Q7: What type of signal does it provide?
It provides an analog voltage output proportional to vibration and position.
Q8: Where is it typically used?
It is typically installed in turbines, compressors, motors, and gearboxes with limited mounting space.
