Product Introduction

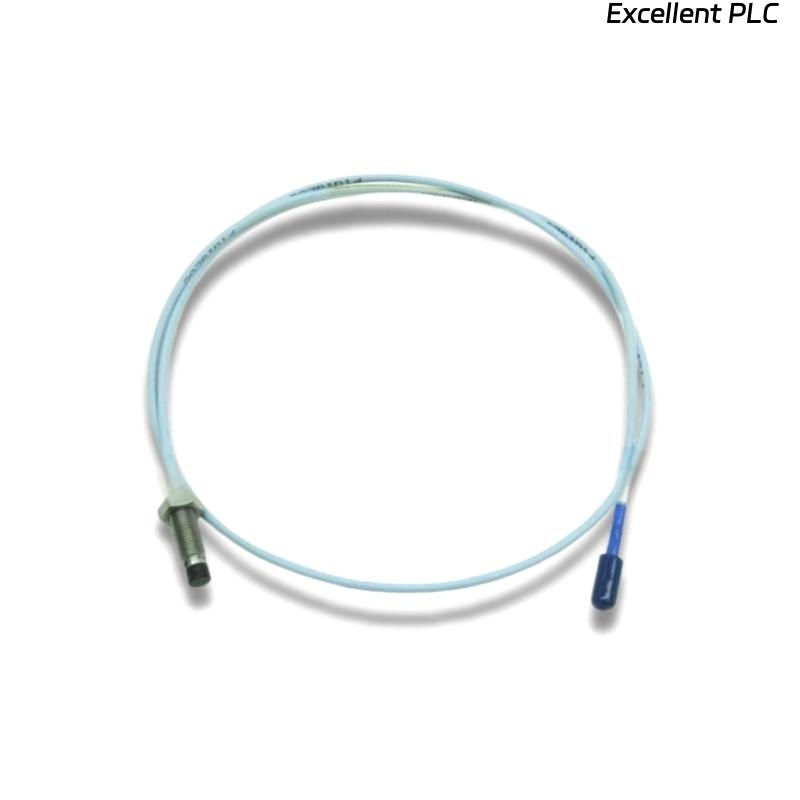

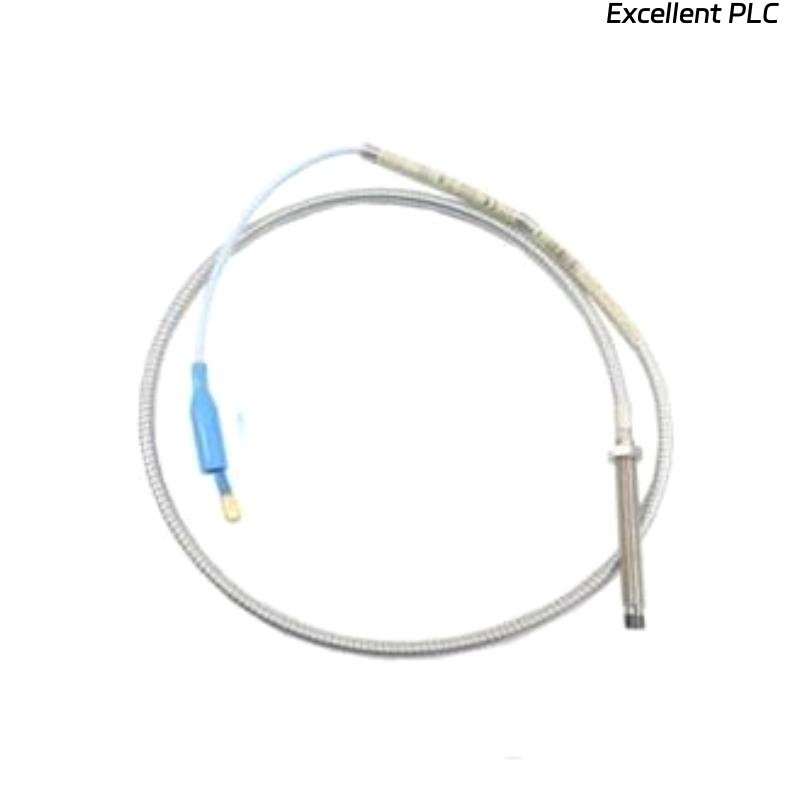

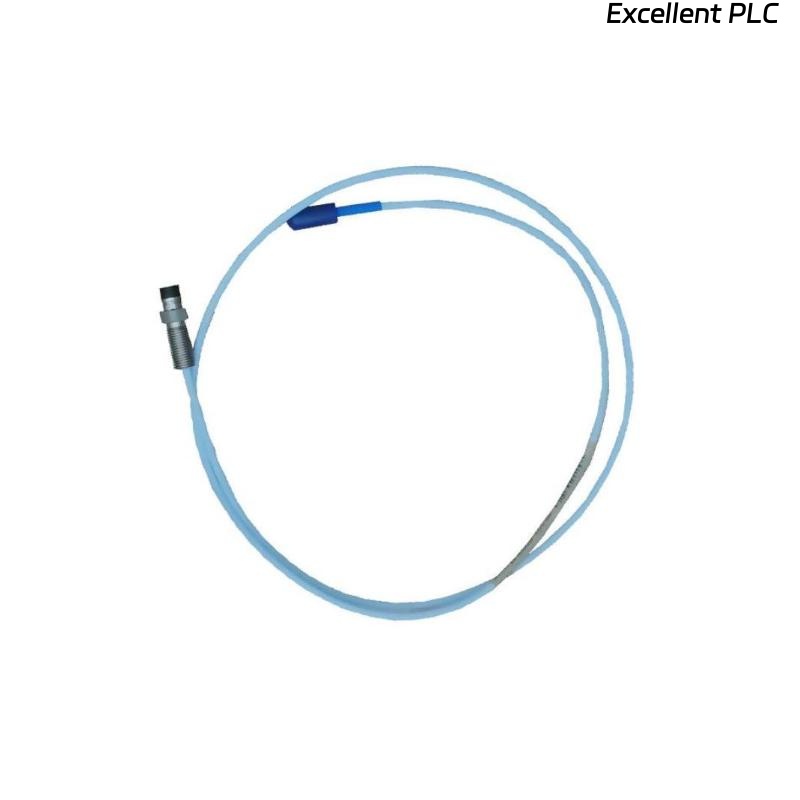

The Bently Nevada 330901-00-65-05-02-05 is part of the renowned 3300 XL series of proximity probe systems developed by Bently Nevada, a trusted name in industrial condition monitoring and protection. This model is designed to deliver reliable, continuous, and high-accuracy measurements of shaft displacement and vibration in rotating machinery. Built for harsh industrial environments, the 330901-00-65-05-02-05 probe is commonly used in turbines, compressors, pumps, and motors where critical equipment monitoring is essential.
This particular probe is calibrated to work with 3300 XL Proximitor sensors and meets API 670 compliance requirements for machinery protection systems. Its robust design ensures long-term stability, reduced calibration drift, and immunity from electromagnetic interference.
Product Advantages
-
API 670 Compliant: Designed to meet the stringent requirements of the American Petroleum Institute (API) standard for machinery protection.
-
High Precision: Offers accurate, repeatable measurements for shaft vibration and position.
-
Harsh Environment Durability: Resistant to moisture, oil, dust, and high temperatures.
-
Extended Reach: This model supports long cable lengths, which is ideal for installations that require remote sensing.
-
Reliable EMI Shielding: Strong immunity to electromagnetic interference ensures data integrity.
-
Easy Integration: Seamlessly works with Bently Nevada 3300 XL series proximitor sensors and extension cables.
-
Minimal Calibration Drift: Low maintenance with long-term performance stability.
-
Field-Proven: Extensively used in power generation, petrochemical, and oil & gas sectors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330901-00-65-05-02-05 |
| Series | Bently Nevada 3300 XL |
| Sensing Principle | Eddy Current (Non-contact) |
| Target Material | Conductive metal (usually steel) |
| Linear Range | 2 mm (±1 mm) |
| Tip Diameter | 8 mm (Standard 8 mm probe tip) |
| Thread Size | 3/8-24 UNF (Stainless steel housing) |
| Operating Temperature Range | -35°C to +120°C |
| Storage Temperature | -50°C to +120°C |
| Sensitivity | 7.87 mV/μm ±5% |
| Frequency Response | 0 to 10 kHz |
| Probe Body Material | Stainless Steel |
| Cable Jacket Material | PFA Teflon |
| Connector Type | Miniature coaxial connector |
| Mounting Torque | 2.26 N·m (20 in-lb) |
| Total Length | 0.5 m |
| Weight | 3 kg |
| Compliance | API 670, CE, RoHS |
Applications
-
Steam and Gas Turbines: Measures shaft vibration and relative displacement.
-
Centrifugal Compressors: Detects axial thrust and lateral shaft movement.
-
Industrial Pumps: Monitors vibration to prevent mechanical failure.
-
Electric Motors: Assists in bearing condition monitoring.
-
Gearboxes and Generators: Used for early detection of misalignment or imbalance.
-
Petrochemical and Oil & Gas Facilities: Protects mission-critical rotating equipment from unplanned shutdowns.
Installation and Compatibility
The 330901-00-65-05-02-05 probe should be installed according to the standard mounting procedures for Bently Nevada 3300 XL series. It must be connected to a matching 3300 XL Proximitor sensor and extension cable, maintaining the factory-calibrated system length.
Installation Steps:
-
Thread the probe into the machine housing until the tip is approximately 1 mm from the target surface.
-
Torque the probe to 2.26 N·m.
-
Route the cable through protective conduits to avoid sharp bends or abrasion.
-
Connect to the extension cable and then to the proximitor sensor.
-
Verify the system length and perform system calibration check using a static calibration fixture.
Compatible Components:
-
3300 XL Proximitor Sensor (e.g., 330180 or 330980 series)
-
3300 XL Extension Cable (length-dependent)
-
Monitoring Systems: Bently Nevada 3500, 3701 series
FAQs (Frequently Asked Questions)
Q1: What type of monitoring system is this probe compatible with?
A1: This probe is fully compatible with the Bently Nevada 3500 and 3701 machinery monitoring systems when used with the 3300 XL Proximitor sensor and extension cable.
Q2: Can I cut or shorten the cable on this probe?
A2: No. The cable is part of a calibrated system length. Altering the cable will affect accuracy and void the calibration.
Q3: What is the difference between 330901 and 330103 part numbers?
A3: The 330901 series is an 8 mm proximity probe, while the 330103 series is typically used in shorter-length or non-API configurations.
Q4: Is the probe suitable for hazardous locations?
A4: Yes, when used with certified proximitor sensors and installed in accordance with local hazardous location standards (ATEX, CSA, etc.).
Q5: What is the recommended distance from the target surface?
A5: The probe should be installed with a 1.0 mm gap to ensure optimal linear performance.
Q6: What is the expected service life of the probe?
A6: The probe can last over 5+ years under normal industrial conditions with proper installation and no physical damage.
Q7: How do I check if the probe is working correctly?
A7: Use a Bently Nevada test fixture or dial indicator to verify the probe’s linearity and sensitivity.
Q8: Can I replace just the probe without changing the Proximitor?
A8: Only if the new probe is of the exact same model and system length; otherwise, recalibration is necessary.
Q9: Is shielding required for the cable?
A9: The cable has built-in EMI shielding but should still be routed away from high voltage sources.
Q10: Can this be used for thrust position monitoring?
A10: Yes, it is often used for both radial vibration and axial thrust position measurements.
