Product Introduction

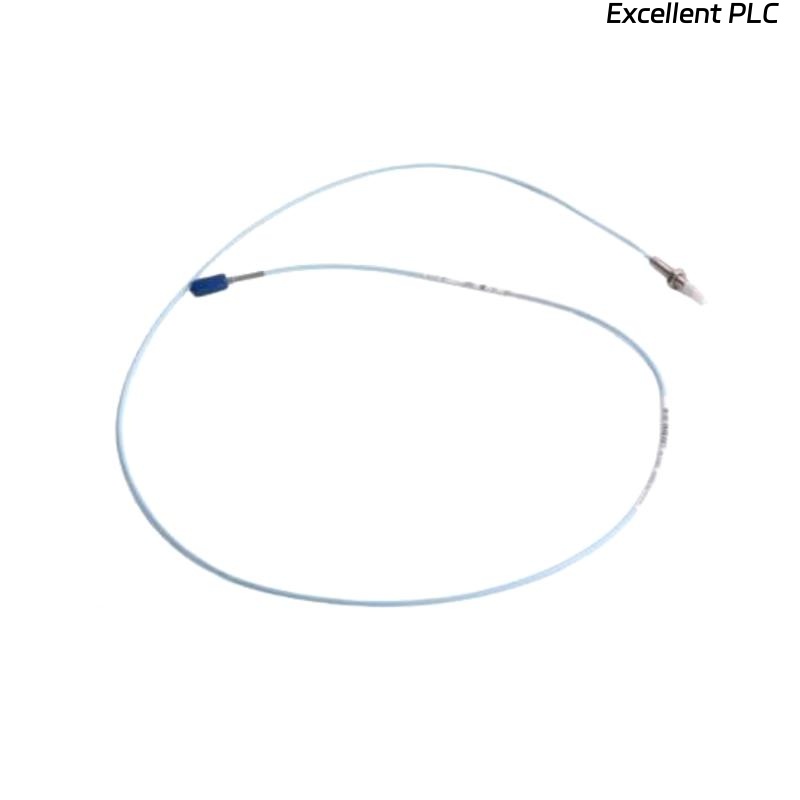

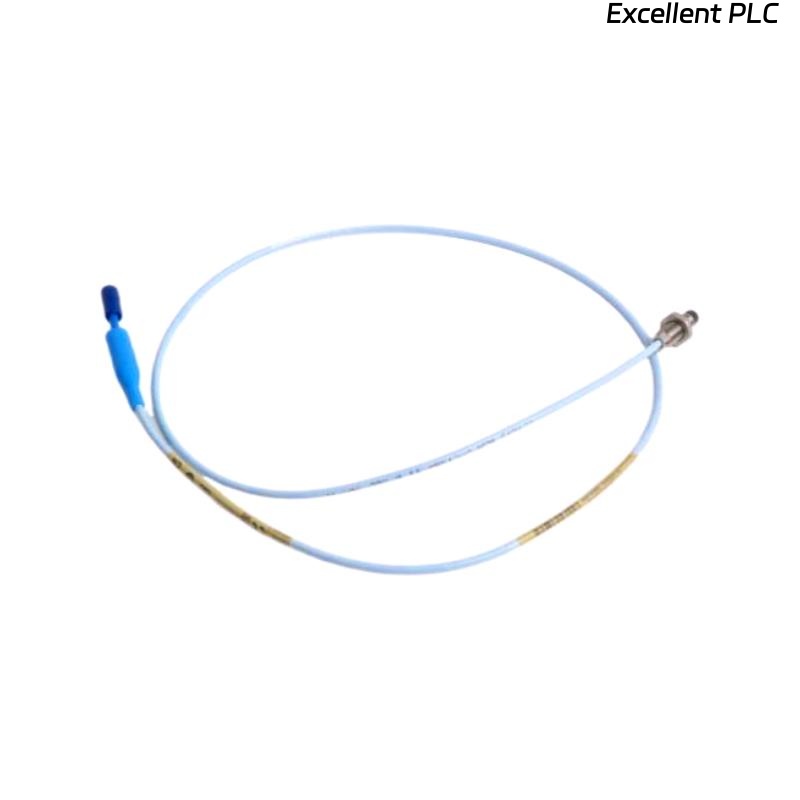

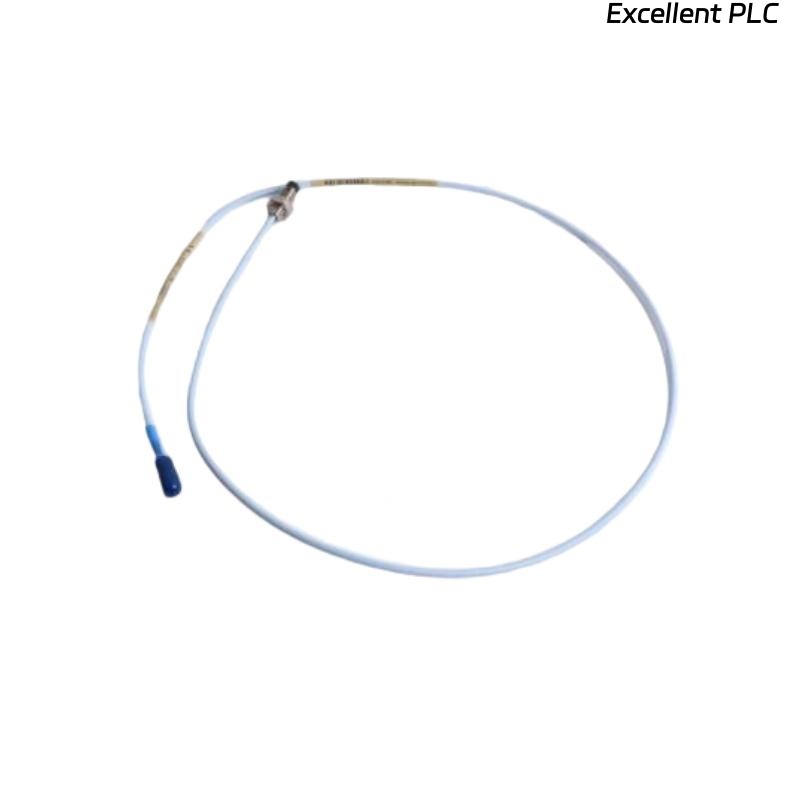

The Bently Nevada 330901-00-90-05-02-05 3300 NSv Proximity Probe is an advanced vibration and displacement measurement probe designed for monitoring the condition of rotating machinery. It is a part of the 3300 NSv (Narrow Side-view) series, which is widely recognized for reliable operation in small or compact machines where space is limited. This probe provides accurate proximity measurement by detecting the relative motion between the probe tip and the rotating shaft, ensuring precise data capture for predictive maintenance and machine protection systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330901-00-90-05-02-05 |
| Series | 3300 NSv Proximity Probe |
| Total Length | 0.5 m |
| Connector Type | Standard 3300 NSv connector |
| Material | Stainless steel housing with ceramic tip |
| Operating Temperature | -35 °C to +177 °C |
| Weight | 3 kg |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Frequency Response | Up to 10 kHz |
| Power Supply | Powered via Proximitor sensor |
| Compliance | Meets API 670 vibration monitoring standards |
Product Applications
-
Small steam, gas, and hydro turbines
-
Compressors and small pumps
-
Industrial fans and blowers
-
Gearboxes and small rotating equipment
-
Machines with tight installation spaces
-
Condition monitoring and predictive maintenance systems
Product Advantages
-
Compact Design: Ideal for use in machines with limited installation space.
-
High Accuracy: Provides precise displacement and vibration measurement for early fault detection.
-
Durable Construction: Stainless steel housing and ceramic tip ensure long-lasting operation in harsh environments.
-
Compatibility: Fully compatible with Bently Nevada Proximitor sensors and monitoring systems.
-
API 670 Compliance: Meets international standards for vibration and condition monitoring.
-
Reliability: Designed to maintain stable performance under varying temperature and mechanical conditions.
FAQ
Q1: What is the sensitivity of this proximity probe?
A1: The probe has a sensitivity of 7.87 mV/µm (200 mV/mil), ensuring accurate measurement of shaft displacement.
Q2: Can this probe be used in high-frequency applications?
A2: Yes, it supports frequency response up to 10 kHz, making it suitable for detecting high-speed vibration signals.
Q3: Is this probe compatible with all Bently Nevada Proximitor sensors?
A3: Yes, it is fully compatible with 3300 NSv Proximitor sensors, ensuring seamless integration.
Q4: What is the primary purpose of this probe in machinery monitoring?
A4: It measures shaft vibration and displacement to provide data for predictive maintenance and machine protection.
Q5: Can it be installed in harsh industrial environments?
A5: Yes, the stainless steel housing and ceramic tip allow it to operate reliably in harsh conditions.
Q6: What is the maximum cable length available for this probe?
A6: Standard configurations provide cable lengths up to 9 meters.
Q7: Does the probe require external power?
A7: No, it receives power through the connected Proximitor sensor.
Q8: Can it be used in both radial and axial vibration monitoring?
A8: Yes, it is suitable for both radial shaft vibration and axial displacement monitoring.
Q9: Does this probe comply with API 670 standards?
A9: Yes, it is designed in compliance with API 670 requirements.
Q10: Is temperature variation a concern for measurement accuracy?
A10: No, the probe is engineered to maintain stable performance across a wide temperature range (-35 °C to +177 °C).
