Product Overview

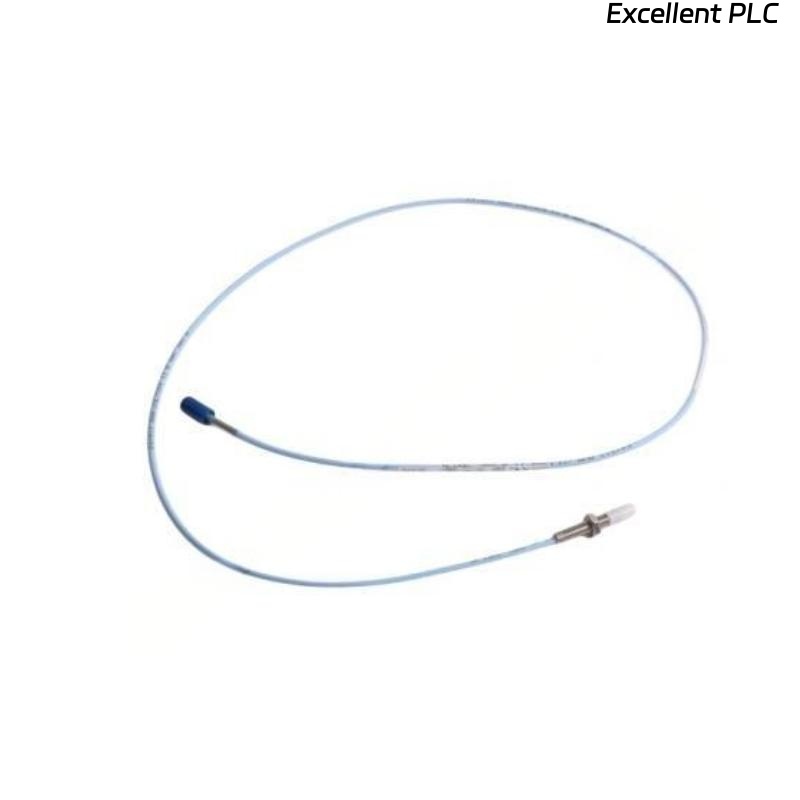

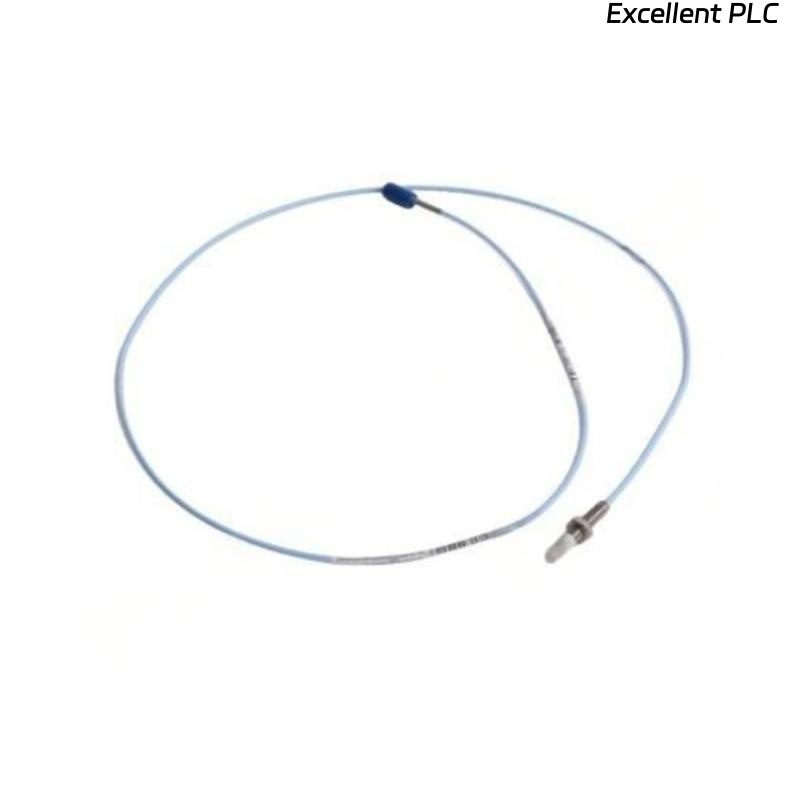

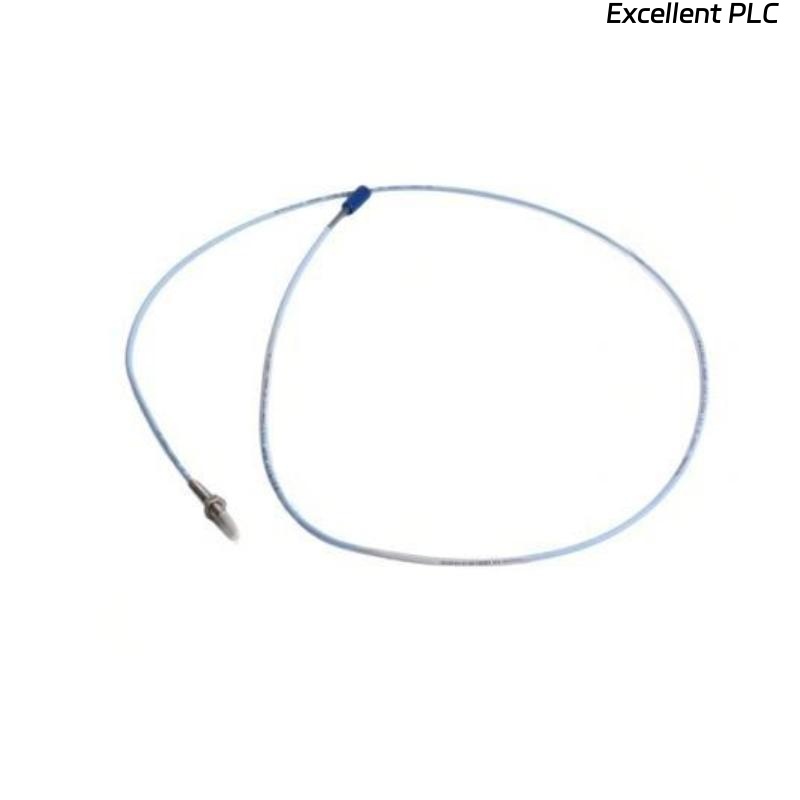

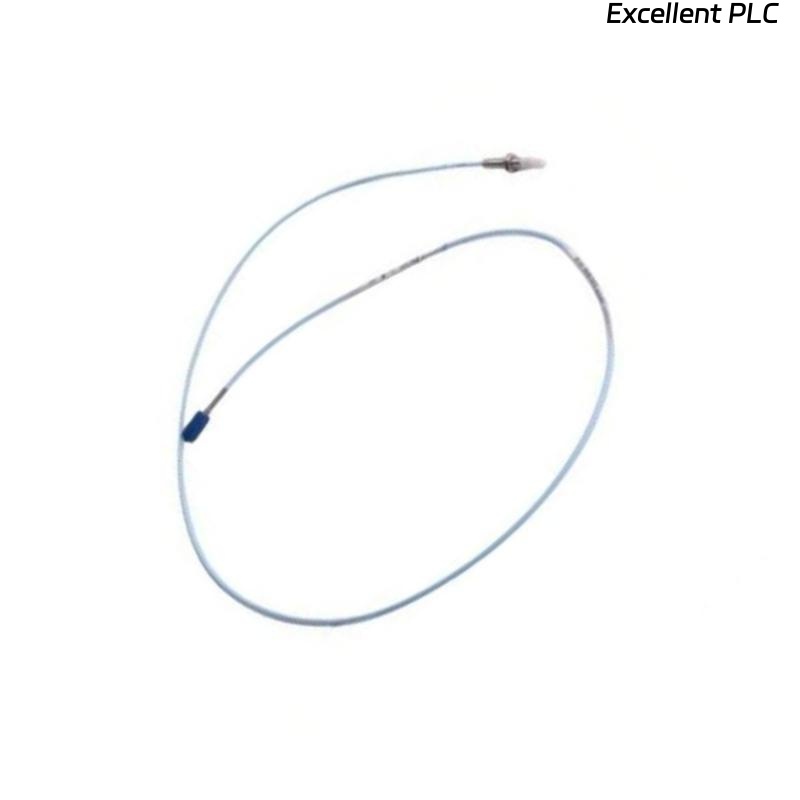

The Bently Nevada 330901-01-45-10-02-00 3300 NSv Proximity Probe is a compact, high-accuracy probe designed for small and tight installation spaces. It provides precise shaft vibration and position measurements for smaller machines, making it ideal for monitoring turbines, compressors, pumps, and other rotating equipment where standard 8 mm probes cannot be accommodated.
Key Features
-
Compact 5 mm probe for limited-space installations
-
Compatible with the Bently Nevada 3300 NSv proximity transducer system
-
Provides accurate shaft vibration and position data
-
Suitable for high-speed, small-diameter machinery
-
Resistant to oil, dust, and harsh industrial contaminants
-
Real-time signal output for protection and analysis
-
Easy to install and maintain
-
Designed for long-term stability and reliability
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330901-01-45-10-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.15 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve installation |
| Applications | Shaft vibration, position monitoring, and machinery protection |
Industry Applications
-
Small steam and gas turbines
-
Compact compressors and pumps
-
Electric motors and generators
-
Gearboxes and rotating machinery in confined areas
-
Oil, gas, and power generation industries
-
Condition-based monitoring systems
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the 330901-01-45-10-02-00 probe?
It measures shaft vibration and position for smaller or compact rotating machinery.
Q2: Which system is it compatible with?
It is compatible with the Bently Nevada 3300 NSv Proximity Transducer System.
Q3: What is the probe size?
It has a 5 mm tip diameter and 45 mm length.
Q4: What is the operating temperature range?
–35 °C to +177 °C.
Q5: Can it be used in oily or dusty environments?
Yes, it is built to resist oil, dust, and industrial contaminants.
Q6: What is the linear measurement range?
0–1.0 mm (0–40 mils).
Q7: What type of signal does it output?
It provides an analog voltage proportional to shaft vibration and position.
Q8: Where is it typically installed?
On small turbines, compressors, motors, and gearboxes where space is limited.
