Product Overview

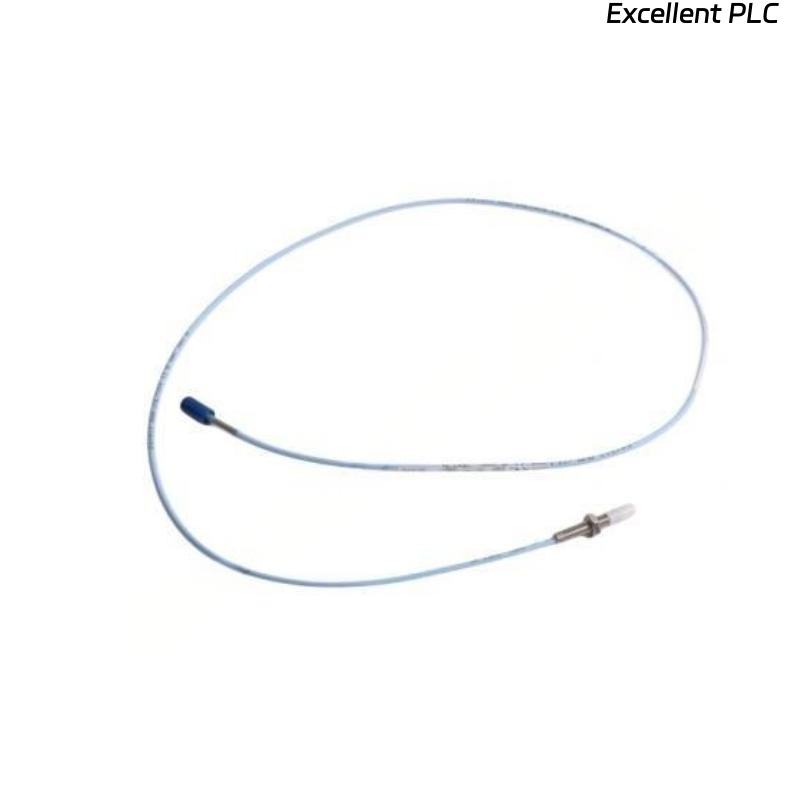

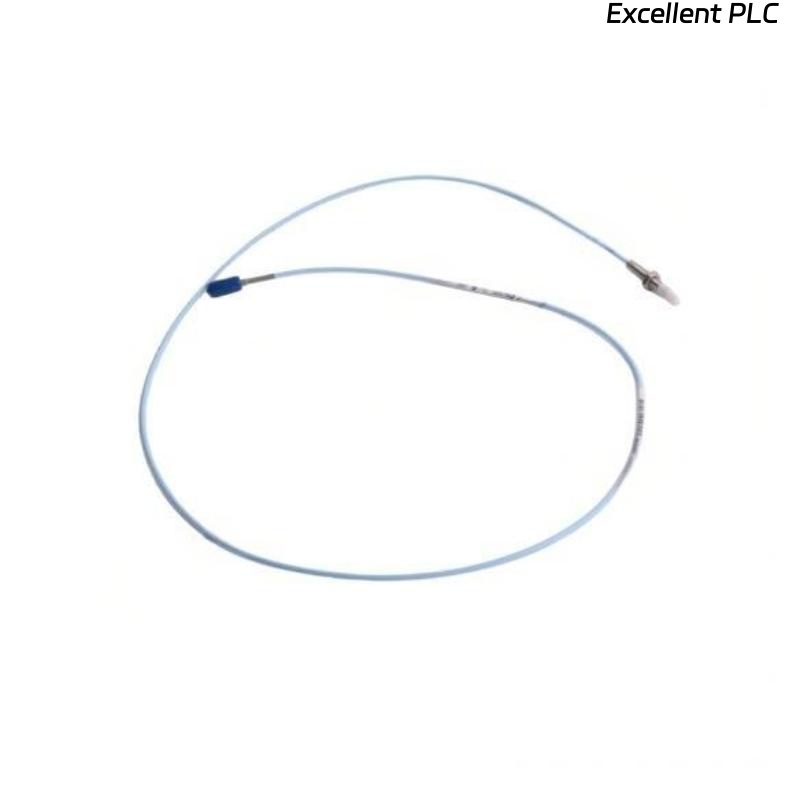

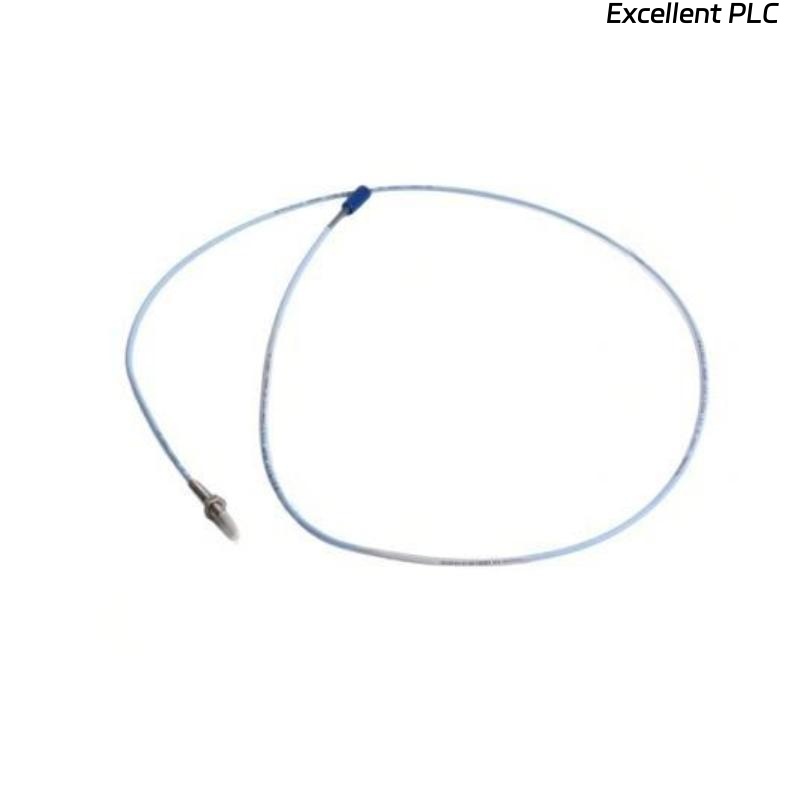

The Bently Nevada 330901-02-24-10-01-00 3300 NSv Proximity Probe is a compact, high-precision sensor designed for shaft vibration and position monitoring in small-to-medium rotating machinery. Part of the 3300 NSv Series, this probe delivers accurate, real-time analog measurements while fitting into limited installation spaces. Its robust construction ensures long-term stability and reliable performance even in harsh industrial environments.
Key Features
-
Compact 5 mm probe suitable for tight installations
-
Accurate shaft vibration and position monitoring
-
Compatible with 3300 NSv proximity transducer system
-
Rugged design for oil, dust, and industrial contaminants
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Part Number | 330901-02-24-10-01-00 |
| Product Series | 3300 NSv |
| Probe Type | Eddy-Current Proximity Probe |
| Tip Diameter | 5 mm |
| Length | 24 mm |
| Linear Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Temperature Range (Operation) | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting Thread | Threaded sleeve installation |
| Connector Type | Miniature coaxial connector |
| Material | Stainless steel housing |
| Dimensions | Total Length: 0.5 meter |
| Weight | 0.15 kg |
Industry Applications
-
Small steam and gas turbines
-
Compact compressors and pumps
-
Electric motors and generators
-
Gearboxes and rotating machinery in confined areas
-
Oil, gas, and power generation industries
-
Condition-based monitoring systems
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the 330901-02-24-10-01-00 probe?
It measures shaft vibration and position in compact machinery.
Q2: Which system is it compatible with?
It works with the Bently Nevada 3300 NSv proximity transducer system.
Q3: What is the probe size?
The probe has a 5 mm diameter and 24 mm length.
Q4: What is the operating temperature range?
It operates between –35 °C and +177 °C.
Q5: Can it be used in harsh industrial environments?
Yes, it is resistant to oil, dust, and industrial contaminants.
Q6: What is the linear measurement range?
The linear range is 0–1.0 mm (0–40 mils).
Q7: What type of signal does it output?
It provides an analog voltage proportional to shaft vibration and position.
Q8: Where is it typically installed?
It is installed on small turbines, compressors, motors, and gearboxes with limited space.
