Product Introduction

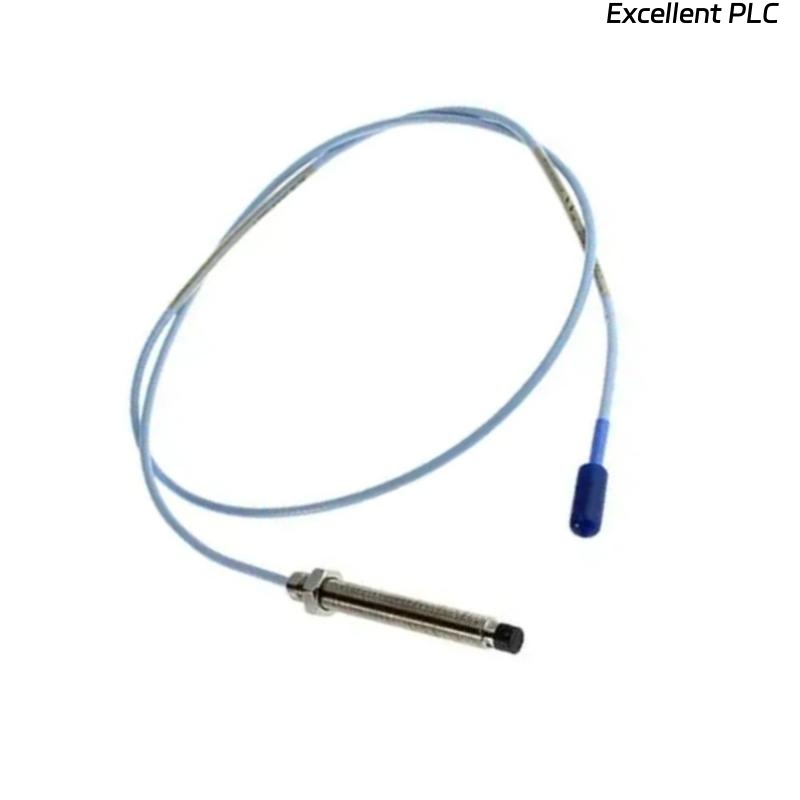

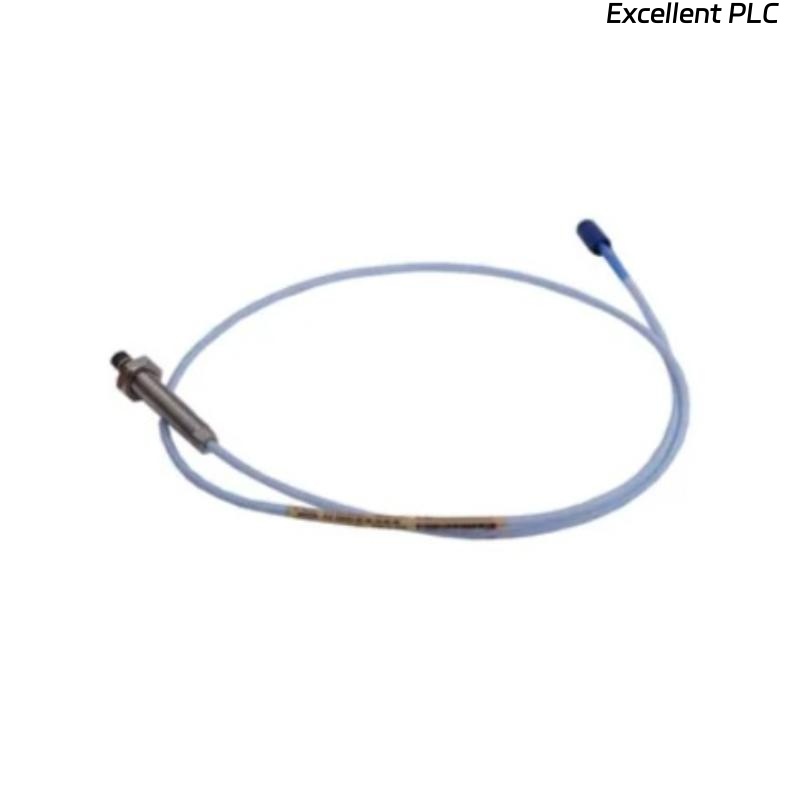

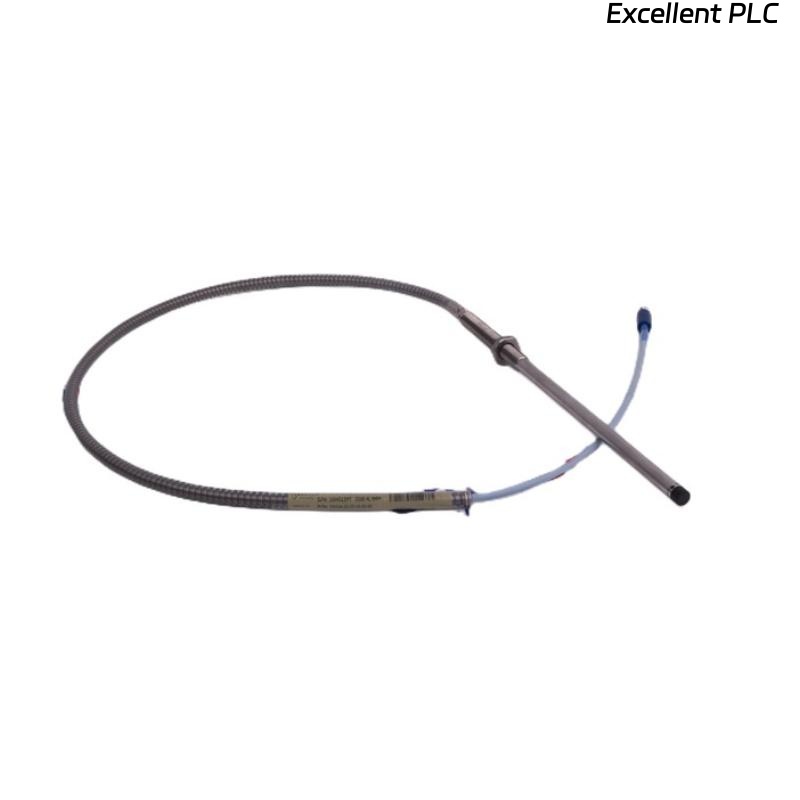

The Bently Nevada 330901-10-40-10-02-00 3300 NSv Proximity Probe is a precision sensing device designed for machinery protection and condition monitoring in environments where space is limited or vibration measurement must be highly accurate. As part of the 3300 NSv (Narrow Side view) series, this probe is specifically engineered for applications in small or restricted installation areas, while maintaining compliance with API 670 requirements.
It provides reliable measurements of shaft displacement, vibration, and position, making it ideal for monitoring turbines, compressors, pumps, and other critical rotating machinery in power generation, petrochemical, and industrial sectors.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330901-10-40-10-02-00 |
| Series | 3300 NSv Proximity Probe |
| Weight | 3 kg |
| Total Length | 1 m |
| Operating Temperature | -35 °C to +177 °C |
| Storage Temperature | -45 °C to +200 °C |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linearity | ±0.25 V over the operating range |
| Power Requirements | Supplied through Proximitor Sensor |
| Compliance | API 670 standard |
| Material | Stainless steel probe tip, durable Tefzel cable jacket |
Product Applications
-
Gas and steam turbines for shaft vibration and position monitoring
-
Centrifugal compressors for rotor stability and bearing monitoring
-
Industrial pumps for imbalance and misalignment detection
-
Petrochemical machinery for operational reliability
-
Gearboxes and motors requiring precision displacement measurement
-
Restricted installations where space-saving probe design is necessary
Product Advantages
-
Compact form factor for installations in confined spaces
-
High reliability under extreme temperature and vibration conditions
-
API 670 compliance ensuring compatibility with industry standards
-
Robust cable design with Tefzel insulation for harsh environments
-
Consistent sensitivity across different applications
-
Durability with stainless steel probe tip for extended service life
-
Seamless integration with Bently Nevada monitoring systems
FAQ
Q1: What is the typical sensitivity output of the 330901-10-40-10-02-00 probe?
A1: The probe provides a sensitivity of 7.87 mV/μm (200 mV/mil), allowing accurate shaft displacement measurement.
Q2: How does this probe connect to the Proximitor Sensor?
A2: The probe has an integral 10 m cable that directly connects to the Proximitor Sensor without requiring additional connectors.
Q3: Can the probe operate in high-temperature industrial environments?
A3: Yes, it supports an operating temperature range of -35 °C to +177 °C, making it suitable for demanding conditions.
Q4: What is the frequency response range of this probe?
A4: The frequency response is DC to 10 kHz, ensuring accurate vibration monitoring across a wide spectrum.
Q5: Is the probe compatible with all Bently Nevada 3300 Proximitor Sensors?
A5: It is designed specifically for 3300 NSv Proximitor Sensors, ensuring full compatibility and accuracy.
Q6: How does the narrow side-view design benefit installation?
A6: The NSv design allows the probe to fit in compact or restricted spaces where standard probes cannot be used.
Q7: What type of materials are used for the probe and cable?
A7: The probe tip is stainless steel for durability, while the cable jacket is Tefzel for resistance to harsh chemicals and heat.
Q8: What level of linearity does the probe provide?
A8: It offers ±0.25 V linearity over the specified operating range, ensuring precise measurement consistency.
Q9: How does the probe handle electrical noise in industrial environments?
A9: The integral shielded cable minimizes electrical interference, ensuring accurate signal transmission.
Q10: Can this probe be used for both vibration and position monitoring?
A10: Yes, it measures shaft vibration, displacement, and position, making it versatile for multiple monitoring needs.
Related Models
| Model Number | Description |
|---|---|
| 330901-00-40-10-02-00 | 3300 NSv Probe, 5 mm tip, 40 mm length, 10 m cable |
| 330901-05-32-05-02-00 | 3300 NSv Probe, 5 mm tip, 32 mm length, 5 m cable |
| 330901-11-43-05-02-00 | 3300 NSv Probe, extended length, 5 m cable |
| 330901-20-32-10-02-05 | 3300 NSv Probe, 5 mm tip, 32 mm length, 10 m cable |
| 330901-00-41-05-02-00 | 3300 NSv Probe, 41 mm length, 5 m cable |
| 330901-00-90-10-02-00 | 3300 NSv Probe, 90 mm length, 10 m cable |
