Product Introduction

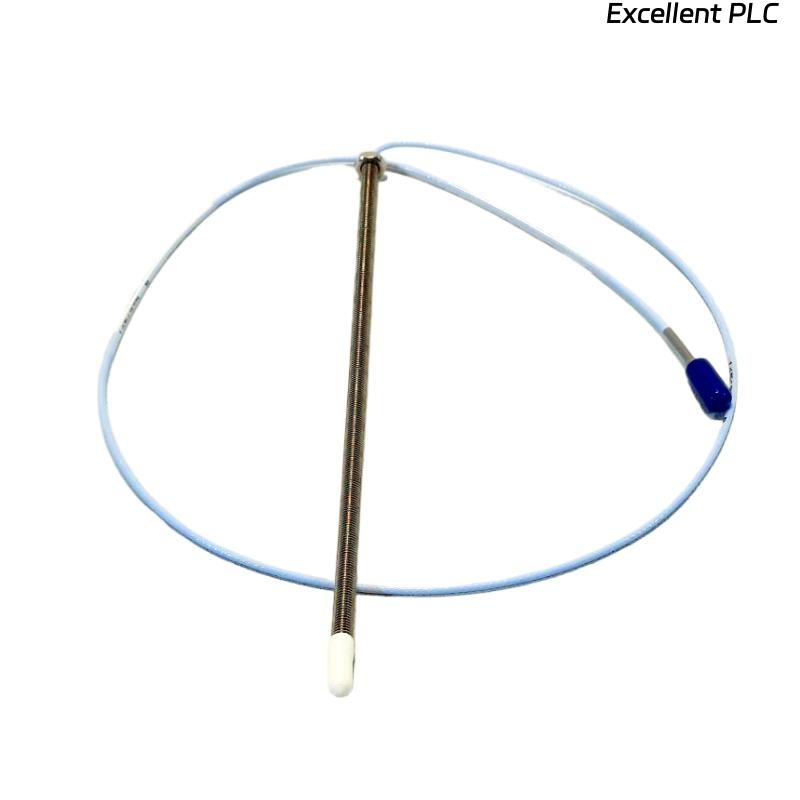

The Bently Nevada 330901-20-32-10-02-05 3300 NSv Proximity Probe is an advanced sensor designed for reliable shaft vibration and position monitoring in rotating machinery. It is part of the 3300 NSv (Narrow Side-view) series, which has been optimized for applications where installation space is limited and a compact probe is required without sacrificing accuracy.
This probe is specifically engineered for machinery such as compressors, pumps, turbines, and gearboxes, ensuring that operators can continuously monitor shaft dynamics to prevent unplanned downtime and protect critical assets. Its robust design and compliance with API standards make it a trusted choice across industries including oil & gas, petrochemicals, and power generation.
Product Parameters
| Parameter | Description |
|---|---|
| Model Number | 330901-20-32-10-02-05 |
| Series | 3300 NSv Proximity Probe |
| Total Length | 1 m |
| Thread Type | M8 x 1 |
| Target Material | 4140 Steel (standard calibration) |
| Operating Gap | 0.25 – 2.0 mm |
| Frequency Response | 0 – 10 kHz |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linear Range | ±0.5 mm |
| Operating Temperature | -35 °C to +175 °C |
| Weight | 3 kg |
| Voltage Requirement | -24 VDC (through proximitor) |
Product Applications
-
Compressors: Monitoring shaft vibration and axial movement to prevent bearing damage.
-
Turbines: Continuous measurement of shaft dynamics under high-speed operation.
-
Pumps: Ensuring early fault detection for cavitation or imbalance.
-
Gearboxes: Detecting misalignment, wear, or instability.
-
Motors & Generators: Protecting rotating equipment in industrial environments.
-
Petrochemical Plants: Supporting API 670 compliance for critical machinery.
Product Advantages
-
Compact Design: NSv (Narrow Side-view) construction ideal for tight installation spaces.
-
High Accuracy: Provides precise vibration and displacement measurements for predictive maintenance.
-
API Compliance: Meets industry standards, ensuring compatibility with global monitoring systems.
-
Rugged Build: Resistant to harsh industrial conditions including heat, oil, and vibration.
-
Compatibility: Works seamlessly with 3300 series proximitor sensors and monitoring systems.
-
Reliable Performance: Long-term stability with minimal calibration drift.
FAQ
Q1: What type of proximitor does the 330901-20-32-10-02-05 require?
A1: It is designed to be used with Bently Nevada 3300 NSv Proximitor Sensor modules.
Q2: Can this probe measure both vibration and position?
A2: Yes, it measures both shaft vibration (dynamic) and shaft position (static).
Q3: What is the recommended target material for accurate calibration?
A3: Standard calibration is done using AISI 4140 steel; other materials require specific calibration factors.
Q4: What is the probe’s linear range?
A4: The linear measurement range is approximately ±0.5 mm.
Q5: How does the probe handle high-frequency vibration signals?
A5: It provides reliable response up to 10 kHz, ensuring accurate capture of shaft dynamics.
Q6: Is the probe suitable for high-temperature applications?
A6: Yes, it operates reliably up to +175 °C, making it suitable for turbines and compressors.
Q7: Can the probe be used in hazardous environments?
A7: When paired with approved proximitor systems, it can be deployed in hazardous and explosive-rated zones.
Q8: How does the probe maintain accuracy under electrical noise?
A8: The probe features shielded cabling and differential measurement to reduce interference.
Q9: Does the probe require recalibration over time?
A9: Recalibration is rarely needed, but verification is recommended during periodic maintenance.
Q10: Can this probe be used interchangeably with other 3300 series probes?
A10: Yes, within the NSv family, it is interchangeable as long as probe, extension cable, and proximitor are correctly matched.
