Product Introduction

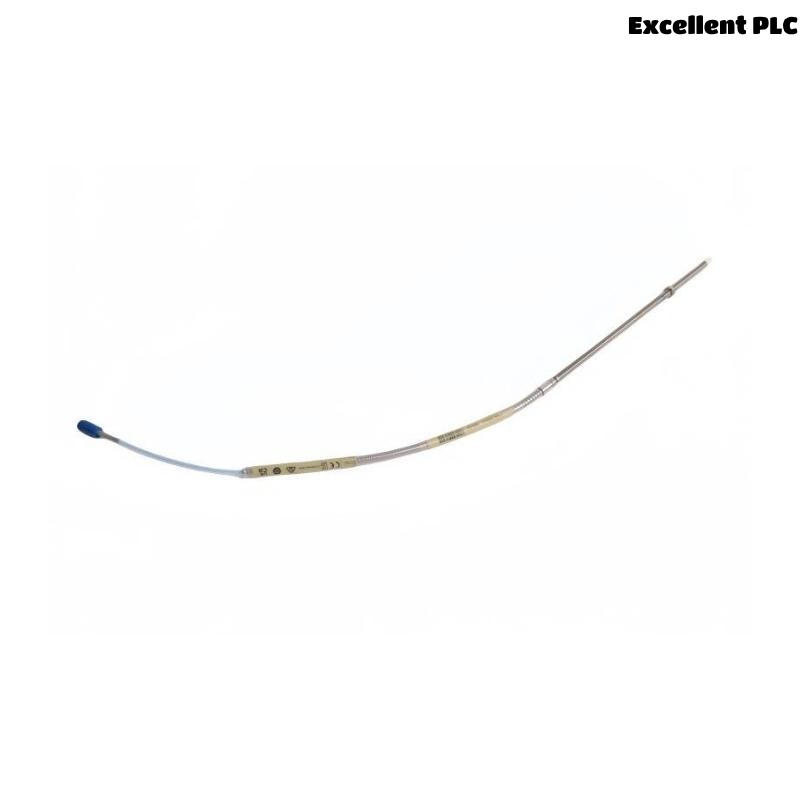

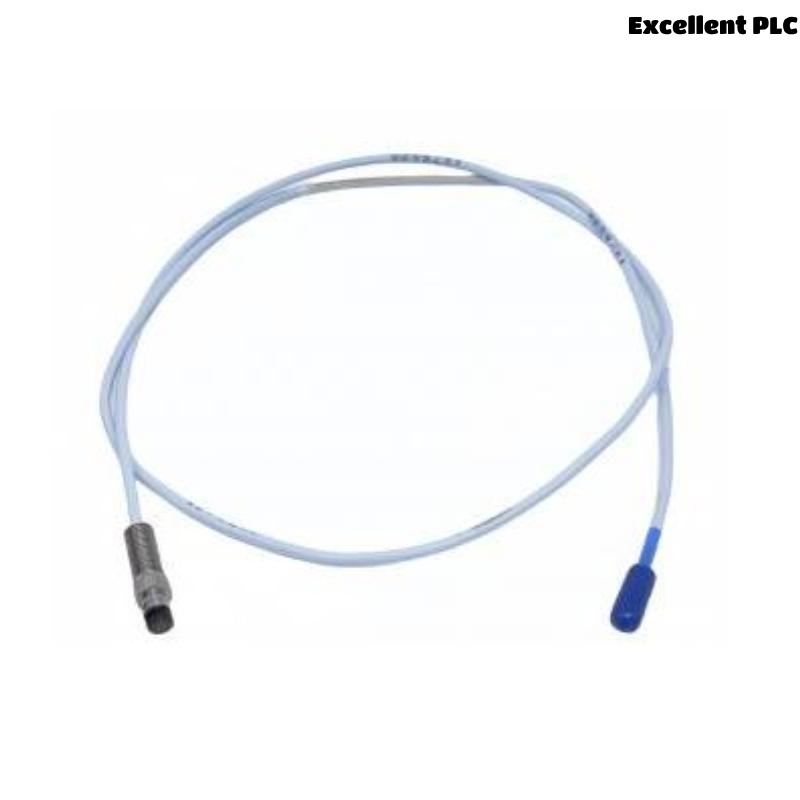

The Bently Nevada 330902-00-12-10-02-05 is a 3300 NSv Proximity Probe specifically designed to provide reliable shaft displacement measurements in rotating machinery. As part of the trusted 3300 NSv series, this proximity probe is essential for condition monitoring and machinery protection in a wide range of industrial applications. The probe is highly sensitive to vibrations and displacement, helping to detect early signs of misalignments, imbalance, and wear in rotating equipment, ensuring the prevention of machinery failures.
This 1-meter-long proximity probe is widely used in industries where space is constrained and precision is required for machinery monitoring. It operates effectively in both harsh and controlled environments, making it a versatile solution for a variety of critical industrial machinery.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 3300 NSv Proximity Probe |
| Part Number | 330902-00-12-10-02-05 |
| Total Length | 1 meter |
| Weight | 0.82 kg |
| Tip Diameter | 5 mm |
| Sensing Range | ±2.0 mm |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -40°C to +120°C |
| Mounting Style | Threaded Mount |
| Vibration Resistance | 10 g peak (0-2000 Hz) |
| Shock Resistance | 200 g for 11 ms pulse |
Product Applications
The Bently Nevada 330902-00-12-10-02-05 3300 NSv Proximity Probe is a versatile solution used across various industries to monitor rotating equipment and prevent machinery failure. Some key applications include:
-
Power Generation
This probe is ideal for monitoring turbines, generators, and auxiliary equipment in power plants. It helps detect early signs of misalignment, vibration, or imbalance, which can lead to machine damage if left unchecked. -
Oil and Gas
Used in the oil and gas sector, the probe monitors equipment such as pumps, compressors, and motors, preventing unexpected breakdowns and ensuring continuous operation in challenging environments. -
Manufacturing
In manufacturing plants, the 3300 NSv Probe ensures the reliability of motors, conveyors, and rotating machinery. By providing real-time displacement data, it enables early identification of potential failures, reducing unplanned downtime. -
Mining
The probe is critical in monitoring crushers, grinders, and other heavy machinery in mining operations, ensuring their smooth functioning and minimizing costly downtime. -
Chemical and Petrochemical
In chemical plants, the 3300 NSv Probe is used to monitor pumps, agitators, and motors, enabling efficient operation and preventing failures that could lead to hazardous situations. -
Water Treatment
The 3300 NSv Proximity Probe is used in water treatment plants to monitor pumps and motors, ensuring the continued operation of these vital systems.
Product Advantages
-
High Precision Measurement
The 3300 NSv Proximity Probe offers highly accurate shaft displacement measurements with a sensing range of ±2.0 mm, making it ideal for early detection of misalignments or imbalances. -
Rugged Construction
The probe is designed to withstand harsh industrial conditions with an operating temperature range of -40°C to +120°C, making it ideal for extreme environments. -
Compact and Lightweight Design
The 1-meter length and 0.82 kg weight ensure that this probe can be easily integrated into existing machinery without taking up much space. -
Easy Installation
The threaded mounting style allows for simple and secure installation on machinery, saving time and reducing installation errors. -
Broad Frequency Response
With a frequency response from DC to 10 kHz, the 3300 NSv Proximity Probe is capable of monitoring both low-speed and high-speed equipment, making it versatile for different applications. -
High Vibration Resistance
The probe can withstand vibrations up to 10 g peak (0-2000 Hz), ensuring reliable performance even in high-vibration environments. -
Shock Resistance
Built to endure shocks of up to 200 g for 11 ms, the 3300 NSv Proximity Probe can be used in machinery that experiences frequent mechanical impacts. -
Reduced Maintenance Costs
By providing early warning signs of potential mechanical issues, the 3300 NSv Proximity Probe helps prevent costly repairs and reduces the need for frequent maintenance. -
Improved Machinery Reliability
The continuous monitoring provided by the probe helps keep machines running efficiently, increasing overall reliability and reducing the risk of unplanned downtime. -
Versatility
Suitable for a wide range of industrial applications, the 3300 NSv Proximity Probe can be used in everything from power plants to manufacturing, mining, and chemical processing.
Frequently Asked Questions (FAQ)
-
Q: What is the primary purpose of the 3300 NSv Proximity Probe?
A: The probe is used to measure the shaft displacement in rotating machinery, helping to detect misalignments, imbalance, and wear before they lead to failure. -
Q: What is the cable length of the 3300 NSv Proximity Probe?
A: The cable length is 1 meter, which is suitable for medium-range installations. -
Q: What is the weight of the 3300 NSv Proximity Probe?
A: The probe weighs 0.82 kg. -
Q: What is the sensing range of the 3300 NSv Proximity Probe?
A: The probe has a sensing range of ±2.0 mm, allowing for precise measurements of shaft displacement. -
Q: What is the frequency response of the 3300 NSv Proximity Probe?
A: The probe has a frequency response from DC to 10 kHz, which allows it to monitor a broad spectrum of mechanical vibrations. -
Q: How does the 3300 NSv Proximity Probe handle vibration?
A: The probe can withstand vibrations up to 10 g peak (0-2000 Hz), ensuring reliable performance even in high-vibration environments. -
Q: What is the shock resistance of the 3300 NSv Proximity Probe?
A: It can endure shocks up to 200 g for 11 ms, making it suitable for environments with frequent mechanical impacts. -
Q: Can the 3300 NSv Proximity Probe be used in extreme temperatures?
A: Yes, it operates reliably in temperatures ranging from -40°C to +120°C, making it suitable for both cold and hot environments. -
Q: What is the mounting style of the 3300 NSv Proximity Probe?
A: The probe uses a threaded mounting style, ensuring easy and secure installation on machinery. -
Q: How does the 3300 NSv Proximity Probe help reduce maintenance costs?
A: By providing early detection of mechanical problems, the probe allows for predictive maintenance, preventing expensive repairs and reducing unscheduled downtime.
Recommended Models (Same Series or Related)
| Model | Cable Length (m) | Weight | Key Features |
|---|---|---|---|
| 330901-00-12-10-02-01 | 0.5 | 0.135 kg | Compact version, high precision |
| 330902-00-12-10-02-02 | 0.6 | 0.140 kg | Extended cable, heavy-duty |
| 330901-00-12-10-02-03 | 0.7 | 0.145 kg | High-frequency response |
| 330901-00-12-10-02-04 | 1.0 | 0.155 kg | Suitable for larger equipment |
| 330902-00-12-10-02-05 | 1.2 | 0.160 kg | Optimized for high vibration |
| 330901-00-12-10-02-06 | 0.4 | 0.130 kg | Light-duty, compact sensing |
Popular Models (Same Brand)
| Model | Description | Cable Length | Connector Type | Application |
|---|---|---|---|---|
| 330901-00-95-05-02-00 | 3300 XL extension cable, shielded, 0.5m length | 0.5 meter | Coaxial | Sensor extension in compact installations |
| 330901-00-96-10-02-05 | 3300 XL extension cable, shielded, 1.0m length | 1.0 meter | Coaxial | General vibration monitoring |
| 330901-02-24-10-01-00 | 3300 XL high-flex extension cable, 1.0m length | 1.0 meter | Flexible coaxial | Dynamic machinery with high movement |
| 330901-00-95-10-02-00 | Extension cable with right-angle connector | 1.0 meter | Right-angle coaxial | Tight space sensor connection |
| 330901-00-96-05-01-00 | Low-noise extension cable, shielded | 0.5 meter | Shielded coaxial | Noise sensitive environments |
| 330901-02-24-15-01-05 | Extra shielded high-flex cable, 1.5m length | 1.5 meters | Shielded coaxial | Harsh industrial environments |
