Product Introduction

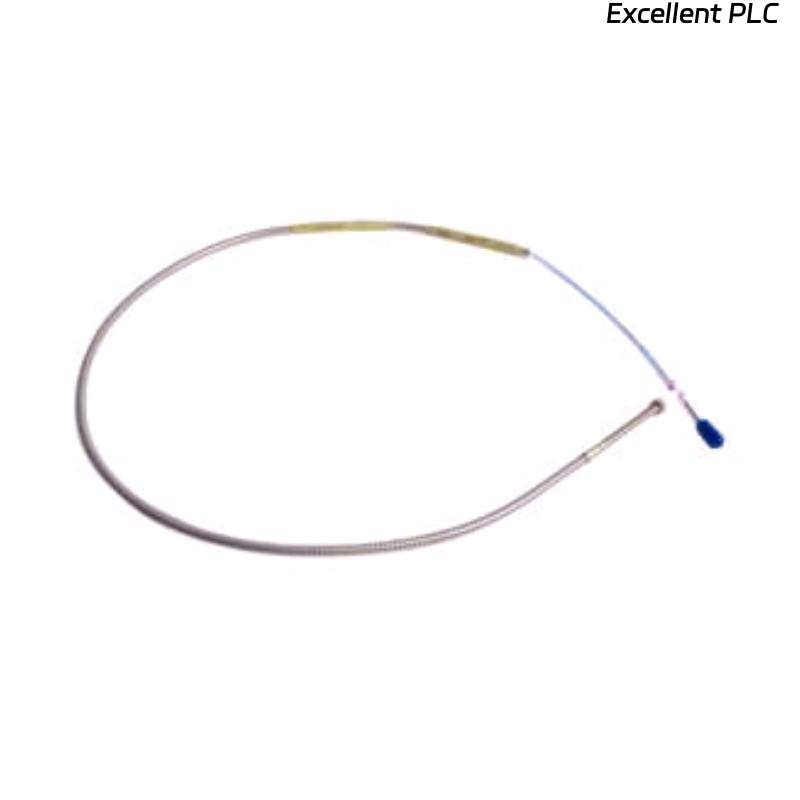

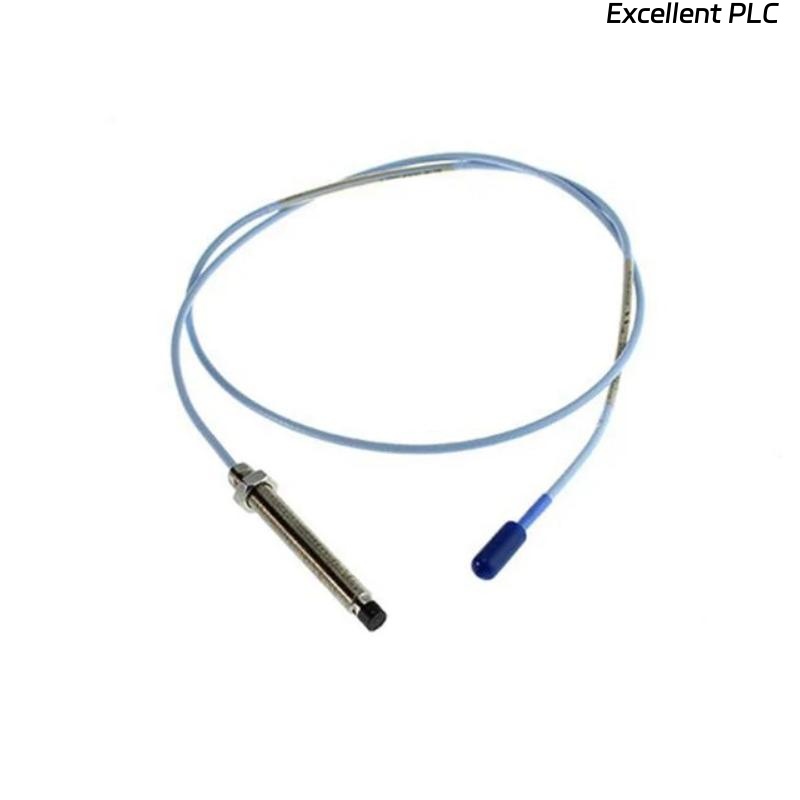

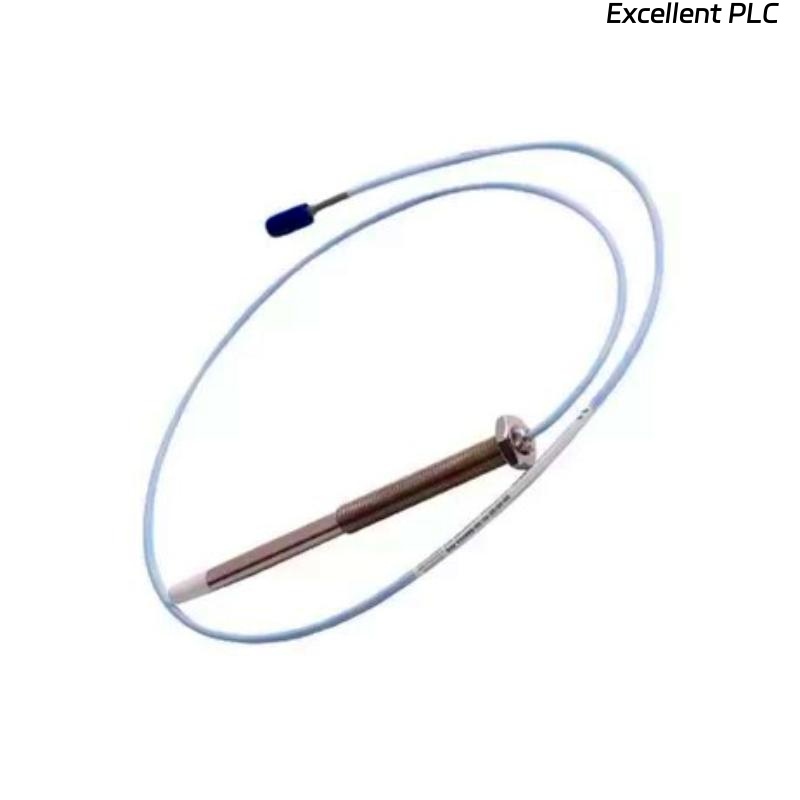

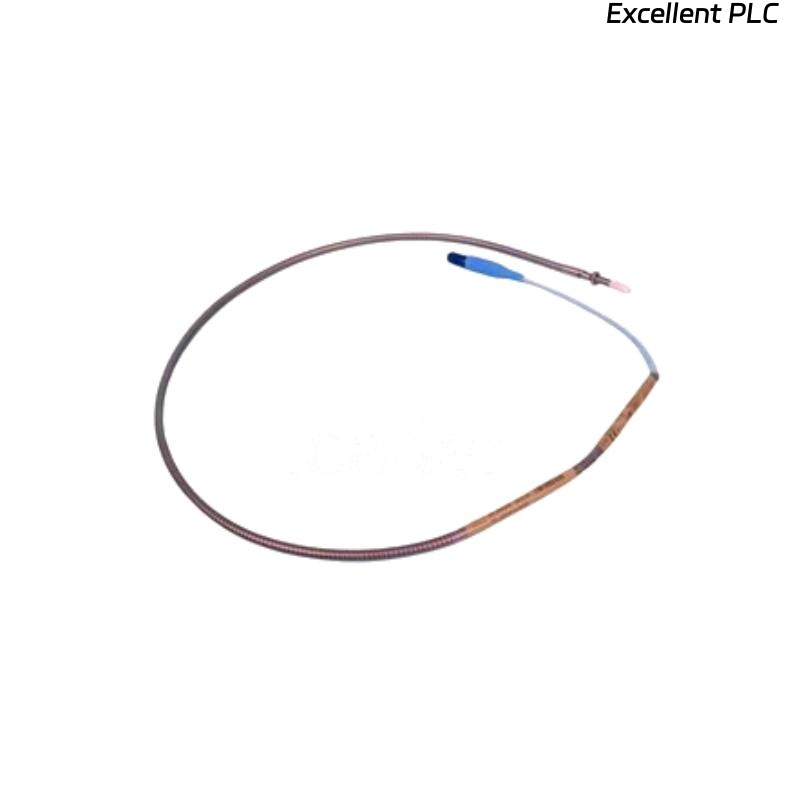

The Bently Nevada 330902-00-20-10-02-05 3300 NSv Proximity Probe is a high-performance probe specifically designed for vibration and displacement measurement in confined spaces where traditional probes cannot be installed. This model belongs to the 3300 NSv (Narrow Side-view) series, which is known for its capability to operate reliably in small radial clearances. It ensures accurate signal transmission, compatibility with 3300 XL extension cables and drivers, and excellent performance in demanding industrial environments.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | 330902-00-20-10-02-05 |
| Series | 3300 NSv Proximity Probe |
| Total Length | 1 m |
| Weight | 0.15 kg |
| Tip Diameter | 5 mm |
| Linear Range | 0.25 mm to 2.0 mm |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Gap Range | 0.25 mm to 1.5 mm |
| Frequency Response | DC to 10 kHz |
| Probe Material | Stainless steel body with PEEK tip |
| Compatible Extension Cable | 330930 series |
| Compatible Driver | 3300 NSv Driver (e.g., 330910) |
| Operating Temperature | -35 °C to +177 °C |
| Insulation Resistance | > 10^9 ohms |
Product Applications
-
Monitoring radial vibration in small machines with tight clearance.
-
Measuring shaft position and displacement in compact rotating machinery.
-
Condition monitoring of compressors, pumps, turbines, motors, and gearboxes.
-
Protection systems for critical machinery where space limitations exist.
-
Industrial environments such as petrochemical plants, refineries, and power stations.
Product Advantages
-
Compact Design – Suitable for confined installations with narrow radial clearance.
-
High Accuracy – Provides reliable displacement and vibration data for machinery protection.
-
Durable Construction – Built with corrosion-resistant materials, designed for harsh environments.
-
Seamless Compatibility – Works with standard Bently Nevada extension cables and drivers.
-
Stable Performance – Maintains consistent output across wide temperature ranges.
-
Trusted Brand Reliability – Part of the proven 3300 series, trusted by industries worldwide.
FAQ
Q1: What is the sensitivity calibration of the 330902-00-20-10-02-05 probe?
A1: It is factory calibrated to 7.87 V/mm (200 mV/mil) with a linear range up to 2 mm.
Q2: Can this probe be directly connected without an extension cable?
A2: No, it requires a matching 330930 extension cable and a 330910 NSv driver for correct operation.
Q3: How does the NSv probe differ from standard 3300 XL probes?
A3: The NSv is specifically designed for narrow clearances and provides accurate performance where standard probes cannot fit.
Q4: What is the typical operating gap for this probe?
A4: The recommended operating gap range is between 0.25 mm and 1.5 mm.
Q5: Is the probe affected by electromagnetic interference (EMI)?
A5: The probe is shielded to minimize EMI, but proper grounding and cable routing are essential.
Q6: What type of material is used for the probe tip?
A6: The tip is made from PEEK (polyether ether ketone), providing durability and insulation.
Q7: Can this probe be used in high-temperature environments?
A7: Yes, it supports operating temperatures up to +177 °C.
Q8: What is the frequency response range of this probe?
A8: It provides a frequency response from DC to 10 kHz, suitable for most vibration monitoring needs.
Q9: Does the probe require recalibration during its service life?
A9: Generally, recalibration is not required; however, system verification with drivers is recommended during maintenance.
Q10: Can multiple probes be used in the same machine?
A10: Yes, multiple probes can be installed for comprehensive monitoring of shaft vibration and position.
