Product Introduction

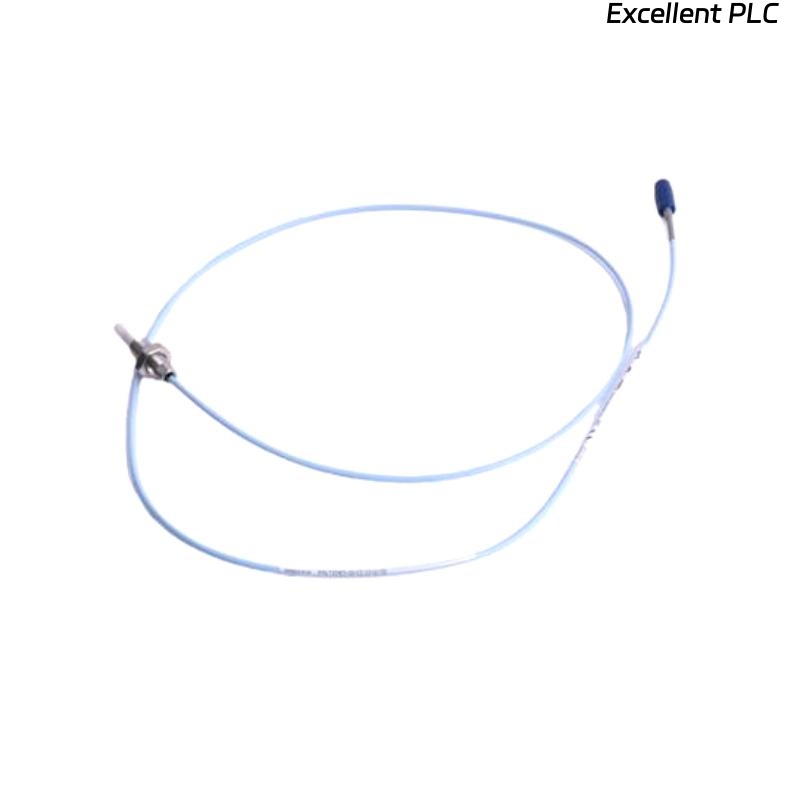

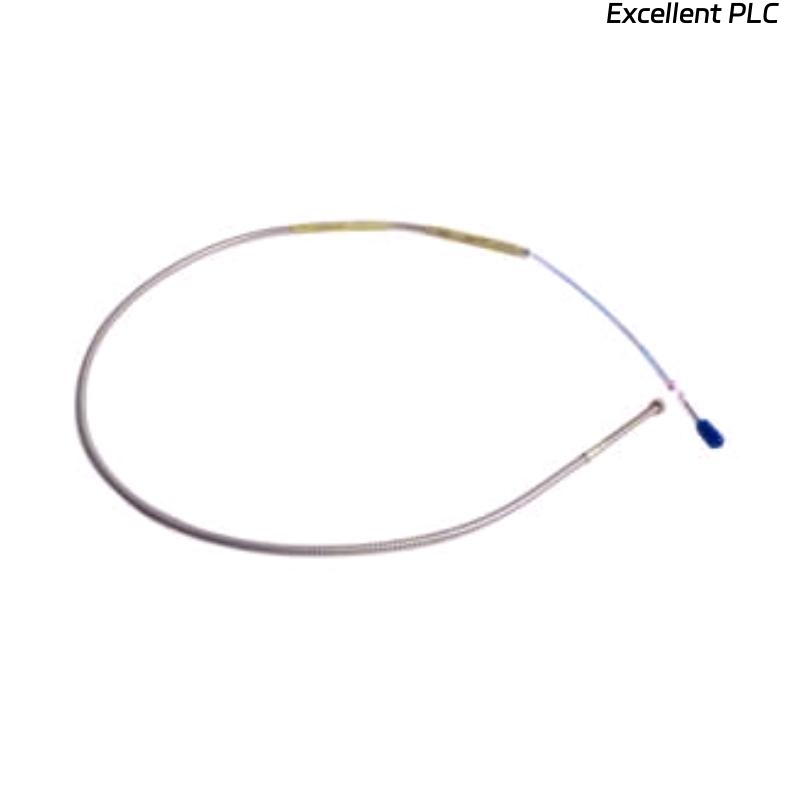

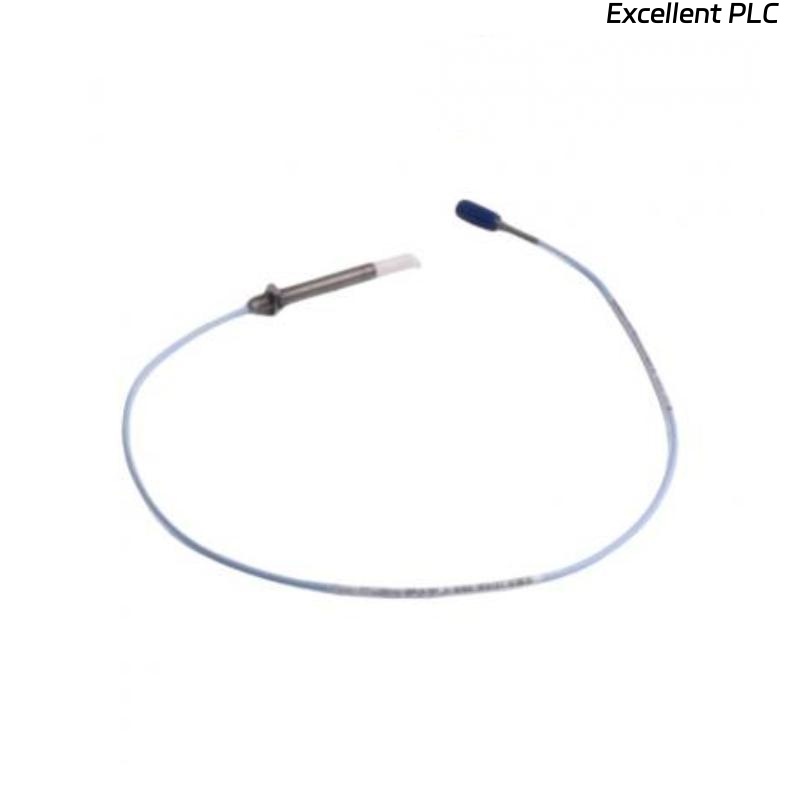

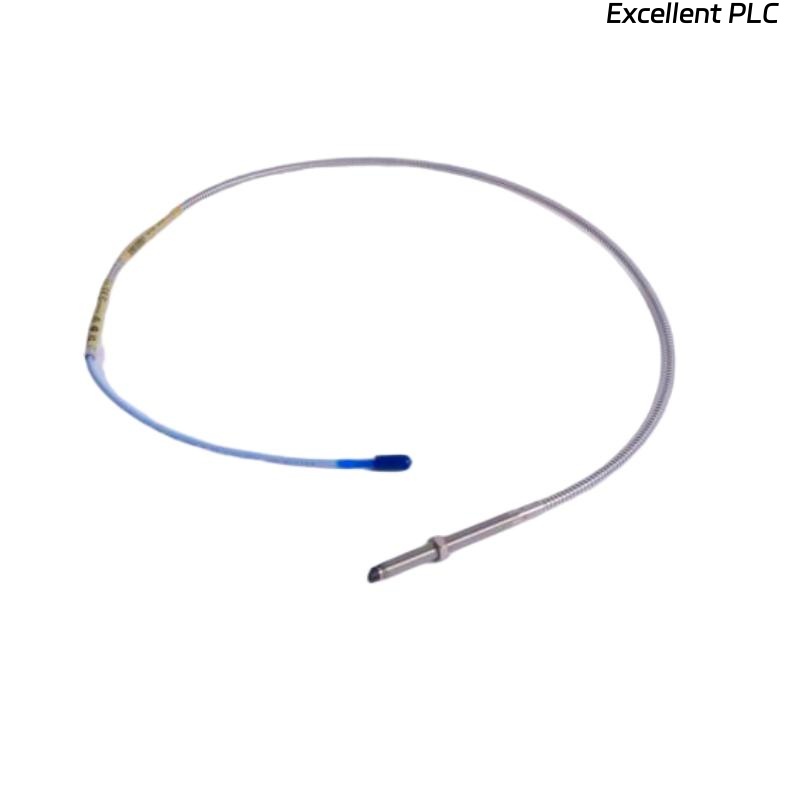

The Bently Nevada 330902-00-40-05-01-00 3300 NSv Proximity Probe is a high-precision probe designed for shaft vibration and displacement measurements in compact or restricted installation areas. As part of the 3300 NSv (Narrow Side-view) series, it is widely used for monitoring small or lightly loaded journal-bearing machines, compressors, pumps, and other rotating equipment where standard probes cannot be accommodated.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330902-00-40-05-01-00 |
| Series | 3300 NSv Proximity Probe |
| Probe Tip Diameter | 5 mm |
| Linear Range | 0.25 mm to 2.0 mm |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -35 °C to +177 °C |
| Probe Case Material | Stainless Steel |
| Cable Type | Integral coaxial cable |
| Total Length | 0.5 m |
| Weight | 0.15 kg |
| Compatible Extension Cables | 330930, 330932 series |
| Compatible Drivers | 3300 NSv Proximitor® Sensor |
| Mounting Thread | M10 x 1 or 3/8″-24 UNF (depending on configuration) |
Product Applications
-
Monitoring shaft vibration in small steam turbines, pumps, and compressors.
-
Detecting axial displacement in restricted installation areas.
-
Providing precise position feedback in high-speed rotating equipment.
-
Supporting predictive maintenance and early fault detection in critical machinery.
-
Integration with Bently Nevada 3300 monitoring systems for comprehensive machine protection.
Product Advantages
-
Compact Design – Suitable for installations with space limitations.
-
High Accuracy – Offers reliable linear response and sensitivity in harsh environments.
-
Wide Compatibility – Fully compatible with Bently Nevada 3300 NSv proximitor and cabling.
-
Durable Construction – Stainless steel probe housing ensures long-term reliability.
-
Temperature Resistant – Operates effectively in high-temperature industrial environments.
-
Predictive Maintenance Support – Provides accurate data for vibration analysis and early fault detection.
FAQ
Q1: What is the linear measurement range of the 330902-00-40-05-01-00 probe?
A1: The linear range is 0.25 mm to 2.0 mm, optimized for narrow-gap machinery applications.
Q2: Which proximitor driver is compatible with this probe?
A2: It is compatible with the Bently Nevada 3300 NSv Proximitor® sensor.
Q3: Can this probe be used with standard 3300 series extension cables?
A3: No, it requires 330930 or 330932 series extension cables designed for NSv probes.
Q4: What is the probe sensitivity?
A4: The probe sensitivity is 200 mV/mil (equivalent to 7.87 V/mm).
Q5: How does this probe differ from standard 3300 XL probes?
A5: The NSv probe is specifically designed for narrow and limited spaces, whereas XL probes are for general-purpose applications.
Q6: What type of mounting thread does this probe support?
A6: It supports either M10 x 1 or 3/8″-24 UNF threads, depending on the configuration.
Q7: Can this probe operate in high-temperature environments?
A7: Yes, it is rated for operation between -35 °C and +177 °C.
Q8: Is the probe case shielded against electrical interference?
A8: Yes, the stainless steel body and coaxial cable design provide effective shielding.
Q9: What type of machines are best suited for this probe?
A9: Small turbines, gearboxes, compressors, and pumps with limited installation space.
Q10: Does the probe support backward compatibility with older monitoring systems?
A10: It is designed to work with the 3300 monitoring system but is not compatible with older non-NSv drivers.
