Product Introduction

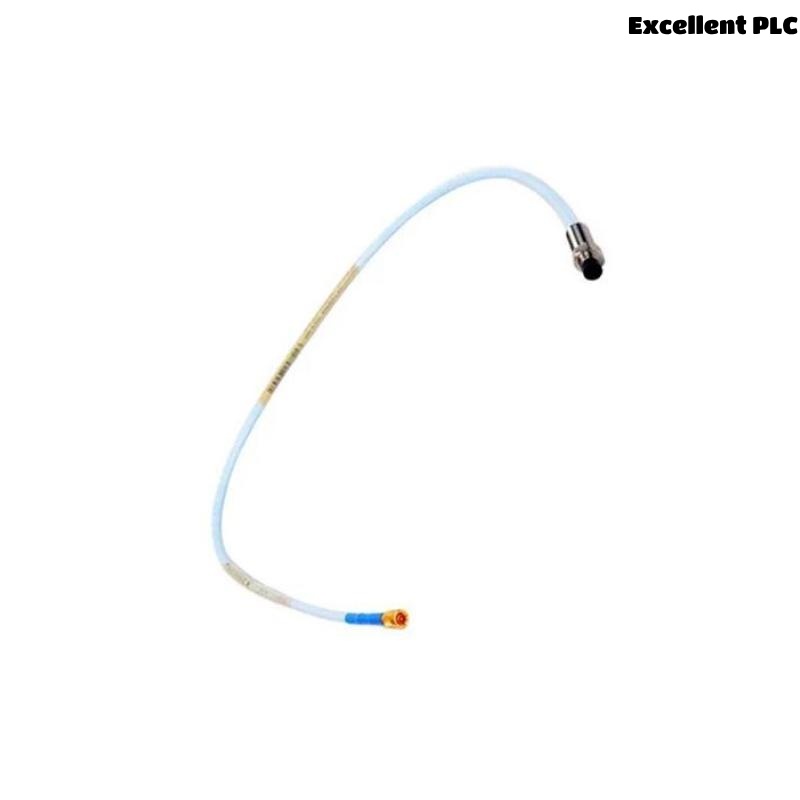

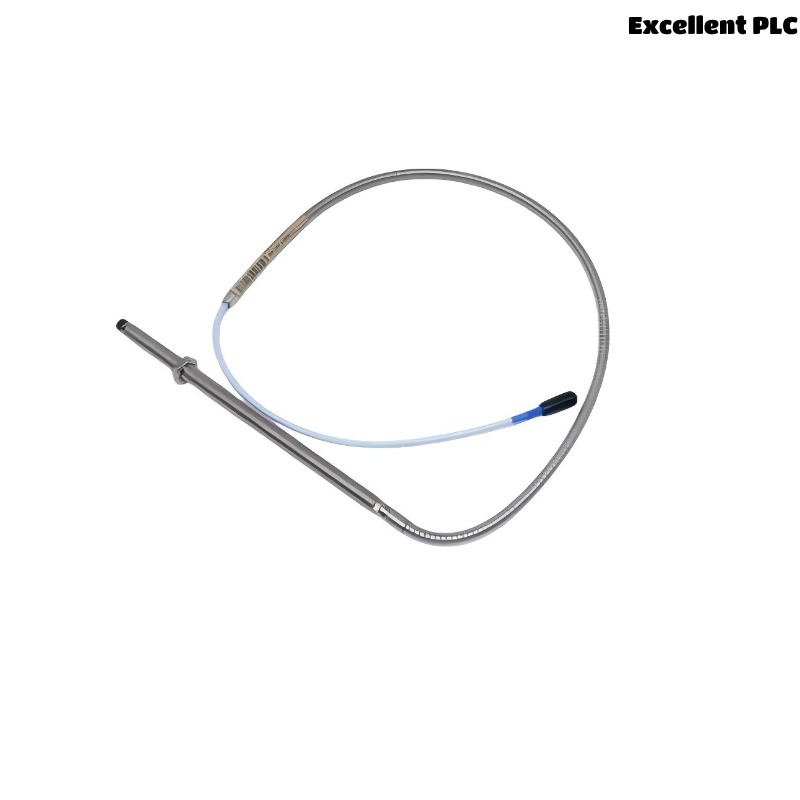

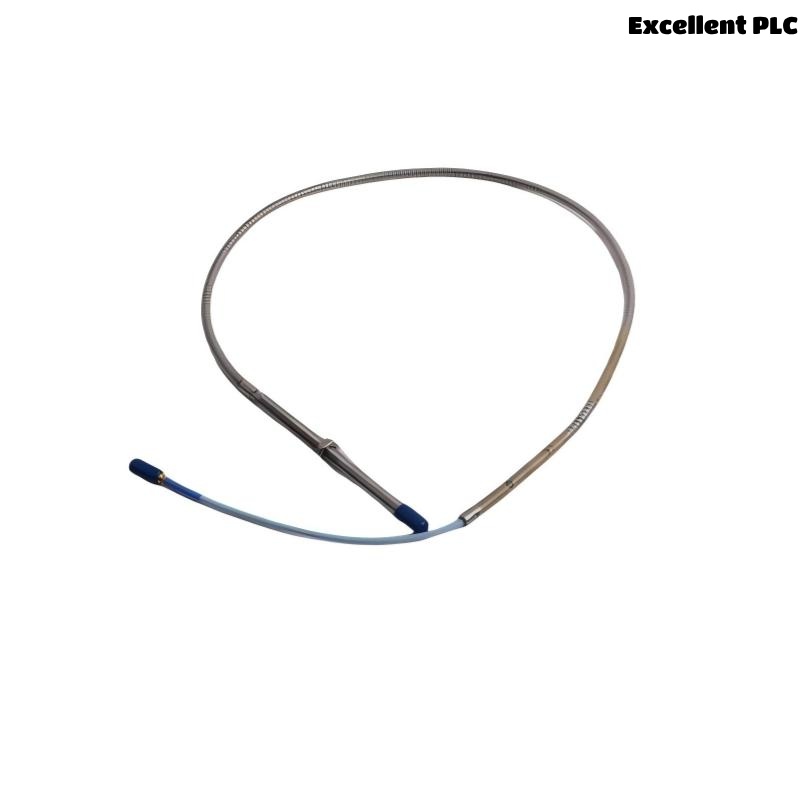

The Bently Nevada 330902-00-40-10-02-05 is a highly precise proximity probe from the 3300 NSv Series, designed for vibration and displacement monitoring in critical rotating machinery. This probe is part of the 3300 NSv Series, which is specifically built for non-contacting, displacement measurements of shafts, bearings, and other machine components. The 330902-00-40-10-02-05 is ideal for monitoring equipment such as turbines, motors, compressors, and pumps, and provides early detection of potential mechanical issues.
With a total length of 1.0 meter and weight of 0.82 kg, this NSv proximity probe is built for durability and precision, offering reliable performance even in challenging industrial environments. The probe’s ability to detect changes in displacement with extreme accuracy ensures that machinery can be maintained before faults result in severe damage or unplanned downtime. This makes the 3300 NSv an indispensable tool for predictive maintenance programs.
Product Specifications
| Parameter | Details |
|---|---|
| Model | 330902-00-40-10-02-05 |
| Series | 3300 NSv Series |
| Probe Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.82 kg |
| Mount Type | Standard Mount |
| Temperature Range | -40°C to +121°C |
| Frequency Range | 2 Hz to 10 kHz |
| Signal Output | AC or DC |
| Cable Length | 1.0 meter |
| Material | Stainless Steel |
| Environmental Protection | IP65 (dustproof and waterproof) |
Applications
The Bently Nevada 330902-00-40-10-02-05 proximity probe is designed for use in a wide range of industrial applications where high-precision vibration and displacement measurements are required. Common applications include:
-
Turbine Monitoring: Provides real-time measurement of displacement and vibration in turbines, ensuring early detection of misalignment or damage that could affect turbine performance.
-
Electric Motor Monitoring: Measures vibrations in electric motors to help detect potential bearing failures, imbalance, or misalignment issues before they cause a failure.
-
Compressor Monitoring: Continuously monitors compressors, detecting any issues such as bearing wear, imbalance, or misalignment that could impact performance or lead to downtime.
-
Pump Monitoring: Used in centrifugal and other types of pumps to detect changes in vibration or displacement, ensuring the pump operates efficiently and preventing any potential damage.
-
Gearbox Condition Monitoring: Measures vibration in gearboxes to detect potential issues such as excessive wear or imbalance, which can lead to mechanical failure if not addressed.
-
General Industrial Machinery: Suitable for monitoring a wide variety of rotating machinery, including fans, mixers, and compressors, providing accurate vibration data for predictive maintenance.
Product Advantages
-
High Precision: The 3300 NSv proximity probe provides extremely accurate displacement and vibration measurements, ensuring early detection of mechanical issues such as misalignment, imbalance, and bearing wear.
-
Compact and Lightweight: With a total length of 1.0 meter and a weight of 0.82 kg, this probe is easy to handle and install, even in tight spaces.
-
Durability: Constructed from stainless steel, the probe is resistant to corrosion, wear, and harsh environmental conditions, ensuring long-lasting performance even in challenging industrial environments.
-
Wide Temperature Range: The probe can operate in temperatures from -40°C to +121°C, making it ideal for a wide range of industrial applications, from extremely cold to high-temperature environments.
-
IP65 Rating: The probe is dustproof and waterproof, providing reliable operation in environments where water or dust might be present.
-
Versatile Applications: Its 8mm diameter and standard mount design make it compatible with a wide range of machinery, including turbines, motors, pumps, and compressors.
-
Prevents Unplanned Downtime: By providing continuous real-time measurements, the probe helps predict failures before they occur, enabling timely maintenance and preventing unplanned equipment shutdowns.
Frequently Asked Questions (FAQs)
Q1: What is the frequency range of the Bently Nevada 330902-00-40-10-02-05 probe?
A1: The probe operates within a frequency range of 2 Hz to 10 kHz, suitable for detecting a wide variety of vibration and displacement signals.
Q2: What type of signal does the Bently Nevada 330902-00-40-10-02-05 probe output?
A2: The probe provides an AC or DC signal depending on the configuration of the monitoring system.
Q3: What is the total length of the Bently Nevada 330902-00-40-10-02-05 probe?
A3: The total length of the probe is 1.0 meter, providing flexibility for installations in varying machinery configurations.
Q4: How much does the Bently Nevada 330902-00-40-10-02-05 probe weigh?
A4: The probe weighs 0.82 kg, making it lightweight and easy to install and handle.
Q5: What is the operating temperature range of this probe?
A5: The Bently Nevada 330902-00-40-10-02-05 probe operates within a temperature range of -40°C to +121°C, making it suitable for a wide range of industrial environments.
Q6: Can the Bently Nevada 330902-00-40-10-02-05 probe be used in hazardous environments?
A6: Yes, the probe has an IP65 rating, which makes it dustproof and waterproof, ideal for use in harsh or hazardous environments.
Q7: How does the Bently Nevada 330902-00-40-10-02-05 probe help in predictive maintenance?
A7: The probe continuously monitors displacement and vibration, providing early warning of potential issues such as imbalance, misalignment, and bearing wear, allowing for timely maintenance.
Q8: What types of machinery can this probe be used on?
A8: The probe can be used on a wide range of rotating machinery, including turbines, motors, pumps, compressors, and other mechanical systems that require vibration and displacement monitoring.
Q9: What material is the Bently Nevada 330902-00-40-10-02-05 probe made from?
A9: The probe is made from stainless steel, providing durability and resistance to wear, corrosion, and environmental factors.
Q10: Is this probe easy to install?
A10: Yes, the 8mm diameter and standard mount design make it easy to install on various types of rotating machinery, offering flexibility in installation.
Related Models
| Model | Description | Frequency Range | Total Length (m) | Weight (kg) |
|---|---|---|---|---|
| 330902-00-40-10-02-06 | 3300 NSv 8mm Extended Cable Probe | 2 Hz to 10 kHz | 1.0 | 0.85 |
| 330902-00-40-10-02-07 | 3300 NSv 8mm High-Sensitivity Probe | 2 Hz to 10 kHz | 1.0 | 0.80 |
| 330902-00-40-10-02-08 | 3300 NSv 8mm Reverse Mount Probe | 2 Hz to 10 kHz | 1.0 | 0.83 |
| 330902-00-40-10-02-09 | 3300 NSv 6mm Proximity Probe | 2 Hz to 10 kHz | 1.0 | 0.78 |
| 330902-00-40-10-02-10 | 3300 NSv 10mm Proximity Probe | 2 Hz to 10 kHz | 1.0 | 0.88 |
| 330902-00-40-10-02-11 | 3300 NSv 12mm Proximity Probe | 2 Hz to 10 kHz | 1.0 | 0.90 |
