Product Introduction

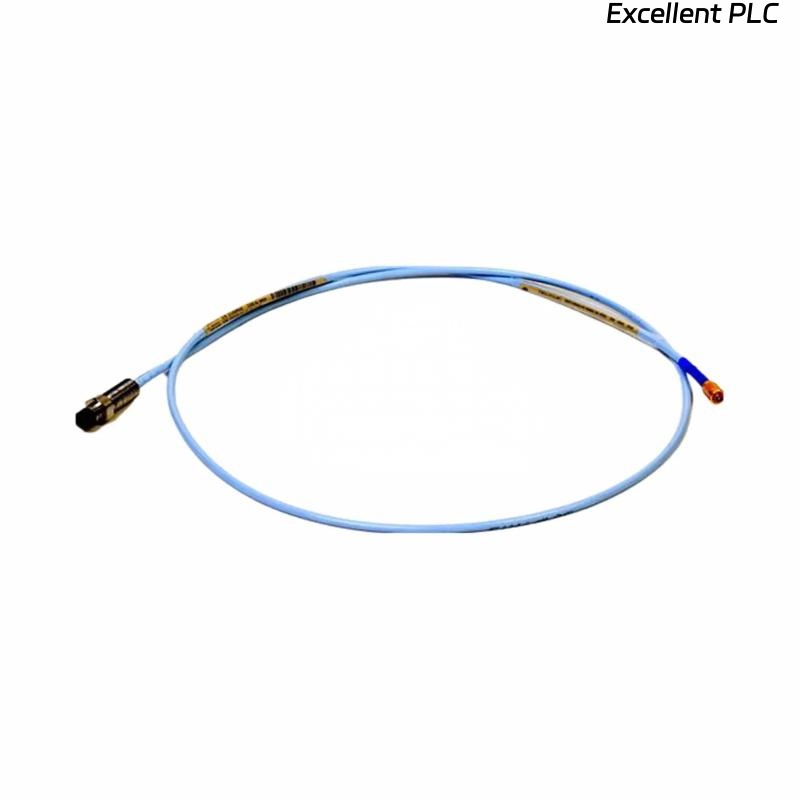

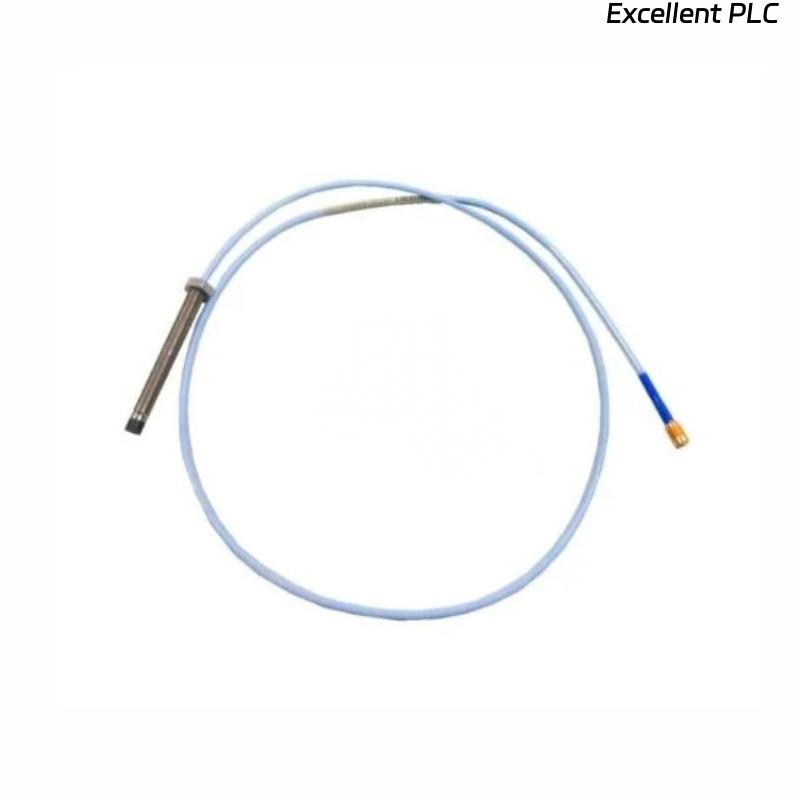

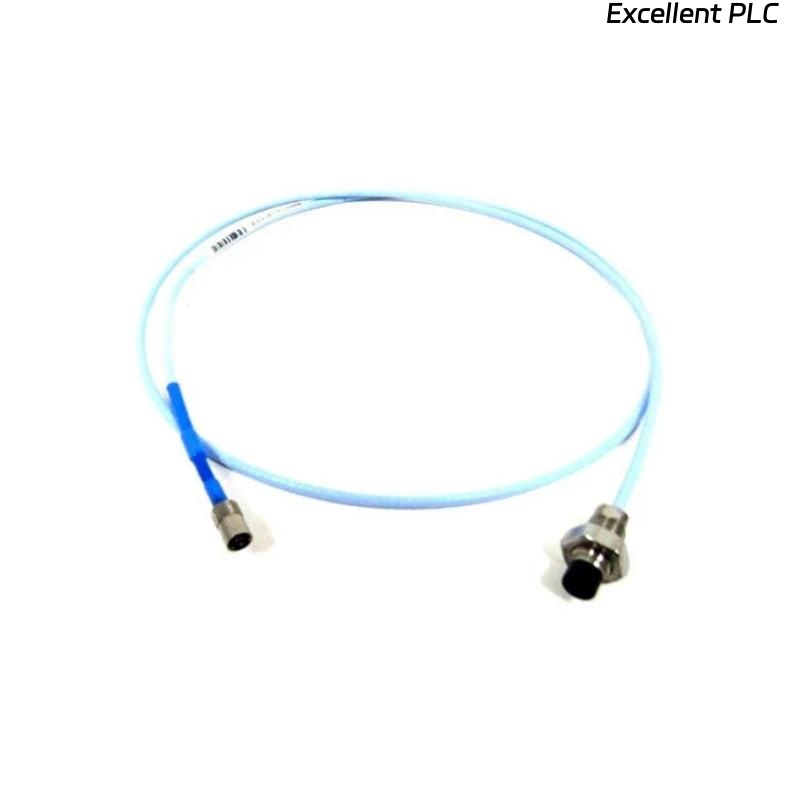

The Bently Nevada 330902-00-45-10-02-RU 3300 NSv Proximity Probe is part of the 3300 NSv (Narrow Side-view) series designed specifically for machinery where standard probes cannot be installed due to space limitations. It provides accurate and reliable measurements of shaft vibration and position, essential for critical machinery monitoring and protection. Engineered with advanced materials and robust construction, it ensures dependable performance in harsh industrial environments such as oil and gas, petrochemical plants, and power generation facilities.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330902-00-45-10-02-RU |
| Series | 3300 NSv Proximity Probe |
| Total Length | 1 m |
| Weight | 0.15 kg |
| Tip Diameter | 5 mm (NSv narrow design) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Frequency Range | 0 to 10 kHz typical |
| Linear Range | 0.25 mm to 2.0 mm |
| Cable Type | Armored extension cable |
| Operating Temperature | -35 °C to +177 °C |
| Probe Material | Stainless steel with PEEK tip |
| Compatibility | Works with 3300 NSv extension cables and 3300 NSv Proximitor sensors |
Product Applications
-
Shaft Vibration Measurement in turbines, compressors, and pumps.
-
Axial Position Monitoring in rotating equipment.
-
Condition Monitoring Systems to prevent unplanned machinery failures.
-
Tight-Space Installations where standard probes cannot be fitted.
-
Oil & Gas Industry for high-reliability machinery protection.
-
Power Generation Plants to ensure continuous machinery uptime.
Product Advantages
-
Compact Design: NSv narrow side-view construction allows installation in confined areas.
-
High Accuracy: Provides reliable shaft vibration and displacement measurements.
-
Durability: Designed for harsh industrial environments with robust stainless-steel housing.
-
Compatibility: Fully compatible with Bently Nevada 3300 NSv monitoring systems.
-
Stable Performance: High immunity to electrical noise and stable sensitivity across wide temperature ranges.
-
Proven Reliability: Trusted in critical machinery monitoring across industries worldwide.
FAQ
Q1: What is the sensitivity rating of the 330902-00-45-10-02-RU probe?
A1: The probe has a sensitivity of 7.87 mV/μm (200 mV/mil).
Q2: Can this probe be used with a standard 3300 Proximitor® sensor?
A2: No, it is designed specifically for use with 3300 NSv Proximitor® sensors.
Q3: What is the typical frequency response of this probe?
A3: It typically operates effectively up to 10 kHz.
Q4: Is the probe suitable for high-temperature applications?
A4: Yes, it can operate reliably from -35 °C to +177 °C.
Q5: Does the probe support both vibration and position measurements?
A5: Yes, it supports both shaft vibration and position monitoring.
Q6: How does the NSv design differ from standard probes?
A6: The NSv design features a smaller tip diameter and compact housing, allowing installation in limited space environments.
Q7: What is the recommended linear measurement range?
A7: The probe provides a linear range of approximately 0.25 mm to 2.0 mm.
Q8: Can the probe be used in electrically noisy environments?
A8: Yes, the probe is designed with strong immunity to electrical interference.
Q9: What type of extension cable is compatible with this probe?
A9: It is compatible with armored extension cables from the 3300 NSv series.
Q10: Does the probe require calibration after installation?
A10: Factory calibration ensures performance, but system verification is recommended during installation.
