Product Overview

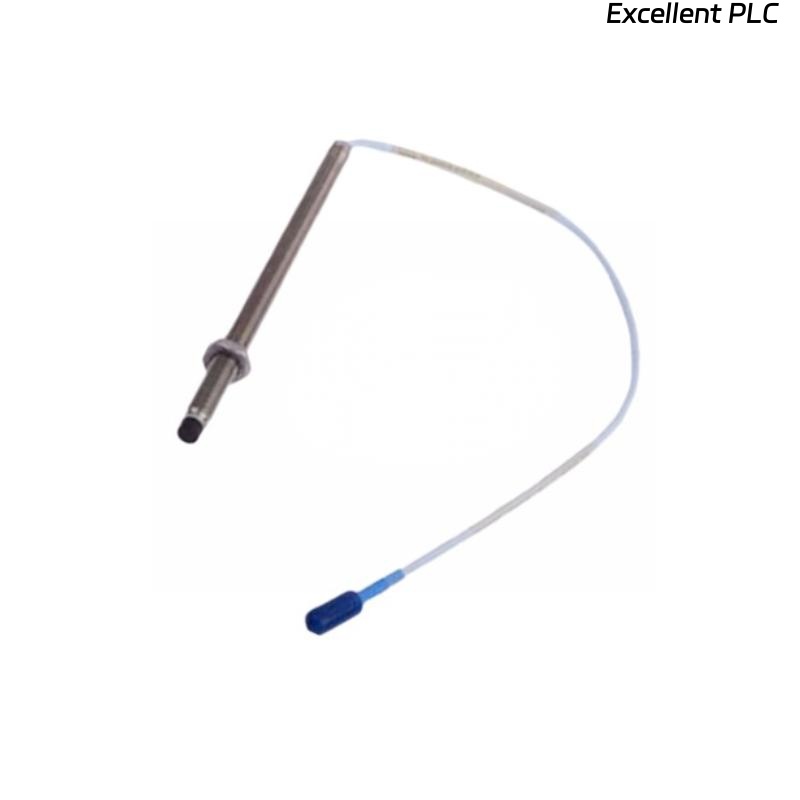

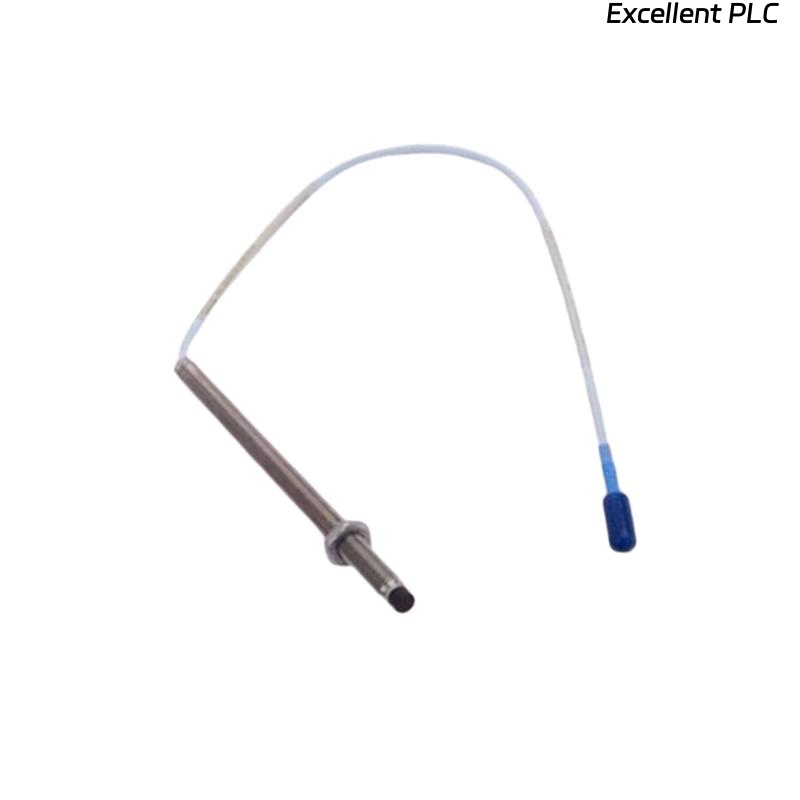

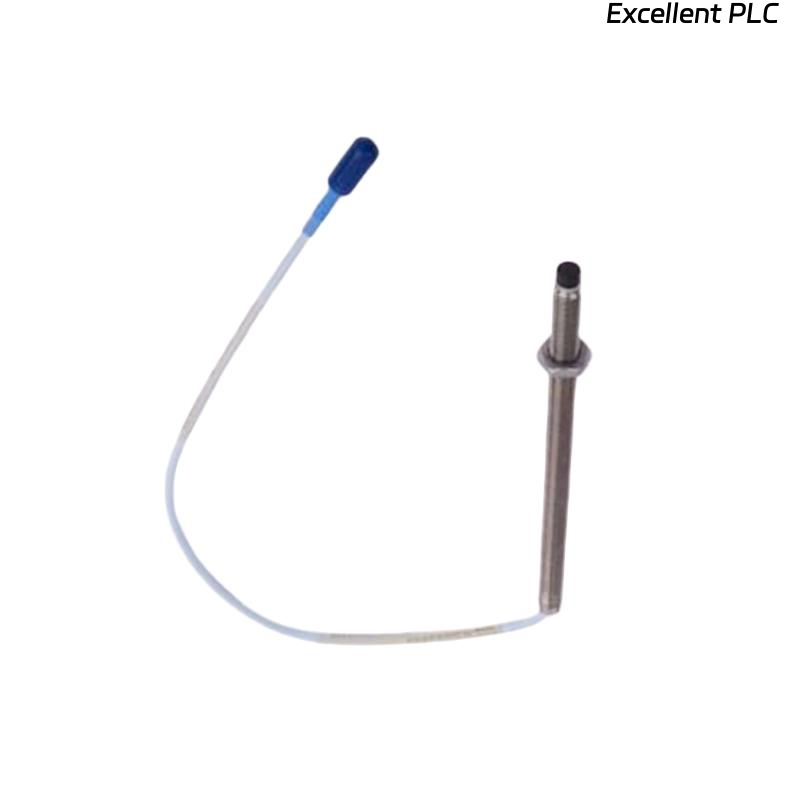

The Bently Nevada 330903-00-02-05-02-CN is an 8 mm eddy current proximity probe from the 3300 NSv series, designed for precise vibration and displacement monitoring of industrial machinery. This probe delivers high sensitivity and reliability, making it ideal for machinery protection and condition monitoring in critical applications. It features enhanced side-view characteristics for installation in constrained spaces and is fully compatible with previous 3300 RAM and NSv probes.
Key Features
-
High Sensitivity: Provides accurate displacement measurements over a 1.5 mm linear range
-
Enhanced Side View: Improved side-view characteristics for tight installation areas
-
Interchangeability: Mechanically and electrically compatible with previous 3300 RAM proximity probes
-
Eddy Current Sensing: High-sensitivity eddy-current sensing system for precise vibration and displacement detection
-
ClickLoc Connector: Miniature coaxial connector ensures secure and reliable connections
Technical Specifications
| Specification | Details |
|---|---|
| Model | 330903-00-02-05-02-CN |
| Series | 3300 NSv |
| Thread Size | M8x1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 50 mm |
| Cable Length | 2.5 meters |
| Connector Type | ClickLoc miniature coaxial |
| Linear Range | 1.5 mm |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Frequency Response | 0–10 kHz |
| Resistance | 4.0Ω ±0.5Ω |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.15 kg |
Frequently Asked Questions (FAQ)
1. What is the purpose of the 330903-00-02-05-02-CN proximity probe?
The probe is designed for precise vibration and displacement measurements, enabling effective condition monitoring and machinery protection.
2. What is the linear range of this proximity probe?
The probe provides a linear range of 1.5 mm for accurate displacement readings.
3. What is the scale factor of the probe?
The scale factor is 7.87 V/mm (200 mV/mil).
4. What is the temperature range of the probe?
The probe operates between -52°C and +177°C (-62°F to +351°F).
5. What type of connector does the probe use?
It uses a ClickLoc miniature coaxial connector for reliable connections.
6. Is the probe interchangeable with previous models?
Yes, it is mechanically and electrically compatible with previous 3300 RAM and NSv probes.
7. What are the dimensions of the probe?
Total Length : 0.5 meter.
8. What is the weight of the probe?
The probe weighs approximately 0.15 kg.
