Product Introduction

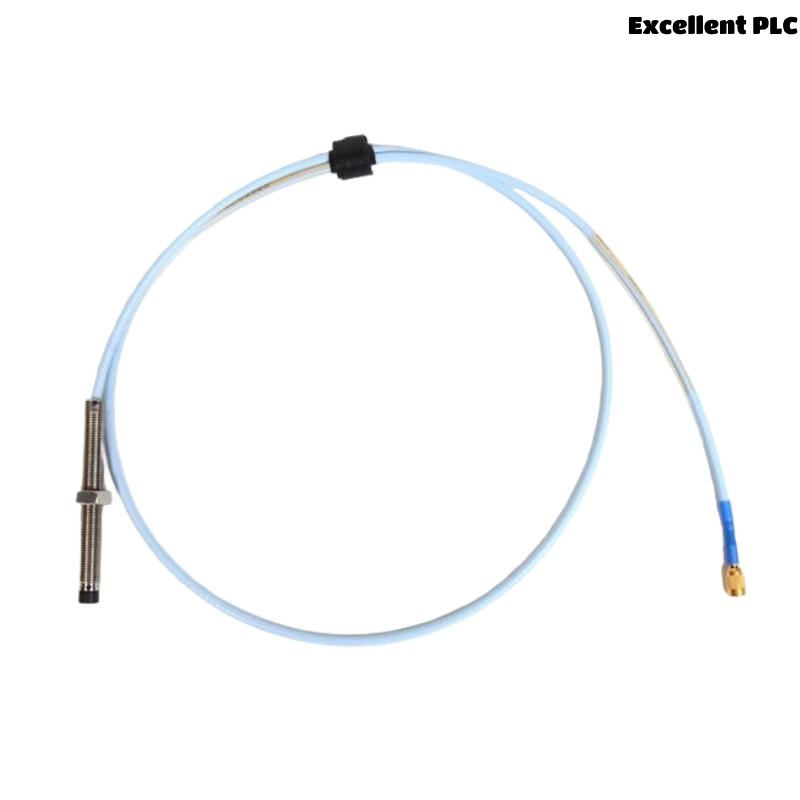

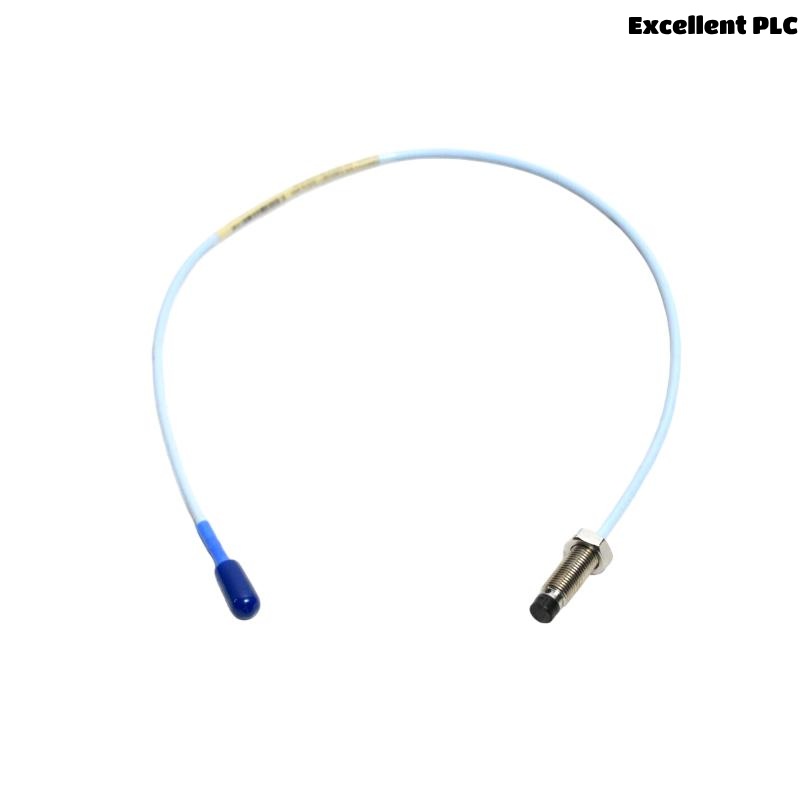

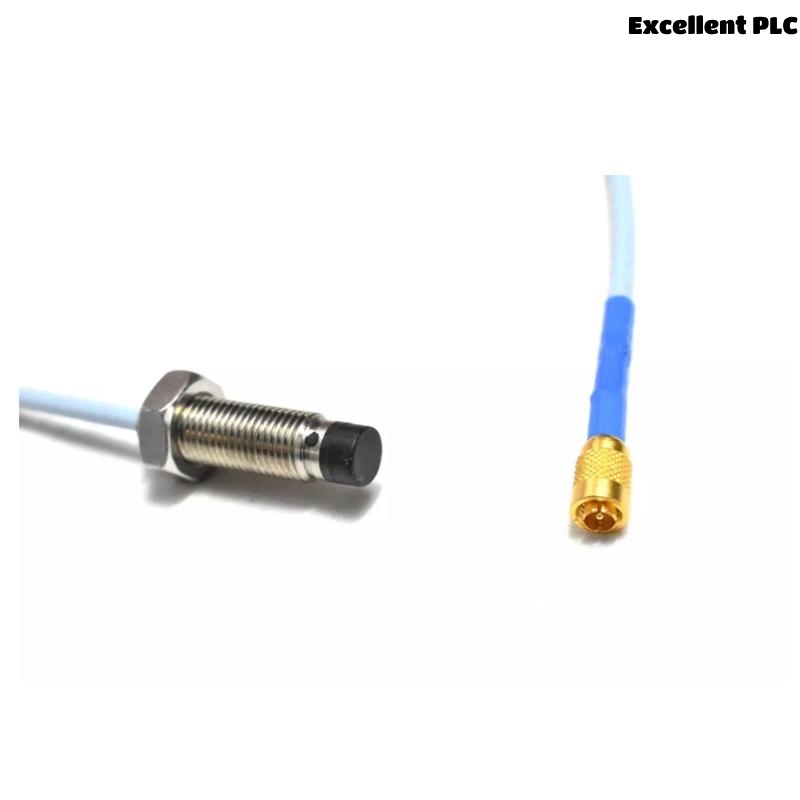

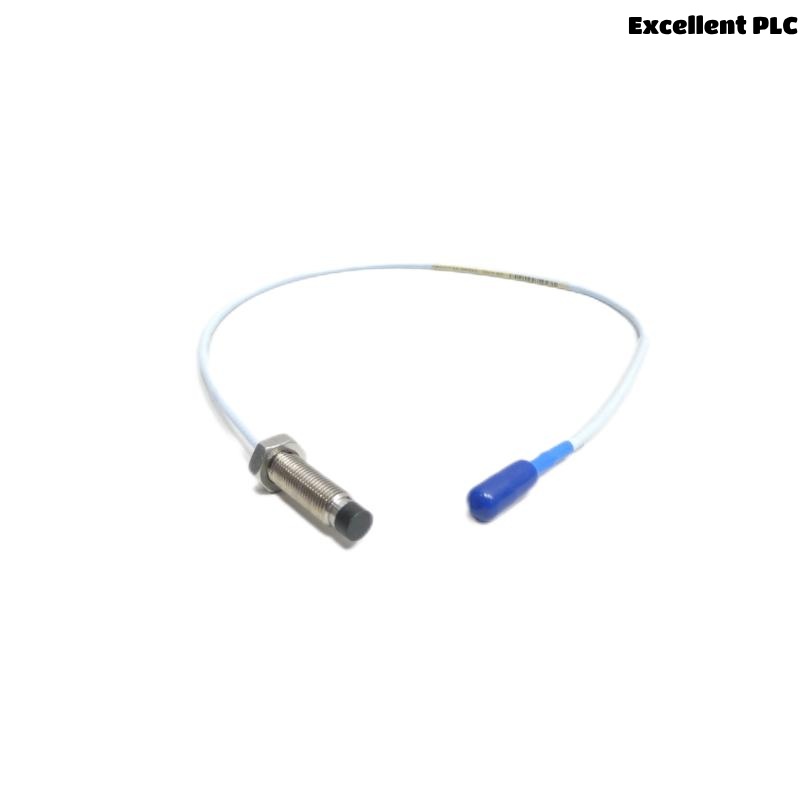

The Bently Nevada 330903-00-03-10-02-00 is a high-precision 8mm proximity probe from the 3300 NSv Series, designed for accurate vibration and displacement monitoring in rotating machinery. This metric version of the 3300 NSv proximity probe offers precision measurements that are essential for early detection of mechanical faults, such as misalignment, imbalance, and bearing wear.
Measuring 1.0 meter in total length and weighing 2 kg, the probe is versatile and easy to install, even in tight spaces. Whether used in turbines, motors, compressors, or pumps, this probe ensures optimal machine health by continuously monitoring critical parameters.
Built for industrial environments, the 3300 NSv proximity probe is designed to operate reliably in harsh conditions, withstanding high vibration and extreme temperatures. By providing continuous data on the health of machinery, the probe plays a key role in predictive maintenance, helping to avoid unplanned downtime and reduce maintenance costs.
Product Specifications
| Parameter | Details |
|---|---|
| Model | 330903-00-03-10-02-00 |
| Series | 3300 NSv Series |
| Probe Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 2 kg |
| Mount Type | Standard Mount |
| Temperature Range | -40°C to +121°C |
| Frequency Range | 2 Hz to 10 kHz |
| Signal Output | AC or DC |
| Cable Length | 1.0 meter |
| Material | Stainless Steel |
| Environmental Protection | IP65 (dustproof and waterproof) |
Applications
The Bently Nevada 330903-00-03-10-02-00 proximity probe is ideal for monitoring and diagnosing a variety of machinery, making it a critical tool for predictive maintenance programs. Key applications include:
-
Turbine Monitoring: The probe helps detect misalignment, imbalance, and other mechanical faults in steam, gas, and water turbines. It monitors vibration and displacement, ensuring turbines operate efficiently and avoiding failure due to wear or damage.
-
Electric Motor Monitoring: The probe monitors the vibration levels of electric motors, detecting bearing wear, misalignment, and imbalance, all of which can lead to premature motor failure if left undiagnosed.
-
Compressor Monitoring: This probe is widely used to monitor compressors by detecting vibration and displacement, enabling early identification of issues such as bearing failure, imbalance, and misalignment that could impact the compressor’s performance.
-
Pump Monitoring: In centrifugal and other types of pumps, the probe helps identify cavitation, bearing issues, and misalignment, ensuring pumps run smoothly and reducing maintenance costs.
-
Gearbox Condition Monitoring: The probe can be used to monitor the health of gearboxes, identifying excessive wear, misalignment, and imbalance, which could lead to costly repairs and downtime.
-
General Machinery Health Monitoring: This proximity probe can be used on various rotating machinery such as fans, mixers, and conveyors, providing real-time data to ensure these systems are operating efficiently and preventing unexpected failures.
Product Advantages
-
High Accuracy: The 3300 NSv proximity probe provides precise displacement and vibration measurements, ensuring accurate diagnostics for detecting early-stage mechanical issues such as misalignment, imbalance, and bearing wear.
-
Compact and Lightweight: At 1.0 meter in length and weighing 2 kg, this probe is easy to install and handle, making it ideal for use in tight spaces and complex machine configurations.
-
Durability: Constructed from stainless steel, the probe is built to withstand harsh environments, including exposure to moisture, dust, and high vibrations, ensuring a long lifespan and minimal maintenance.
-
Wide Operating Temperature: With an operating range of -40°C to +121°C, the probe is suitable for use in both extremely cold and hot environments, providing flexibility for a wide range of industrial applications.
-
IP65 Rating: The IP65 rating ensures that the probe is dustproof and waterproof, providing reliable operation even in tough industrial environments where exposure to water and dust is common.
-
Versatility: With a standard 8mm mount, the probe is compatible with a wide range of rotating machinery, making it a versatile tool for condition monitoring across various equipment types.
-
Predictive Maintenance: By continuously monitoring vibration and displacement, the 3300 NSv proximity probe supports predictive maintenance, helping companies prevent unplanned downtime and optimize machinery performance.
Frequently Asked Questions (FAQs)
Q1: What is the frequency range of the Bently Nevada 330903-00-03-10-02-00 probe?
A1: The probe operates within a frequency range of 2 Hz to 10 kHz, which allows it to detect a broad spectrum of vibration frequencies in machinery.
Q2: What type of signal does the Bently Nevada 330903-00-03-10-02-00 probe output?
A2: The probe outputs either AC or DC signals, depending on the system configuration.
Q3: What is the total length of the Bently Nevada 330903-00-03-10-02-00 probe?
A3: The total length of the probe is 1.0 meter, making it suitable for medium-range installations.
Q4: How much does the Bently Nevada 330903-00-03-10-02-00 probe weigh?
A4: The probe weighs 2 kg, which is lightweight and easy to handle during installation.
Q5: What is the operating temperature range of the Bently Nevada 330903-00-03-10-02-00 probe?
A5: The probe operates in temperatures ranging from -40°C to +121°C, making it suitable for use in both cold and hot environments.
Q6: Is the Bently Nevada 330903-00-03-10-02-00 probe resistant to environmental conditions?
A6: Yes, the probe has an IP65 rating, meaning it is dustproof and waterproof, ideal for use in environments where dust and moisture are present.
Q7: What is the material used for the Bently Nevada 330903-00-03-10-02-00 probe?
A7: The probe is made from stainless steel, offering high strength and durability in harsh industrial environments.
Q8: How does the Bently Nevada 330903-00-03-10-02-00 probe contribute to predictive maintenance?
A8: The probe continuously monitors vibration and displacement, providing early warnings of issues such as imbalance, misalignment, or bearing wear, which helps prevent unexpected downtime.
Q9: Can the Bently Nevada 330903-00-03-10-02-00 probe be used on all types of machinery?
A9: Yes, the probe can be used on a wide variety of rotating machinery, including turbines, motors, pumps, compressors, and gearboxes.
Q10: How easy is it to install the Bently Nevada 330903-00-03-10-02-00 probe?
A10: The probe is designed for easy installation with a standard 8mm mount, which makes it compatible with most machinery configurations and ideal for straightforward installations.
Related Models
| Model | Description | Frequency Range | Total Length (m) | Weight (kg) |
|---|---|---|---|---|
| 330903-00-03-10-02-01 | 3300 NSv 8mm Extended Cable Probe | 2 Hz to 10 kHz | 1.5 | 2.3 |
| 330903-00-03-10-02-02 | 3300 NSv 8mm High-Sensitivity Probe | 2 Hz to 10 kHz | 1.0 | 2.1 |
| 330903-00-03-10-02-03 | 3300 NSv 8mm Reverse Mount Probe | 2 Hz to 10 kHz | 1.0 | 2.2 |
| 330903-00-03-10-02-04 | 3300 NSv 6mm Proximity Probe | 2 Hz to 10 kHz | 1.0 | 2.0 |
| 330903-00-03-10-02-05 | 3300 NSv 10mm Proximity Probe | 2 Hz to 10 kHz | 1.0 | 2.4 |
| 330903-00-03-10-02-06 | 3300 NSv 12mm Proximity Probe | 2 Hz to 10 kHz | 1.0 | 2.5 |
