Product Introduction

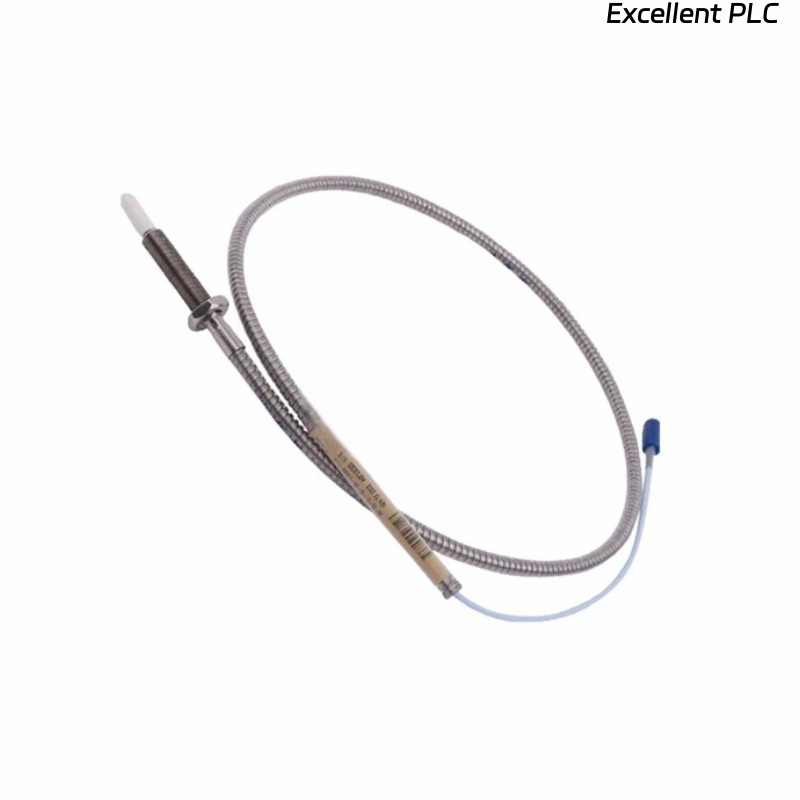

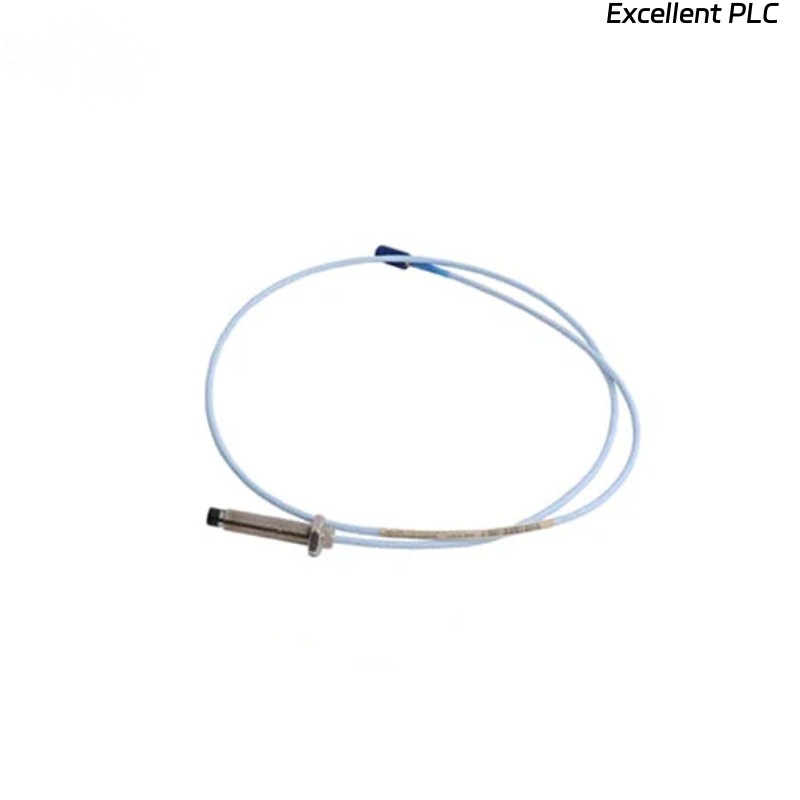

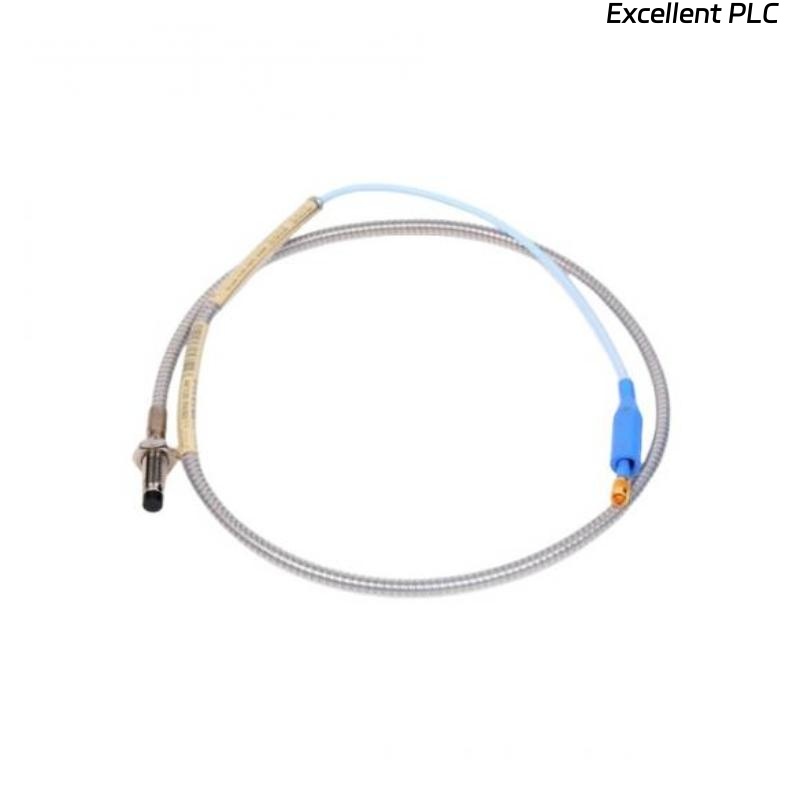

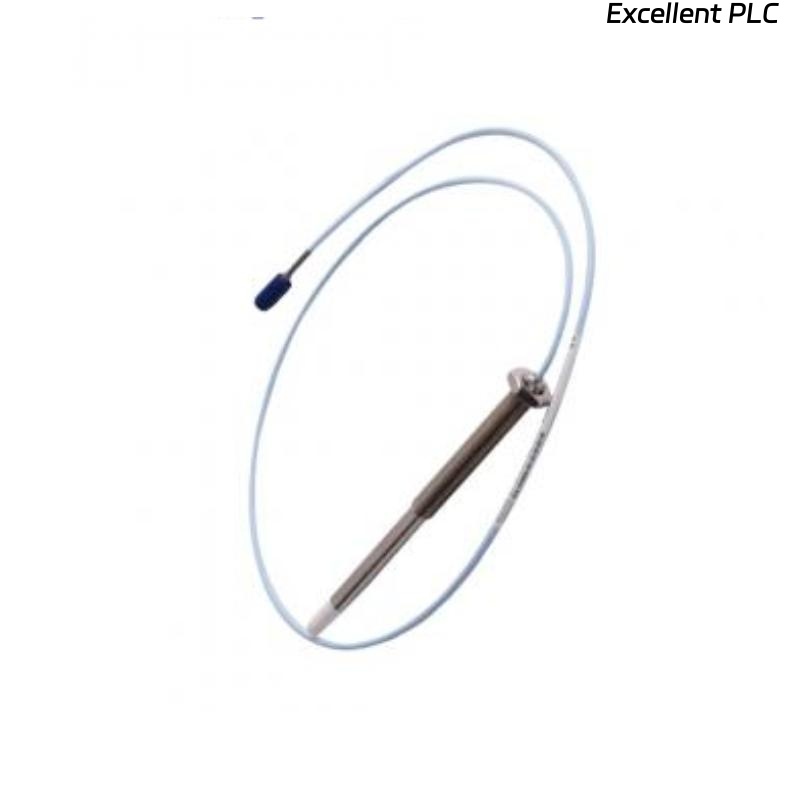

The Bently Nevada 330903-00-03-10-02-CN 3300 NSv Proximity Probe is a specialized non-contact sensor designed for precise shaft vibration and position measurements in rotating machinery. Part of the 3300 NSv (Narrow Signal Velocity) series, this probe is particularly optimized for small machines such as gearboxes, pumps, and compressors where space constraints exist and high sensitivity is required.
It is engineered to work in combination with extension cables and Proximitor® sensors to deliver reliable monitoring of shaft dynamic behavior. The design ensures compatibility with API 670 requirements and provides consistent measurements even in challenging environments with high temperatures, electrical noise, or mechanical vibrations.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330903-00-03-10-02-CN |
| Series | 3300 NSv Proximity Probe |
| Measurement Principle | Eddy current, non-contact |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -35 °C to +177 °C |
| Total Length | 1 m |
| Weight | 0.15 kg |
| Compliance | API 670 |
| Connector | Miniature coaxial, corrosion-resistant |
| Material | Stainless steel housing |
Product Applications
-
Small and mid-sized rotating equipment such as pumps, compressors, and fans.
-
Gearbox vibration monitoring, where narrow probe design is essential.
-
Turbomachinery protection systems requiring API 670 compliance.
-
Condition monitoring in refineries, petrochemical plants, and power stations.
-
Dynamic shaft position measurement in tight or restricted mounting areas.
-
OEM machinery integration, where compact size is critical for embedded systems.
Product Advantages
-
High accuracy in compact designs – tailored for machines with limited space.
-
Reliable linear output over the entire range for precise monitoring.
-
Durable stainless steel housing ensures resistance to harsh environments.
-
Global compliance with industrial standards such as API 670.
-
Temperature tolerance enables performance in both low and high ambient conditions.
-
System compatibility with Bently Nevada Proximitor® and monitoring systems.
FAQ
Q1: What is the sensitivity output of the 330903-00-03-10-02-CN probe?
A1: The probe provides a sensitivity of approximately 7.87 mV/µm (200 mV/mil).
Q2: Can this probe be used with standard Bently Nevada Proximitor® sensors?
A2: Yes, it is fully compatible with the NSv Proximitor® sensors designed for this series.
Q3: What is the maximum operating temperature for this probe?
A3: The probe can operate up to +177 °C, depending on system configuration.
Q4: How does the probe handle electrical noise interference?
A4: The coaxial shielded cable and robust electronics minimize susceptibility to electromagnetic interference.
Q5: Is the probe suitable for high-speed turbomachinery?
A5: While designed for small machines, it can be applied in higher-speed equipment if within linear operating range.
Q6: What is the frequency response capability?
A6: The probe can effectively respond to signals in the range of 0 to 10 kHz.
Q7: How does it differ from standard 3300 XL probes?
A7: The NSv probes are optimized for smaller shaft sizes and restricted spaces, whereas XL probes are for larger, general machinery.
Q8: Does the probe meet API 670 compliance?
A8: Yes, it is designed to meet API 670 vibration and position monitoring standards.
Q9: What type of connector is provided with this probe?
A9: It uses a miniature coaxial connector designed for durability and low noise.
Q10: Can this probe be directly replaced in existing NSv installations?
A10: Yes, it is backward-compatible with previous 3300 NSv probe systems.
Related Models
| Model Number | Description | Cable Length | Probe Tip | Application |
|---|---|---|---|---|
| 330903-00-04-10-02-CN | 3300 NSv Proximity Probe | 5 m | 5 mm | Compact machines |
| 330903-00-05-10-02 | 3300 NSv Proximity Probe | 7 m | 5 mm | OEM equipment |
| 330903-00-06-10-02 | 3300 NSv Proximity Probe | 9 m | 5 mm | Restricted spaces |
| 330903-00-07-10-02 | 3300 NSv Proximity Probe | 10 m | 8 mm | Extended monitoring |
| 330903-00-08-10-02 | 3300 NSv Proximity Probe | 12 m | 5 mm | General vibration use |
| 330910-00-05-10-02 | 3300 XL Standard Probe | 5 m | 8 mm | Larger machinery |
