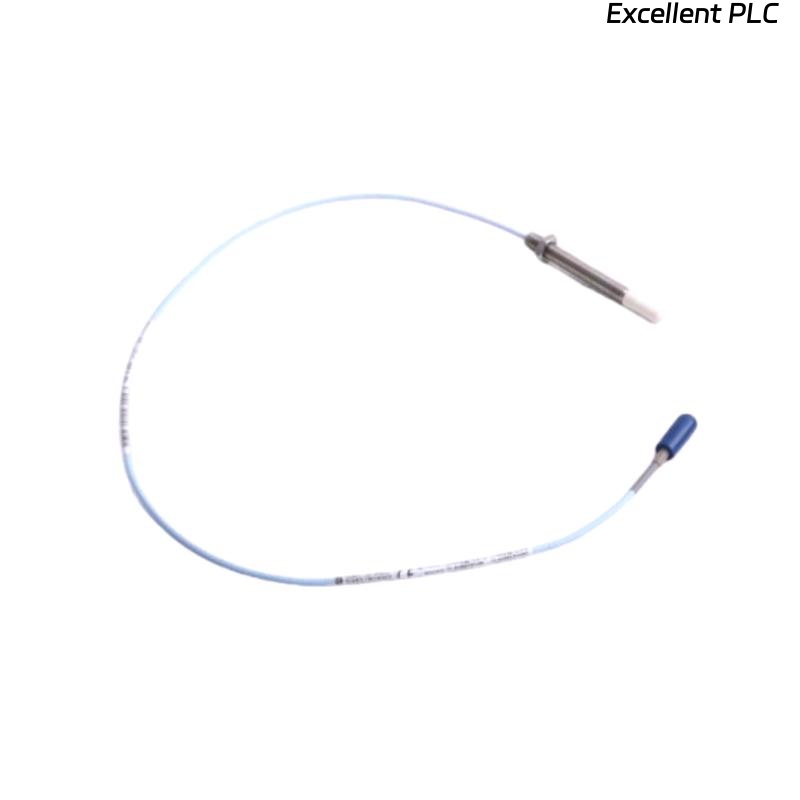

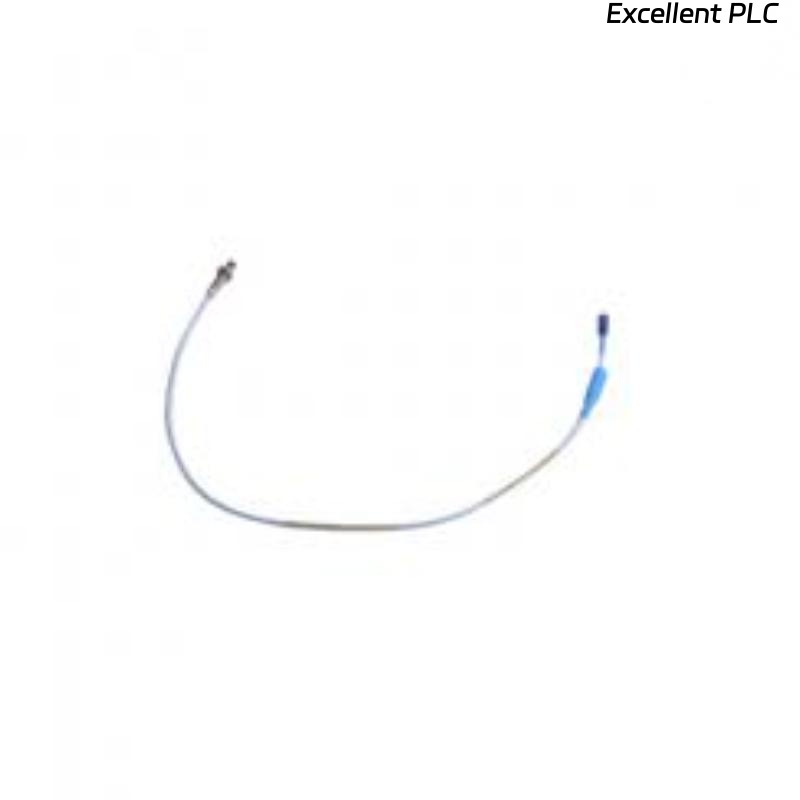

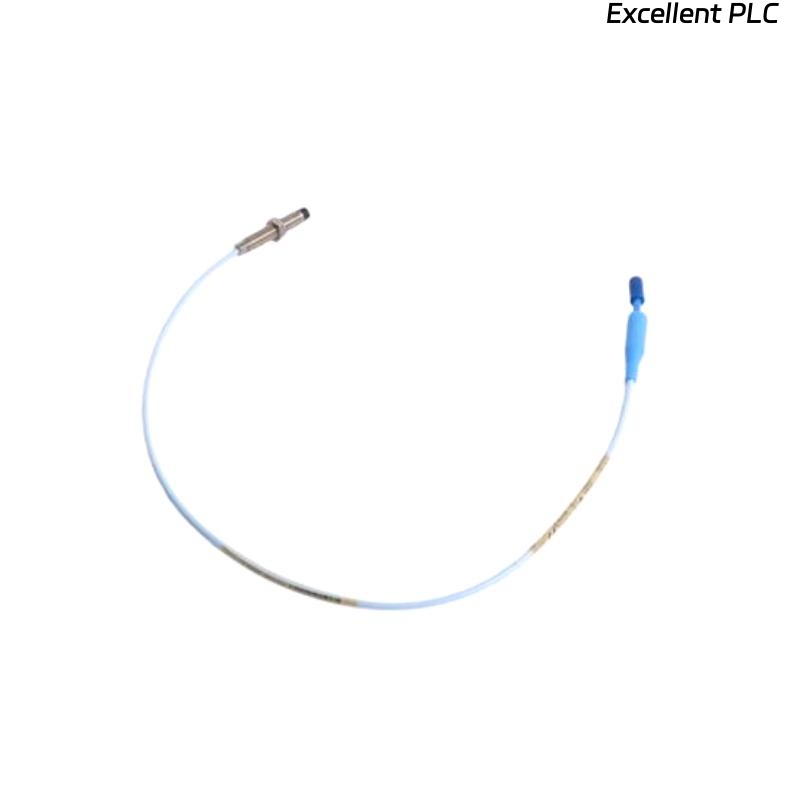

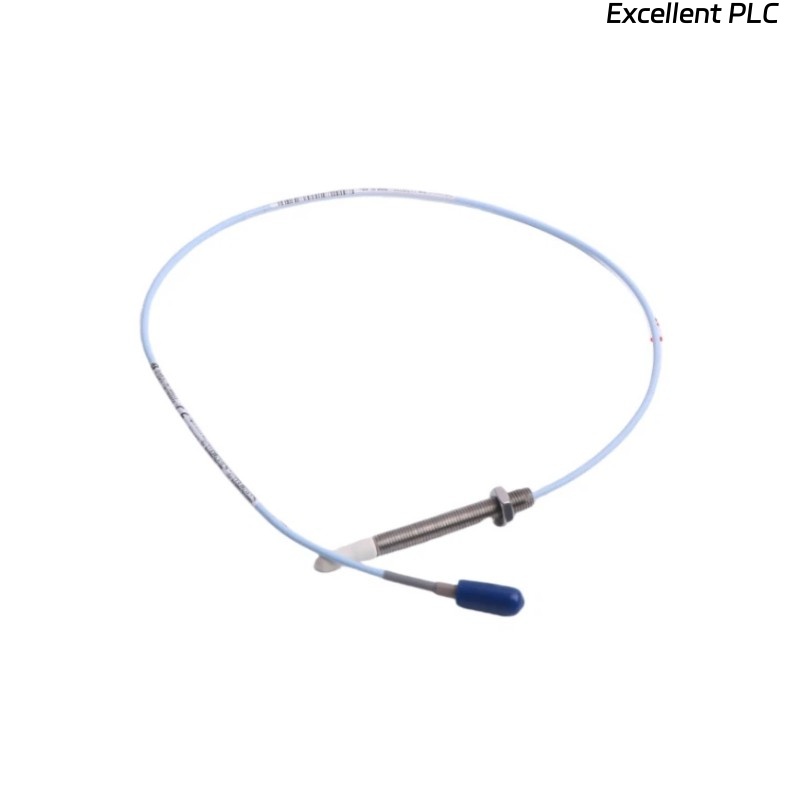

Bently Nevada 330903-00-09-05-02-05 3300 NSv Proximity Probe

Product Introduction

The Bently Nevada 330903-00-09-05-02-05 3300 NSv Proximity Probe is a high-precision vibration and position sensor designed for critical rotating machinery monitoring. It is part of the 3300 Series Proximity Systems, widely used in power generation, oil & gas, and heavy industrial applications. The probe provides accurate, reliable measurements of shaft vibration and position, enabling early detection of potential machinery issues and supporting predictive maintenance strategies..

---

Product Advantages

• High Accuracy: Provides precise vibration and shaft displacement measurements.

• Reliability: Robust design ensures stable operation under extreme temperatures, pressures, and environments.

• Compatibility: Seamlessly integrates with the Bently Nevada 3300 series monitoring systems.

• Predictive Maintenance Support: Enables early detection of machinery issues, reducing unplanned downtime.

• Long Cable Length Capability: Allows flexible installation in complex machinery setups.

• Maintenance Friendly: Probe tips and cabling are easily serviceable without system shutdown.

---

Technical Specifications

---

Product Applications

• Condition monitoring of turbines, compressors, and generators

• Detection of shaft vibration and rotor displacement in high-speed rotating machinery

• Integration into predictive maintenance programs for critical industrial equipment

• Monitoring of pumps and motors in oil & gas, power plants, and petrochemical plants

• Early warning of mechanical faults such as imbalance, misalignment, or bearing wear

---

FAQ

Q1: How does the 3300 NSv Proximity Probe measure shaft vibration?
A1: It uses eddy current technology, where the probe tip induces a voltage signal proportional to the distance from the target shaft surface, allowing precise vibration and displacement measurements.

Q2: What is the recommended installation orientation for the probe?
A2: The probe should be installed perpendicular to the shaft surface, maintaining consistent gap alignment to ensure accurate readings.

Q3: Can the probe operate in high-temperature environments?
A3: Yes, the probe is rated for -40°C to 120°C, making it suitable for most industrial high-temperature machinery applications.

Q4: How is the probe connected to the monitoring system?
A4: It uses a 2-pin Lemo connector, compatible with the Bently Nevada 3300 series monitors.

Q5: What is the maximum cable length supported without signal degradation?
A5: The standard probe cable is 0.5 m, but Bently Nevada recommends using the specified extension cables for longer distances while maintaining signal integrity.

Q6: Is the probe compatible with all Bently Nevada 3300 series monitors?
A6: Yes, it is designed for full compatibility with the 3300 NSv and other standard 3300 series monitoring systems.

Q7: How should the probe gap be adjusted?
A7: The probe gap should be adjusted according to the shaft diameter and the system’s calibration instructions, typically between 0.25 mm and 0.5 mm for optimal signal.

Q8: Can this probe detect axial and radial displacement?
A8: Yes, when installed in appropriate positions, it can monitor radial vibration and axial movement depending on system setup.

Q9: Is the probe resistant to electromagnetic interference (EMI)?
A9: Yes, the probe includes shielding to minimize EMI effects, ensuring accurate measurements in electrically noisy environments.

Q10: What maintenance is required for this probe?
A10: Regular inspection of the probe tip and cable integrity is recommended, along with cleaning to prevent debris accumulation, but no calibration is required during routine operation.

---
