Product Introduction

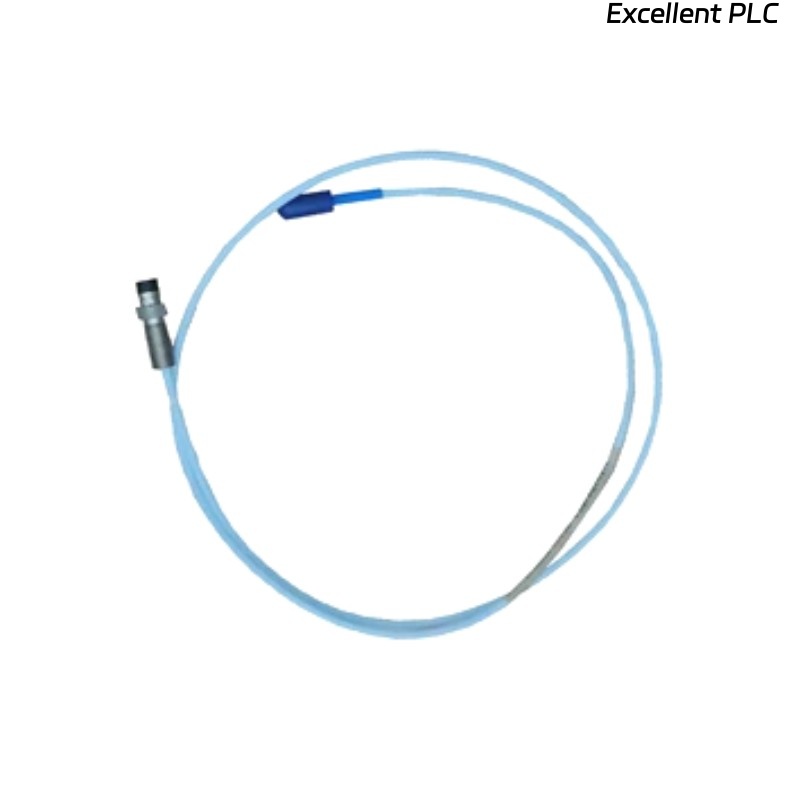

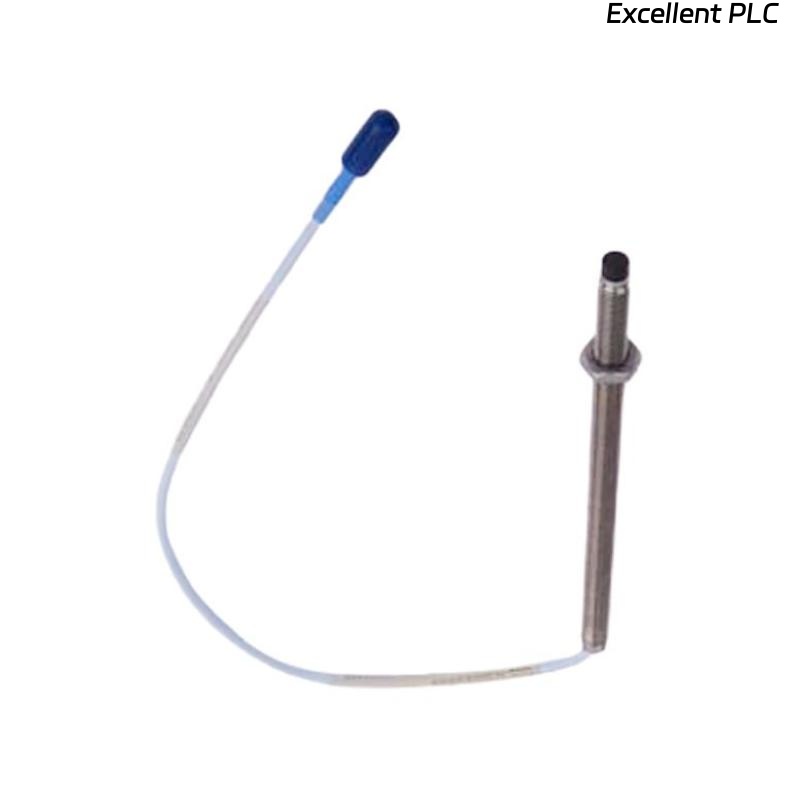

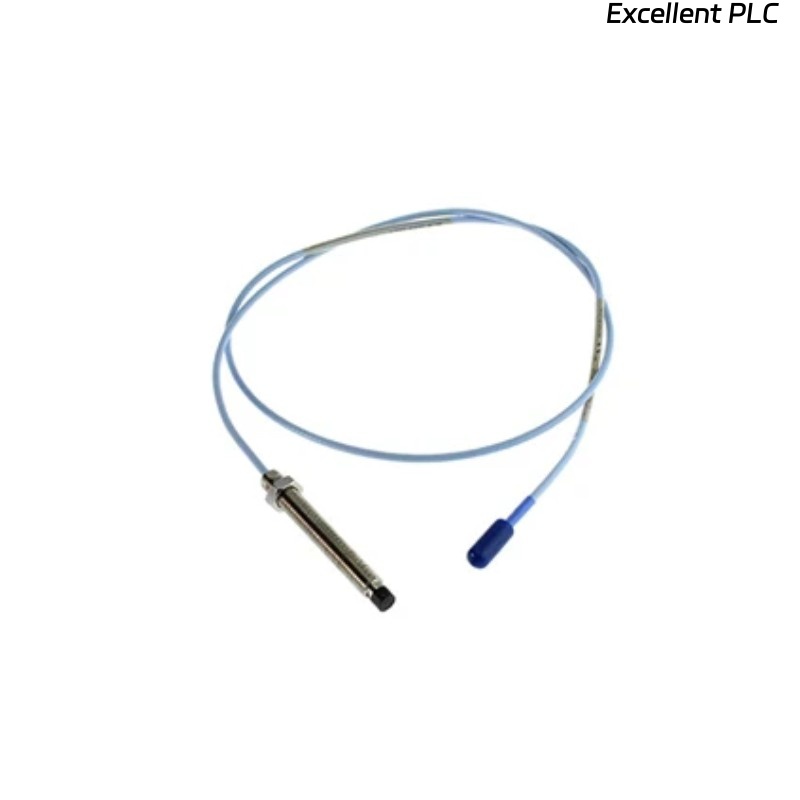

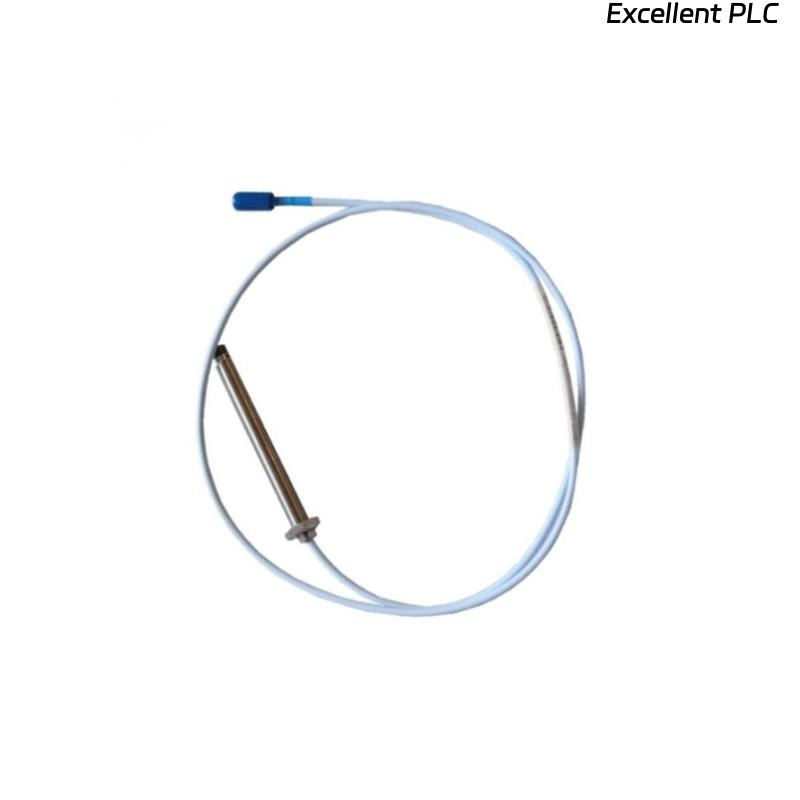

The Bently Nevada 3300 NSv Proximity Probe is an industrial-grade sensor designed for precise measurement of the position and vibration of rotating machinery. It belongs to the widely trusted 3300 Series, known for high reliability in critical applications such as turbines, compressors, pumps, and generators. The 330903-00-21-10-02-05 model provides robust signal integrity, excellent noise immunity, and seamless integration with monitoring systems, ensuring accurate rotor shaft position detection and early vibration anomaly identification.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330903-00-21-10-02-05 |
| Series | 3300 NSv |
| Probe Type | Proximity Probe |
| Total Length | 1 m |
| Weight | 0.15 kg |
| Sensing Method | Eddy-Current |
| Operating Temperature | -40°C to +120°C |
| Output Signal | AC, Variable Voltage |
| Cable Type | Shielded Coaxial |
| Connector | 2-pin or 3-pin depending on system |
| Target Material Compatibility | Ferrous metals |
| Probe Tip Diameter | 3.2 mm |
| Gap Range | 0.25 mm typical |
| Electrical Isolation | 100 MΩ min at 500 VDC |
Product Applications
-
Rotating Machinery Monitoring: Used extensively in turbines, generators, compressors, and motors.
-
Vibration Analysis: Provides critical data for predictive maintenance and early fault detection.
-
Condition Monitoring Systems: Integrated into machinery protection systems to detect shaft displacement.
-
High-Speed Machinery: Suitable for applications with high rotational speeds due to its fast response time.
-
Industrial Plants: Petrochemical, power generation, and manufacturing facilities.
Product Advantages
-
High Accuracy: Delivers precise measurement of rotor position and vibration with minimal signal drift.
-
Robust Design: Resistant to extreme industrial environments, including temperature extremes and high vibration.
-
Reliable Integration: Fully compatible with Bently Nevada 3300 Series monitors and third-party vibration monitoring systems.
-
Low Noise: Shielded cable design minimizes electrical interference and ensures signal integrity.
-
Versatile: Compatible with a variety of ferrous targets and adjustable probe gaps for different applications.
-
Predictive Maintenance Support: Enables early detection of misalignment, imbalance, or bearing issues.
FAQ
Q1: What is the recommended operating temperature range for this probe?
A1: The probe operates reliably between -40°C and +120°C.
Q2: Can the 330903-00-21-10-02-05 probe handle high-speed rotating equipment?
A2: Yes, it is designed for high-speed machinery and can respond accurately to rapid rotor movements.
Q3: What type of output signal does this probe provide?
A3: The probe provides an AC voltage output that varies with the gap between the probe tip and the target.
Q4: What kind of target materials are compatible?
A4: Ferrous metals such as steel and iron are compatible with this eddy-current proximity probe.
Q5: How does this probe handle electrical noise?
A5: It uses a shielded coaxial cable to minimize electrical interference, ensuring a clean signal.
Q6: Is the probe compatible with other Bently Nevada 3300 Series monitors?
A6: Yes, it is fully compatible with all 3300 Series monitoring systems.
Q7: What is the standard probe gap for operation?
A7: The typical gap range is approximately 0.25 mm, but it can vary depending on the application.
Q8: Can this probe be used in high-vibration environments?
A8: Yes, it is designed to withstand vibrations up to 5000 g and shocks up to 1000 g.
Q9: How is the probe electrically isolated?
A9: The probe provides electrical isolation of at least 100 MΩ at 500 VDC.
Q10: Can the cable length be customized?
A10: Yes, while the standard length is 1 m, custom lengths can be requested to suit installation needs.
