Product Introduction

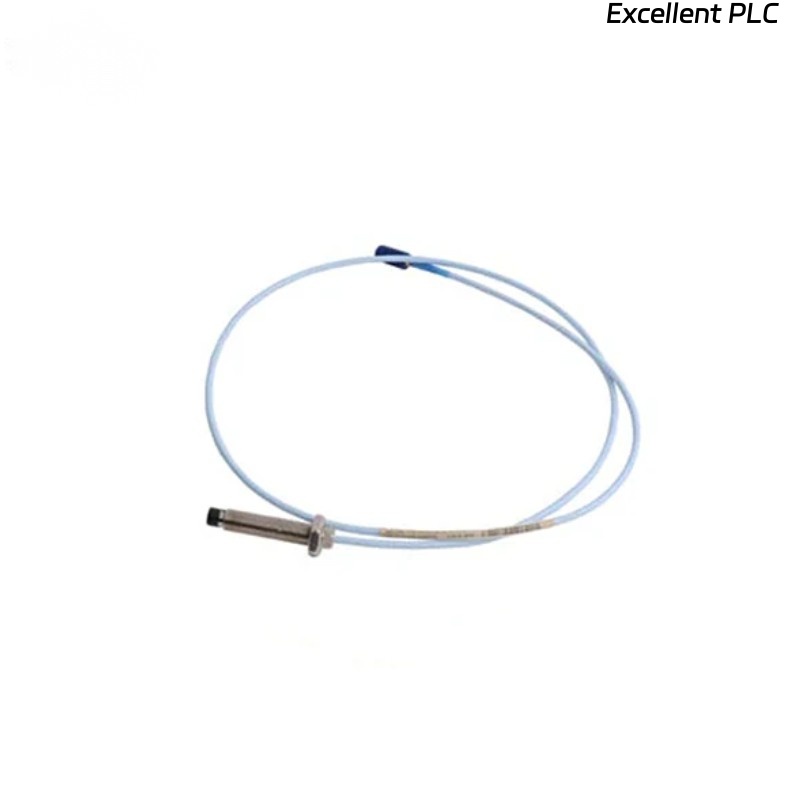

The Bently Nevada 330903-01-07-10-12-CN 3300 NSv Proximity Probe is a high-performance non-contact displacement sensor designed for critical rotating machinery monitoring. It provides precise shaft position and vibration measurements, ensuring early detection of mechanical issues, minimizing downtime, and improving overall plant reliability. The 3300 NSv series is widely recognized for its robustness, reliability, and compatibility with various condition monitoring systems in industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 330903-01-07-10-12-CN |
| Type | Non-contact Proximity Probe |
| Output Type | AC or DC differential signal |
| Measurement Range | 0.25 – 2.54 mm |
| Frequency Response | 0 – 25 kHz |
| Cable Length | 1 m (Total Length) |
| Weight | 0.15 kg |
| Operating Temperature | -40°C to 120°C |
| Case Material | Stainless steel |
| Probe Tip Material | Ceramic |
| Connector Type | MS-type, shielded |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 20 g, 10 – 2000 Hz |
| Electrical Protection | Short circuit, reverse polarity |
| Installation Orientation | Any |
| Environmental Rating | IP65 |
Product Applications
-
Continuous monitoring of high-speed rotating machinery, including turbines, compressors, and pumps.
-
Detection of shaft displacement, vibration, and misalignment in critical industrial assets.
-
Integration into condition monitoring and predictive maintenance systems to prevent mechanical failures.
-
Application in power generation plants, petrochemical facilities, and heavy manufacturing industries.
-
Use in environments requiring high reliability under extreme temperature, vibration, and shock conditions.
Product Advantages
-
High Accuracy and Sensitivity: Delivers precise displacement and vibration measurements for early detection of issues.
-
Robust Construction: Stainless steel housing and ceramic tip ensure durability in harsh industrial environments.
-
Flexible Installation: Can be installed in multiple orientations with standard MS-type connectors.
-
Wide Operational Range: Functions effectively across a wide temperature range and high-frequency vibration.
-
Reliable Signal Output: AC or DC differential outputs are compatible with most monitoring systems.
-
Low Maintenance: Designed for long-term, stable performance, minimizing operational interruptions.
FAQ
Q1: What type of signal output does the 3300 NSv probe provide?
A1: The probe provides an AC or DC differential output signal compatible with standard 3300 monitoring systems.
Q2: Can the probe operate at high temperatures?
A2: Yes, the operational temperature range is -40°C to 120°C.
Q3: Is the probe resistant to mechanical shock?
A3: Yes, it can withstand shock up to 50 g for 11 milliseconds.
Q4: What is the recommended mounting orientation?
A4: The probe can be mounted in any orientation without affecting performance.
Q5: How long is the cable supplied with the probe?
A5: The total cable length is 1 meter, suitable for standard installations.
Q6: Can the probe handle high-frequency vibration environments?
A6: Yes, the probe supports vibration frequencies from 10 Hz to 2000 Hz at 20 g.
Q7: What protection does the probe offer against electrical faults?
A7: The probe is protected against short circuits and reverse polarity connections.
Q8: Is the probe suitable for wet or dusty environments?
A8: Yes, it has an IP65 environmental rating, offering protection against dust and water ingress.
Q9: What materials are used in the probe tip and housing?
A9: The housing is stainless steel, and the probe tip is ceramic, ensuring durability and precision.
Q10: Is the probe compatible with existing 3300 monitoring systems?
A10: Yes, it is fully compatible with all 3300 series monitoring modules and systems.
