Product Introduction

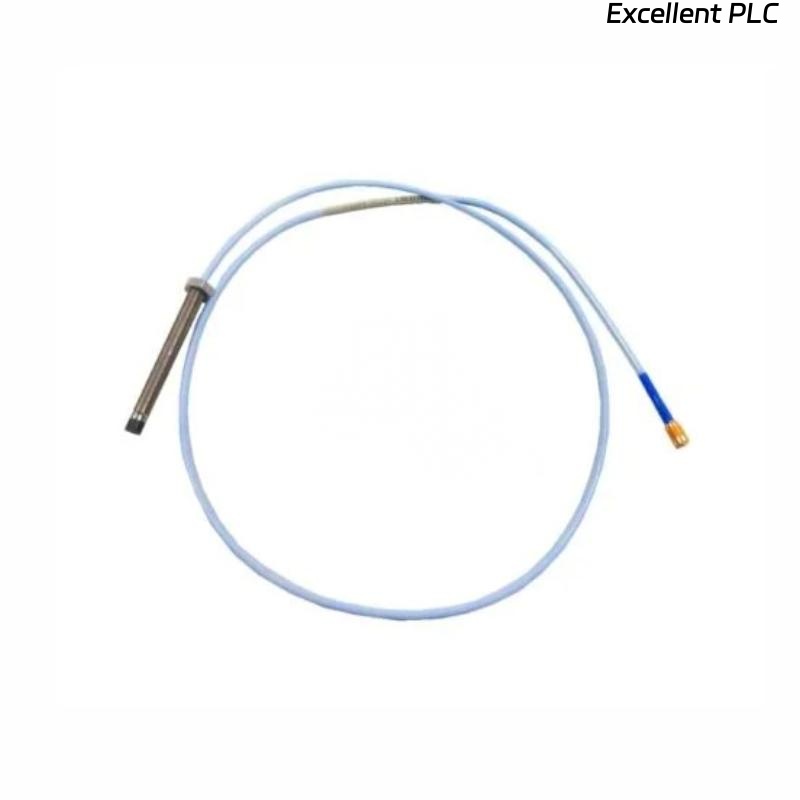

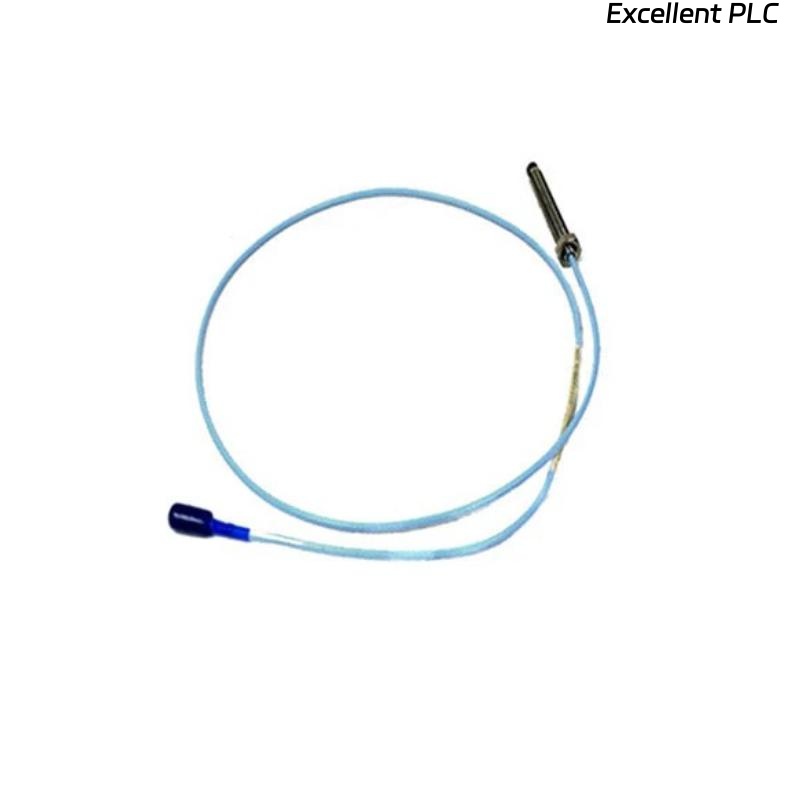

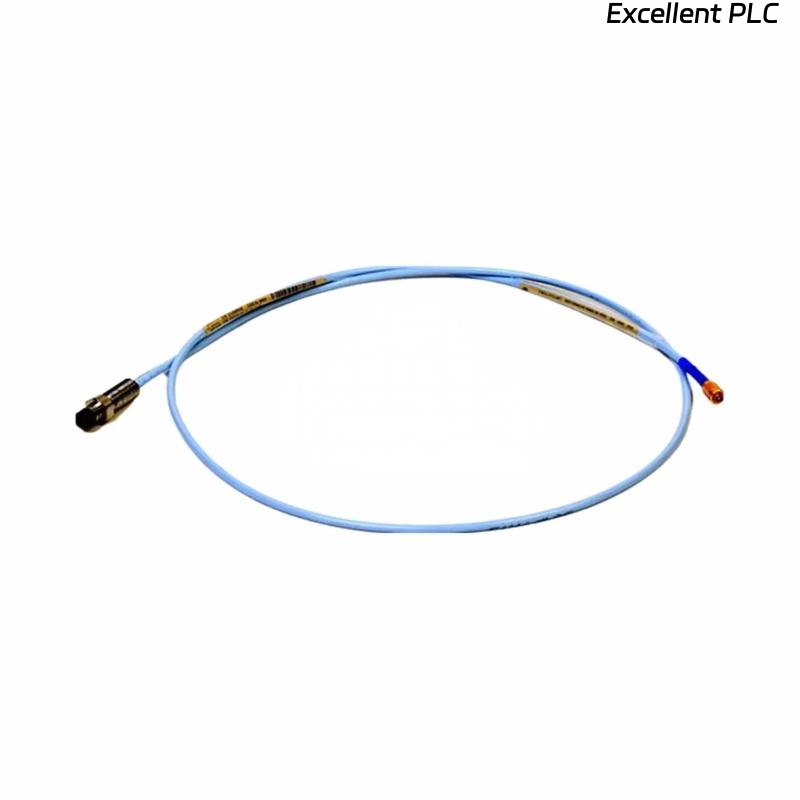

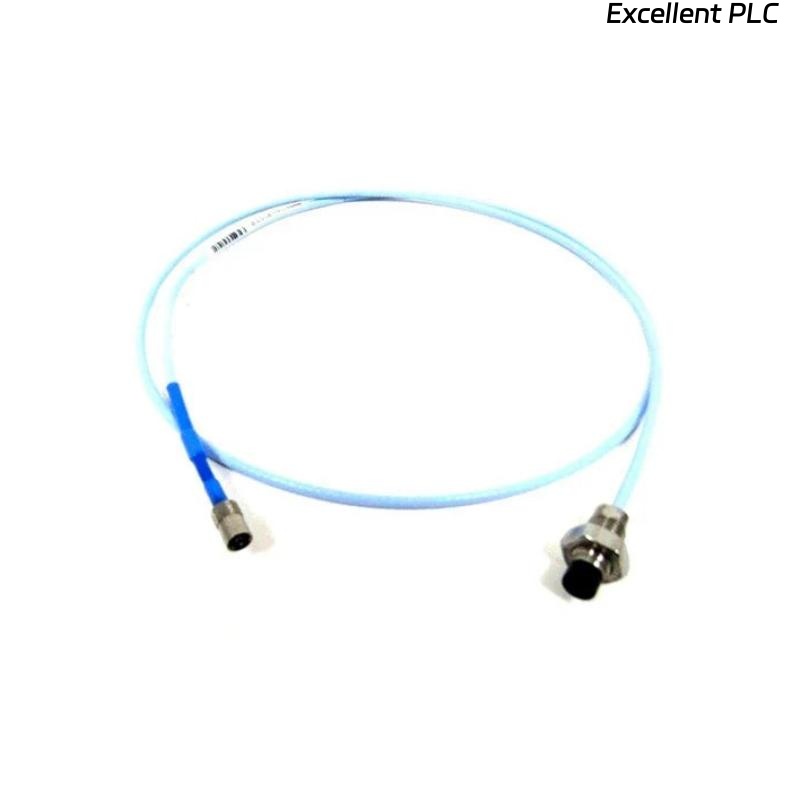

The Bently Nevada 330903-04-13-10-12-05 3300 NSv Proximity Probe is a high-precision sensor designed to measure shaft displacement and vibration in rotating machinery. It is part of the 3300 Series, which is widely used in industrial applications for condition monitoring and predictive maintenance. The probe uses non-contact eddy-current technology to provide accurate measurements of shaft position relative to the probe tip. With robust construction and stable performance in harsh environments, this sensor ensures reliable detection and early warning of machinery faults.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | 330903-04-13-10-12-05 |
| Probe Type | NSv Proximity Probe |
| Measurement Range | 0–0.25 inches (0–6.35 mm) |
| Tip Style | Standard flat tip |
| Cable Length | 1 m |
| Total Length | 1 m |
| Weight | 0.15 kg |
| Operating Temperature Range | -40°C to 120°C |
| Supply Voltage | 18–30 V DC |
| Output Signal | AC sine wave |
| Linearity | ±1% of full scale |
| Frequency Response | 0–10 kHz |
| Environmental Protection | IP67 |
Product Applications
-
Turbines and generators in power plants
-
Compressors and pumps in oil and gas facilities
-
Motors and fans in industrial plants
-
Rotating equipment in chemical and petrochemical industries
-
Condition monitoring systems for predictive maintenance programs
Product Advantages
-
High Accuracy: Provides precise shaft displacement measurements for critical machinery.
-
Non-Contact Measurement: Reduces wear and interference with rotating components.
-
Wide Operating Range: Performs reliably in harsh environmental conditions, including extreme temperatures and vibrations.
-
Robust Construction: Designed for industrial durability and long-term stability.
-
Easy Integration: Compatible with standard 3300 Series monitoring systems.
-
Predictive Maintenance Support: Enables early detection of abnormal vibrations to prevent costly downtime.
FAQ
Q1: What is the measurement principle of the 3300 NSv Proximity Probe?
A1: It operates on eddy-current non-contact sensing technology, detecting changes in magnetic fields as the shaft approaches the probe tip.
Q2: What is the maximum frequency the probe can accurately detect?
A2: The probe has a frequency response up to 10 kHz.
Q3: Can the probe operate in high-temperature environments?
A3: Yes, it supports temperatures from -40°C to 120°C.
Q4: What type of output signal does the probe provide?
A4: It produces an AC sine wave output proportional to shaft displacement.
Q5: Is the probe compatible with standard 3300 Series monitoring systems?
A5: Yes, it is fully compatible with 3300 Series monitoring modules.
Q6: What is the measurement range of this probe?
A6: It can measure displacements from 0 to 0.25 inches (0–6.35 mm).
Q7: How does the probe handle electrical noise in industrial environments?
A7: The probe’s design includes shielding and grounding to minimize interference from electrical noise.
Q8: Does the probe require calibration?
A8: Yes, periodic calibration is recommended to maintain measurement accuracy.
Q9: Can the probe be used in wet or dusty environments?
A9: Yes, it is rated IP67 for protection against dust and water ingress.
Q10: What is the supply voltage requirement?
A10: The probe requires a supply voltage of 18–30 V DC.
