Product Introduction

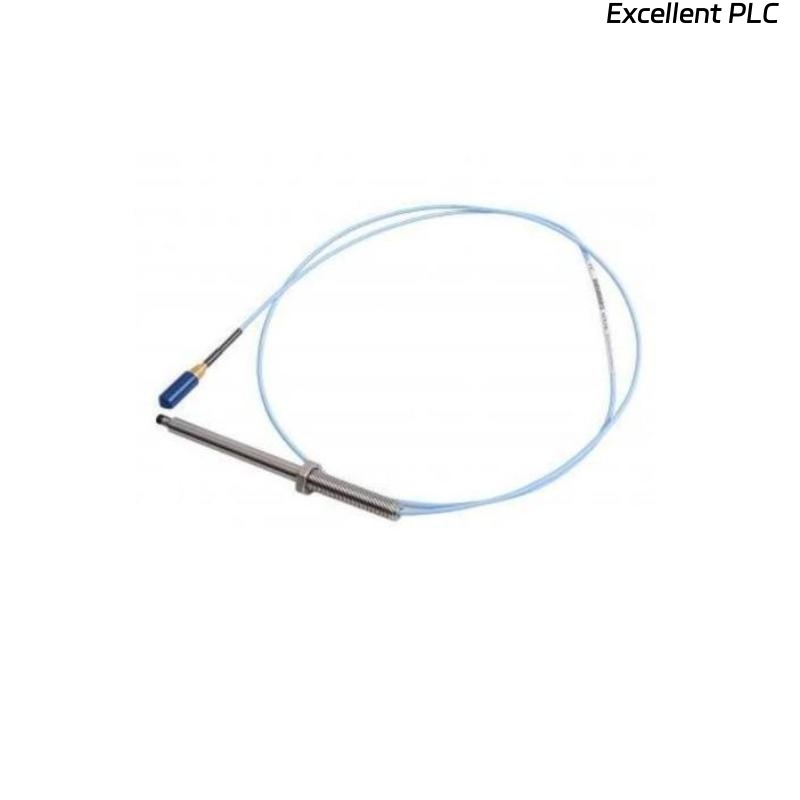

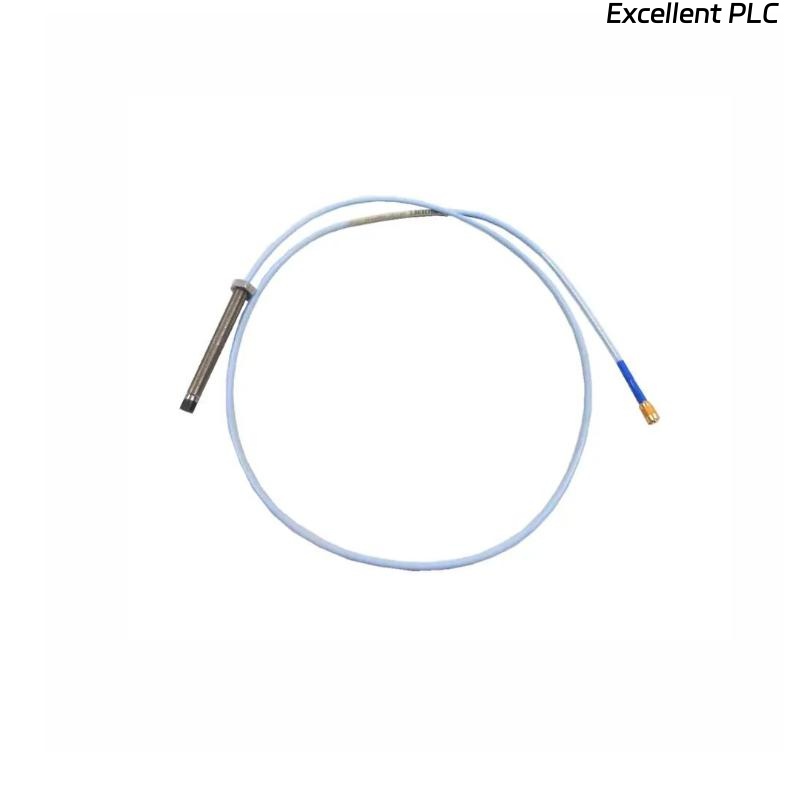

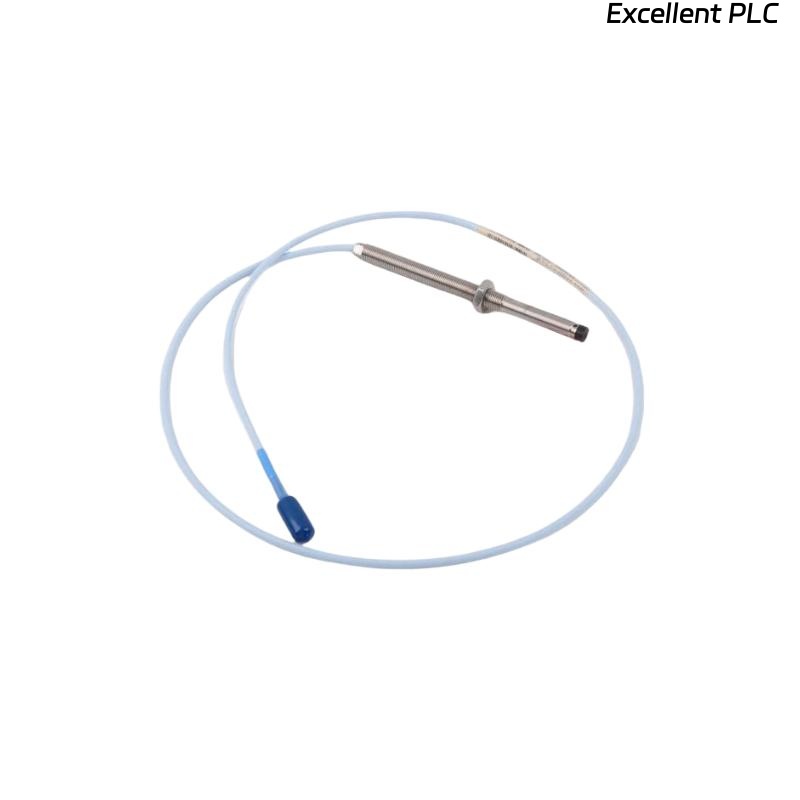

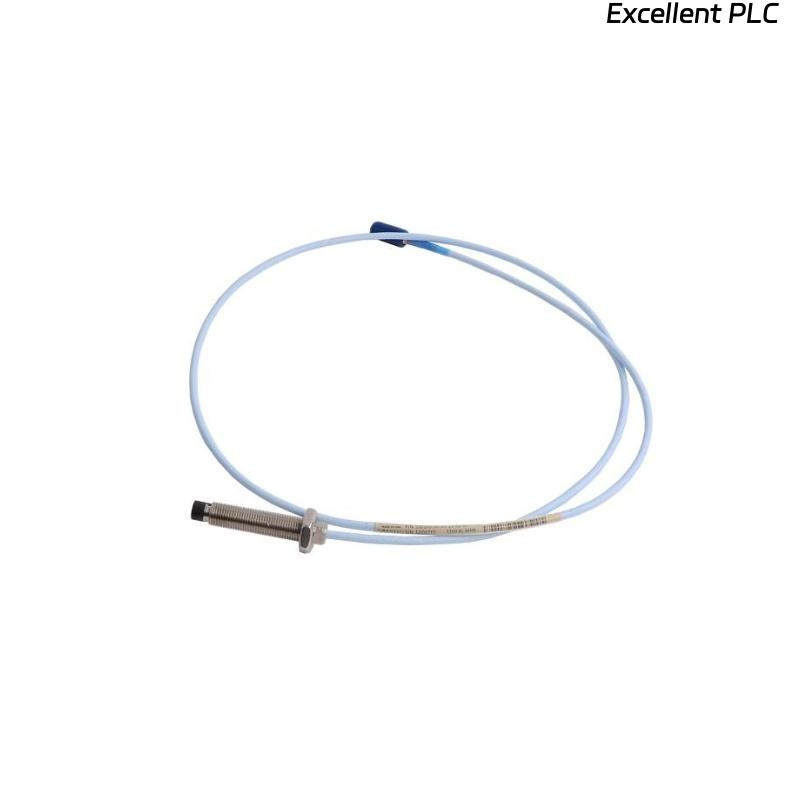

The Bently Nevada 330904-00-07-10-01-05 is a high-precision proximity probe from the 3300 NSv Series, designed to measure shaft displacement and vibrations in rotating machinery. This probe is a vital tool in industrial applications where real-time monitoring of machine health is required. It is particularly useful for predictive maintenance programs, helping prevent unexpected breakdowns by detecting early signs of wear and misalignment in critical machinery.
Built with durability and accuracy in mind, the 3300 NSv Proximity Probe can be easily integrated into existing vibration monitoring systems, making it an essential component in a wide variety of industries, including power generation, petrochemical, and manufacturing. With a robust construction and high sensitivity, it provides accurate measurements for condition-based monitoring, ensuring the long-term performance and safety of rotating equipment.
Product Parameters
| Parameter | Value |
|---|---|
| Model | 330904-00-07-10-01-05 |
| Total Length | 0.5 meter |
| Weight | 0.15 kg |
| Operating Temperature Range | -40°C to 120°C |
| Probe Type | Proximity, Eddy Current |
| Mounting Style | Standard mounting |
| Measurement Range | 0-25 mil (0-0.635 mm) |
| Output Type | Voltage or Current Output |
| Cable Length | 0.5 meter |
| Accuracy | ±1% of full scale |
| Operating Pressure | 0 to 50 bar (7.25 MPa) |
| Frequency Range | DC to 20 kHz |
| Protection Rating | IP65 |
Product Applications
The 3300 NSv Proximity Probe is designed to be used in various industrial settings to monitor rotating machinery. Its key applications include:
-
Turbine Monitoring: Ideal for monitoring the displacement of turbine shafts to ensure they operate smoothly and efficiently, preventing catastrophic failure.
-
Compressor Monitoring: Used to monitor compressor shafts, detecting potential issues such as misalignment or vibration abnormalities that could lead to system failure.
-
Motor and Pump Monitoring: Essential for monitoring the health of motors and pumps, ensuring they operate within safe limits and reducing the risk of breakdowns.
-
Power Generation: Commonly used in power plants to monitor critical machinery like generators and turbines, ensuring continuous operation and preventing downtime.
-
Refineries and Petrochemical Plants: Used for machinery monitoring in harsh environments, helping to maintain operational efficiency and safety.
-
Heavy Manufacturing: Provides accurate shaft displacement data for large motors, turbines, and other heavy machinery, helping maintain operational health in manufacturing environments.
Product Advantages
-
High Measurement Accuracy: The 3300 NSv Proximity Probe offers an accuracy of ±1% of full scale, ensuring precise and reliable displacement measurements.
-
Wide Temperature Range: Operating in a wide temperature range of -40°C to 120°C, this probe is ideal for both high and low-temperature environments, providing versatility for different industrial conditions.
-
Durable Construction: With an IP65 protection rating, the probe is resistant to dust and water ingress, ensuring long-term reliability even in harsh environments.
-
Early Fault Detection: The high sensitivity of the probe allows for the detection of even small vibrations or shaft misalignments, enabling early fault detection and reducing the risk of unexpected failures.
-
Easy Integration: The 3300 NSv Proximity Probe is designed to integrate seamlessly with existing vibration monitoring systems, providing flexibility for system upgrades and expansions.
-
Low Maintenance Requirements: Built to withstand demanding environments, the probe requires minimal maintenance, reducing downtime and maintenance costs for the facility.
FAQ
1. What is the measurement range of the 3300 NSv proximity probe?
The 3300 NSv Proximity Probe measures shaft displacement in a range from 0 to 25 mil (0 to 0.635 mm), which allows for fine-grained monitoring of machinery conditions.
2. What output types does this proximity probe support?
The probe supports both voltage and current output, which makes it versatile for integration with a variety of vibration monitoring systems.
3. What is the temperature range of the 3300 NSv probe?
The 3300 NSv Proximity Probe operates within a temperature range of -40°C to 120°C, making it suitable for use in both low and high-temperature industrial environments.
4. How accurate is the 3300 NSv proximity probe?
The 3300 NSv provides an accuracy of ±1% of full scale, ensuring high precision for machinery displacement and vibration measurements.
5. What industries use the 3300 NSv proximity probe?
This probe is widely used in industries such as power generation, petrochemical, manufacturing, and heavy machinery, where monitoring rotating equipment is crucial for preventing breakdowns.
6. How does this probe help with predictive maintenance?
By providing real-time data on shaft displacement and vibration, the probe enables early detection of faults like misalignment or wear, which helps avoid unexpected machine failures.
7. What is the protection rating of the 3300 NSv proximity probe?
The 3300 NSv has an IP65 protection rating, ensuring it is resistant to dust and water ingress, which is ideal for use in challenging industrial environments.
8. How does the proximity probe integrate with vibration monitoring systems?
The 3300 NSv probe can be easily integrated with standard vibration monitoring systems using either voltage or current outputs, ensuring compatibility with existing infrastructure.
9. What is the operating pressure range for this proximity probe?
The 3300 NSv Proximity Probe is designed to operate under pressures from 0 to 50 bar (7.25 MPa), which allows it to be used in high-pressure industrial settings.
10. Is this proximity probe suitable for hazardous environments?
Yes, the 3300 NSv Proximity Probe is designed for use in industrial environments, including hazardous areas, when proper safety precautions are followed.
