Product Overview

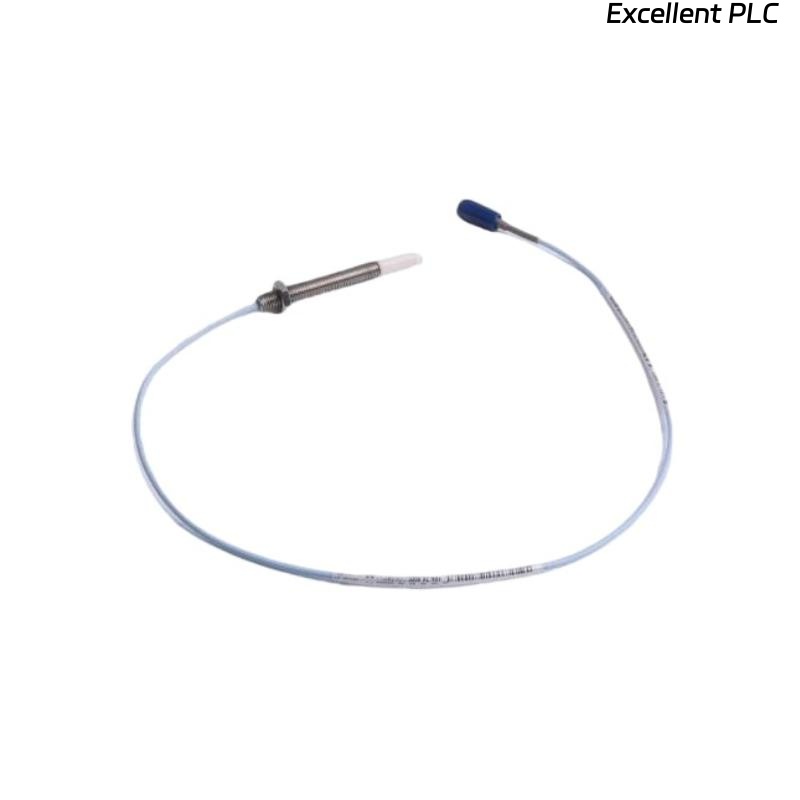

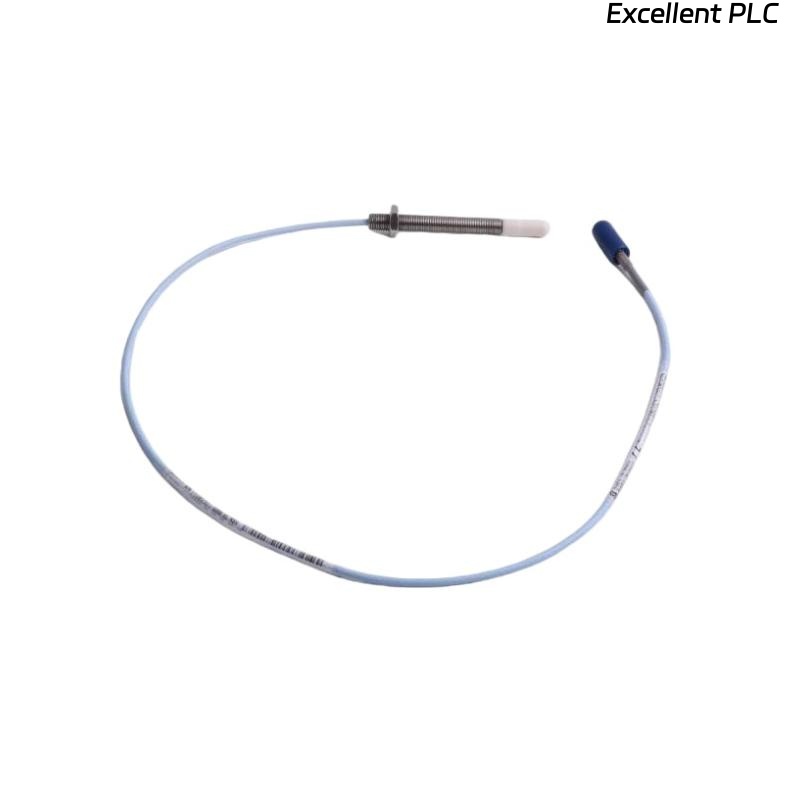

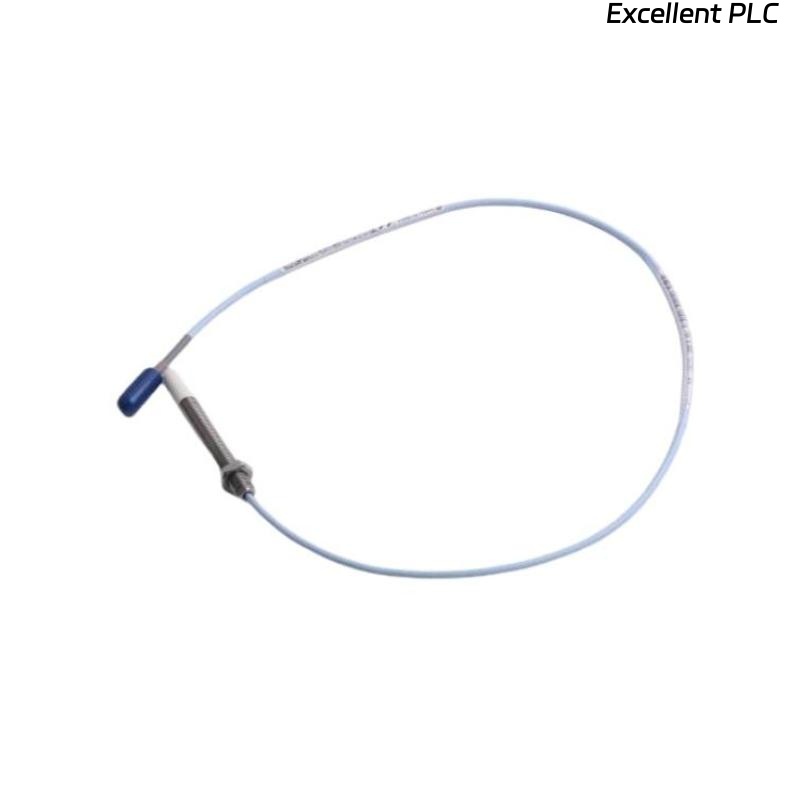

The Bently Nevada 330904-00-12-10-01-CN 3300 NSv Proximity Probe is a compact, high-sensitivity sensor designed for shaft vibration and position monitoring in small and medium-sized rotating machinery. Its 5 mm probe diameter and 12 mm length make it ideal for applications with limited installation space while maintaining superior accuracy and reliability. This probe is part of the Bently Nevada 3300 NSv (Narrow Signal voltage) series, optimized for machinery with smaller bearing clearances and tighter installation constraints.
Key Features
-
Compact 5 mm probe ideal for small machinery and tight spaces
-
Compatible with Bently Nevada 3300 NSv proximity transducer systems
-
Provides accurate and stable vibration and position measurements
-
Engineered for reliable performance in harsh industrial conditions
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330904-00-12-10-01-CN |
| Product Type | 3300 NSv Proximity Probe |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.15 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve installation |
| Applications | Shaft vibration, position monitoring, and machinery protection |
Industry Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and rotating machinery
-
Oil, gas, and power generation industries
-
Condition-based monitoring systems
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330904-00-12-10-01-CN probe?
It measures shaft vibration and position for compact machinery where installation space is limited.
Q2: Which system is this probe compatible with?
It works with the Bently Nevada 3300 NSv proximity transducer system.
Q3: What is the probe size?
It has a 5 mm diameter and 12 mm probe length.
Q4: What is the operating temperature range?
–35 °C to +177 °C.
Q5: Can it be used in harsh industrial environments?
Yes, it is designed to withstand oil, dust, and industrial contaminants.
Q6: What is the linear measurement range?
0–1.0 mm (0–40 mils).
Q7: What type of signal does it output?
An analog voltage proportional to shaft vibration and position.
Q8: Where is it typically installed?
In turbines, compressors, motors, and gearboxes with small installation clearances.
