Product Overview

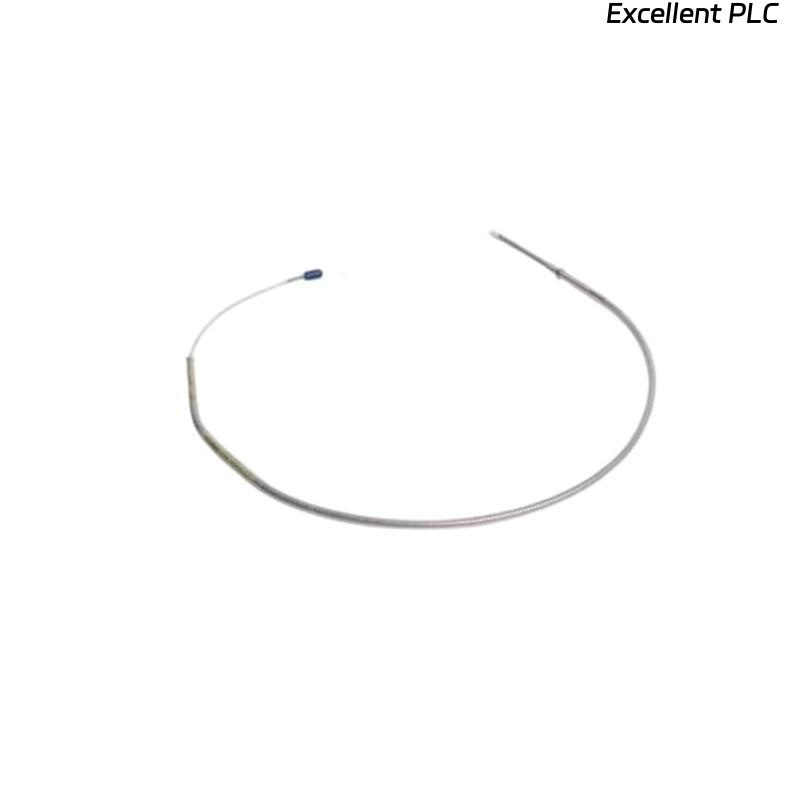

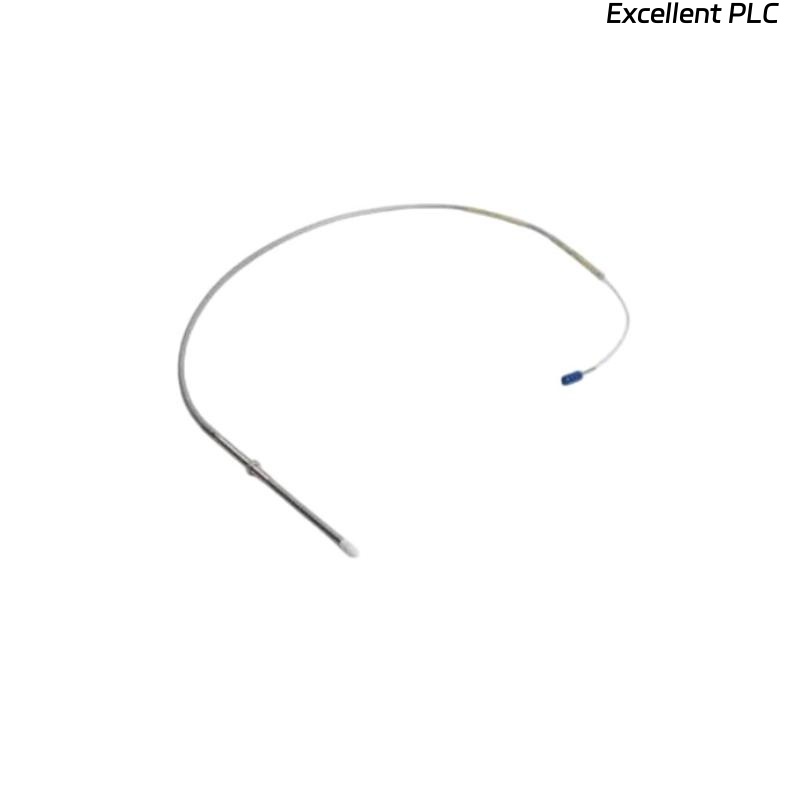

The Bently Nevada 330904-00-18-10-01-05 3300 NSv Proximity Probe is a high-performance transducer specifically engineered for measuring vibration and shaft position in compact rotating machinery. As a key component of the 3300 NSv (Narrow Side-view) Proximity Transducer System, it provides accurate, stable, and reliable measurements in environments where space constraints prevent the use of standard 8 mm or 11 mm probes.
Key Features
-
Compact 5 mm probe suitable for tight installation spaces
-
Compatible with Bently Nevada 3300 NSv Proximitor System
-
Factory-calibrated for reliable and repeatable performance
-
High immunity to temperature changes and EMI interference
-
Designed for both vibration and shaft position measurements
-
API 670 compliant for critical machinery protection systems
-
Durable stainless steel construction for harsh environments
-
Excellent linearity and signal stability
Technical Specifications
| Item | Specification |
|---|---|
| Model | 330904-00-18-10-01-05 |
| Series | 3300 NSv (Narrow Side-view) |
| Manufacturer | Bently Nevada |
| Measurement Range | 2 mm (80 mils) |
| Linear Range | 1.6 mm (63 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Probe Tip Diameter | 5 mm (0.197 in) |
| Thread Size | M10 x 1 |
| Probe Length | 50 mm (1.97 in) |
| Cable Length | 18 meters (59 feet) |
| System Power Supply | -24 VDC (typical via Proximitor) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -35°C to +180°C (-31°F to +356°F) |
| Humidity | 95% non-condensing |
| Insulation Resistance | >10 MΩ at 500 VDC |
| Connector Type | Miniature coaxial connector (female) |
| Compatible Proximitor Module | 330910-00-05 |
| System Accuracy | ±5% of full-scale output |
| Material | Stainless steel housing |
| Weight | 0.15 kg |
| Dimensions | Total Length : 1.0 meter |
Frequently Asked Questions (FAQ)
1. What is the main purpose of the 330904-00-18-10-01-05 probe?
It measures both vibration and shaft position in small, space-limited machinery for condition monitoring and machine protection.
2. Which Proximitor module is compatible with this probe?
This probe is compatible with the Bently Nevada 330910-00-05 Proximitor Sensor.
3. What distinguishes the 3300 NSv system from the 3300 XL system?
The NSv system uses smaller probes and cables, optimized for compact installations, while maintaining the same performance and API 670 compliance as the XL series.
4. What is the typical output of the probe system?
It provides a voltage output proportional to probe-to-target distance, typically 200 mV/mil.
5. Can the probe operate under high temperature conditions?
Yes, it performs reliably in temperatures up to +180°C (356°F) without compromising accuracy.
6. Is grounding necessary during installation?
Yes, proper grounding and shielding are essential to prevent electrical noise and maintain stable signal output.
7. How is calibration performed for this probe model?
Each probe is factory-calibrated with its matched extension cable and Proximitor to ensure measurement consistency.
8. What target materials are recommended for accurate readings?
The probe is calibrated for AISI 4140 steel, but it can be adapted for other conductive ferromagnetic materials through recalibration.
