Product Overview

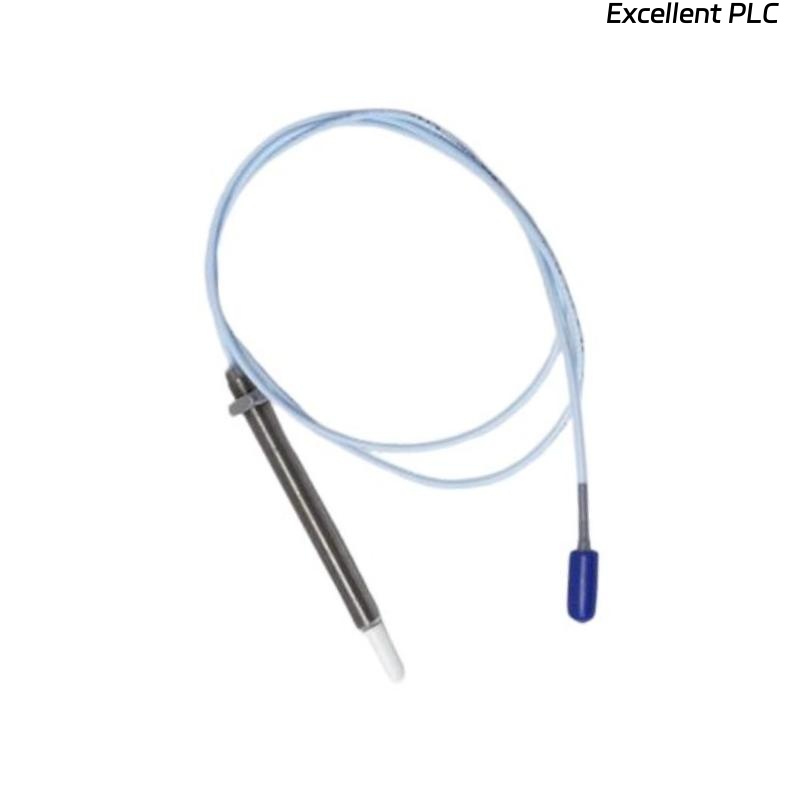

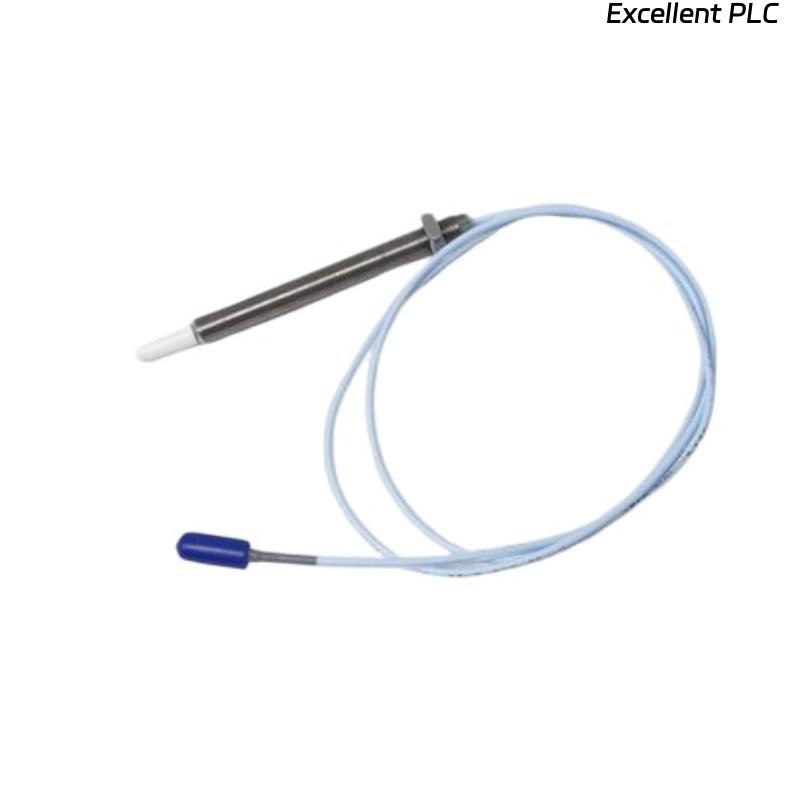

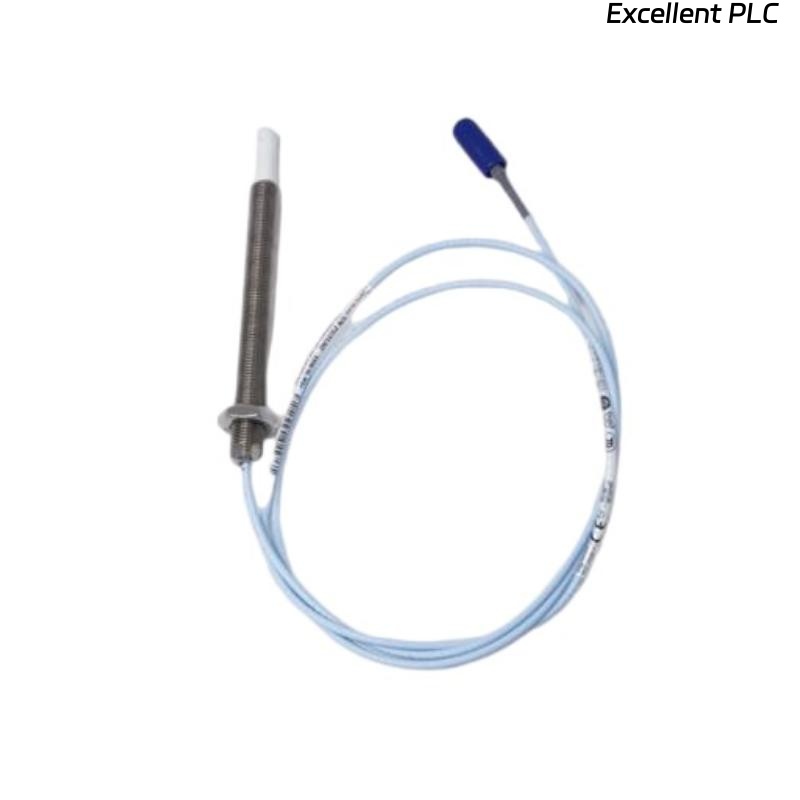

The Bently Nevada 330905-00-05-05-02-CN is an 8 mm eddy current proximity probe from the 3300 NSv series, designed for high-precision vibration and shaft displacement monitoring in industrial machinery. It provides reliable and accurate measurements essential for condition monitoring and predictive maintenance. The probe features an enhanced side-view design for constrained installations and is fully compatible with previous 3300 NSv and RAM probe models.
Key Features
-
High Accuracy: Measures displacement with a linear range of 1.5 mm
-
Side-View Capability: Optimized for tight installation spaces
-
Interchangeability: Fully compatible with previous 3300 NSv and RAM probes
-
Eddy Current Sensing: High-resolution eddy-current technology ensures precise vibration detection
-
ClickLoc Connector: Miniature coaxial connector provides secure and reliable connections
Technical Specifications
| Specification | Details |
|---|---|
| Model | 330905-00-05-05-02-CN |
| Series | 3300 NSv |
| Thread Size | M8x1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 50 mm |
| Cable Length | 5.0 meters |
| Connector Type | ClickLoc miniature coaxial |
| Linear Range | 1.5 mm |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Frequency Response | 0–10 kHz |
| Resistance | 4.0Ω ±0.5Ω |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.15 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the 330905-00-05-05-02-CN probe?
It provides precise vibration and shaft displacement monitoring for industrial machinery, supporting predictive maintenance and equipment protection.
2. What is the linear range of this proximity probe?
The linear range is 1.5 mm for accurate displacement measurements.
3. What is the scale factor of the probe?
The scale factor is 7.87 V/mm (200 mV/mil).
4. What is the operating temperature range?
The probe operates between -52°C and +177°C (-62°F to +351°F).
5. What type of connector does the probe use?
It uses a ClickLoc miniature coaxial connector for secure connectivity.
6. Is the probe compatible with previous 3300 NSv or RAM probes?
Yes, it is fully interchangeable with prior 3300 NSv and RAM probes.
7. What are the dimensions of the probe?
Total Length : 0.5 meter.
8. What is the weight of the probe?
The probe weighs approximately 0.15 kg.
