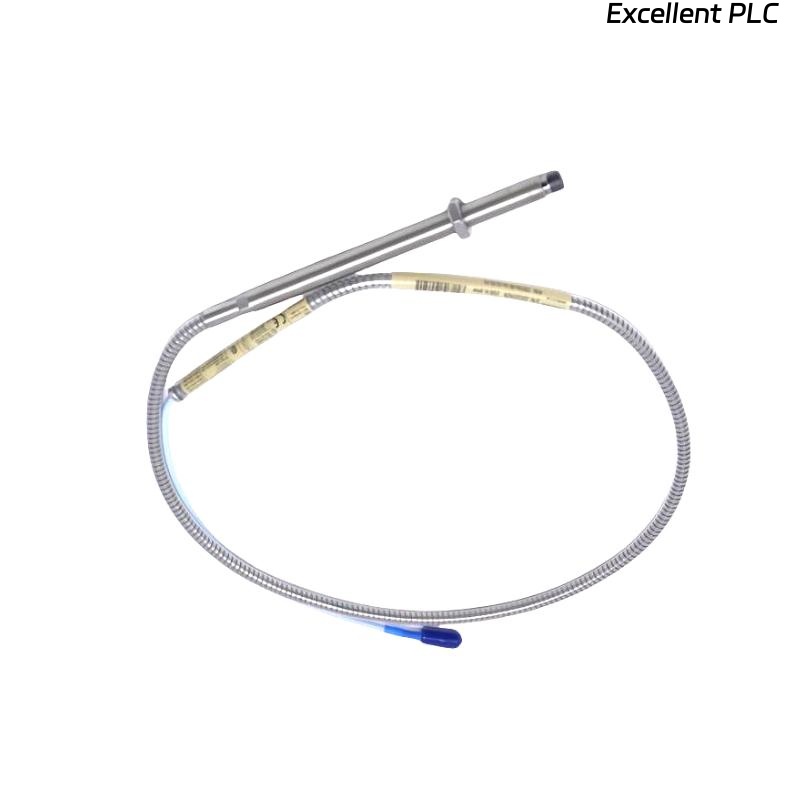

Bently Nevada 330905-00-08-10-02-CN 3300 NSv Proximity Probes

Product Introduction

The Bently Nevada 330905-00-08-10-02-CN 3300 NSv Proximity Probe is a high-precision, non-contact displacement sensor designed for advanced industrial machinery monitoring. As part of the 3300 NSv series, this probe is engineered for compact installations and small-shaft machinery, providing reliable measurement in areas where traditional probes may not fit.

Operating on the eddy current principle, the probe detects changes in the electromagnetic field caused by the proximity of a conductive target. This allows it to accurately measure static shaft position and dynamic vibration signals with high linearity. The 330905-00-08-10-02-CN is compatible with Bently Nevada 3300 NSv Proximitor modules, forming a complete monitoring system that meets API 670 machinery protection standards.

Its robust stainless steel housing and compact design make it suitable for turbines, compressors, pumps, and motors, enabling early detection of potential faults and supporting predictive maintenance programs.

Technical Specifications

Product Applications

The 330905-00-08-10-02-CN probe is widely used in machinery monitoring where high accuracy is critical. Typical applications include:

• Steam and Gas Turbines: Measuring shaft vibration and dynamic displacement under varying operational loads.

• Industrial Compressors: Detecting rotor imbalance, misalignment, and mechanical looseness.

• Pumps and Electric Motors: Continuous condition monitoring to enable predictive maintenance.

• Gearboxes and Fans: Monitoring shaft stability and detecting early mechanical issues.

• Compact or Space-Constrained Machinery: Situations where conventional probes cannot be installed.

This probe is an essential component of Bently Nevada 3300 NSv monitoring systems, ensuring accurate real-time data collection for machinery protection and diagnostics.

Product Advantages

• High Accuracy: Maintains linearity within ±1% across its measurement range.

• Compact Form Factor: Fits in tight spaces and small shaft machinery.

• Durable Construction: Stainless steel housing resists corrosion, vibration, and wear.

• Wide Operating Temperature: Reliable from –35°C to +180°C.

• EMI Resistant: Coaxial design minimizes electromagnetic interference.

• API 670 Compliant: Suitable for industrial machinery protection systems.

• Non-contact Measurement: Reduces maintenance and eliminates mechanical wear.

• Low Output Noise: Stable signal ensures precise vibration and shaft position readings.

• Simple Installation: Threaded mounting with lock nut for secure setup.

• Seamless Integration: Works with NSv Proximitor modules for complete system compatibility.

Related Models (Same Series)

Popular Models from the Same Brand (Bently Nevada)

FAQ

1. What measurement principle does the 330905-00-08-10-02-CN use?
   It uses eddy current sensing to measure displacement between the probe tip and a conductive target, providing accurate readings of both static and dynamic shaft movements.

2. Which Proximitor modules are compatible with this probe?
   It works with Bently Nevada 3300 NSv Proximitor modules, ensuring proper signal conditioning and integration.

3. Can it measure static and dynamic displacement at the same time?
   Yes, it provides real-time monitoring of static shaft position while detecting dynamic vibration signals.

4. What is the frequency response of this probe?
   The probe supports DC to 10 kHz, capturing low-frequency shaft displacement and high-frequency vibration events.

5. Is it suitable for oil-lubricated or harsh environments?
   Yes, its hermetically sealed stainless steel housing allows reliable operation in oil, humidity, and elevated temperatures.

6. How accurate is the probe?
   Factory-calibrated using standard steel targets, it maintains ±5% system-level accuracy.

7. Is the probe resistant to electromagnetic interference (EMI)?
   Yes, the coaxial design and shielding reduce EMI, ensuring stable output in noisy industrial environments.

8. Can the probe cable be extended?
   Only with factory-approved NSv extension cables to maintain signal integrity.

9. How should the probe be mounted?
   Use the M8 threaded connection and lock nut at specified torque to ensure stable and repeatable measurements.

10. Can it integrate with Bently Nevada 3500 monitoring systems?
    Yes, when connected via NSv Proximitor modules and approved cables, it provides accurate vibration and shaft position data for machinery protection.
