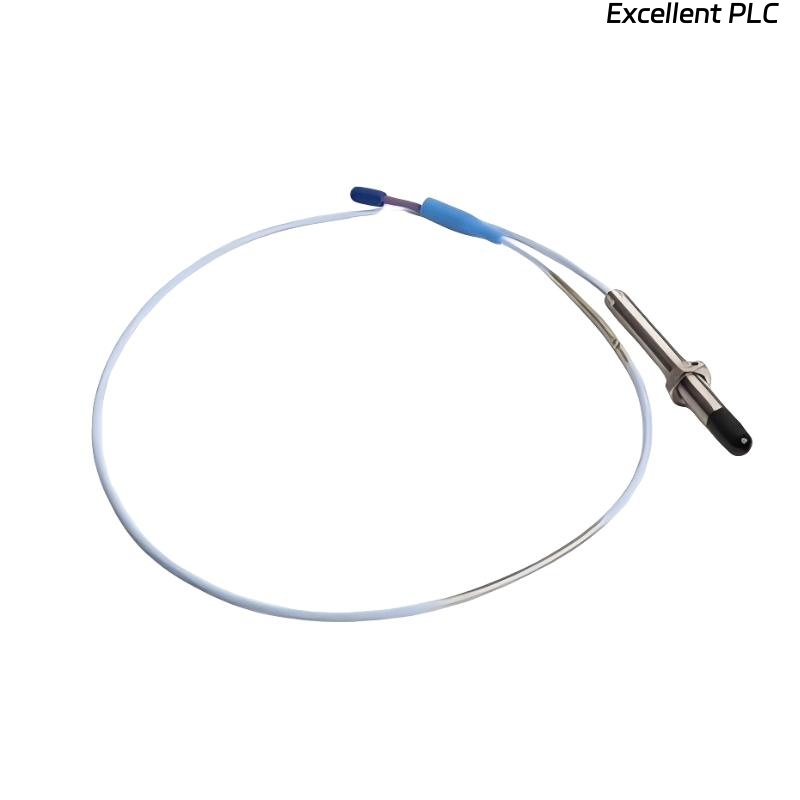

Bently Nevada 330905-00-09-05-05-02-05 3300 NSv Proximity Probes

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 330905-00-09-05-05-02-05 3300 NSv Proximity Probe is a high-precision, non-contact displacement sensor designed for industrial machinery monitoring. Part of the 3300 NSv series, this probe is intended for applications where compact and reliable shaft position measurement is required.

Using the eddy current principle, the probe measures variations in the electromagnetic field caused by the movement of a conductive target. This allows for accurate measurement of both static shaft position and dynamic vibration. The 330905-00-09-05-05-02-05 model is compatible with Bently Nevada 3300 NSv Proximitor modules, forming part of a comprehensive system that meets API 670 machinery protection standards.

Its stainless steel construction and compact size make it suitable for turbines, compressors, pumps, and electric motors, enabling predictive maintenance and early detection of mechanical faults.

---

Technical Specifications

---

Product Applications

The 330905-00-09-05-05-02-05 probe is ideal for machinery requiring high-precision shaft position monitoring. Common applications include:

• Steam and Gas Turbines: Measures shaft vibration and static position under variable loads.

• Industrial Compressors: Detects rotor imbalance, misalignment, and mechanical looseness.

• Pumps and Motors: Continuous monitoring to support predictive maintenance programs.

• Gearboxes and Fans: Monitors shaft stability and detects early mechanical faults.

• Compact Machinery: Where space constraints limit probe installation options.

This probe is a key component of Bently Nevada 3300 NSv monitoring systems, providing accurate, real-time data for machinery protection and diagnostics.

---

Product Advantages

• High Accuracy: ±1% linearity across the measurement range.

• Compact Size: Fits small shafts and tight spaces.

• Durable Construction: Stainless steel housing resists corrosion and mechanical wear.

• Wide Temperature Range: Operates reliably from –35°C to +180°C.

• EMI Resistant: Coaxial design reduces interference from electromagnetic noise.

• API 670 Compliant: Meets industrial machinery protection standards.

• Non-contact Operation: Eliminates mechanical wear and reduces maintenance.

• Low Output Noise: Provides stable and precise signals.

• Easy Installation: Threaded probe with lock nut ensures secure placement.

• Seamless Integration: Compatible with NSv Proximitor modules for full system performance.

---

FAQ

1. What principle does the 330905-00-09-05-05-02-05 probe use for measurement?
   It uses eddy current sensing to detect changes in the electromagnetic field, enabling measurement of both static and dynamic shaft displacement without physical contact.

2. Which Proximitor modules are compatible with this probe?
   It is compatible with Bently Nevada 3300 NSv Proximitor modules, which provide signal conditioning and system integration.

3. Can it measure static and dynamic displacement simultaneously?
   Yes, it can monitor shaft position while simultaneously detecting vibration signals, supporting predictive maintenance strategies.

4. What is the frequency response range?
   The probe operates from DC to 10 kHz, suitable for most industrial rotating machinery applications.

5. Can the probe be used in oil-lubricated bearings or harsh environments?
   Yes, the hermetically sealed stainless steel housing allows operation in oil, humidity, and elevated temperatures.

6. How is the probe calibrated, and how accurate is it?
   Factory-calibrated using standard steel targets, the probe maintains ±5% system-level accuracy.

7. Is the probe resistant to electromagnetic interference (EMI)?
   Yes, the coaxial design and shielding provide protection against EMI, ensuring stable and accurate signals.

8. Can the probe cable be extended?
   Only use factory-approved NSv extension cables to maintain signal integrity and calibration.

9. What is the recommended mounting method?
   Use the M8 threaded connection with a lock nut to secure the probe at specified torque for stable, repeatable measurements.

10. Can this probe be integrated into 3500 monitoring systems?
    Yes, it can be integrated via NSv Proximitor modules and approved extension cables, providing reliable data for machinery protection and vibration monitoring.

---
