Product Introduction

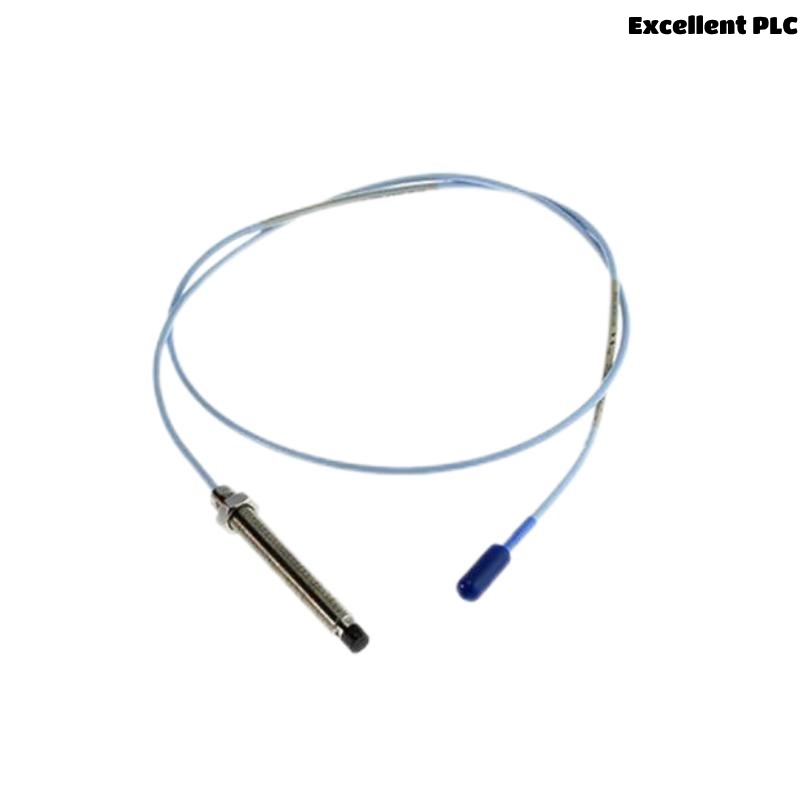

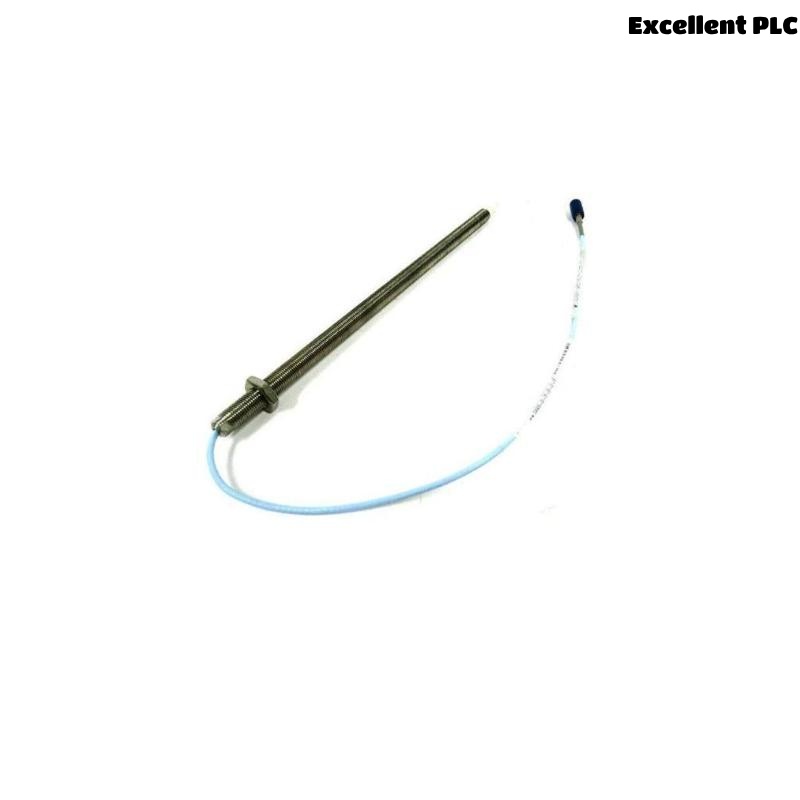

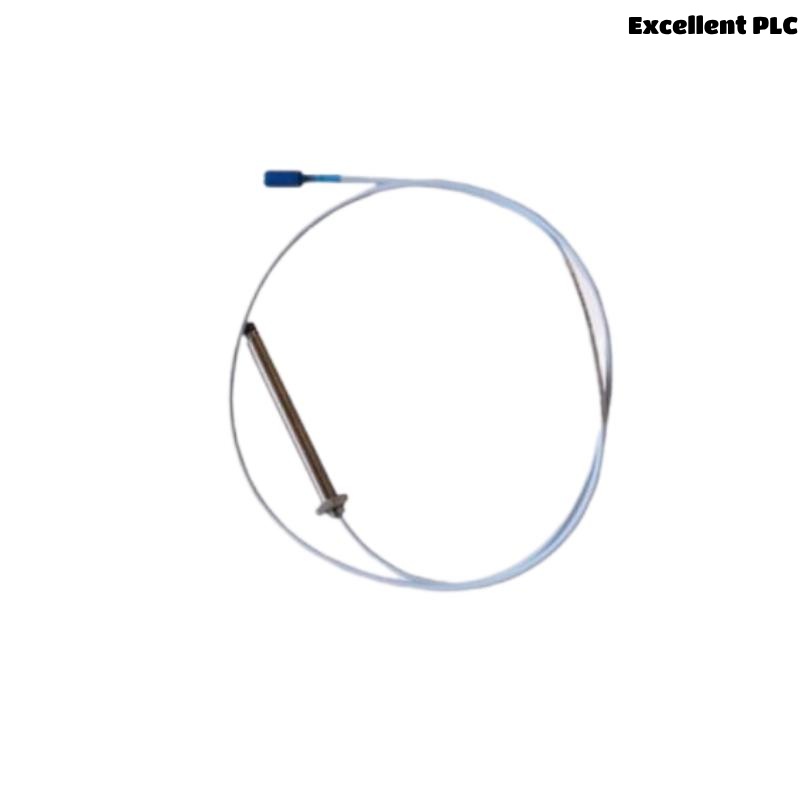

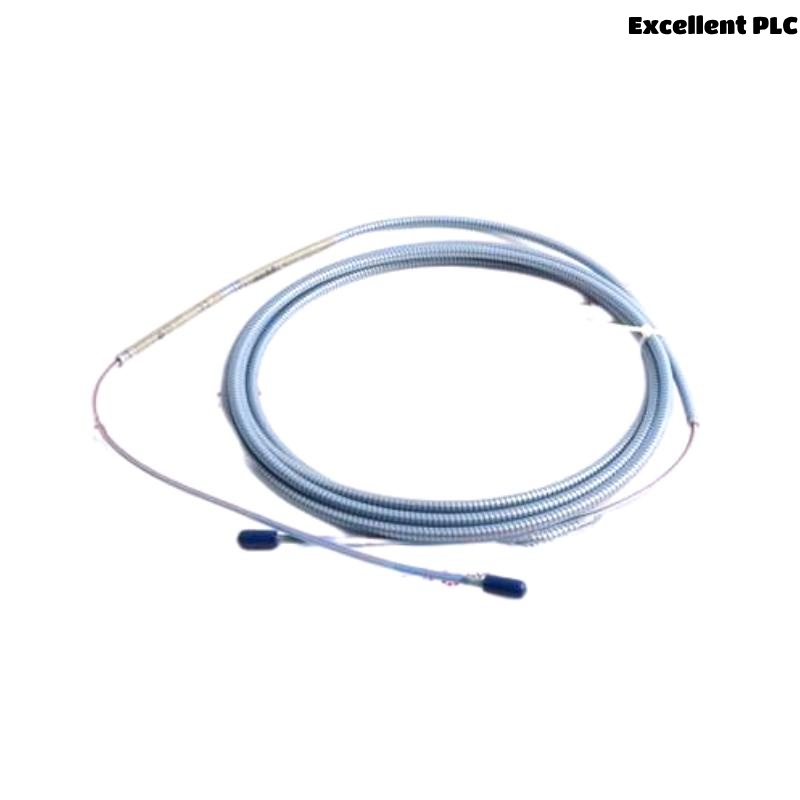

The Bently Nevada 330905-00-13-05-02-05 is a precision-engineered 3300 NSv series proximity probe used for vibration and shaft displacement monitoring in rotating machinery. This probe employs eddy current technology to provide reliable, real-time measurements of shaft position, enabling early detection of mechanical issues such as imbalance, misalignment, or wear.
Designed for demanding industrial environments, the probe features a rugged stainless steel construction that withstands harsh conditions including temperature extremes, dust, and moisture. The compact design and short cable length allow easy installation in tight spaces while maintaining the accuracy required for critical condition monitoring in power plants, oil & gas facilities, and heavy manufacturing.
The 0.5-meter cable length and a total probe length optimized for compact setups make it suitable for installations where space is limited but measurement precision cannot be compromised.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 330905-00-13-05-02-05 |
| Probe Type | Proximity (Eddy Current) |
| Sensing Range | 13 mm |
| Probe Tip Diameter | 5 mm |
| Cable Length | 0.5 meter |
| Housing Material | Stainless Steel |
| Connector Type | 2-pin MIL-DTL-26482 connector |
| Operating Temperature | -40°C to +120°C |
| Weight (Shipping) | 2 kg |
| Overall Length | 0.5 meter |
| Cable Type | Shielded coaxial cable |
| Output Signal | AC signal proportional to gap |
| Environmental Rating | IP67 |
Product Applications
The 330905-00-13-05-02-05 proximity probe is widely applied in:
-
Power Generation: Monitoring turbine shafts and generators to detect vibration or displacement anomalies.
-
Oil & Gas: Used in pumps and compressors to ensure machinery health and prevent failure.
-
Petrochemical Industry: Monitors rotating equipment in aggressive process environments.
-
Manufacturing: Protects motors and gearboxes by providing continuous vibration analysis.
-
Mining: Monitors heavy machinery and conveyors subject to intense operational stress.
-
Aerospace and Defense: Used in test rigs for rotor and engine vibration monitoring.
Product Advantages
-
Accurate Measurements: Eddy current sensing provides precise shaft displacement data for effective condition monitoring.
-
Compact Design: Short overall length and 0.5 m cable suitable for tight installation spaces.
-
Robust Construction: Stainless steel housing and IP67 protection ensure reliability in harsh industrial environments.
-
Ease of Installation: Standard connectors and cable length facilitate quick setup and integration.
-
Enhanced Reliability: Continuous monitoring helps predict maintenance needs and reduces unexpected downtime.
-
Low Electrical Noise: Shielded cable minimizes interference for clearer signal transmission.
-
Wide Temperature Range: Operates reliably between -40°C and +120°C.
-
Bently Nevada Quality: Trusted worldwide for performance in vibration monitoring solutions.
Frequently Asked Questions (FAQ)
Q1: What is the sensing range of this probe?
A1: The sensing range is 13 mm, designed to monitor typical shaft movement and vibration in industrial machinery.
Q2: What is the total length of the probe and cable?
A2: The overall length including cable is approximately 0.5 meters.
Q3: What type of output signal does this probe provide?
A3: It provides an AC signal proportional to the distance (gap) between the probe tip and the target.
Q4: Is the probe compatible with all 3300 series monitors?
A4: Yes, it is fully compatible with the Bently Nevada 3300 monitoring system series.
Q5: What environmental protection does this probe offer?
A5: It has an IP67 rating, offering protection against dust and temporary immersion in water.
Q6: Can this probe operate under extreme temperatures?
A6: Yes, it functions reliably in temperatures from -40°C up to +120°C.
Q7: What maintenance does the probe require?
A7: Minimal maintenance is needed; periodic cleaning and visual inspection are recommended.
Q8: What kind of connector does the probe use?
A8: It uses a standard 2-pin MIL-DTL-26482 connector for secure, reliable connections.
Q9: Is the cable shielded?
A9: Yes, the cable is shielded coaxial to reduce electromagnetic interference.
Q10: Can the cable length be extended if needed?
A10: Cable extension is possible but should be done carefully to avoid signal degradation and should follow Bently Nevada guidelines.
Related Models — Same Series or Similar
| Model Number | Sensing Range | Probe Tip Diameter | Cable Length | Weight (Shipping) |
|---|---|---|---|---|
| 330905-00-08-05-02-05 | 8 mm | 5 mm | 1 meter | 1.8 kg |
| 330905-00-12-10-02-05 | 12 mm | 10 mm | 1 meter | 2 kg |
| 330905-00-10-10-02-00 | 10 mm | 10 mm | 1 meter | 1.9 kg |
| 330905-00-05-05-02-05 | 5 mm | 5 mm | 0.5 meter | 1.5 kg |
| 330905-00-13-05-02-05 | 13 mm | 5 mm | 0.5 meter | 2 kg |
| 330905-00-15-12-02-05 | 15 mm | 12 mm | 1 meter | 2.1 kg |
