Product Introduction

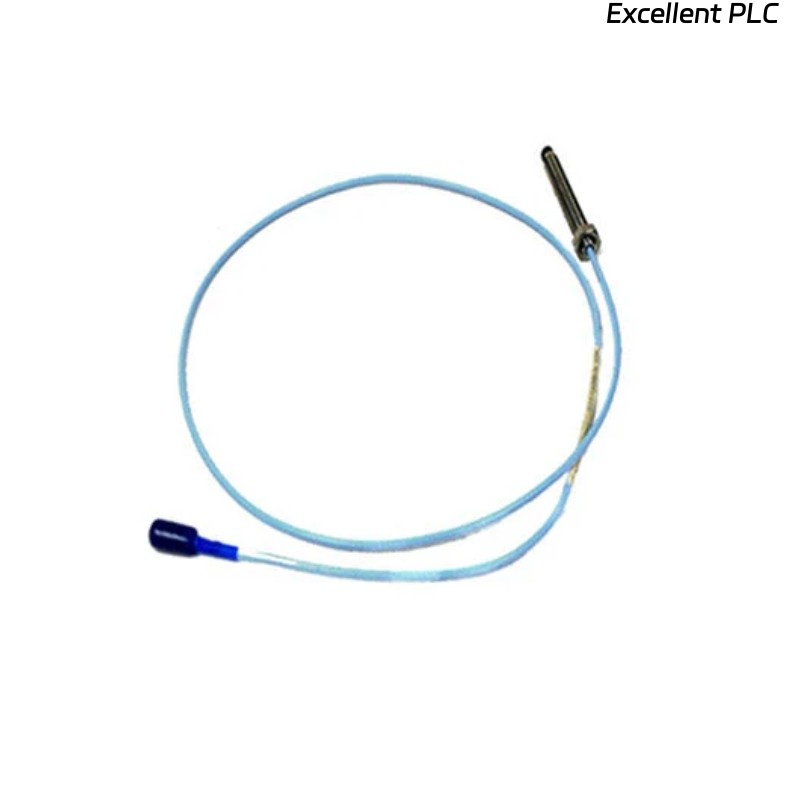

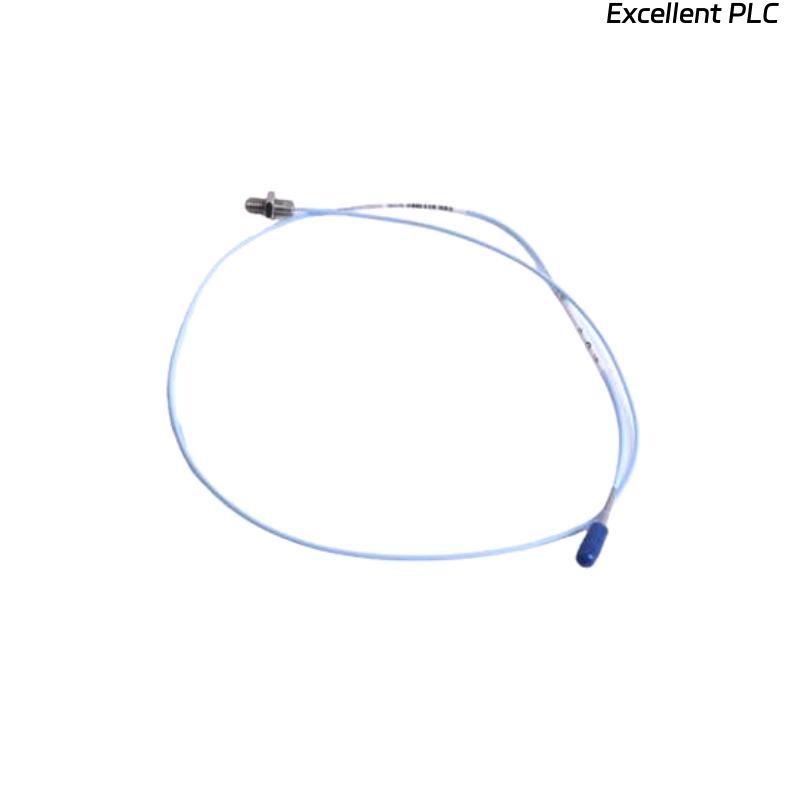

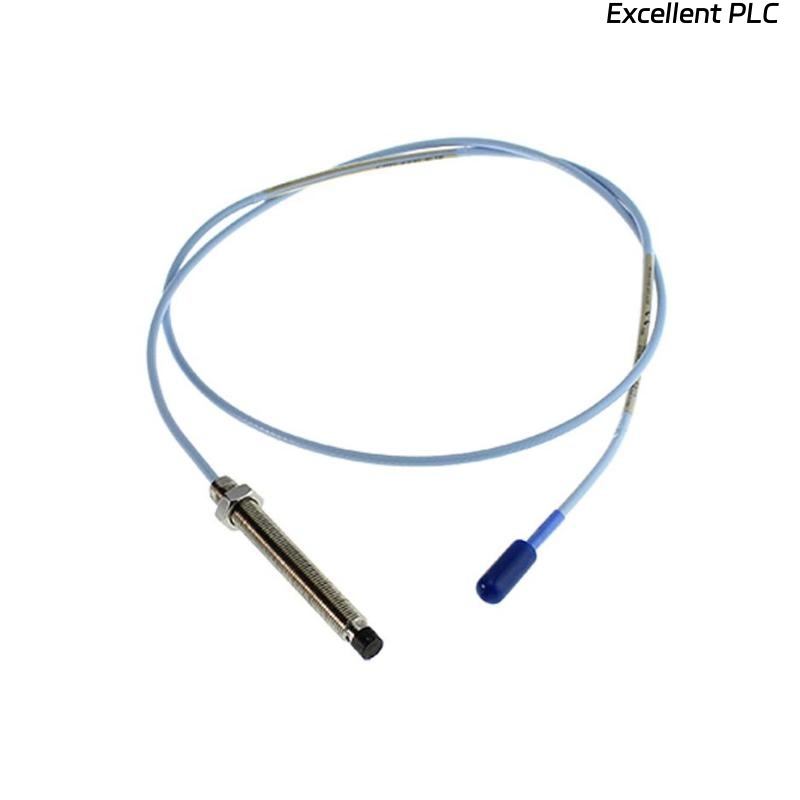

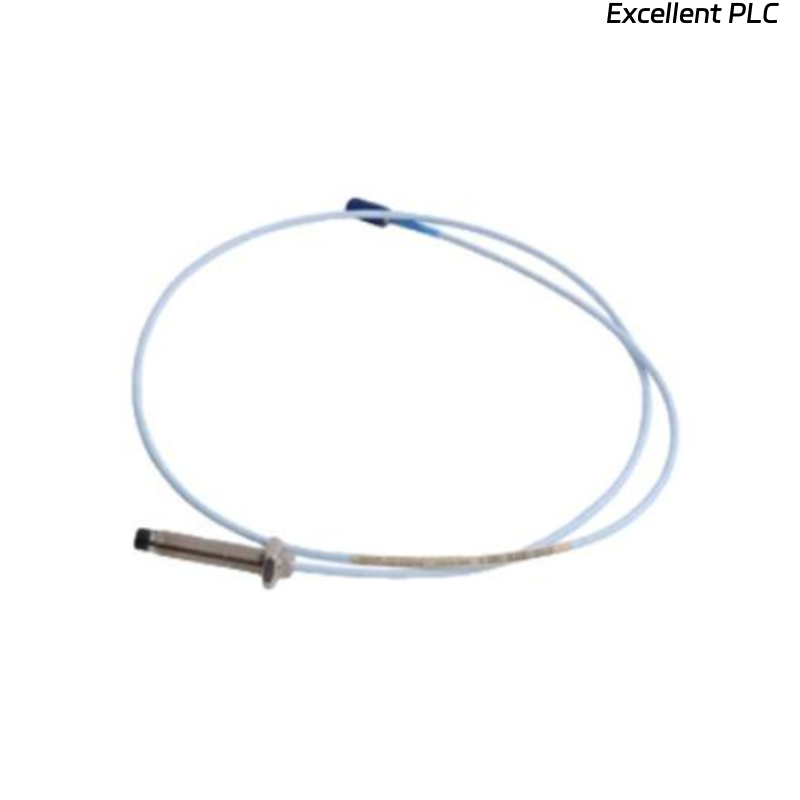

The Bently Nevada 330905-01-08-10-01-00 is a 3300 NSv Proximity Probe, part of the trusted 3300 Series widely recognized for vibration monitoring and shaft position measurement in critical machinery. Designed for high reliability and precise readings, this probe is optimized for industrial applications including turbines, compressors, generators, and pumps. The probe provides continuous, real-time feedback to machinery protection systems to prevent catastrophic failures, reduce downtime, and optimize maintenance schedules.
Product Specifications
| Parameter | Value |
|---|---|
| Probe Type | Proximity Sensor (Eddy Current) |
| Model Number | 330905-01-08-10-01-00 |
| Measurement Range | ±0.127 mm (±5 mils) typical |
| Operating Temperature | -40°C to 121°C (-40°F to 250°F) |
| Cable Length | 1 m (Total Length) |
| Output Type | Differential AC Voltage |
| Sensitivity | 10 mV/μm nominal |
| Case Material | Stainless Steel |
| Weight | 0.15 kg |
| Tip Material | Hardened Stainless Steel |
| Mounting Style | Threaded or Clamped |
| Frequency Response | 0–25 kHz typical |
| Electrical Connector Type | MIL-C-5015 compatible |
Product Applications
-
Rotating Machinery Monitoring: Ideal for turbines, compressors, pumps, and motors.
-
Condition-Based Maintenance: Enables predictive maintenance by detecting shaft vibration, displacement, and misalignment.
-
Machinery Protection Systems (MPS): Interfaces with 3300 Series monitors to trigger alarms or shutdowns under unsafe conditions.
-
High-Speed Shafts: Suitable for detecting shaft motion and rotor dynamics in high-speed applications.
-
Industrial Plants: Power generation, petrochemical, refining, and pulp & paper industries.
Product Advantages
-
High Reliability: Designed to function in harsh industrial environments with high vibration, temperature, and contamination.
-
Precision Measurement: Provides accurate detection of shaft displacement and vibration for early problem identification.
-
Compatibility: Works seamlessly with 3300 Series monitors and standard industrial MPS setups.
-
Robust Construction: Stainless steel tip and body provide long-term durability.
-
Fast Response: High-frequency response allows for detection of rapid shaft movements and dynamic events.
-
Ease of Installation: Standardized mounting and connector interfaces reduce setup complexity.
FAQ
Q1: What is the compatible monitor for this probe?
A1: It is compatible with all Bently Nevada 3300 Series Monitors, including 3300 XL, 3300 8-Channel, and 3300 NSv.
Q2: Can this probe be used in high-temperature environments?
A2: Yes, the operating range is -40°C to 121°C (-40°F to 250°F).
Q3: What type of output signal does the probe provide?
A3: It provides a differential AC voltage signal proportional to shaft displacement.
Q4: How do I determine the proper gap setting?
A4: Use the recommended proximity probe installation procedure for the 3300 NSv monitor to set the gap according to the application and monitor calibration.
Q5: Is this probe compatible with all types of rotating machinery?
A5: It is suitable for most industrial machinery, including turbines, pumps, compressors, and generators.
Q6: What is the frequency response of this sensor?
A6: The typical frequency response is 0–25 kHz, enabling detection of high-speed shaft motion.
Q7: Can this probe measure both radial and axial displacement?
A7: Yes, it primarily measures radial displacement, but can be used to infer axial movement when configured with multiple probes.
Q8: What type of connector does the probe use?
A8: It uses a MIL-C-5015 compatible connector for secure connection to the monitor.
Q9: Can this probe handle vibration shocks?
A9: Yes, it is designed to operate under high-vibration conditions typical in industrial applications.
Q10: Does the probe require calibration?
A10: Yes, calibration should be performed using the associated 3300 Series monitor to ensure accurate measurement.
