Product Introduction

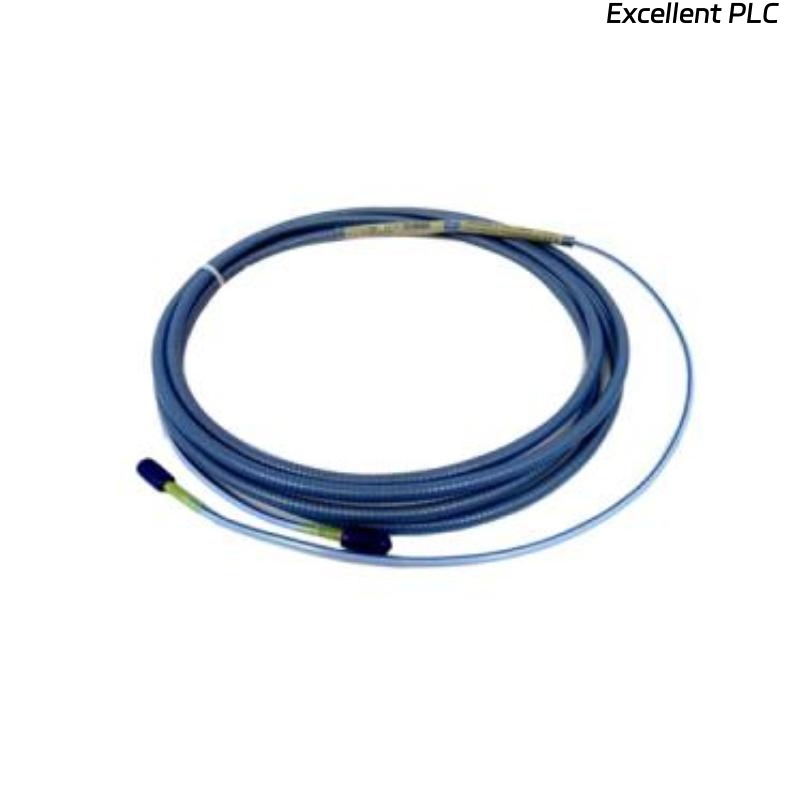

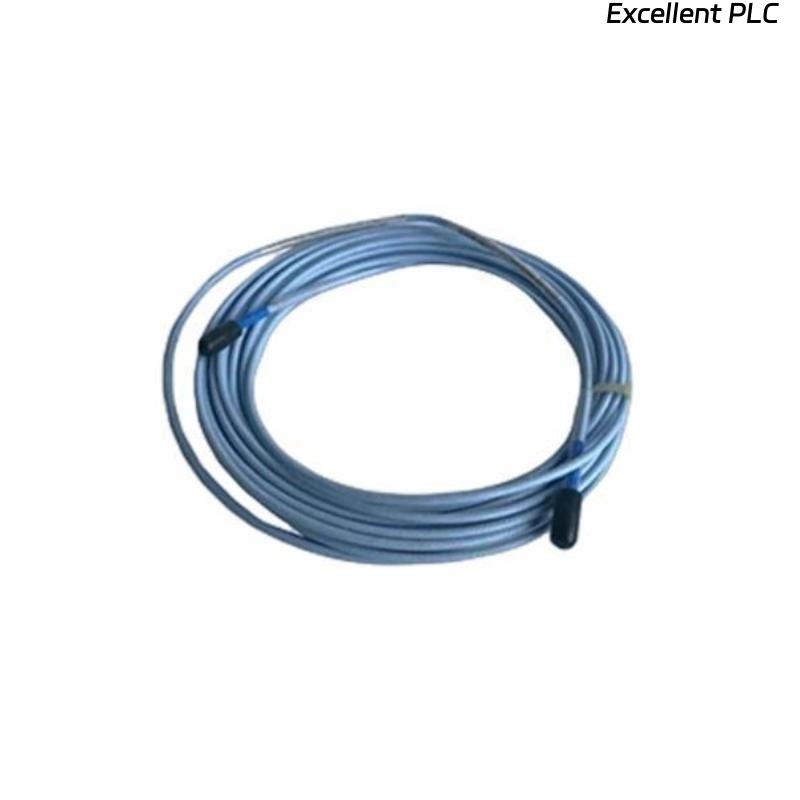

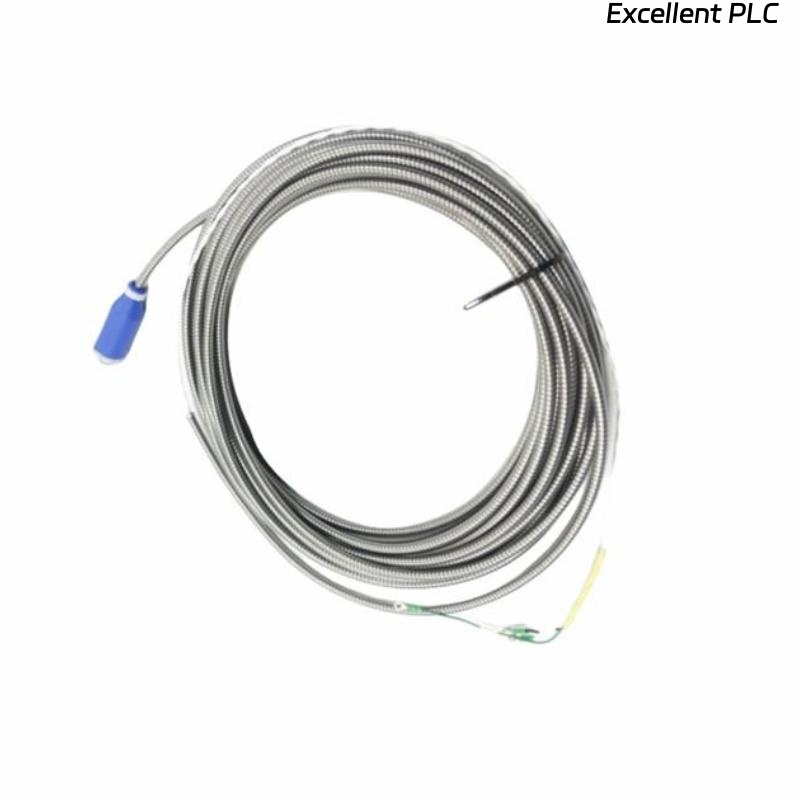

The Bently Nevada 330905-02-08-70-01-00 is a 3300 NSv series proximity probe designed for precision monitoring of rotating machinery. It provides accurate, high-resolution measurements of shaft vibration and position to support predictive maintenance and minimize unplanned downtime. The probe is engineered for industrial environments, offering robust performance and reliable operation in turbines, compressors, pumps, and generators.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330905-02-08-70-01-00 |
| Type | Proximity Probe |
| Probe Series | 3300 NSv |
| Total Length | 7 m |
| Weight | 0.15 kg |
| Probe Diameter | 8 mm |
| Sensing Range | 0.05–2.5 mm (typical) |
| Output Signal | AC voltage proportional to displacement |
| Operating Temperature | -40°C to 121°C (-40°F to 250°F) |
| Cable Type | Shielded, twisted-pair |
| Connector Type | Standard Bently Nevada 3300 series connector |
| Calibration | Factory-calibrated for ±1% accuracy |
| Environmental Protection | IP66-rated (probe tip) |
Product Applications
-
Turbines (steam, gas, and hydro)
-
Large centrifugal compressors
-
Industrial pumps
-
Generators and motors
-
Gearboxes and critical rotating equipment
-
Vibration monitoring for predictive maintenance programs
Product Advantages
-
High Accuracy: Provides precise measurements of shaft vibration and displacement, supporting reliable condition monitoring.
-
Long Cable Option: 7 m cable allows flexible installation and reduces the need for extensions.
-
Durable Construction: Designed to withstand harsh industrial environments, including high temperatures and moisture.
-
Compatibility: Fully compatible with Bently Nevada 3300 series monitoring systems.
-
Ease of Installation: Standardized connectors and mounting options simplify integration.
-
Reduced Downtime: Early detection of shaft displacement and vibration anomalies allows proactive maintenance actions.
FAQ
Q1: Can the probe measure both radial and axial displacement?
A1: The probe is designed primarily for radial displacement monitoring. Axial measurements require special mounting configurations and additional system considerations.
Q2: What is the signal output type for the 330905 probe?
A2: The probe outputs an AC voltage proportional to shaft displacement, compatible with 3300 NSv monitoring modules.
Q3: Is the 330905 probe compatible with all 3300 series monitors?
A3: Yes, it is compatible with all Bently Nevada 3300 series proximity monitoring systems.
Q4: Can the probe operate at temperatures above 121°C?
A4: The standard model operates up to 121°C. For higher temperatures, a high-temperature variant is required.
Q5: How long can the signal cable be extended beyond 7 meters?
A5: Extensions can affect signal quality. It is recommended to consult Bently Nevada for approved extension cables.
Q6: Does the probe require recalibration after installation?
A6: Factory calibration is sufficient for typical installation, but field verification is recommended to ensure system accuracy.
Q7: Can this probe handle high-speed machinery vibration?
A7: Yes, it is designed for high-speed rotating equipment, providing high-resolution signals up to several kHz.
Q8: What is the expected electrical output range?
A8: The AC voltage output typically varies from 0–10 V peak-to-peak depending on shaft displacement.
Q9: Is the probe shielded against electromagnetic interference?
A9: Yes, the probe cable is shielded to minimize EMI and maintain signal integrity.
Q10: Can the probe be used in explosive or hazardous environments?
A10: Standard probes are not rated for hazardous environments; explosion-proof or intrinsically safe variants are required.
Recommended 6 Same-Series or Related Models
| Model | Description | Cable Length | Sensing Range |
|---|---|---|---|
| 330905-02-08-70-01-01 | 3300 NSv Proximity Probe, 8 mm | 5 m | 0.05–2.5 mm |
| 330905-02-12-70-01-00 | 3300 NSv Proximity Probe, 12 mm | 7 m | 0.05–3.0 mm |
| 330905-02-05-70-01-00 | 3300 NSv Proximity Probe, 5 mm | 7 m | 0.05–1.5 mm |
| 330905-02-08-70-01-02 | 3300 NSv Proximity Probe, 8 mm | 10 m | 0.05–2.5 mm |
| 330905-02-08-70-02-00 | 3300 NSv Proximity Probe, 8 mm | 7 m | 0.05–4.0 mm |
| 330905-02-10-70-01-00 | 3300 NSv Proximity Probe, 10 mm | 7 m | 0.05–3.0 mm |
6 Popular Bently Nevada Models
| Model | Description | Application | Key Feature |
|---|---|---|---|
| 3300 XL Proximity Probe | High-resolution shaft vibration probe | Turbines | Extreme accuracy |
| 3300 XL Monitor | 4-channel vibration monitor | Rotating machinery | Real-time diagnostics |
| 3300 XL Vibration Sensor | AC displacement sensor | Pumps, motors | High-temp tolerant |
| 3500/22M | Vibration Monitor Module | Gas turbines | Advanced trending |
| 3300/05 Proximity Probe | Compact displacement probe | Compressors | Short-range sensing |
| 7200/45 DCS Interface | Control system interface | Monitoring systems | Seamless integration |
