Product Overview

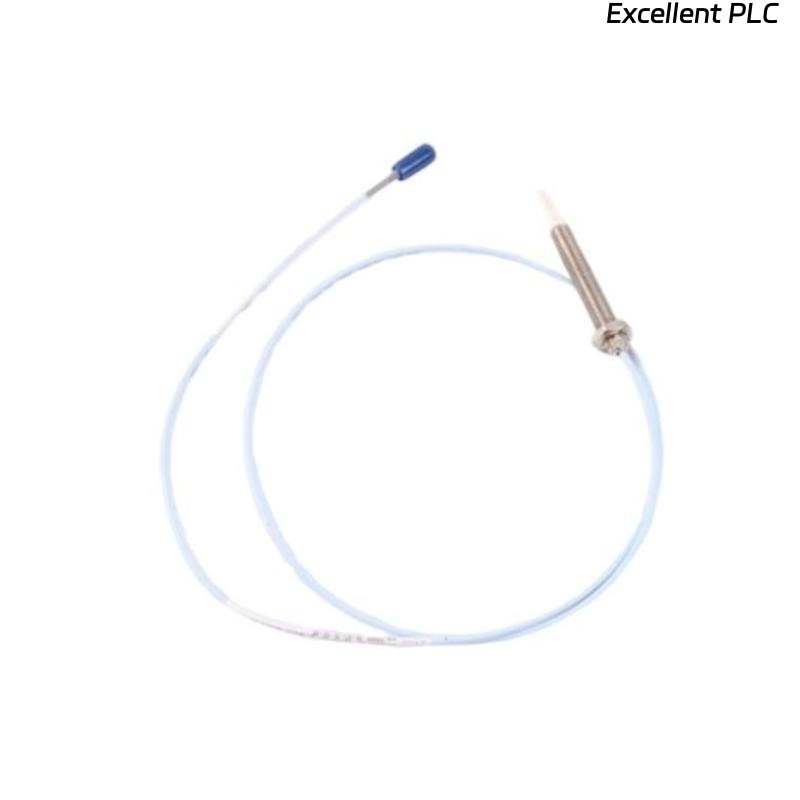

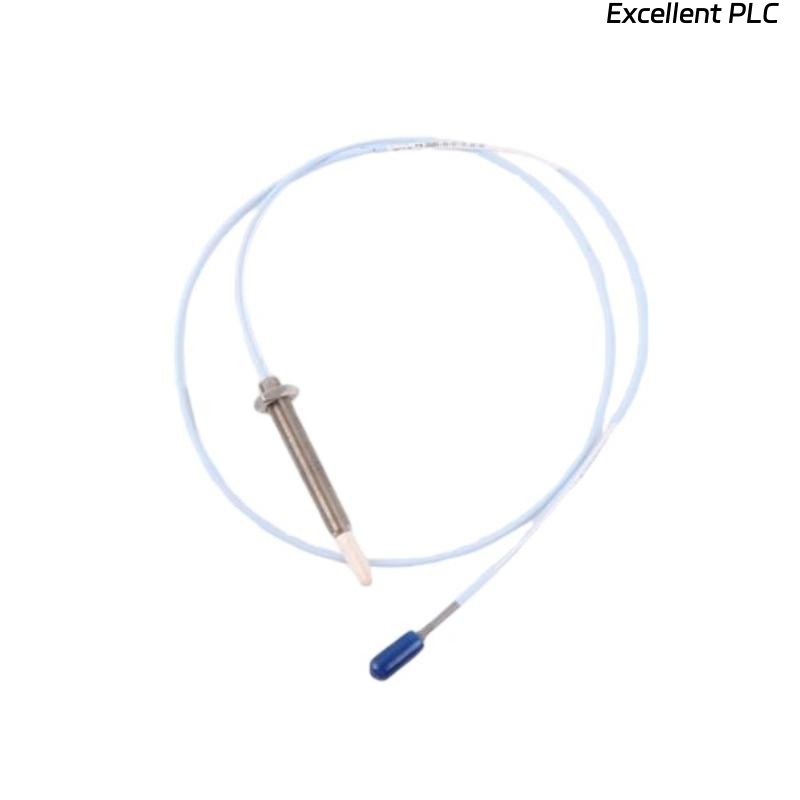

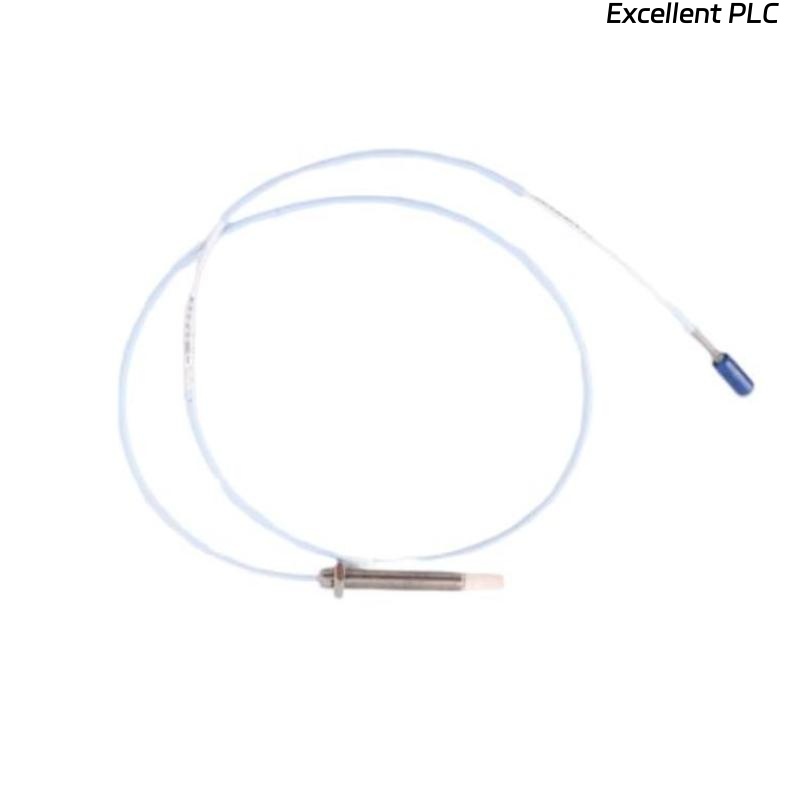

The Bently Nevada 330905-02-10-05-02-CN 3300 NSv Proximity Probe is a compact, high-precision sensor specifically designed for shaft vibration and position monitoring in small-to-medium rotating machinery. With a 5 mm tip and 1.0 meter length, it offers exceptional performance in installations where space is limited. Built for durability, it delivers consistent and accurate readings as part of the 3300 NSv Proximity Transducer System, ensuring reliability even in harsh industrial environments.
Key Features
-
Compact 5 mm probe tip ideal for tight installations
-
High-accuracy shaft vibration and position measurements
-
Excellent resistance to oil, dust, and industrial contaminants
-
Provides real-time analog signal output
-
Ideal for small machinery and confined space applications
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330905-02-10-05-02-CN |
| Product Type | 3300 NSv Proximity Probe |
| Dimensions | Total Length: 0.5 meter |
| Weight | 0.15 kg |
| Probe Tip Diameter | 5 mm |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve installation |
| Applications | Shaft vibration, position monitoring, and machinery protection |
Industry Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and rotating machinery in confined spaces
-
Oil, gas, and power generation sectors
-
Condition-based monitoring systems
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330905-02-10-05-02-CN probe?
It measures shaft vibration and position in compact machinery.
Q2: Which system is it compatible with?
It is designed to operate with the Bently Nevada 3300 NSv proximity transducer system.
Q3: What is the probe’s size and length?
It features a 5 mm diameter tip and a total probe length of 1.0 meter.
Q4: What is its sensitivity?
The probe provides a typical sensitivity of 7.87 V/mm (200 mV/mil).
Q5: Can it work in harsh industrial conditions?
Yes, it is resistant to oil, dust, and industrial contaminants.
Q6: What is its measurement range?
0–1.0 mm (0–40 mils).
Q7: How is it installed?
Using a threaded sleeve for stable and precise positioning.
Q8: What are typical application areas?
Small turbines, compressors, motors, and gearboxes with limited installation space.
