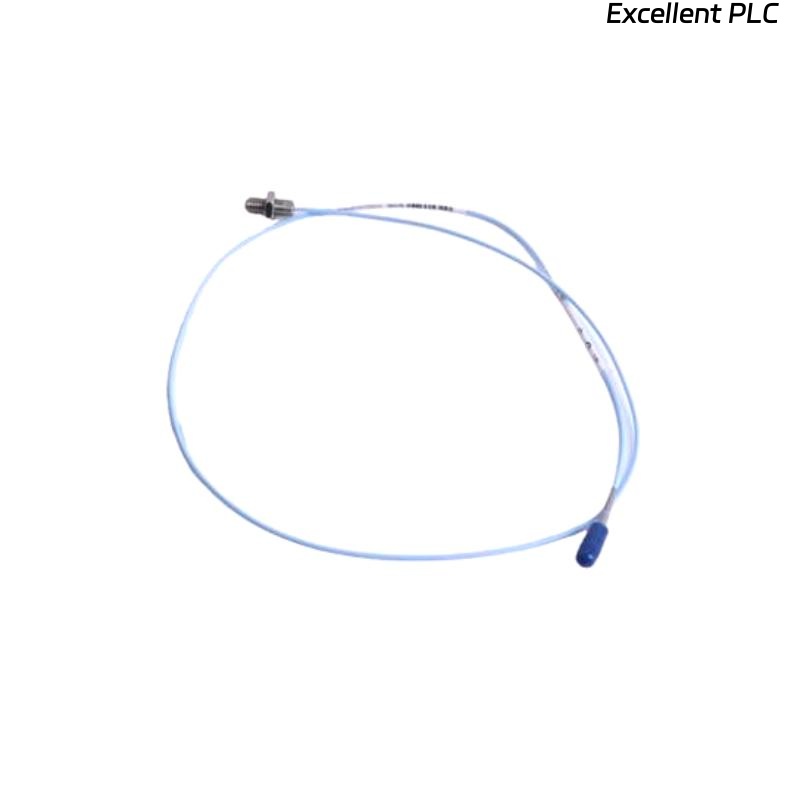

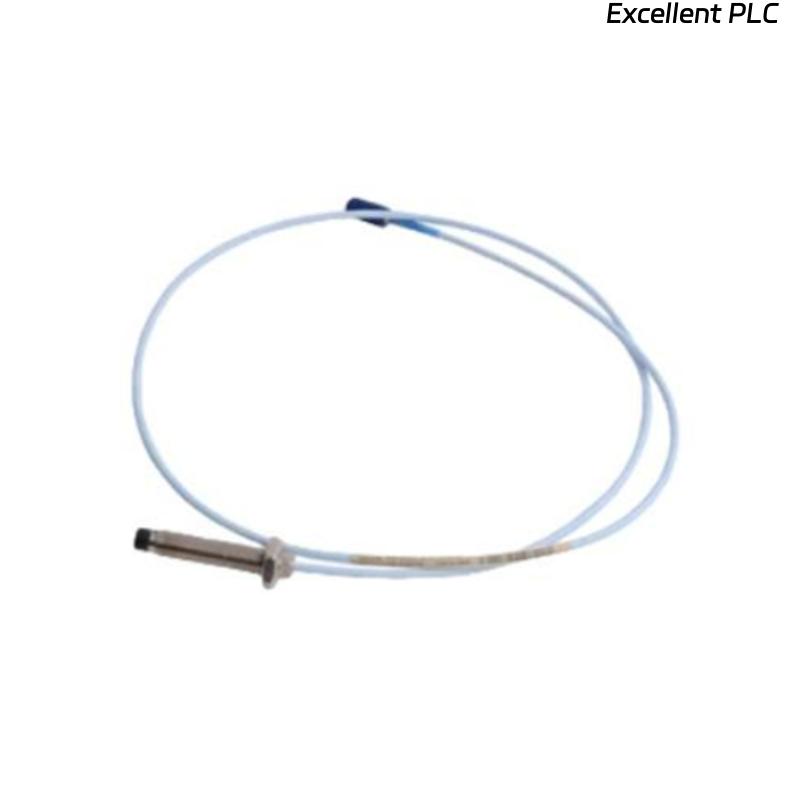

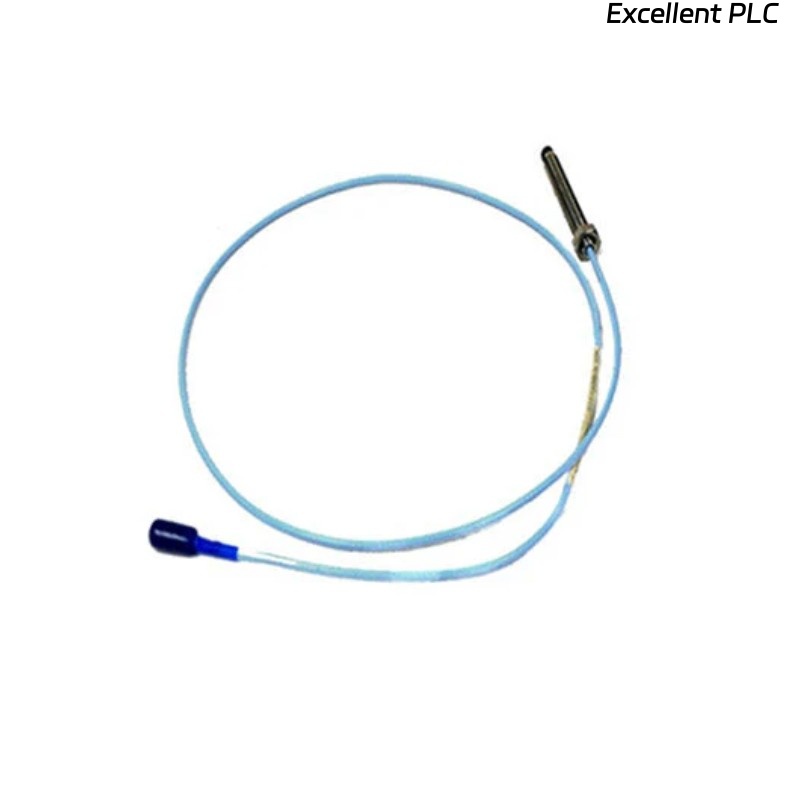

The Bently Nevada 330905-05-10-10-12-05 3300 NSv Proximity Probe is a high-precision eddy-current displacement sensor designed for critical rotating machinery monitoring. It is engineered to provide reliable vibration and position measurements in harsh industrial environments. The probe is part of the 3300 Series, known for its robust performance, accuracy, and compatibility with the 3300 XL/NSv monitoring systems.
It is commonly used in turbines, compressors, generators, and other high-speed rotating machinery to detect shaft displacement, vibration, and position changes, contributing to predictive maintenance and operational safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330905-05-10-10-12-05 |
| Probe Type | NSv Eddy-Current Proximity Probe |
| Measurement Principle | Eddy-Current |
| Tip Style | Standard Flat Tip |
| Total Length | 1 m |
| Weight | 0.15 kg |
| Operating Temperature Range | -40°C to 120°C |
| Vibration Resistance | 20 g 20-2000 Hz |
| Target Material | Ferromagnetic metals |
| Probe Output | 100 mV/mil nominal |
| Connector Type | MS or Lemo type compatible |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Frequency Response | 0.5 Hz to 10 kHz |
| Shock Resistance | 50 g, 11 ms |
Applications
-
Monitoring shaft displacement and vibration in steam and gas turbines.
-
Predictive maintenance for centrifugal compressors and generators.
-
Real-time vibration monitoring for hydroelectric and nuclear power machinery.
-
Industrial motors and pumps requiring precise shaft position tracking.
-
Condition monitoring in critical rotating equipment in refineries and chemical plants.
Advantages
-
High Precision: Provides accurate and repeatable measurements essential for vibration analysis and machinery diagnostics.
-
Robust Design: Withstands high temperatures, shock, and vibration conditions typical in industrial environments.
-
Plug-and-Play Compatibility: Easily integrates with Bently Nevada 3300 XL and NSv monitoring systems.
-
Reliable Signal Output: Consistent eddy-current sensing reduces false alarms and ensures dependable data for predictive maintenance.
-
Versatility: Suitable for a wide range of rotating machinery, including turbines, compressors, and generators.
-
Maintenance-Free Operation: Requires minimal intervention once installed, lowering operational costs.
FAQ
Q1: What type of target material is compatible with this probe?
A1: Ferromagnetic metals such as steel and iron. Non-ferrous metals require specialized probes.
Q2: What is the typical output signal range?
A2: Nominal output is approximately 100 mV per mil of target displacement.
Q3: Can this probe operate at high temperatures?
A3: Yes, it is rated for operation between -40°C and 120°C.
Q4: What is the frequency response of this probe?
A4: The probe supports 0.5 Hz to 10 kHz, suitable for most vibration monitoring applications.
Q5: What type of connector is used?
A5: Standard MS or Lemo type connectors compatible with 3300 NSv systems.
Q6: Is this probe suitable for high-vibration environments?
A6: Yes, it can withstand up to 20 g vibration from 20-2000 Hz.
Q7: What is the insulation resistance?
A7: Greater than 100 MΩ at 500 VDC.
Q8: Can it detect shaft proximity at high speeds?
A8: Yes, designed for high-speed rotating machinery monitoring.
Q9: What is the maximum shock it can endure?
A9: Up to 50 g for 11 ms.
Q10: Can it be used with non-Bently monitoring systems?
A10: While technically possible with appropriate signal conditioning, optimal performance is achieved with Bently Nevada 3300 XL/NSv systems.
