Product Introduction

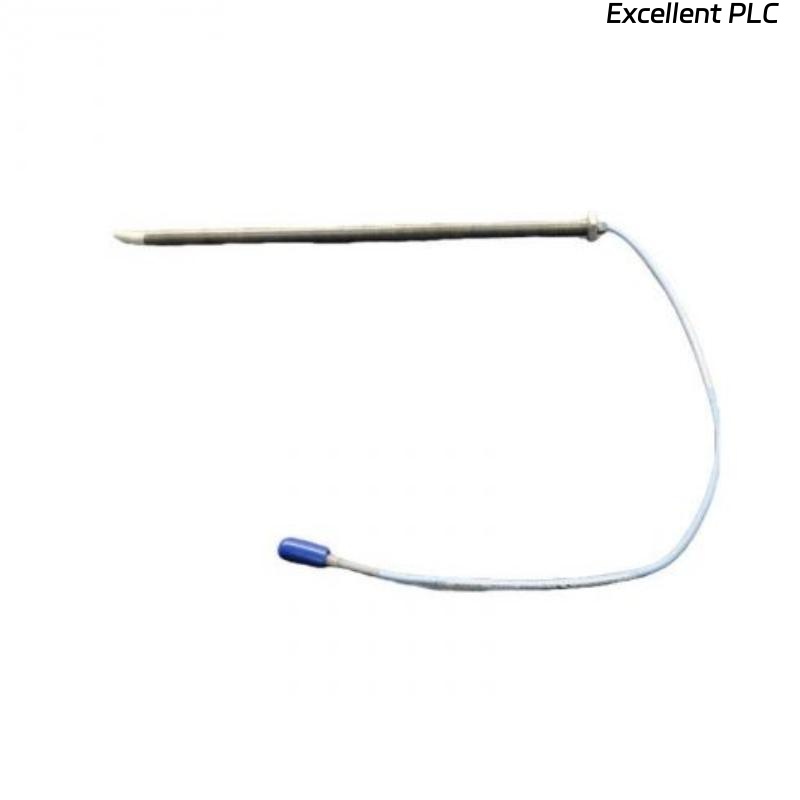

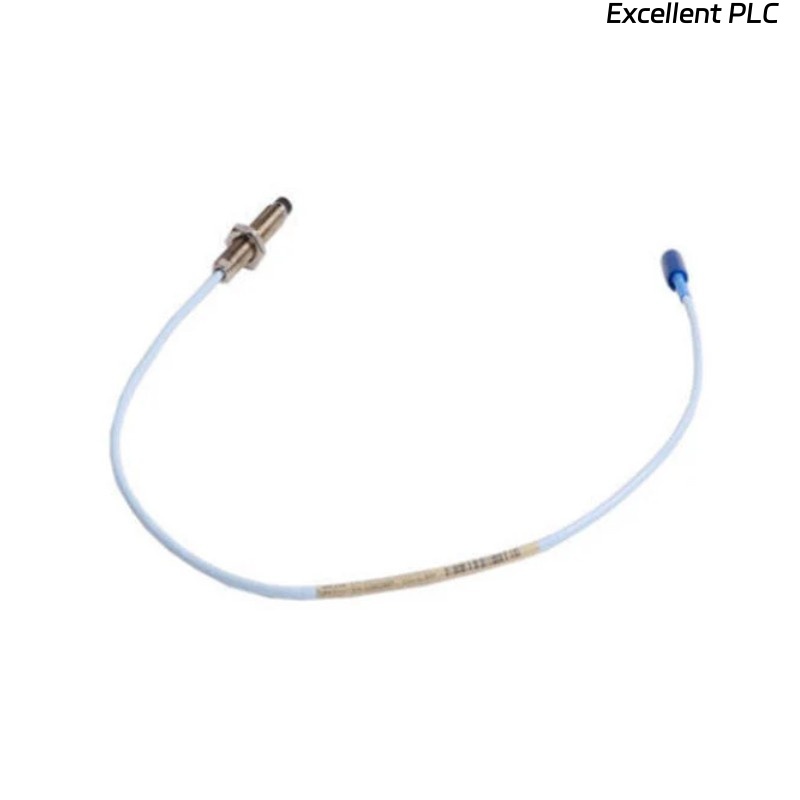

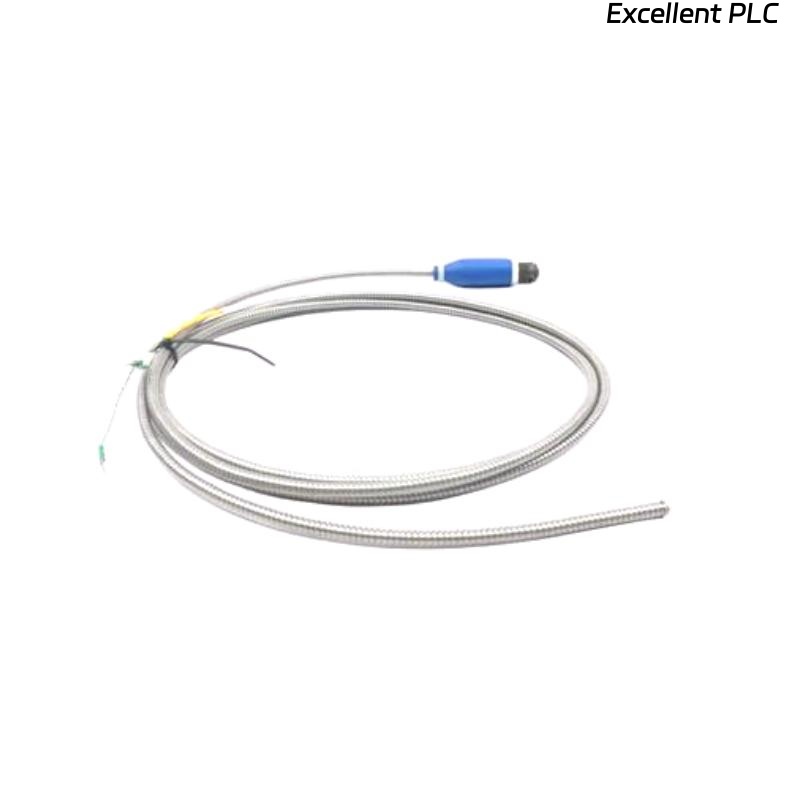

The Bently Nevada 330905-05-25-05-02-00 3300 NSv Proximity Probe is a high-precision, non-contact sensor designed for industrial machinery monitoring. It is part of the 3300 NSv series, widely recognized for its reliability and accuracy in measuring shaft vibration and displacement in critical rotating equipment. This probe ensures early detection of mechanical issues, helping prevent unplanned downtime and costly equipment failures.
Product Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 NSv Proximity Probe |
| Total Length | 0.5 m |
| Weight | 0.15 kg |
| Sensor Tip Diameter | 5 mm |
| Target Material | Ferromagnetic metals |
| Cable Type | Coaxial shielded |
| Operating Temperature | -40°C to 120°C |
| Probe Output | AC Voltage (proportional to gap) |
| Measurement Range | 0.5 mm to 2.5 mm |
| Gap Setting | Factory preset |
| Frequency Response | 0–10 kHz |
| Insulation Resistance | >100 MΩ at 50 VDC |
Applications
-
Monitoring vibration and displacement in turbines, compressors, and pumps
-
Early detection of rotor imbalance, misalignment, and bearing wear
-
Condition monitoring in power generation plants, oil & gas facilities, and heavy industrial machinery
-
Integration with 3300 XL and 3300 8-Series monitoring systems
-
Critical machinery protection for safety and operational efficiency
Advantages
-
High-precision, repeatable measurements for critical machinery
-
Non-contact design minimizes wear and maintenance requirements
-
Robust construction for operation in harsh industrial environments
-
Compatible with a wide range of monitoring systems and analyzers
-
Factory-calibrated to ensure optimal performance from installation
-
Fast response time, enabling real-time condition monitoring
FAQ
Q1: What type of output does this probe provide?
A1: The probe provides an AC voltage output that is proportional to the distance between the probe tip and the target.
Q2: Can this probe measure non-ferromagnetic materials?
A2: No, the 3300 NSv probes are optimized for ferromagnetic targets only.
Q3: What is the recommended cable length for accurate measurements?
A3: Standard factory configuration comes with a 0.5 m cable. For longer runs, use Bently Nevada approved extension cables.
Q4: What is the operating temperature range of this probe?
A4: The probe operates reliably between -40°C and 120°C.
Q5: How is the probe calibrated?
A5: Calibration is performed at the factory and the probe comes with a preset gap. No field calibration is required for typical applications.
Q6: Can this probe be used in explosive environments?
A6: Only if paired with certified intrinsic safety barriers or housings according to industry standards.
Q7: What is the typical frequency response of the probe?
A7: The probe supports a frequency range of 0–10 kHz.
Q8: Is the probe compatible with the standard 3300 XL monitoring system?
A8: Yes, it is fully compatible with 3300 XL and other 3300 series monitoring systems.
Q9: How should the probe be installed relative to the target shaft?
A9: The probe tip should be aligned with the shaft surface according to the preset gap specified by Bently Nevada.
Q10: Can the probe detect rotor rubs or shaft eccentricities?
A10: Yes, the probe detects displacement and vibration signals that can indicate rubbing or shaft eccentricity when analyzed with appropriate monitoring equipment.
