Product Introduction

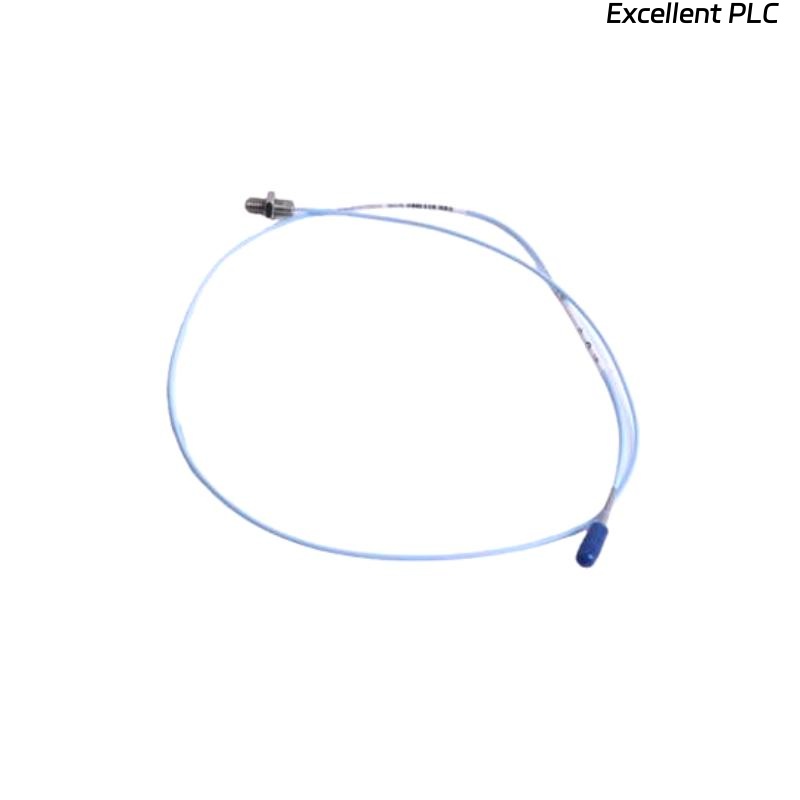

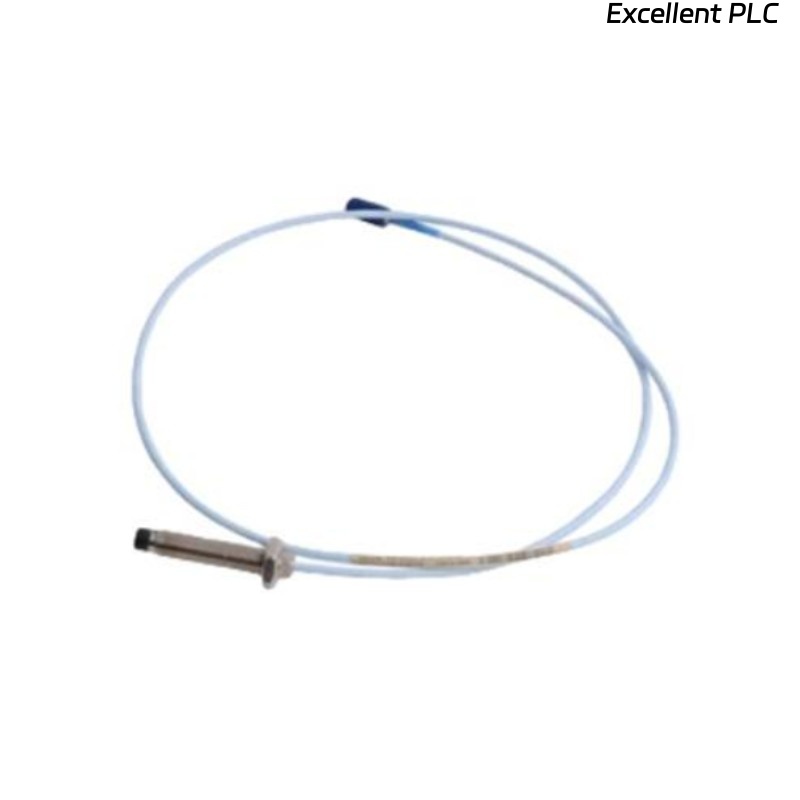

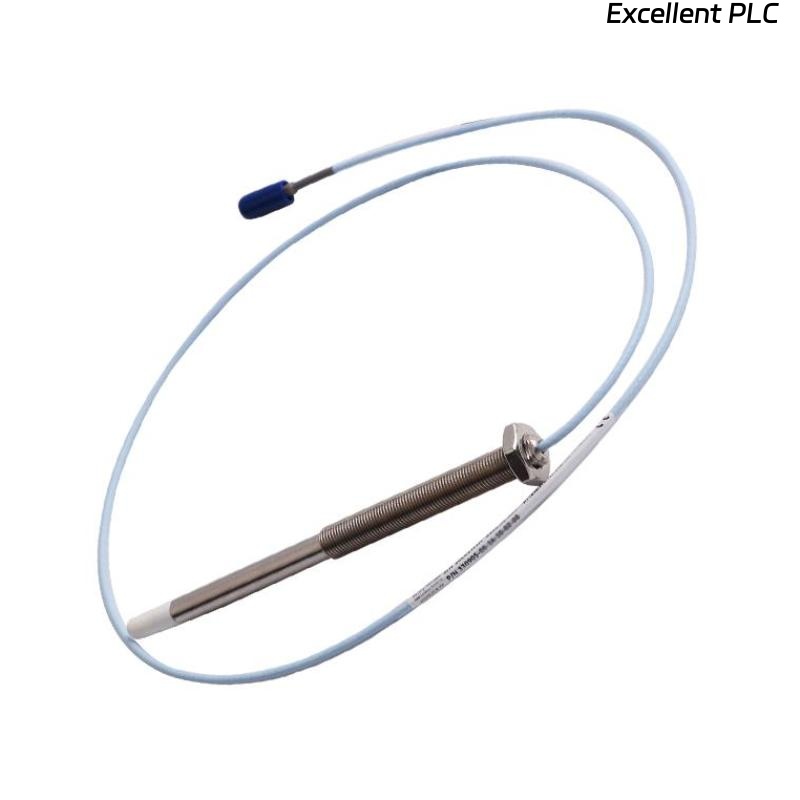

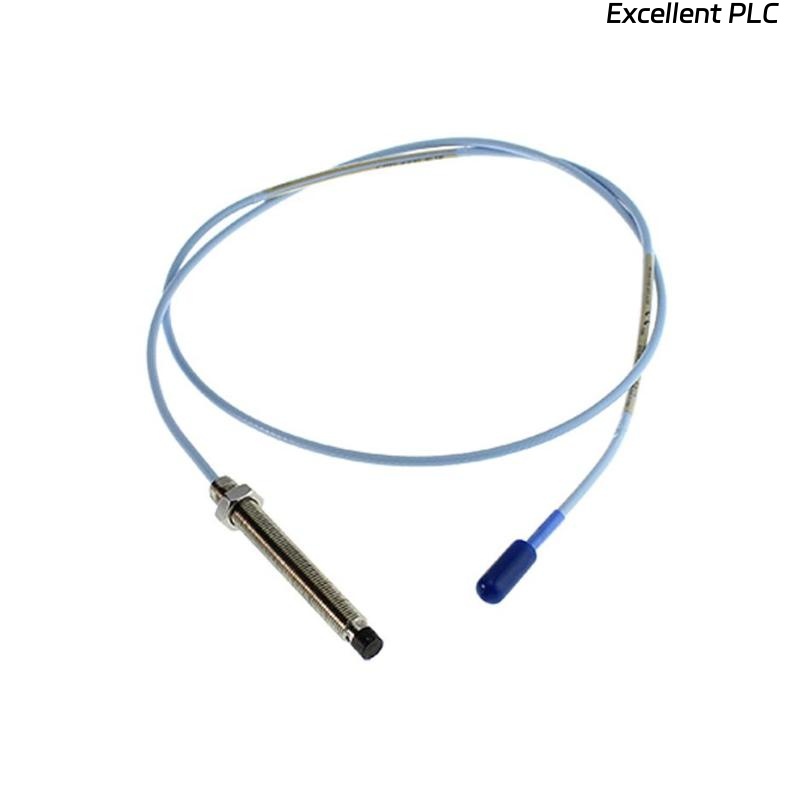

The Bently Nevada 330905-06-10-10-02-05 3300 NSv Proximity Probe is a high-precision eddy-current displacement sensor designed for continuous monitoring of rotating machinery. It provides accurate measurements of shaft vibration and position in critical industrial applications. Built with robust materials and advanced sensing technology, this probe ensures reliable performance under harsh environmental conditions.
It is widely used in industries such as power generation, petrochemical, and heavy manufacturing, where real-time machinery condition monitoring is essential to prevent failures and optimize maintenance schedules.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330905-06-10-10-02-05 |
| Sensor Type | Eddy-Current Proximity Probe |
| Probe Tip Diameter | 6 mm |
| Probe Cable Length | 1 m |
| Weight | 0.15 kg |
| Operating Temperature | -40°C to 125°C |
| Sensor Material | Stainless Steel / Ceramic Tip |
| Measurement Range | 0–2.5 mm |
| Linearity | ±1% Full Scale |
| Excitation Frequency | 2 kHz |
| Output Type | Differential AC Voltage |
| Connector Type | 2-Pin LEMO or equivalent |
| Mounting Style | Threaded or clamp mount |
| Total Length | 1 m |
| Weight | 0.15 kg |
Product Applications
-
Monitoring vibration and shaft displacement in turbines, compressors, and generators.
-
Detecting early signs of imbalance, misalignment, or bearing wear in rotating equipment.
-
Integration with condition monitoring systems for predictive maintenance.
-
Industrial machinery health monitoring in power plants, refineries, and chemical plants.
-
Critical applications requiring high-temperature and high-vibration tolerance.
Product Advantages
-
High Accuracy: Provides precise measurement with minimal signal noise.
-
Robust Construction: Can withstand high temperatures, vibrations, and harsh industrial environments.
-
Reliable Signal Transmission: Differential AC output ensures stable data over long cables.
-
Ease of Integration: Compatible with 3300 XL and other Bently Nevada monitoring systems.
-
Reduced Downtime: Enables predictive maintenance and early fault detection.
-
Flexible Mounting Options: Adaptable to different machinery setups with threaded or clamp mounting.
FAQ
-
Q: What is the typical measurement range of this probe?
A: The probe has a measurement range of 0–2.5 mm. -
Q: What type of output signal does this probe provide?
A: Differential AC voltage output compatible with Bently Nevada 3300 XL monitoring systems. -
Q: Can this probe operate in high-temperature environments?
A: Yes, it operates reliably in temperatures from -40°C to 125°C. -
Q: Is this probe suitable for monitoring high-speed rotating machinery?
A: Yes, it is designed for machinery operating at high rotational speeds and can handle vibration-rich environments. -
Q: What is the excitation frequency of the sensor?
A: The probe operates at an excitation frequency of 2 kHz. -
Q: How does the probe handle long cable runs?
A: Differential AC output minimizes signal loss and ensures accurate transmission over long distances. -
Q: What materials are used in the probe tip?
A: The tip is made of ceramic with a stainless steel housing, ensuring durability and chemical resistance. -
Q: Can this probe be used for real-time condition monitoring?
A: Yes, it provides continuous, high-speed measurements suitable for real-time monitoring systems. -
Q: Is the probe compatible with standard 3300 XL modules?
A: Yes, it is fully compatible with 3300 XL monitoring modules. -
Q: How does the probe maintain linearity over its measurement range?
A: The probe maintains ±1% full-scale linearity through precise eddy-current sensor design and calibration.
