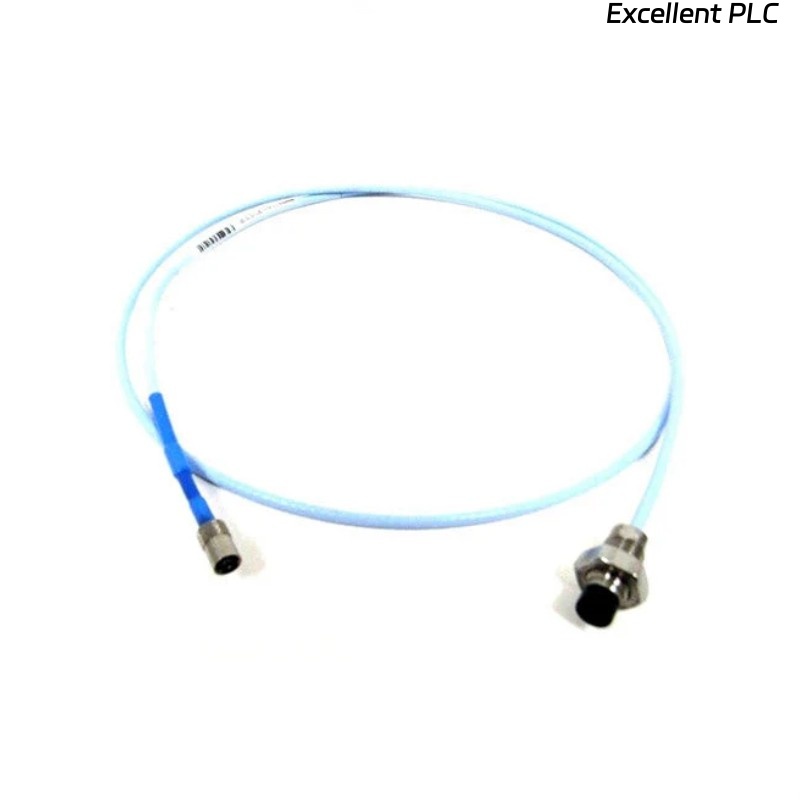

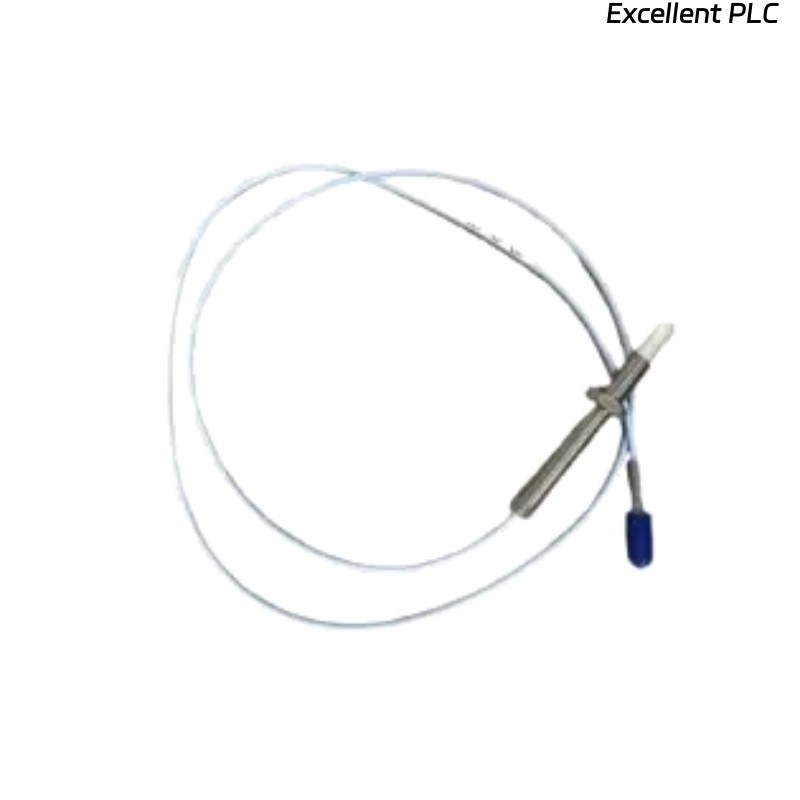

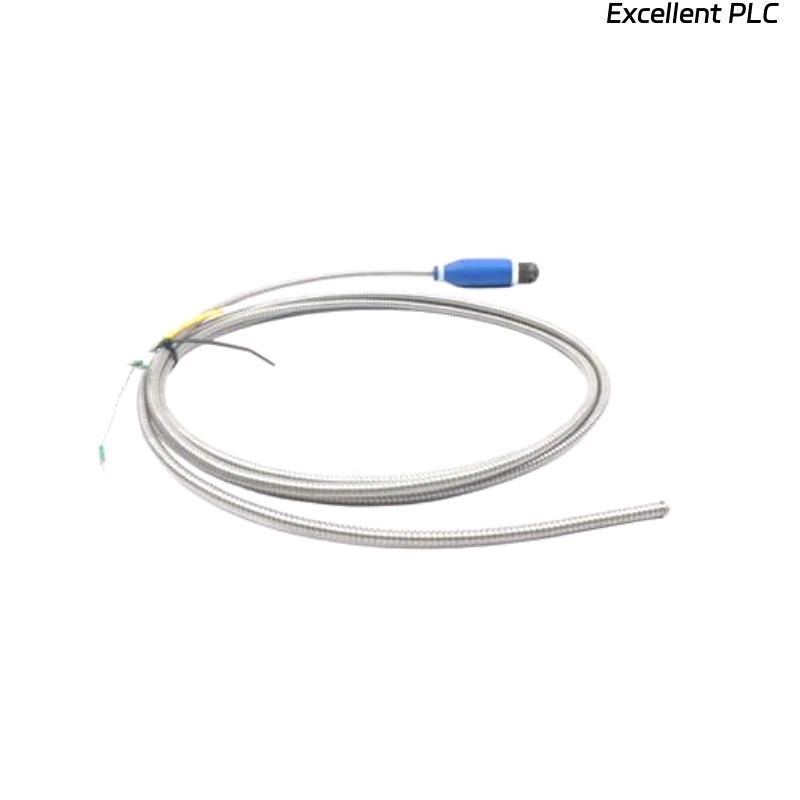

The Bently Nevada 330905-06-14-10-02-00 3300 NSv Proximity Probe is a high-precision eddy-current displacement sensor designed for vibration monitoring of rotating machinery. It forms part of the 3300 NSv series, which is widely used in industrial environments to ensure machine reliability and operational safety. This probe offers reliable measurement of shaft displacement and vibration, facilitating predictive maintenance and real-time condition monitoring. Its robust design makes it suitable for harsh industrial conditions, including high temperatures, high-speed rotations, and electrically noisy environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | Eddy-Current Proximity Probe |
| Total Length | 1 m |
| Weight | 0.15 kg |
| Tip Material | Hardened Stainless Steel |
| Cable Type | Shielded, Twisted-Pair |
| Output Type | Differential AC |
| Measurement Range | 0–500 µm (typical) |
| Operating Temperature | -40°C to 120°C |
| Frequency Response | 0–10 kHz |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Maximum Voltage | 28 V DC |
| Connector Type | MIL-C-5015 or Equivalent |
| Mounting Type | Threaded or Compression Mount |
Applications
-
Vibration monitoring of turbines, compressors, and generators
-
Shaft position monitoring in pumps and motors
-
Predictive maintenance systems for rotating machinery
-
Integration with 3300 XL and 3500 monitoring systems
-
Measurement in high-speed centrifugal compressors and steam turbines
Advantages
-
High Accuracy: Provides precise displacement measurement to detect subtle vibrations.
-
Robust Design: Resistant to high temperatures, vibrations, and electromagnetic interference.
-
Reliable Connectivity: Shielded cable and connector designs minimize signal loss.
-
Easy Integration: Compatible with existing 3300 NSv monitoring systems.
-
Predictive Maintenance Support: Helps prevent unplanned downtime by early detection of mechanical issues.
-
Long-Term Stability: Maintains performance under continuous industrial use.
FAQ
-
Q: What is the maximum measurable frequency for this probe?
A: The probe supports a frequency response up to 10 kHz. -
Q: Can this probe operate in high electromagnetic interference (EMI) environments?
A: Yes, the shielded twisted-pair cable design ensures reliable operation in EMI-heavy conditions. -
Q: What type of output does the 330905-06-14-10-02-00 probe provide?
A: It provides a differential AC output suitable for Bently Nevada 3300 XL and related monitoring systems. -
Q: Is the probe compatible with 3300 XL monitoring modules?
A: Yes, it is fully compatible with standard 3300 NSv monitoring modules. -
Q: Can this probe measure both shaft displacement and vibration?
A: Yes, it is capable of providing data for both displacement and vibration analysis. -
Q: What is the typical measurement range of the probe?
A: The standard measurement range is 0–500 µm. -
Q: Can the probe withstand extreme temperatures?
A: Yes, the operating temperature range is -40°C to 120°C. -
Q: What type of connector is used on this probe?
A: The probe uses MIL-C-5015 or equivalent industrial connectors. -
Q: Does the cable length affect measurement accuracy?
A: The 1-meter cable is optimized for minimal signal loss; longer cables may require compensation. -
Q: Can this probe be used for online condition monitoring?
A: Yes, it is specifically designed for continuous online monitoring of rotating machinery.
