Product Introduction

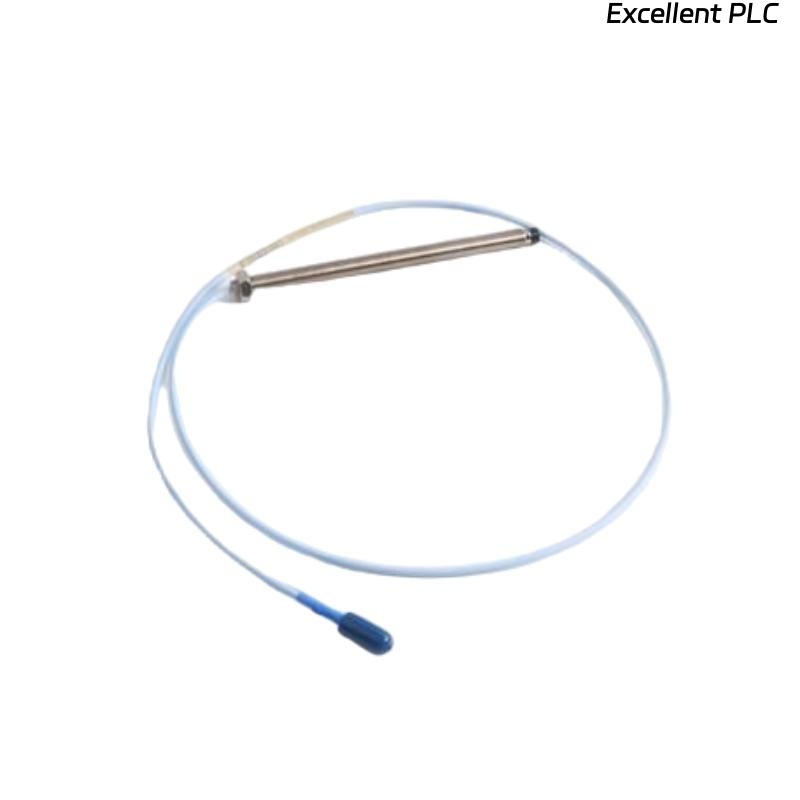

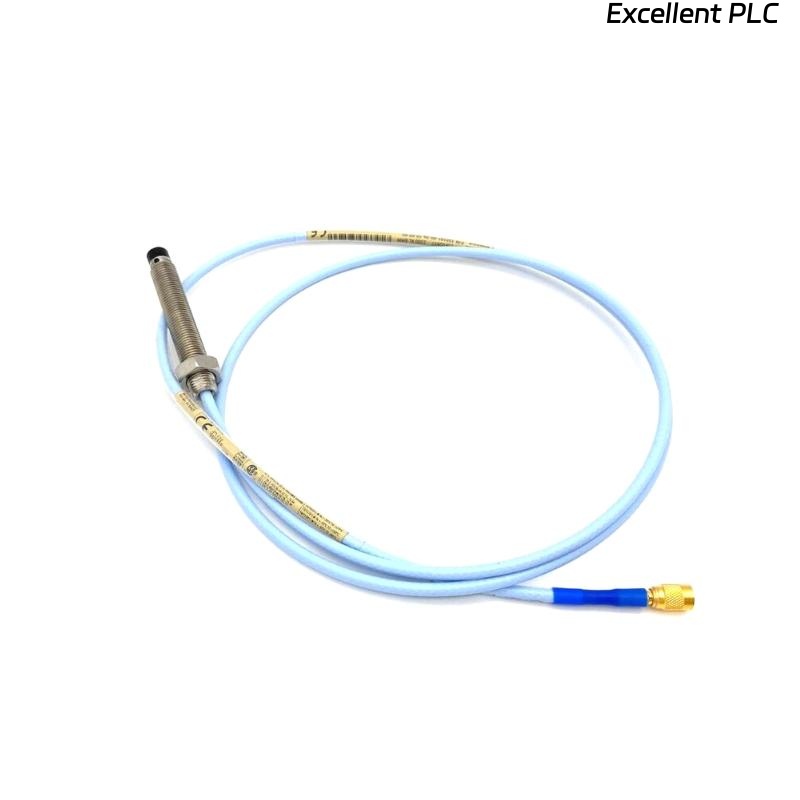

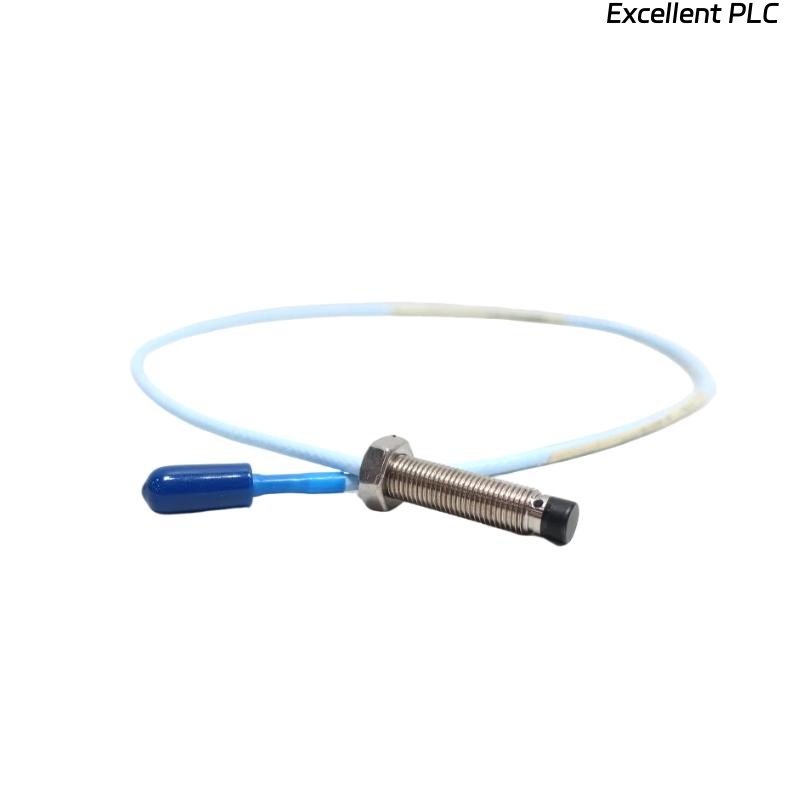

The Bently Nevada 330905-12-22-05-02-05 3300 NSv Proximity Probe is a high-precision, non-contact eddy-current sensor engineered to provide continuous monitoring of shaft vibration, dynamic displacement, and rotor position in critical rotating machinery. As part of the 3300 NSv (Narrow Side-view) series, this probe is designed for applications where installation space is limited, yet accurate and reliable vibration measurement is required. Its robust stainless-steel construction, precise calibration, and built-in EMI shielding ensure dependable performance under harsh industrial conditions, making it an essential component for predictive maintenance and machine protection programs across turbines, compressors, generators, and other mission-critical machinery.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 330905-12-22-05-02-05 |
| Series | 3300 NSv Proximity Probes |
| Sensing Principle | Eddy-current, non-contact vibration & displacement |
| Linear Range | 0 to 2 mm (typical) |
| Sensitivity | 7.87 mV/µm (±5%) |
| Frequency Response | DC to 10 kHz (±3 dB) |
| Nominal Gap | 1.0 mm |
| Probe Tip Diameter | 5 mm stainless steel |
| Operating Temperature | −35 °C to +177 °C |
| Pressure Rating | Up to 500 psi |
| Compatible Driver | Bently Nevada 3300 XL Proximitor |
| Extension Cable Type | 330130 or approved NSv cable |
| Total Length | 0.5 meter |
| Weight | 0.15 kg |
Applications
-
Steam and Gas Turbines: Continuous monitoring of shaft vibration and displacement for early detection of rotor instability, imbalance, or misalignment.
-
Compressors: Detects bearing wear, surge conditions, and cavitation-induced vibrations to avoid unplanned downtime.
-
Electric Motors and Generators: Monitors shaft displacement and vibration to optimize operational efficiency and reduce mechanical failures.
-
Gearboxes: Identifies misalignment, mechanical looseness, or gear mesh issues to support predictive maintenance strategies.
-
Industrial Pumps: Monitors shaft deflection and dynamic instabilities to protect process-critical equipment.
-
Fans and Blowers: Provides early warning of imbalance or bearing degradation through vibration analysis.
Advantages
-
High Measurement Accuracy: Maintains excellent linearity and sensitivity for precise vibration and displacement monitoring.
-
Compact Design: Slim 5 mm probe tip enables installation in tight or complex machinery spaces.
-
Robust Construction: Stainless-steel housing ensures corrosion resistance and long-term durability in harsh environments.
-
Wide Temperature Capability: Operates reliably from −35 °C to +177 °C.
-
Integrated EMI Protection: Built-in shielding allows stable operation in high electromagnetic interference areas.
-
Seamless System Integration: Fully compatible with Bently Nevada 3300 XL Proximitor sensors and monitoring systems.
-
Low Maintenance: Non-contact sensing minimizes wear, reducing downtime and service requirements.
FAQ
-
How is the 330905-12-22-05-02-05 probe calibrated to maintain measurement accuracy?
Each probe is factory-calibrated using an AISI 4140 steel target to ensure precise sensitivity and linearity. -
Can this probe interface with different Bently Nevada Proximitor drivers?
Yes, it integrates seamlessly with the 3300 XL Proximitor and approved NSv extension cables. -
What is the maximum vibration frequency range measurable by this probe?
It can detect vibration signals up to 10 kHz within its specified linear range. -
What is the typical output signal of the probe?
The output is a voltage proportional to shaft displacement, typically 0–20 V peak-to-peak. -
Is additional electromagnetic shielding required in high-noise environments?
No, the probe’s integrated EMI shielding ensures stable and reliable performance. -
Can the probe be used in pressurized or oil-submerged environments?
Yes, it is pressure-rated up to 500 psi and suitable for submerged or pressurized installations. -
How does the probe maintain accuracy across wide temperature ranges?
Stainless-steel construction and internal thermal compensation ensure precise measurements under varying temperatures. -
Is this probe capable of monitoring both radial and axial displacement?
Yes, the installation orientation determines whether radial or axial vibration is measured. -
What signal conditioning equipment is recommended for optimal operation?
A Bently Nevada 3300 XL Proximitor or equivalent driver supplies power and processes the signal. -
Does the extension cable length affect calibration or sensitivity?
Yes, each probe is calibrated for a specific cable length, so using the correct matching extension cable is essential.
