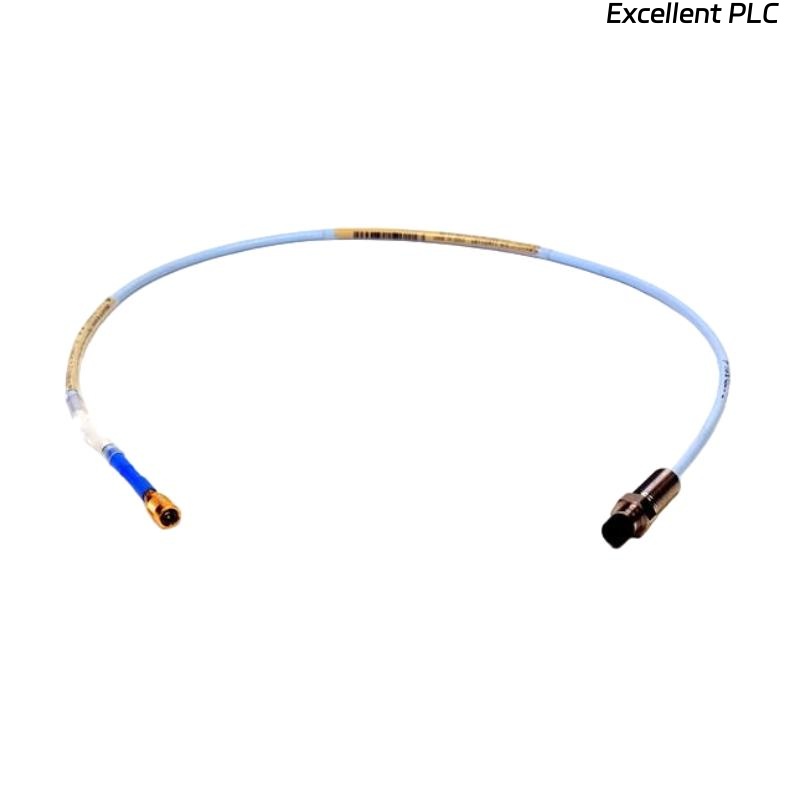

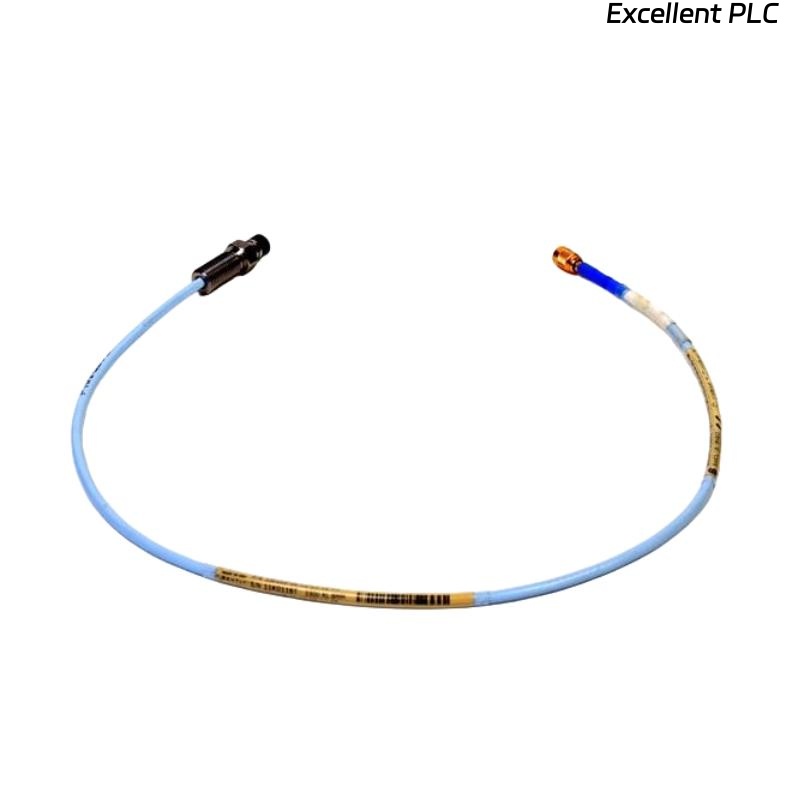

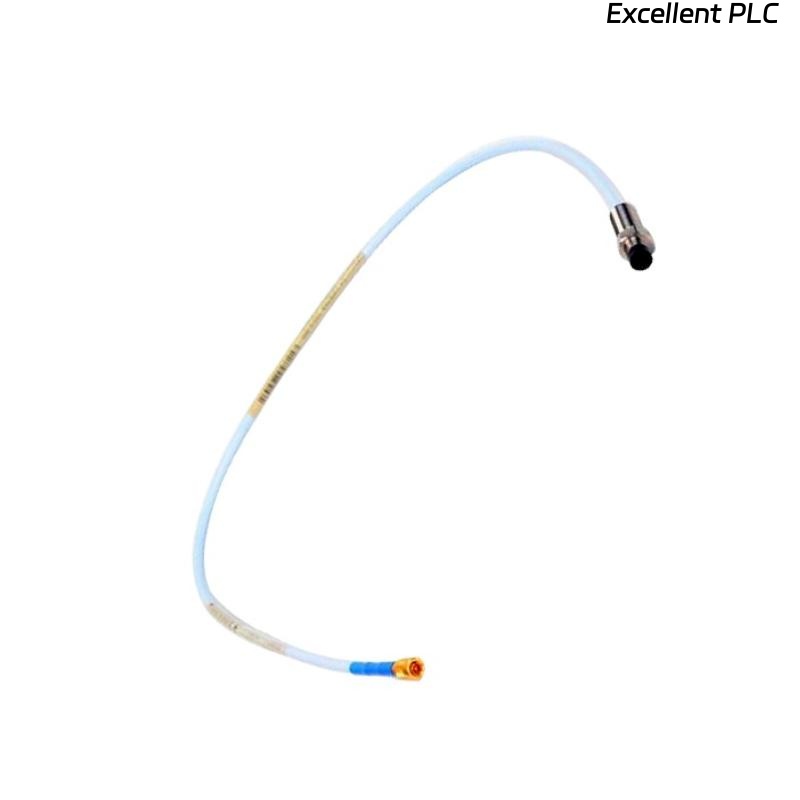

Bently Nevada 330906-02-12-10-02-CN 3300 NSv Reverse Mount Probe

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 330906-02-12-10-02-CN 3300 NSv Reverse Mount Probe is a precision-engineered non-contact eddy current sensor designed for accurate shaft vibration and displacement measurement in compact and reverse-mounted installations. As part of the Bently Nevada 3300 NSv (Narrow Side View) series, this probe is optimized for small machines and restricted areas where traditional forward-mount probes cannot be conveniently installed.

This model utilizes reverse-mount configuration, meaning the probe is inserted from the rear of the mounting surface, ensuring optimal protection from contaminants, oil, and physical impact. The probe works seamlessly with the 3300 NSv Proximitor Sensor to provide linear, high-fidelity output for both static and dynamic measurements.

Engineered with high-grade stainless steel housing, it delivers excellent resistance to corrosion and industrial pollutants. It operates reliably in harsh conditions involving vibration, oil exposure, and elevated temperatures. This makes it particularly suitable for turbines, compressors, motors, gearboxes, and pumps—critical components in the oil & gas, petrochemical, and power generation industries.

---

Technical Specifications

---

Product Applications

The 330906-02-12-10-02-CN Reverse Mount Probe is widely applied in machinery condition monitoring systems for accurate and continuous measurement of shaft vibration, displacement, and axial position. Its reverse mounting capability allows it to be used in machines with limited space or where environmental protection of the probe tip is critical.

Main Application Areas:

• Steam and Gas Turbines: For measuring shaft radial vibration and position in high-speed rotating equipment.

• Compressors: Monitors axial movement and unbalance conditions to prevent bearing or seal damage.

• Pumps and Fans: Detects misalignment, cavitation, or imbalance through vibration signals.

• Motors and Generators: Enables continuous shaft position tracking and dynamic vibration monitoring.

• Gearboxes: Monitors shaft deflection, gear mesh quality, and imbalance conditions.

• Aerospace and Power Systems: Suitable for compact equipment requiring high-accuracy reverse mounting.

When paired with a 3300 NSv Proximitor Sensor, the probe forms part of a complete displacement measurement system, delivering real-time vibration feedback for predictive maintenance and machinery protection.

---

Product Advantages

• Compact Reverse Mount Design: Ideal for confined installations where front access is limited.

• High Precision and Linearity: Provides ±1% accuracy across its entire range.

• Non-contact Measurement: Reduces mechanical wear and ensures long-term stability.

• Stainless Steel Construction: Withstands high vibration, oil, and corrosion exposure.

• Extended Temperature Capability: Operates stably from –35°C to +180°C without performance drift.

• Enhanced Electrical Shielding: Offers strong resistance to electromagnetic and radio-frequency interference.

• API 670 Compliant: Meets the industry benchmark for vibration and displacement monitoring systems.

• Fast Dynamic Response: Suitable for both static shaft position and high-speed vibration measurements.

• Maintenance-Free Operation: Fully sealed design minimizes service requirements.

• Proven Field Reliability: Trusted in critical industrial applications for over two decades.

---

FAQ

1. What technology does the 330906-02-12-10-02-CN probe use for measurement?
   It employs eddy current technology, generating a magnetic field that interacts with the conductive shaft surface to determine vibration and displacement without physical contact.

2. Can the probe be used with other proximity sensor systems?
   It is optimized for the Bently Nevada 3300 NSv Proximitor Sensor. Using it with non-compatible systems may affect accuracy or calibration integrity.

3. What is the primary benefit of reverse mounting?
   Reverse mounting allows the probe to be installed from the rear of the mounting bracket, protecting it from oil contamination and mechanical damage, especially in tight installations.

4. How does the probe maintain linearity across its measurement range?
   The probe is factory-calibrated with AISI 4140 steel to maintain ±1% linearity within its 2.0 mm dynamic range, ensuring consistent accuracy.

5. What is the frequency response capability of this probe?
   It supports a frequency range from DC to 10 kHz, allowing precise detection of both slow and rapid shaft vibrations.

6. Is this probe suitable for both static and dynamic measurements?
   Yes. It simultaneously measures static shaft position and dynamic vibration amplitude, essential for condition monitoring.

7. What protections are provided against environmental exposure?
   The probe is hermetically sealed and designed to resist oil, moisture, and mechanical contaminants, ensuring stable operation in harsh industrial environments.

8. Can electromagnetic interference affect probe readings?
   The design includes shielded coaxial cabling and internal filtering, providing robust protection against EMI and RFI disturbances.

9. What kind of materials can the probe detect accurately?
   The probe is calibrated for AISI 4140 steel, but it performs reliably on any conductive metallic surface with similar electrical properties.

10. Does this probe comply with international monitoring standards?
    Yes, it fully complies with API 670 standards for machinery protection and condition monitoring applications.

---
