Product Introduction

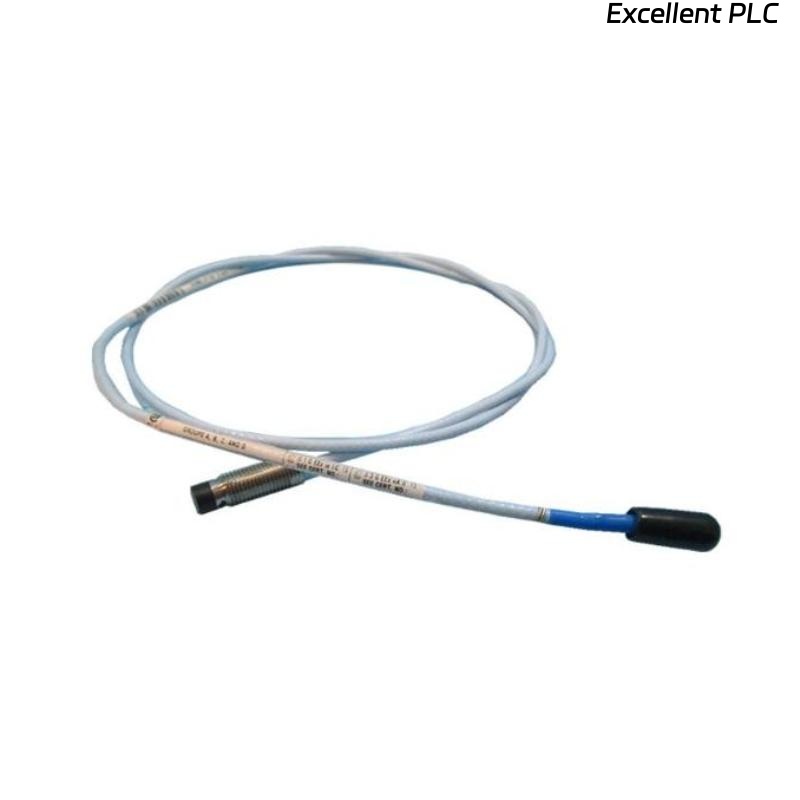

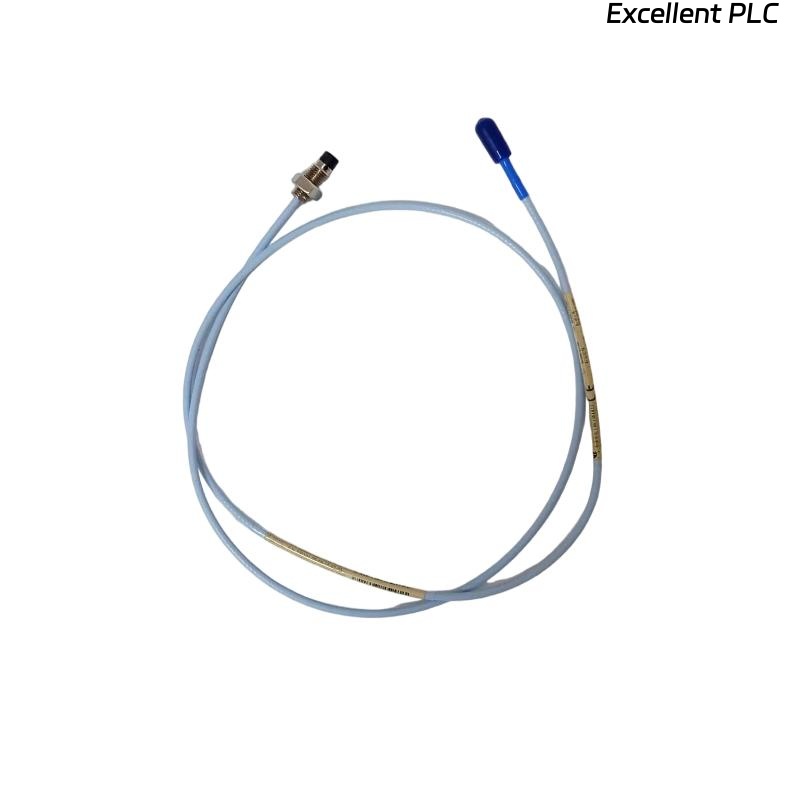

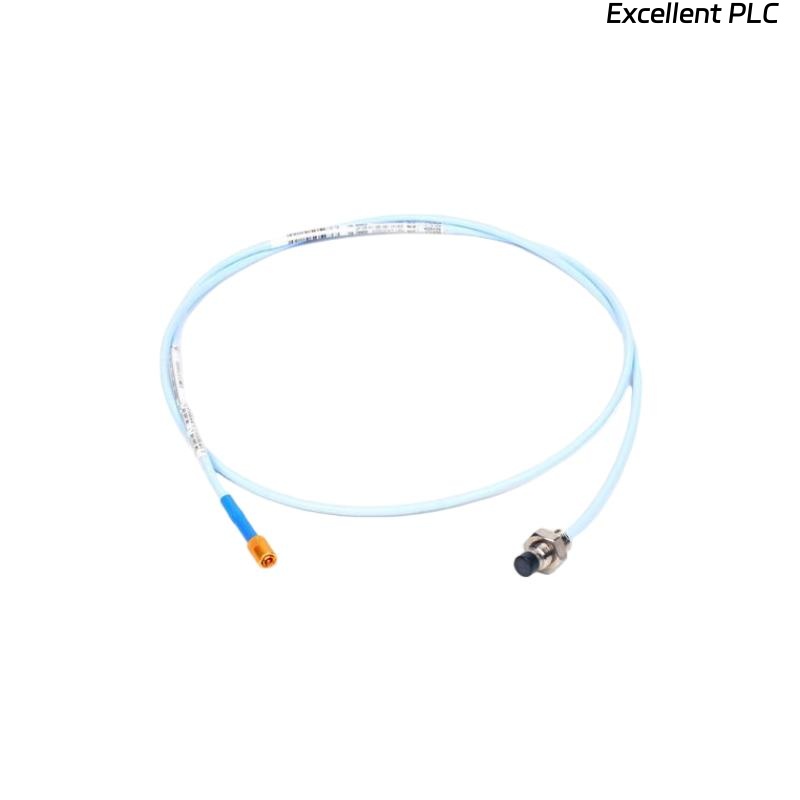

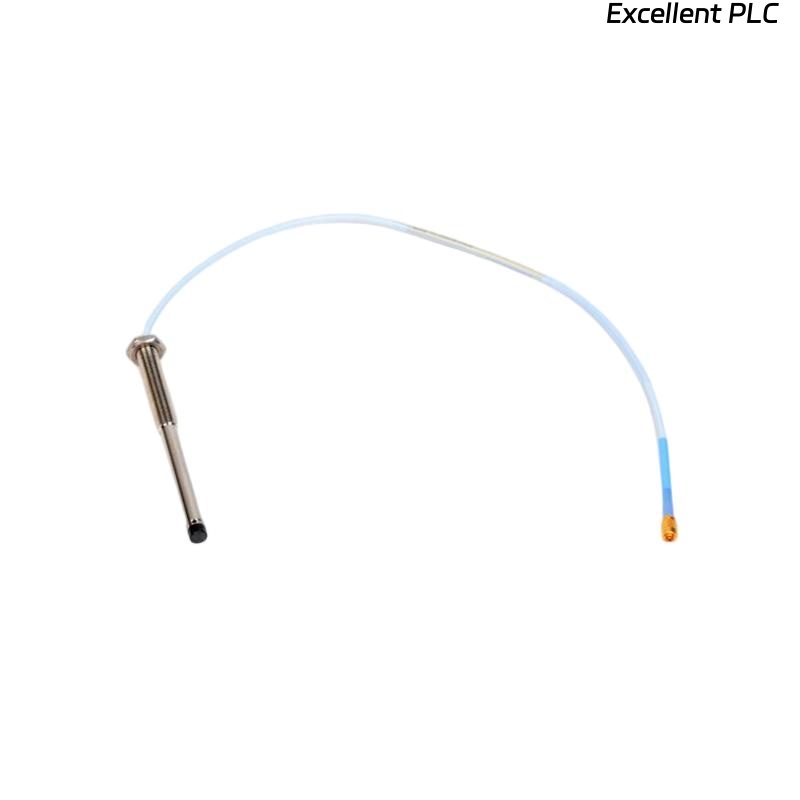

The Bently Nevada 330908-00-08-10-02-05 3300 NSv Proximity Probe is part of the advanced 3300 NSv series from Bently Nevada, designed for high-performance vibration and position measurement. This proximity probe is specifically engineered for use in condition monitoring systems where precision and reliability are essential.
The 3300 NSv proximity probe works by detecting the displacement of a target material, often part of rotating machinery like turbines, motors, or pumps, to assess any changes in position or vibration. The probe provides accurate and real-time data to monitoring systems, ensuring early detection of anomalies and enabling preventive maintenance.
With a 1.0 meter length and a compact design, this probe is well-suited for a variety of industrial applications, where space constraints and long-distance measurements are critical.
Product Parameters
| Parameter | Value |
|---|---|
| Model | 330908-00-08-10-02-05 |
| Probe Type | Proximity Probe (NSv Series) |
| Total Length | 1.0 meter |
| Weight | 0.15 kg |
| Output Type | AC (Alternating Current) |
| Measurement Range | 0 to 25 mm |
| Supply Voltage | 24 VDC (for sensor electronics) |
| Operating Temperature Range | -40°C to 85°C |
| Linearity | ±1% of full scale |
| Material Compatibility | Ferrous and non-ferrous materials |
| Cable Length | 1.0 meter |
| Mounting Type | Threaded mounting, flexible |
| Protection Rating | IP67 |
Product Applications
The 330908-00-08-10-02-05 proximity probe is a versatile solution for monitoring machinery in various industries. It is primarily used for the following applications:
-
Machine Condition Monitoring: The probe is integral in real-time machine health assessments, detecting displacement or vibration in rotating machinery like turbines, motors, and compressors.
-
Rotating Equipment Vibration Analysis: Used to measure axial, radial, and overall vibration, ensuring that machinery is operating within safe parameters.
-
Power Generation: It is ideal for monitoring the condition of turbines, compressors, and other key equipment in power plants, providing early warning signs of wear or failure.
-
Oil & Gas Industry: The probe is used to monitor equipment in harsh and high-stress environments like pumps, gas compressors, and engines, contributing to predictive maintenance.
-
Aerospace & Aviation: It is applied in aircraft engine monitoring systems, helping to ensure the safe operation of engines by monitoring vibration and displacement.
-
Manufacturing & Automation: In factory environments, it helps monitor critical machinery like conveyor systems, pumps, and motors, ensuring optimal performance and reducing downtime.
Product Advantages
-
High Precision and Accuracy: The 3300 NSv proximity probe offers excellent ±1% linearity, ensuring precise displacement and vibration measurements for a wide range of industrial applications.
-
Durable Construction: Built with high-quality materials, the probe features IP67 protection, ensuring it is resistant to dust and water and can withstand harsh environments.
-
Wide Temperature Range: With an operating temperature range of -40°C to 85°C, the probe is ideal for use in both extreme cold and high-temperature environments.
-
Versatile Application: Compatible with both ferrous and non-ferrous materials, it can be used across multiple industries for a variety of applications.
-
Non-Contact Measurement: The probe provides non-contact measurement, which minimizes wear on both the probe and the target, extending the life of both.
-
Ease of Integration: The 3300 NSv proximity probe integrates seamlessly into existing monitoring systems, providing real-time data via AC output for vibration analysis.
-
Preventive Maintenance: By providing early warnings about machinery performance, it supports predictive maintenance, reducing downtime and repair costs.
-
Flexible Mounting: The threaded and flexible mounting options allow for easy installation in tight spaces or complex machinery setups.
FAQ
1. What type of measurements can the 3300 NSv proximity probe perform?
The 3300 NSv proximity probe is designed to measure displacement and vibration in rotating machinery, helping monitor axial, radial, and overall vibrations.
2. What is the operating voltage for the 3300 NSv proximity probe?
The 3300 NSv proximity probe operates with a 24 VDC supply for the sensor electronics.
3. What is the measurement range of the 3300 NSv proximity probe?
The 3300 NSv probe has a measurement range of 0 to 25 mm, suitable for a wide range of industrial applications.
4. What is the output type of the probe?
The 3300 NSv proximity probe outputs AC signals, which can be used for vibration analysis and monitoring by the control system.
5. Can the 3300 NSv proximity probe measure both ferrous and non-ferrous materials?
Yes, the 3300 NSv proximity probe is compatible with both ferrous and non-ferrous materials, making it versatile for a variety of industrial applications.
6. What is the protection rating of the 3300 NSv probe?
The 3300 NSv proximity probe has an IP67 protection rating, ensuring that it is dustproof and resistant to water.
7. What is the linearity of the measurements provided by the 3300 NSv proximity probe?
The 3300 NSv proximity probe provides a linearity of ±1% of full scale, ensuring high precision in its measurements.
8. What is the operating temperature range for the 3300 NSv proximity probe?
The 3300 NSv proximity probe operates within a temperature range of -40°C to 85°C, suitable for a variety of industrial environments.
9. How is the 3300 NSv proximity probe mounted?
The 3300 NSv proximity probe features threaded mounting for easy installation, with flexible options to fit into different machinery configurations.
10. What are the main industries that use the 3300 NSv proximity probe?
The 3300 NSv proximity probe is used in industries such as power generation, oil and gas, aerospace, and manufacturing, for monitoring rotating machinery, turbines, and pumps.
Recommended Related Models
| Model | Description |
|---|---|
| 330908-00-08-10-02-06 | Extended range version for larger machines |
| 330908-00-08-10-02-04 | Compact proximity probe for small-scale applications |
| 330908-00-08-10-02-03 | High-precision proximity probe with a wider temperature range |
| 330908-00-08-10-02-07 | Proximity probe with a faster response time |
| 330908-00-08-10-02-08 | Version with higher shock resistance for heavy-duty machines |
| 330908-00-08-10-02-02 | Proximity probe with improved environmental resistance |
