Product Introduction

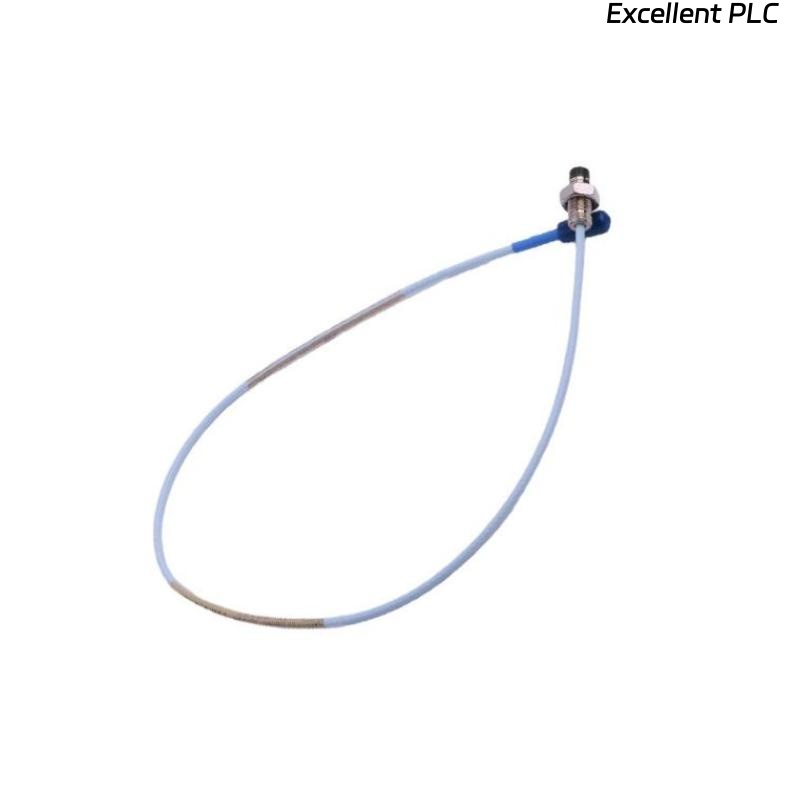

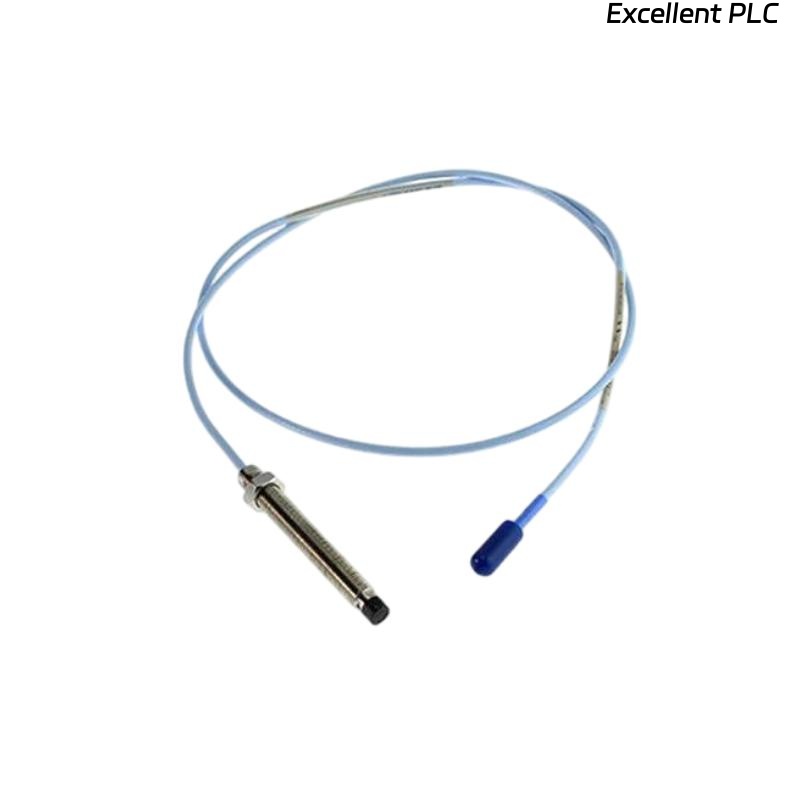

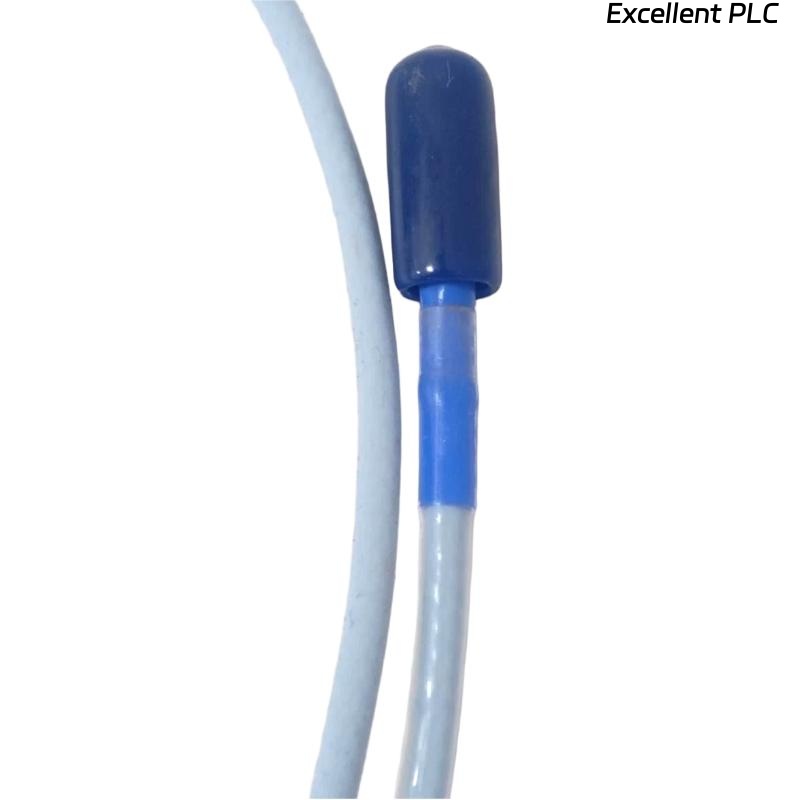

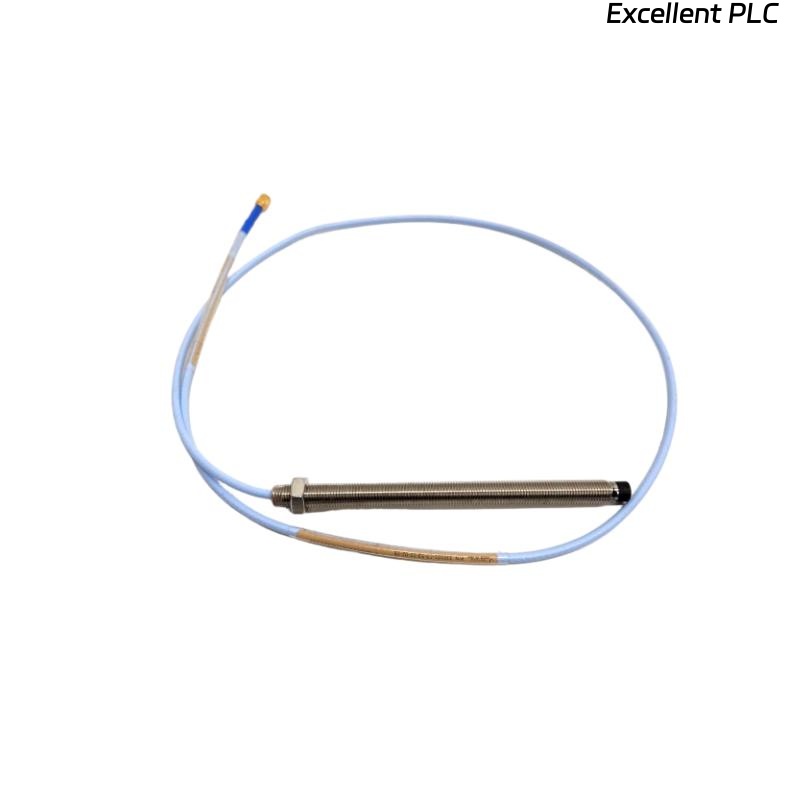

The Bently Nevada 330908-00-12-10-11-05 is a high-performance proximity probe from the 3300 NSv series, designed for precision vibration monitoring and condition assessment in industrial machinery. It is widely used to measure displacement, proximity, and vibration in a variety of rotating equipment, including turbines, motors, pumps, and compressors.
The 3300 NSv proximity probe offers reliable performance in harsh industrial environments, with its robust construction and advanced sensing technology. It is engineered to provide highly accurate data on equipment condition, enabling predictive maintenance and minimizing the risk of unexpected machinery failures.
With a total length of 1.0 meter and lightweight design at 0.15 kg, the probe is ideal for installations in confined spaces and for monitoring various types of machinery across different industries.
Product Parameters
| Parameter | Value |
|---|---|
| Model | 330908-00-12-10-11-05 |
| Total Length | 1.0 meter |
| Weight | 0.15 kg |
| Measurement Range | 0 to 25 mm |
| Output Type | AC (Alternating Current) |
| Supply Voltage | 24 VDC (for sensor electronics) |
| Operating Temperature Range | -40°C to 85°C |
| Linearity | ±1% of full scale |
| Material Compatibility | Ferrous and non-ferrous materials |
| Cable Length | 1.0 meter |
| Mounting Type | Threaded mounting, flexible |
| Protection Rating | IP67 |
| Application | Vibration and displacement monitoring |
Product Applications
The 330908-00-12-10-11-05 proximity probe is highly versatile and can be used in a wide range of industrial applications to monitor the health and performance of machinery:
-
Vibration Monitoring: It is primarily used for vibration monitoring in rotating machinery like turbines, compressors, and motors, providing early warning of misalignments, imbalance, or bearing failures.
-
Condition Monitoring in Power Plants: This probe is commonly used in power generation facilities to monitor the condition of critical equipment like gas turbines, steam turbines, and generators.
-
Industrial Automation: In industrial environments, the probe helps ensure that equipment like conveyors, pumps, and rotating machinery operate within safe and optimal parameters.
-
Aerospace & Aviation: It is used for aircraft engine monitoring, ensuring safe operation by measuring displacement and vibration.
-
Oil & Gas: Used to monitor machinery in the oil and gas sector, including compressors, pumps, and engines, where vibration and displacement monitoring is essential for performance and safety.
-
Heavy Machinery: In heavy machinery applications, it helps monitor large industrial motors, presses, and other mechanical systems that are critical to operational efficiency.
Product Advantages
-
High Measurement Precision: The 3300 NSv proximity probe offers a ±1% linearity, providing highly accurate displacement and vibration measurements.
-
Wide Temperature Range: With an operating temperature range of -40°C to 85°C, this probe is designed to work effectively in both high and low-temperature environments.
-
Robust Design: Featuring an IP67 protection rating, the probe is dustproof and resistant to water ingress, making it suitable for harsh industrial environments.
-
Non-Contact Measurement: The probe provides non-contact measurement, minimizing wear and tear on both the sensor and the machinery, extending their lifespan.
-
Flexibility in Installation: The threaded mounting allows for easy installation in tight spaces, while the 1.0-meter cable provides flexibility in positioning the probe.
-
High Voltage Compatibility: Designed to operate with a 24 VDC supply, it is compatible with standard control and monitoring systems in industrial settings.
-
Versatile Compatibility: The probe is compatible with both ferrous and non-ferrous materials, making it highly adaptable to various industrial applications.
-
Enhanced Reliability for Predictive Maintenance: By continuously monitoring machine displacement and vibration, this probe supports predictive maintenance, reducing downtime and preventing catastrophic failures.
-
Low Weight: At 0.15 kg, the probe’s lightweight design makes it easy to handle and install without compromising performance.
FAQ
1. What is the measurement range of the 3300 NSv proximity probe?
The 3300 NSv proximity probe has a measurement range of 0 to 25 mm, suitable for measuring vibration and displacement in a variety of industrial machinery.
2. What is the output type for the 3300 NSv probe?
The probe outputs an AC signal, which is used for vibration and condition monitoring in industrial systems.
3. What is the voltage supply required for the probe?
The 3300 NSv proximity probe operates with a 24 VDC supply for the sensor electronics.
4. What is the temperature range the probe can operate in?
The 3300 NSv proximity probe operates in a temperature range of -40°C to 85°C, making it suitable for use in both extreme cold and high-heat environments.
5. Can the 3300 NSv proximity probe be used with both ferrous and non-ferrous materials?
Yes, the 3300 NSv proximity probe is compatible with both ferrous and non-ferrous materials, providing versatility across different applications.
6. What is the protection rating of the 3300 NSv probe?
The 3300 NSv proximity probe is rated IP67, meaning it is dustproof and resistant to water ingress, making it suitable for harsh industrial conditions.
7. What is the mounting method for the 3300 NSv proximity probe?
The probe features threaded mounting for easy installation, providing flexibility in fitting it into a variety of machinery configurations.
8. What industries can benefit from the 3300 NSv proximity probe?
Industries such as power generation, oil and gas, aerospace, and manufacturing benefit from the probe’s ability to monitor machinery and prevent failures.
9. What is the linearity of the 3300 NSv proximity probe?
The 3300 NSv proximity probe provides ±1% linearity, ensuring highly accurate displacement and vibration measurements.
10. How does the 3300 NSv proximity probe assist in predictive maintenance?
By continuously monitoring machine vibration and displacement, the 3300 NSv proximity probe provides valuable data for predictive maintenance, allowing for the detection of issues before they lead to failures.
