Product Introduction

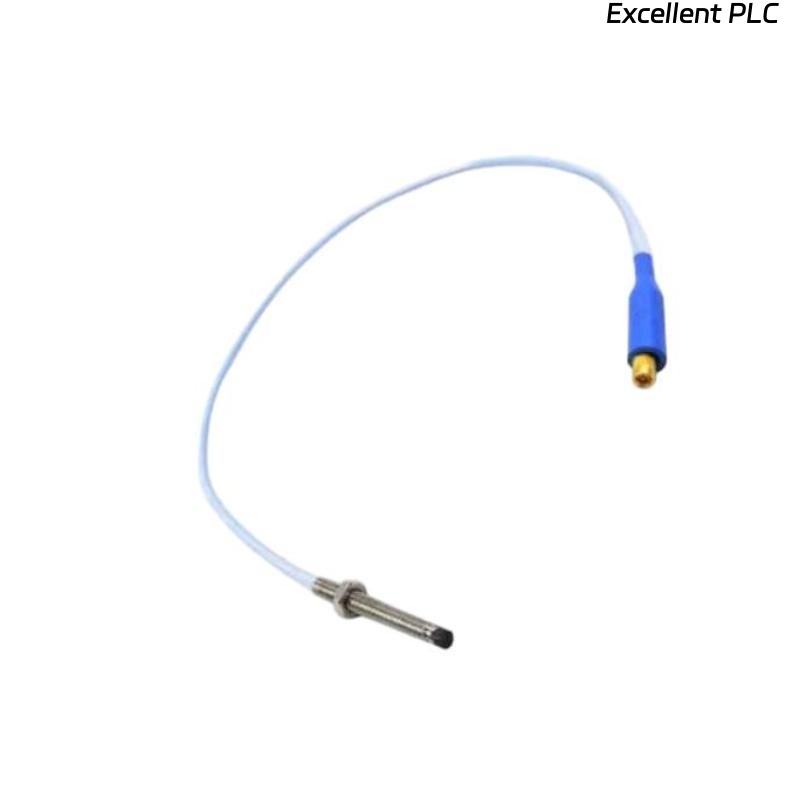

The Bently Nevada 330908-00-16-10-02-05 is an advanced 3300 NSv proximity probe designed for precision vibration and displacement monitoring in industrial machinery. It is part of the highly regarded 3300 NSv series from Bently Nevada, known for its high accuracy, reliability, and versatility in challenging environments.
This proximity probe is specifically designed for monitoring rotating machinery such as turbines, compressors, and pumps, where accurate displacement and vibration measurements are critical to preventing mechanical failure and optimizing machine performance. With a 1.0-meter cable length and weighing just 0.15 kg, this probe is perfect for use in confined spaces while maintaining excellent performance and durability.
The 3300 NSv proximity probe is capable of detecting minute changes in displacement or vibration, making it an essential tool for predictive maintenance and condition monitoring in various industries including oil and gas, power generation, aerospace, and manufacturing.
Product Parameters
| Parameter | Value |
|---|---|
| Model | 330908-00-16-10-02-05 |
| Total Length | 1.0 meter |
| Weight | 0.15 kg |
| Measurement Range | 0 to 25 mm |
| Output Type | AC (Alternating Current) |
| Supply Voltage | 24 VDC (for sensor electronics) |
| Operating Temperature Range | -40°C to 85°C |
| Linearity | ±1% of full scale |
| Material Compatibility | Ferrous and non-ferrous materials |
| Cable Length | 1.0 meter |
| Mounting Type | Threaded mounting, flexible |
| Protection Rating | IP67 |
Product Applications
The 330908-00-16-10-02-05 proximity probe is used for a wide range of industrial applications where precise measurement of displacement and vibration is crucial:
-
Vibration Monitoring for Rotating Machinery: Used in turbines, compressors, motors, and generators, the probe measures vibrations to detect imbalances, misalignments, or bearing wear that could lead to machinery failure.
-
Condition Monitoring: By providing real-time displacement and vibration data, it helps track the health of machinery, identifying potential issues before they lead to costly repairs or downtime.
-
Power Plants: This probe is critical in monitoring turbine conditions in power plants, ensuring that turbines operate smoothly and efficiently, reducing the risk of mechanical failure.
-
Oil & Gas Industry: The probe is employed in compressors, pumps, and gas turbines in the oil and gas industry, helping prevent unexpected breakdowns and ensuring continuous operations.
-
Aerospace & Aviation: It is used for monitoring engines and rotating parts in aerospace applications, ensuring the safe operation of aircraft systems.
-
Heavy Industry: Used to monitor heavy machinery in industrial manufacturing, such as presses, conveyor belts, and large motors, to maintain optimal performance and minimize risk.
Product Advantages
-
High Measurement Precision: The 3300 NSv proximity probe provides ±1% linearity, offering highly accurate measurements of displacement and vibration.
-
Broad Temperature Range: With an operating temperature range of -40°C to 85°C, the probe is suitable for use in both extreme cold and hot environments, ensuring versatility across various industrial applications.
-
Durable and Robust Design: The probe has an IP67 protection rating, making it resistant to dust and water ingress, ensuring long-lasting performance even in harsh environments.
-
Non-Contact Measurement: The probe works using non-contact measurement, which reduces wear and tear on both the probe and the machinery, extending the lifespan of both.
-
Flexible Installation Options: With its threaded mounting system and 1.0-meter cable, it offers flexibility for installation in tight spaces and difficult-to-reach areas.
-
Compatibility with Ferrous and Non-Ferrous Materials: The 3300 NSv proximity probe works with a wide range of materials, making it versatile and adaptable to various industrial applications.
-
Supports Predictive Maintenance: By providing continuous displacement and vibration data, it enables predictive maintenance, helping to detect potential failures early and reduce downtime.
-
Compact and Lightweight: With a total length of 1.0 meter and a weight of just 0.15 kg, the probe is lightweight and easy to install, even in small spaces.
-
Reliable AC Output: The AC output allows seamless integration with other monitoring equipment and control systems, ensuring consistent and accurate performance over time.
FAQ
1. What is the measurement range of the 3300 NSv proximity probe?
The 3300 NSv proximity probe measures displacement and vibration within a range of 0 to 25 mm, ideal for high-precision industrial applications.
2. What is the operating voltage required for the 3300 NSv probe?
The 3300 NSv proximity probe requires a 24 VDC supply for its sensor electronics.
3. Can the 3300 NSv probe be used with both ferrous and non-ferrous materials?
Yes, the 3300 NSv proximity probe is compatible with both ferrous and non-ferrous materials, making it highly versatile.
4. What is the output type of the 3300 NSv probe?
The probe outputs an AC signal, which is commonly used in industrial vibration and displacement monitoring systems.
5. What is the temperature range in which the 3300 NSv probe can operate?
The 3300 NSv proximity probe can operate in a temperature range from -40°C to 85°C, suitable for a variety of industrial environments.
6. What is the protection rating of the 3300 NSv proximity probe?
The 3300 NSv proximity probe has an IP67 protection rating, meaning it is dustproof and resistant to water ingress, making it suitable for harsh environments.
7. How is the 3300 NSv proximity probe mounted?
The 3300 NSv proximity probe is mounted using a threaded system, allowing for flexible and easy installation in confined spaces.
8. What are the main applications of the 3300 NSv proximity probe?
The 3300 NSv proximity probe is used for vibration monitoring, condition monitoring, and predictive maintenance in industries such as power generation, oil and gas, manufacturing, and aerospace.
9. What is the linearity of the 3300 NSv proximity probe?
The 3300 NSv proximity probe offers ±1% linearity, ensuring precise measurements of vibration and displacement.
10. How does the 3300 NSv proximity probe assist in predictive maintenance?
The 3300 NSv proximity probe helps by continuously monitoring vibration and displacement, providing data that can detect early signs of mechanical failure, allowing for predictive maintenance and minimizing the risk of costly breakdowns.
