Product Introduction

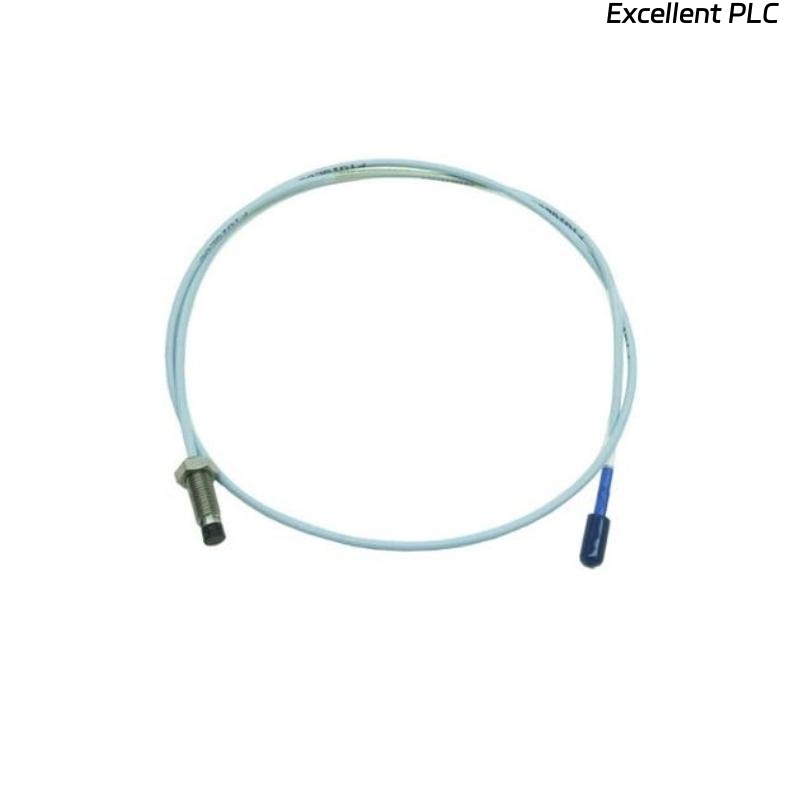

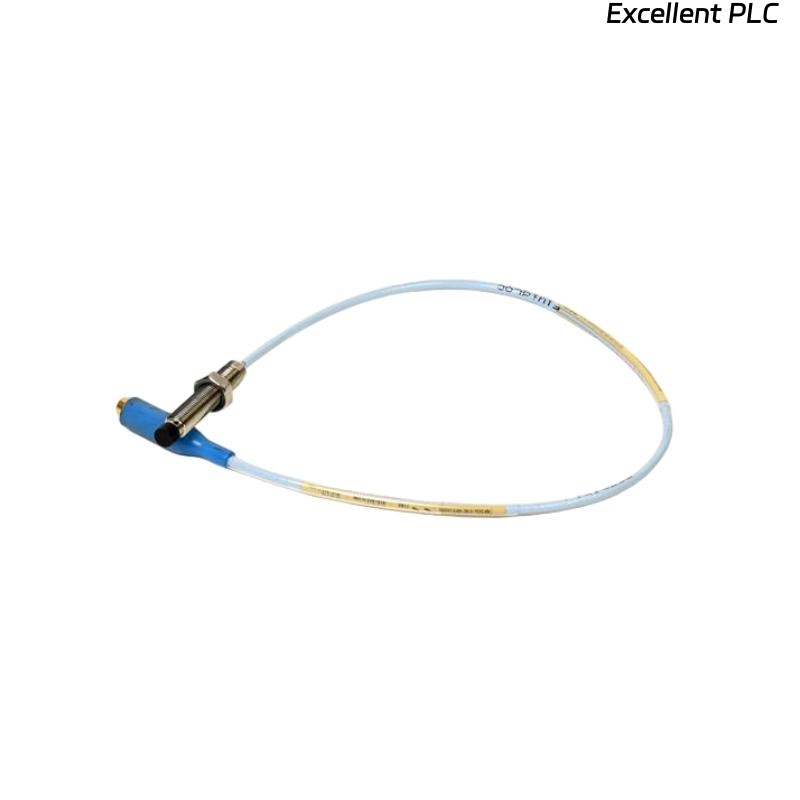

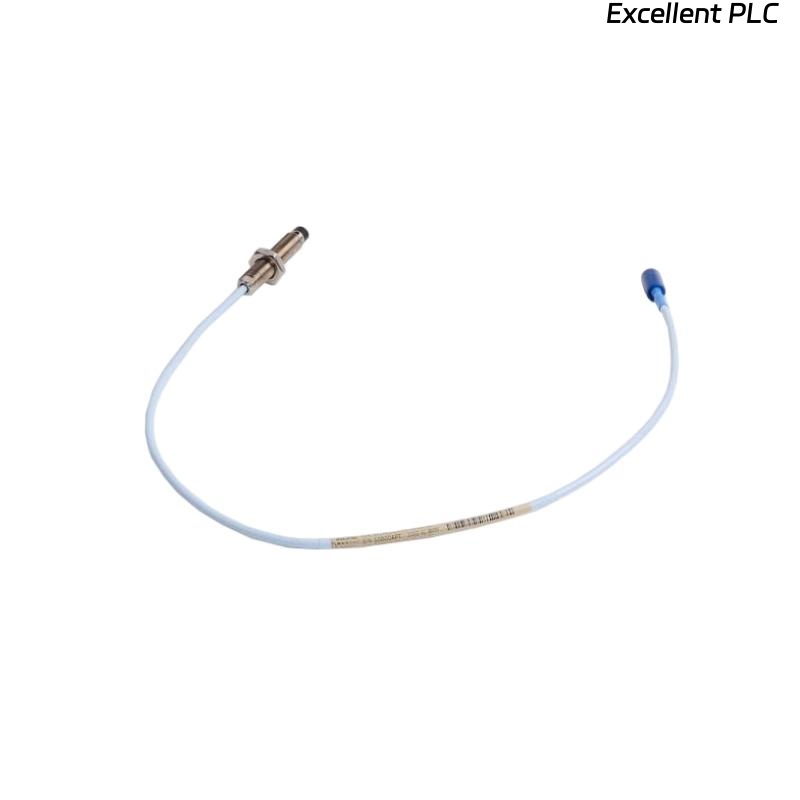

The Bently Nevada 330908-00-16-70-02-EN is a precision proximity probe from the 3300 NSv series, designed to measure displacement and vibration in rotating machinery. With its 7.0-meter cable length and lightweight design at 0.15 kg, this probe offers flexibility and reliability for long-distance monitoring, making it ideal for applications in large-scale industrial environments.
The 3300 NSv proximity probe is renowned for its high precision and ability to provide accurate measurements in harsh environments, ensuring the reliable monitoring of machinery such as turbines, compressors, and pumps. By providing non-contact measurement, it enhances the lifespan of both the sensor and the equipment being monitored.
It plays a crucial role in predictive maintenance, allowing operators to detect early signs of faults, such as misalignment, imbalance, or bearing wear, well before they lead to significant downtime or failure.
Product Parameters
| Parameter | Value |
|---|---|
| Model | 330908-00-16-70-02-EN |
| Total Length | 7.0 meters |
| Weight | 0.15 kg |
| Measurement Range | 0 to 25 mm |
| Output Type | AC (Alternating Current) |
| Supply Voltage | 24 VDC (for sensor electronics) |
| Operating Temperature Range | -40°C to 85°C |
| Linearity | ±1% of full scale |
| Material Compatibility | Ferrous and non-ferrous materials |
| Cable Length | 7.0 meters |
| Mounting Type | Threaded mounting, flexible |
| Protection Rating | IP67 |
Product Applications
The 330908-00-16-70-02-EN proximity probe is ideal for a range of industrial applications, where long-distance measurement of displacement and vibration is required:
-
Vibration Monitoring for Rotating Equipment: Used in turbines, compressors, motors, and generators to measure vibration and displacement, helping detect imbalance, misalignment, or bearing faults.
-
Condition Monitoring: Continuously monitors machinery health, providing real-time data on equipment condition, allowing operators to detect potential issues before they lead to costly repairs or failure.
-
Power Plants: In power generation facilities, the probe is used to monitor critical equipment like gas turbines, steam turbines, and generators, helping to prevent unexpected breakdowns.
-
Oil & Gas Industry: Commonly deployed in the oil and gas sector to monitor pumps, compressors, and other essential machinery, ensuring continuous operations.
-
Aerospace & Aviation: In aerospace, the probe is used for monitoring engines and rotating parts in aircraft, ensuring safe and efficient operation.
-
Heavy Industry and Manufacturing: Widely used in heavy manufacturing and processing industries, such as in presses, motors, and other large machinery, to maintain optimal performance.
Product Advantages
-
High Measurement Precision: The 3300 NSv proximity probe offers ±1% linearity, delivering high accuracy in displacement and vibration measurements, crucial for machine health monitoring.
-
Extended Cable Length: With a 7.0-meter cable, the probe provides flexibility for installations in large-scale or remote equipment where proximity sensors need to cover greater distances.
-
Durable and Robust: Rated IP67, the probe is dustproof and water-resistant, making it suitable for use in challenging industrial environments.
-
Non-Contact Measurement: The probe operates using non-contact measurement, which minimizes wear on both the sensor and the machinery, ensuring long-lasting performance.
-
Broad Temperature Range: Capable of operating in environments ranging from -40°C to 85°C, this probe is ideal for use in various temperature conditions.
-
Threaded Mounting for Easy Installation: The threaded mounting system allows for straightforward installation in tight or hard-to-reach spaces, while the flexible mounting options provide versatility.
-
Versatile Material Compatibility: Compatible with both ferrous and non-ferrous materials, the probe can be used across various industrial applications, increasing its adaptability.
-
Predictive Maintenance: With continuous monitoring, the probe provides data essential for predictive maintenance, enabling early detection of faults and reducing the risk of unplanned downtime.
-
Compact and Lightweight: At only 0.15 kg, the probe is easy to handle and install, even in limited space, without compromising its precision and accuracy.
-
AC Output for Integration: The AC output allows easy integration into existing monitoring systems, providing reliable and consistent performance in real-time applications.
FAQ
1. What is the measurement range of the 3300 NSv proximity probe?
The 3300 NSv proximity probe has a measurement range of 0 to 25 mm, ideal for detecting small displacements and vibrations in industrial machinery.
2. What is the required voltage supply for the 3300 NSv proximity probe?
The 3300 NSv proximity probe requires a 24 VDC supply to power its sensor electronics.
3. What is the output type of the 3300 NSv probe?
The 3300 NSv proximity probe provides an AC output, commonly used in industrial vibration and displacement monitoring systems.
4. Can the 3300 NSv probe be used with both ferrous and non-ferrous materials?
Yes, the 3300 NSv proximity probe is compatible with both ferrous and non-ferrous materials, making it versatile for a wide range of applications.
5. What is the protection rating of the 3300 NSv probe?
The 3300 NSv proximity probe has an IP67 protection rating, meaning it is dustproof and resistant to water ingress.
6. What is the temperature range for the 3300 NSv proximity probe?
The probe operates in an ambient temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
7. How is the 3300 NSv proximity probe mounted?
The 3300 NSv proximity probe uses a threaded mounting system, allowing it to be securely installed in a variety of positions and configurations.
8. What industries benefit from using the 3300 NSv proximity probe?
Industries such as power generation, oil and gas, aerospace, and manufacturing benefit from the 3300 NSv proximity probe’s ability to monitor machinery condition and prevent failures.
9. What is the linearity of the 3300 NSv probe?
The 3300 NSv proximity probe offers ±1% linearity, providing highly accurate measurements of vibration and displacement.
10. How does the 3300 NSv proximity probe assist in predictive maintenance?
By continuously measuring displacement and vibration, the 3300 NSv proximity probe provides valuable data that can identify early signs of mechanical issues, enabling predictive maintenance and preventing costly repairs.
