Product Overview

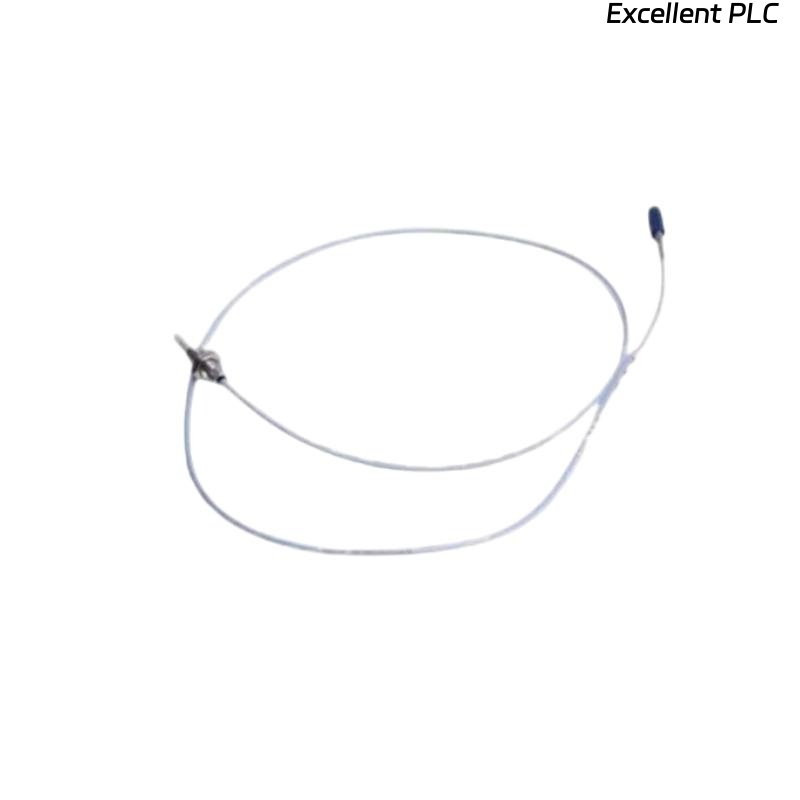

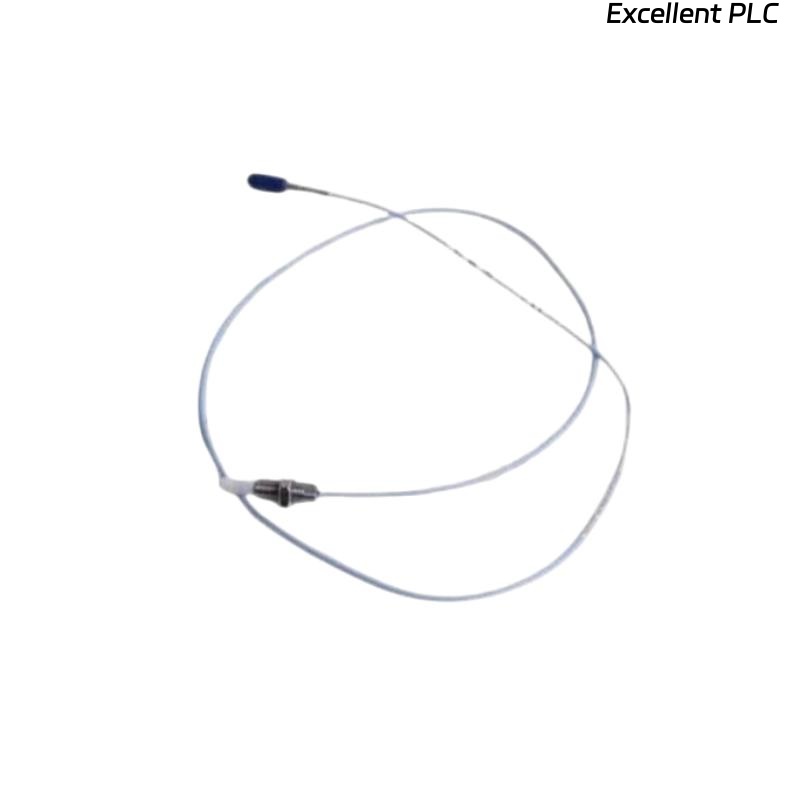

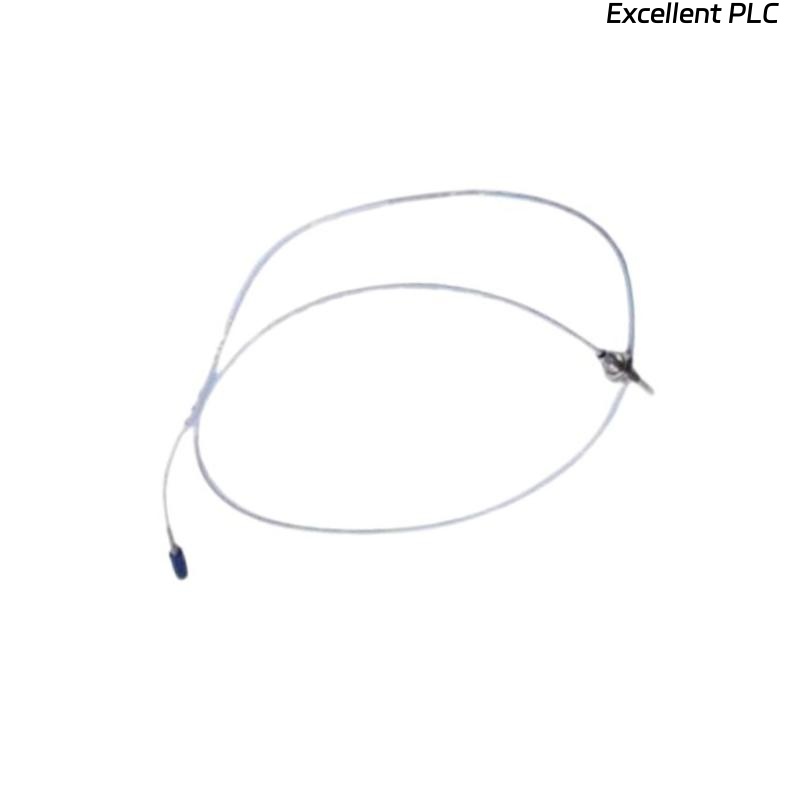

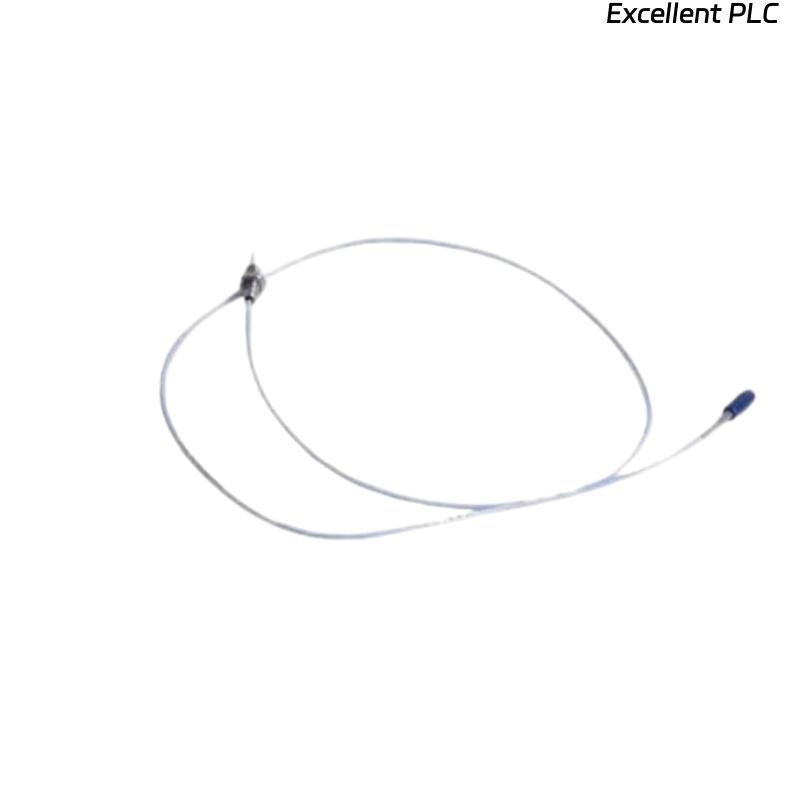

The Bently Nevada 330908-22-31-10-01-05 3300 NSv Proximity Probe is a precision-engineered probe designed to measure shaft vibration and position in compact, high-speed rotating machinery. With its 5 mm diameter and 31 mm length, it provides accurate measurements even in limited installation spaces where standard 8 mm probes cannot be used.
Key Features
-
Compact 5 mm probe ideal for confined or limited-space installations
-
Designed for use with the Bently Nevada 3300 NSv Proximity Transducer System
-
Provides precise and linear shaft vibration and position data
-
Resistant to oil, dust, and industrial contaminants
-
Wide operating temperature range and robust construction
-
High reliability for continuous monitoring
-
Easy installation and field replacement
-
Ensures stable and accurate readings over time
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330908-22-31-10-01-05 |
| Product Type | 3300 NSv Proximity Probe |
| System Compatibility | 3300 NSv Proximity Transducer System |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.15 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve installation |
| Applications | Shaft vibration, position monitoring, and machinery protection |
Industry Applications
-
Small and medium-sized turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and industrial fans
-
Oil and gas equipment monitoring
-
Power generation and process automation systems
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330908-22-31-10-01-05 probe?
It measures shaft vibration and position in compact rotating machinery.
Q2: What system is it compatible with?
It is compatible with the Bently Nevada 3300 NSv Proximity Transducer System.
Q3: What are its physical dimensions?
It has a 5 mm diameter and 31 mm length.
Q4: What is the measurement range?
The linear range is 0–1.0 mm (0–40 mils).
Q5: What is its typical sensitivity?
7.87 V/mm (200 mV/mil) typical.
Q6: What environments can it operate in?
It can operate between –35 °C and +177 °C and resist oil and dust exposure.
Q7: How is it installed?
It is installed using a threaded sleeve for secure mounting.
Q8: Where is it commonly used?
In small turbines, compressors, motors, and other space-constrained machinery requiring precision monitoring.
