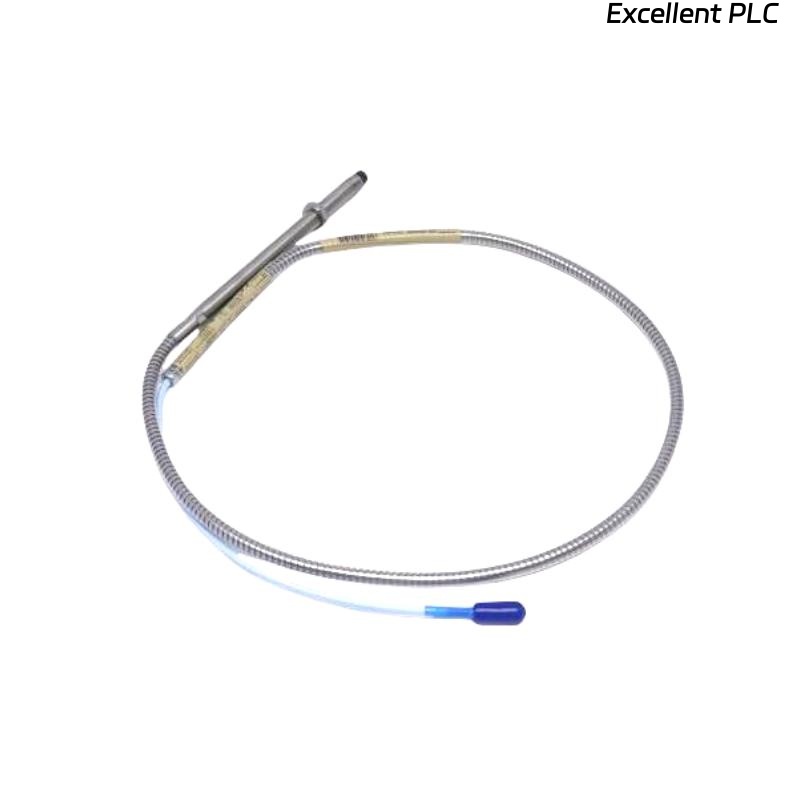

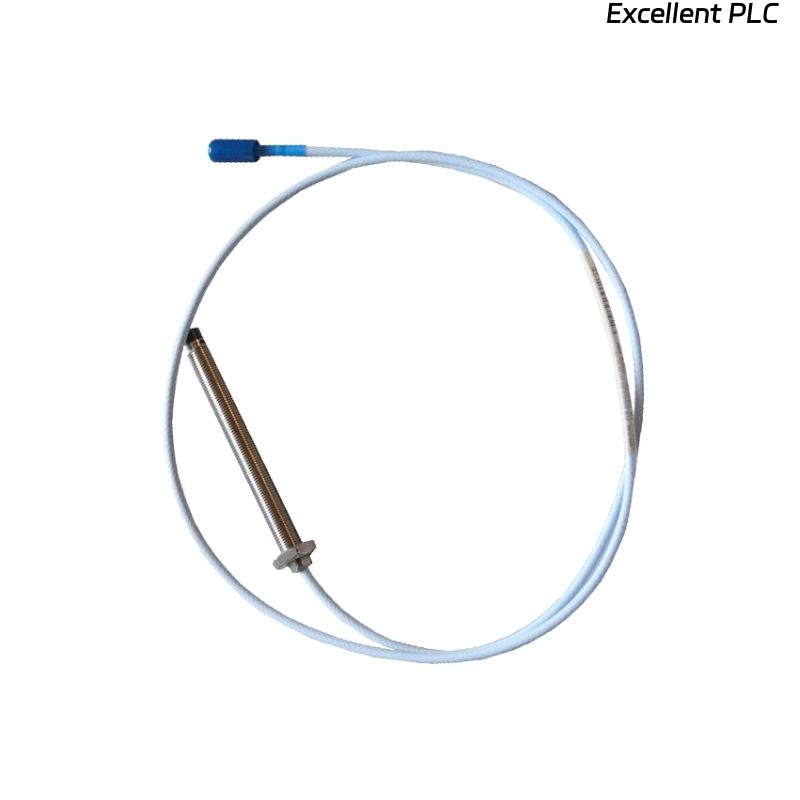

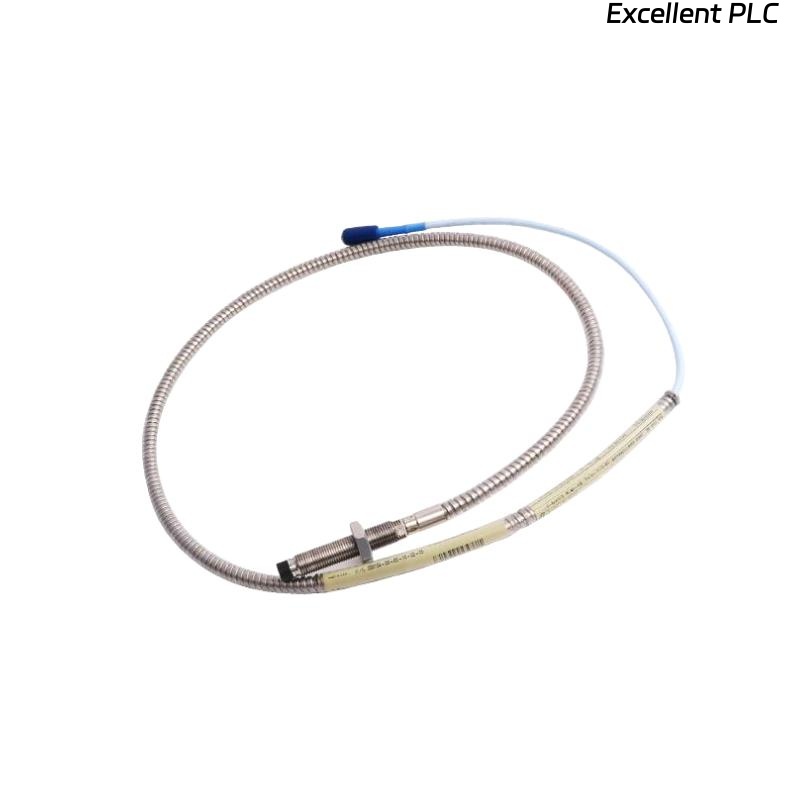

Bently Nevada 330909-00-20-10-02 3300 NSv Proximity Probe

Product Introduction

The Bently Nevada 330909-00-20-10-02 3300 NSv Proximity Probe is an advanced non-contact eddy current sensor specifically designed for machinery vibration and displacement monitoring in space-constrained installations. Built on the proven 3300 NSv (Narrow Side-view) technology, this probe provides reliable, high-precision measurements of shaft vibration, rotor position, and axial displacement. Its durable stainless-steel construction and excellent signal stability make it ideal for harsh industrial environments such as petrochemical plants, power generation stations, and high-speed rotating machinery facilities. The 330909 model extends the NSv line with a 1-meter total length for greater installation flexibility, maintaining exceptional accuracy and long-term reliability.

---

Product Specifications

---

Applications

• Steam and Gas Turbines: Accurate shaft vibration and displacement measurements for predictive maintenance.

• Compressors and Pumps: Detects rotor imbalance and misalignment, enabling early intervention.

• Electric Motors and Generators: Ensures precise monitoring of rotor position for improved reliability.

• Industrial Fans and Gearboxes: Identifies mechanical looseness and misalignment.

• Petrochemical Equipment: Resists corrosive environments while providing continuous monitoring.

• High-speed Rotating Machinery: Essential for confined or narrow mounting spaces where standard probes cannot fit.

---

Advantages

• Compact 8 mm Sensing Tip: Perfect for tight installations without sacrificing measurement accuracy.

• High Accuracy Eddy Current Sensing: Provides stable, repeatable displacement and vibration data.

• Rugged Design: Stainless steel construction ensures durability in high-temperature and high-vibration settings.

• Extended Cable Length: 1-meter total length provides installation flexibility in challenging layouts.

• Broad Temperature Range: Operates from –35 °C to +177 °C with reliable performance.

• Excellent Frequency Response: Captures dynamic shaft motion up to 10 kHz for comprehensive monitoring.

• EMI/RFI Protection: Shielded design reduces electromagnetic interference in noisy industrial environments.

• Seamless Integration: Compatible with Bently Nevada 3300 NSv Proximitor drivers and standard 3300 series systems.

---

FAQ

1. What sensing technology does the 330909-00-20-10-02 use?
   It utilizes eddy current technology for non-contact displacement and vibration measurement.

2. What is the standard output sensitivity of this probe?
   It provides approximately 7.87 V/mm (200 mV/mil), ensuring accurate signal response.

3. Which monitoring systems are compatible with this probe?
   It integrates seamlessly with Bently Nevada 3300 NSv Proximitor drivers and 3300 series monitoring systems.

4. How should the probe be mounted for optimal performance?
   It is typically mounted using a 1/4–28 UNF threaded connection or a compatible clamp.

5. What is the linear measurement range for accurate readings?
   The probe maintains linear accuracy within ±1.0 mm around the nominal probe-to-shaft gap.

6. Can this probe handle high-vibration industrial environments?
   Yes, its robust design is engineered for stable performance under extreme vibration and harsh conditions.

7. What is the probe’s frequency response capability?
   It provides accurate dynamic measurements up to 10 kHz.

8. Does the probe require periodic recalibration?
   Initial calibration with its Proximitor driver is recommended; subsequent recalibration is minimal.

9. How does the probe resist electromagnetic interference?
   It is equipped with a shielded cable and stainless steel housing to mitigate EMI and RFI effects.

10. Can it measure both static and dynamic displacement?
    Yes, it supports simultaneous static shaft displacement and dynamic vibration measurement.

---
