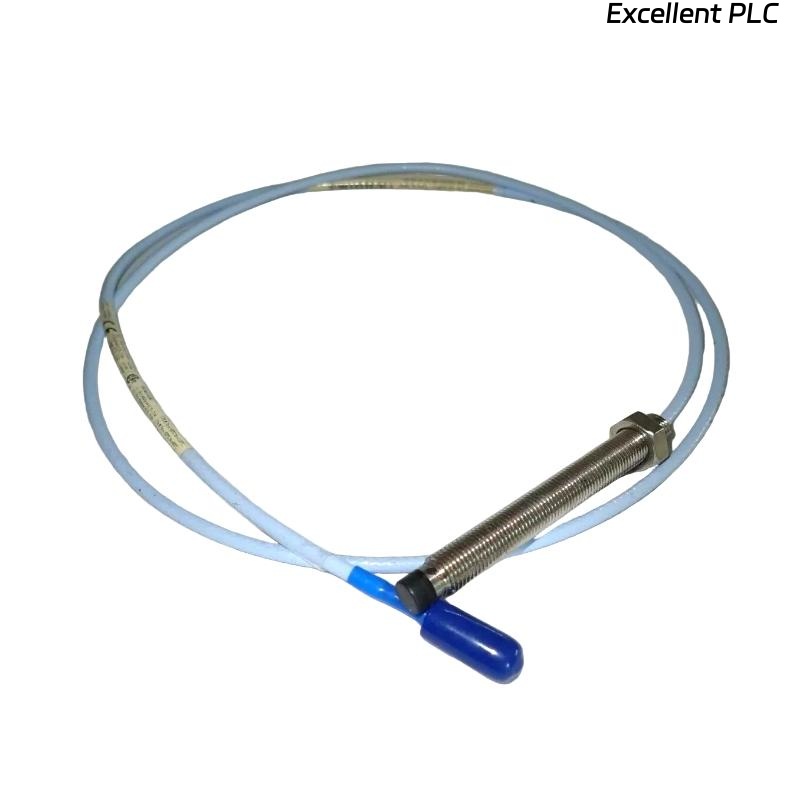

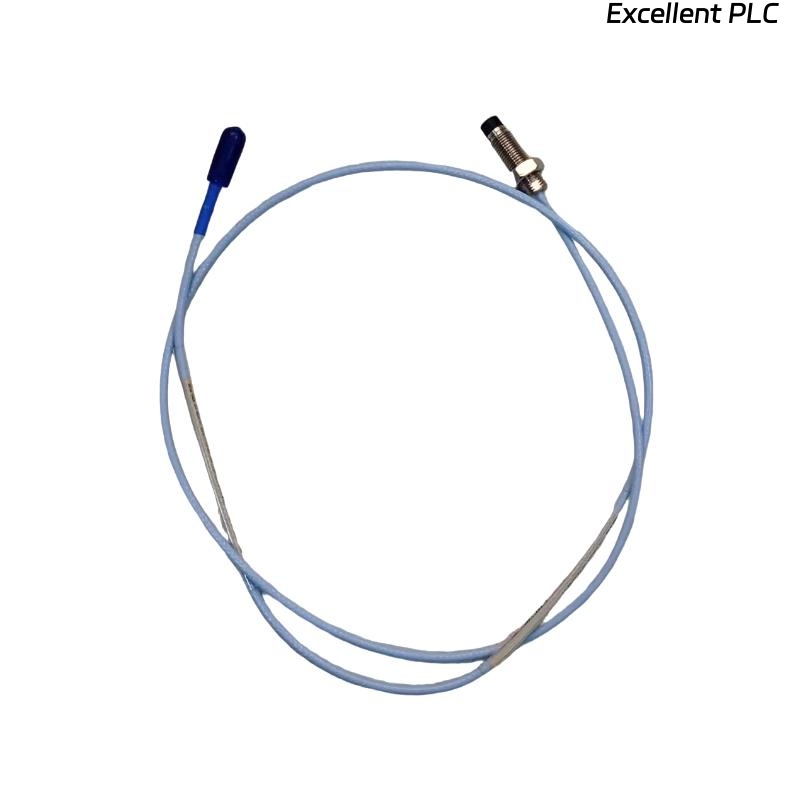

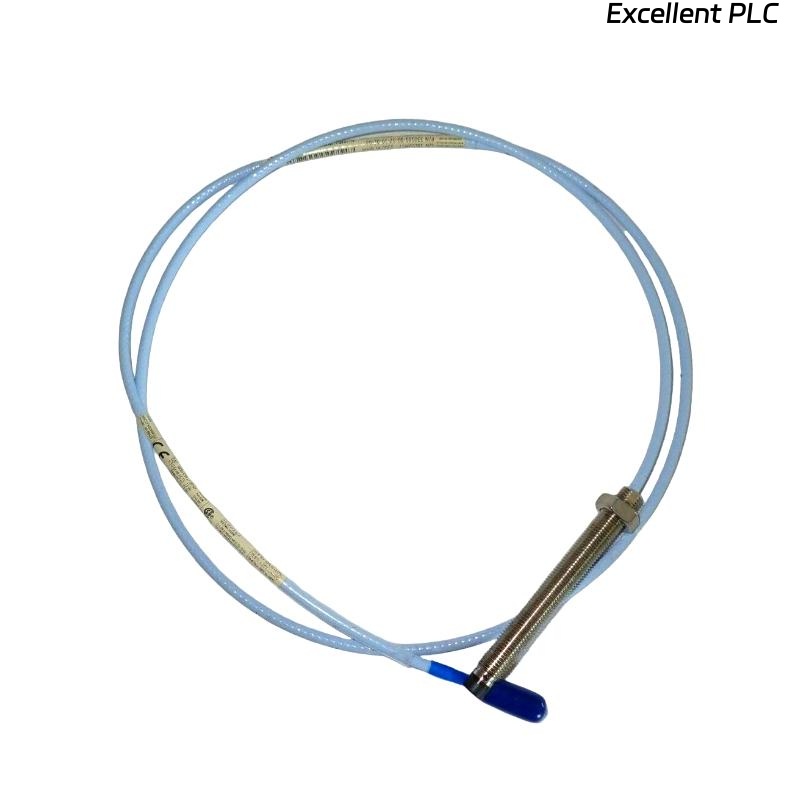

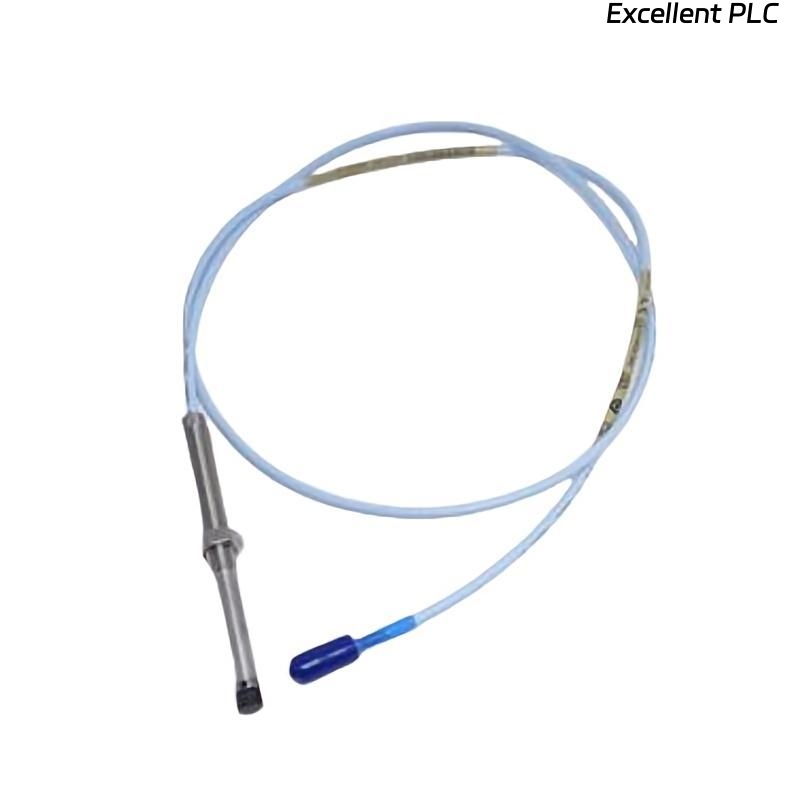

Bently Nevada 330909-00-24-70-02-05 3300 NSv Proximity Probe

Product Introduction

The Bently Nevada 330909-00-24-70-02-05 3300 NSv Proximity Probe is a precision eddy current sensor designed for accurate, non-contact measurement of shaft vibration and radial displacement. Part of the 3300 NSv (Narrow Side-view) series, this probe is engineered for installations where standard 8 mm probes are too large or where extended cable routing is required. Its rugged stainless-steel housing, long cable design, and excellent signal stability make it ideal for demanding industrial environments such as power generation, petrochemical processing, and high-speed rotating machinery.

---

Product Specifications

---

Applications

• Steam and Gas Turbines – Continuous monitoring of shaft vibration and radial displacement to prevent costly downtime.

• Compressors and Pumps – Early detection of imbalance, shaft misalignment, and bearing wear for predictive maintenance.

• Electric Motors and Generators – Ensures reliable rotor position feedback to enhance operational performance.

• Industrial Fans and Gearboxes – Detects misalignment and mechanical looseness before major failures occur.

• Petrochemical Equipment – Provides stable operation in corrosive and high-temperature environments.

• Long-Distance Installations – Seven-meter cable accommodates extended routing in large or complex machinery.

---

Advantages

• Extended 7 m Cable – Simplifies installation where long cable routing is required.

• Compact 8 mm Probe Tip – Perfect for narrow or space-constrained machinery.

• Accurate Eddy Current Sensing – Delivers stable vibration and displacement data.

• Rugged Stainless-Steel Housing – Ensures long life in demanding industrial conditions.

• Wide Operating Temperature Range – Maintains accuracy from –35 °C to +177 °C.

• Broad Frequency Response – Captures shaft dynamics up to 10 kHz for detailed diagnostics.

• Excellent EMI/RFI Shielding – Provides reliable operation in electrically noisy environments.

• Full System Compatibility – Seamlessly integrates with 3300 NSv Proximitor and 3300 monitoring systems.

---

FAQ

1. What sensing technology is used in this probe?
   It uses non-contact eddy current technology to measure shaft vibration and radial displacement with high precision.

2. What is the output sensitivity?
   The typical sensitivity is 7.87 V/mm (200 mV/mil), ensuring accurate signal conversion.

3. Which monitoring systems are compatible?
   It is fully compatible with Bently Nevada 3300 NSv Proximitor drivers and the standard 3300 monitoring series.

4. What is the recommended installation method?
   Mounting is typically done with a 1/4–28 UNF threaded hole or an equivalent clamp to maintain the correct probe-to-target gap.

5. What is the linear measurement range of this probe?
   It provides a linear range of ±1.0 mm around the nominal probe-to-target gap.

6. Can it be used in high-temperature industrial environments?
   Yes, it operates reliably from –35 °C to +177 °C and withstands storage up to +200 °C.

7. What is the maximum frequency response?
   The probe supports a dynamic frequency response from 0 to 10 kHz for detailed vibration analysis.

8. Does it require frequent recalibration?
   Only initial calibration with the Proximitor driver is needed; routine recalibration is minimal.

9. How does it handle electrical interference?
   It is shielded against EMI and RFI to maintain a stable and noise-free output signal.

10. Is it suitable for both static and dynamic measurements?
    Yes, it provides accurate static shaft position readings as well as dynamic vibration measurements.

---
